Mitsubishi Galant IX (2003-2006) multi- purpose fuse 14 Wiring diagram
This page shows the only wiring diagram for the component.multi- purpose fuse 14, which is found in the car Mitsubishi Galant IX (2003-2006). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

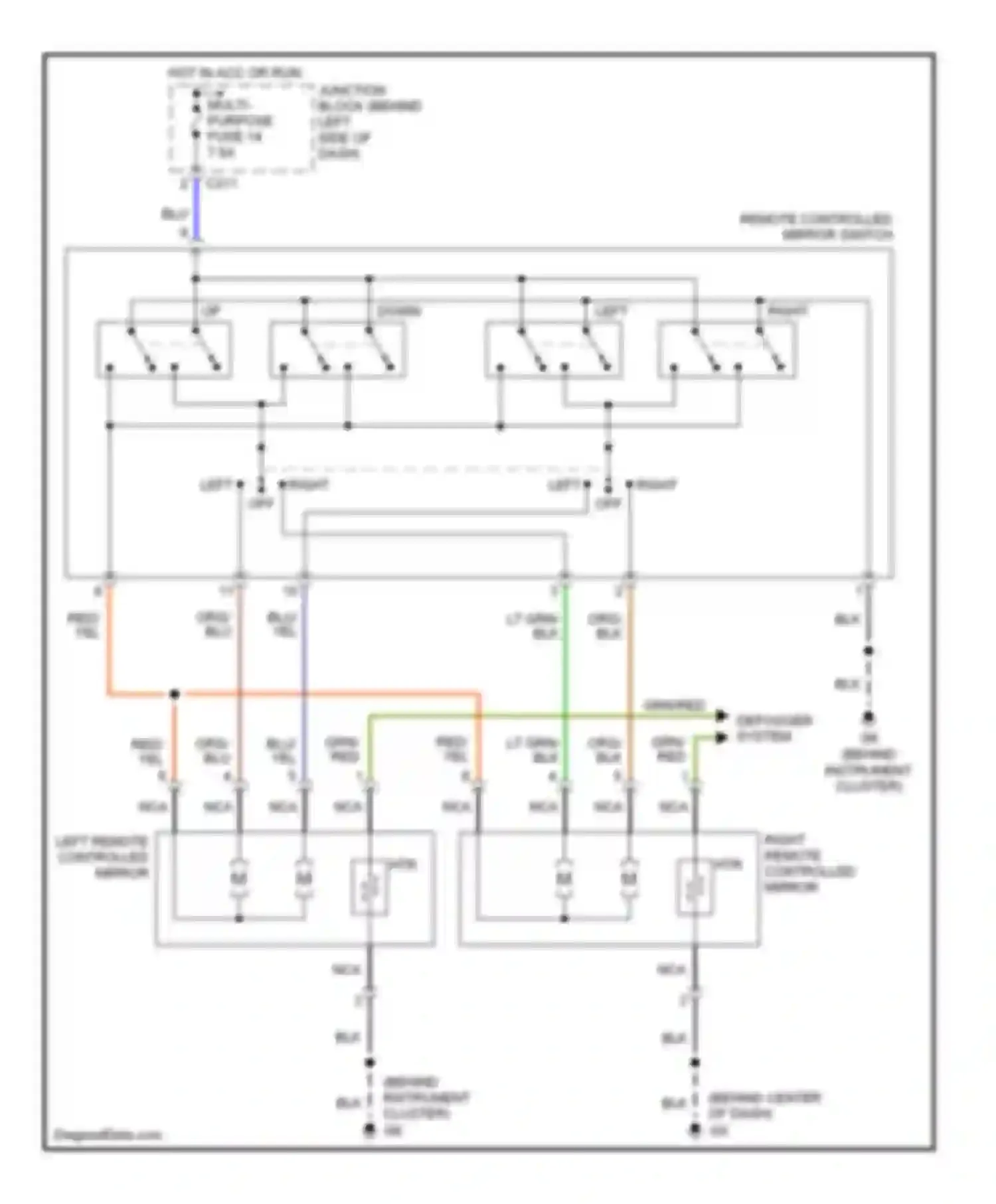

Wiring diagram multi- purpose fuse 14 (1 of 1)
BLK WIRE
BLU WIRE
DEFOGGER SYSTEM
DOWN
GRN WIRE
GRN/RED WIRE
HOT IN ACC OR RUN
HTR
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
LEFT
LEFT OFF
LEFT REMOTE CONTROLLED MIRROR
LEFT RIGHT OFF
LT GRN WIRE
MULTI- PURPOSE FUSE 14
NCA WIRE
ORG/ WIRE
RED WIRE
REMOTE CONTROLLED MIRROR SWITCH
RIGHT
RIGHT REMOTE CONTROLLED MIRROR HTR
YEL WIRE
Go to component -> Power mirrors circuit -> MULTI- PURPOSE FUSE 14
