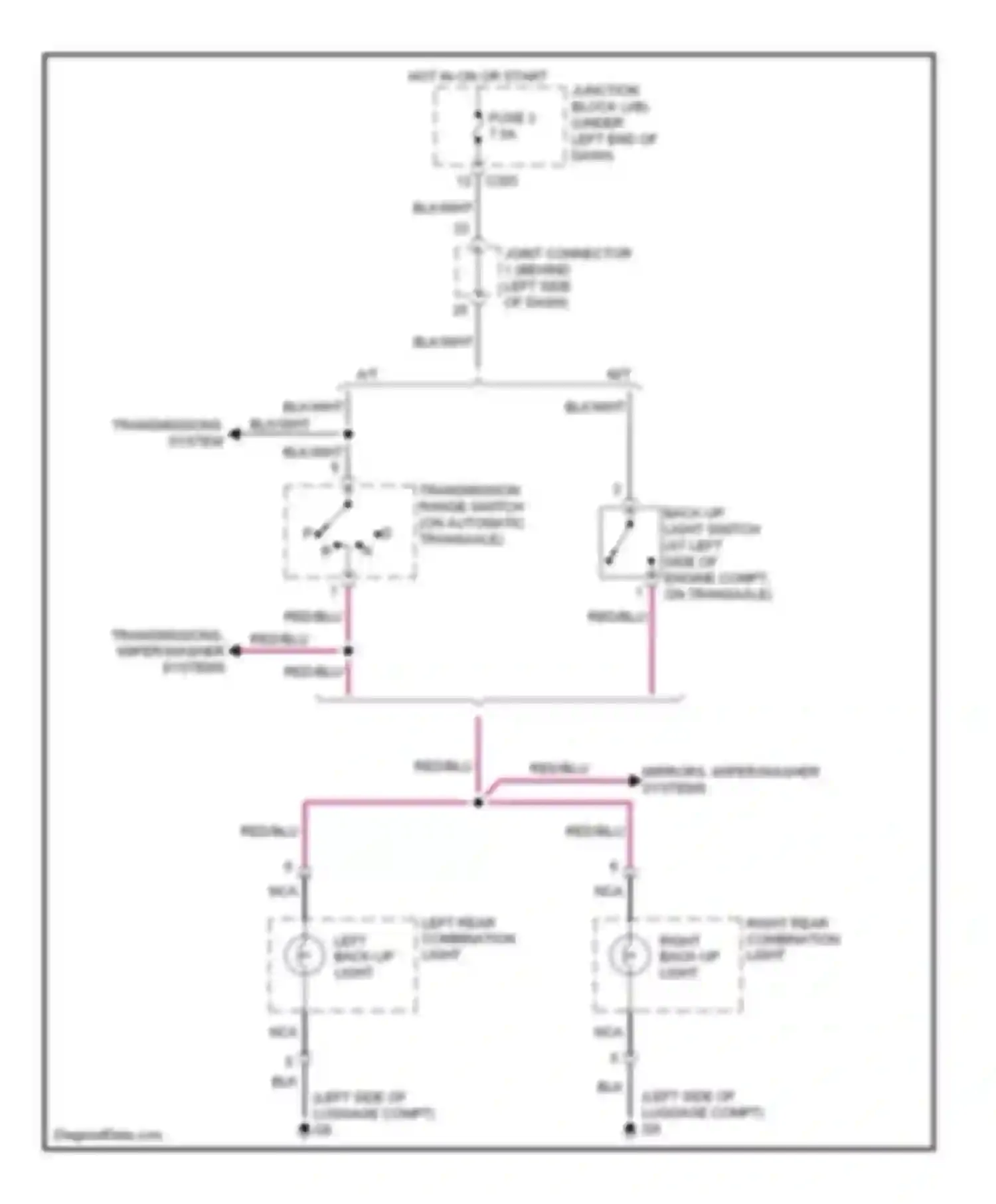

Back-up lamps circuit for Mitsubishi Eclipse IV (2005-2008)
Back-up lamps circuit
A/T
BACK-UP LIGHT SWITCH (AT LEFT SIDE OF ENGINE COMPT, ON TRANSAXLE)
BLK WIRE
BLK/WHT WIRE
FUSE 3
HOT IN ON OR START
JOINT CONNECTOR 1 (BEHIND LEFT SIDE OF DASH)
JUNCTION BLOCK (J/B) (UNDER LEFT END OF DASH)
LEFT BACK-UP
LEFT REAR COMBINATION LIGHT
LIGHT
M/T
MIRRORS, WIPER/WASHER SYSTEMS
NCA WIRE
RED/BLU WIRE
RIGHT BACK-UP
RIGHT REAR COMBINATION LIGHT
TRANSMISSION RANGE SWITCH (ON AUTOMATIC TRANSAXLE)
TRANSMISSIONS SYSTEM
TRANSMISSIONS, WIPER/WASHER SYSTEMS
