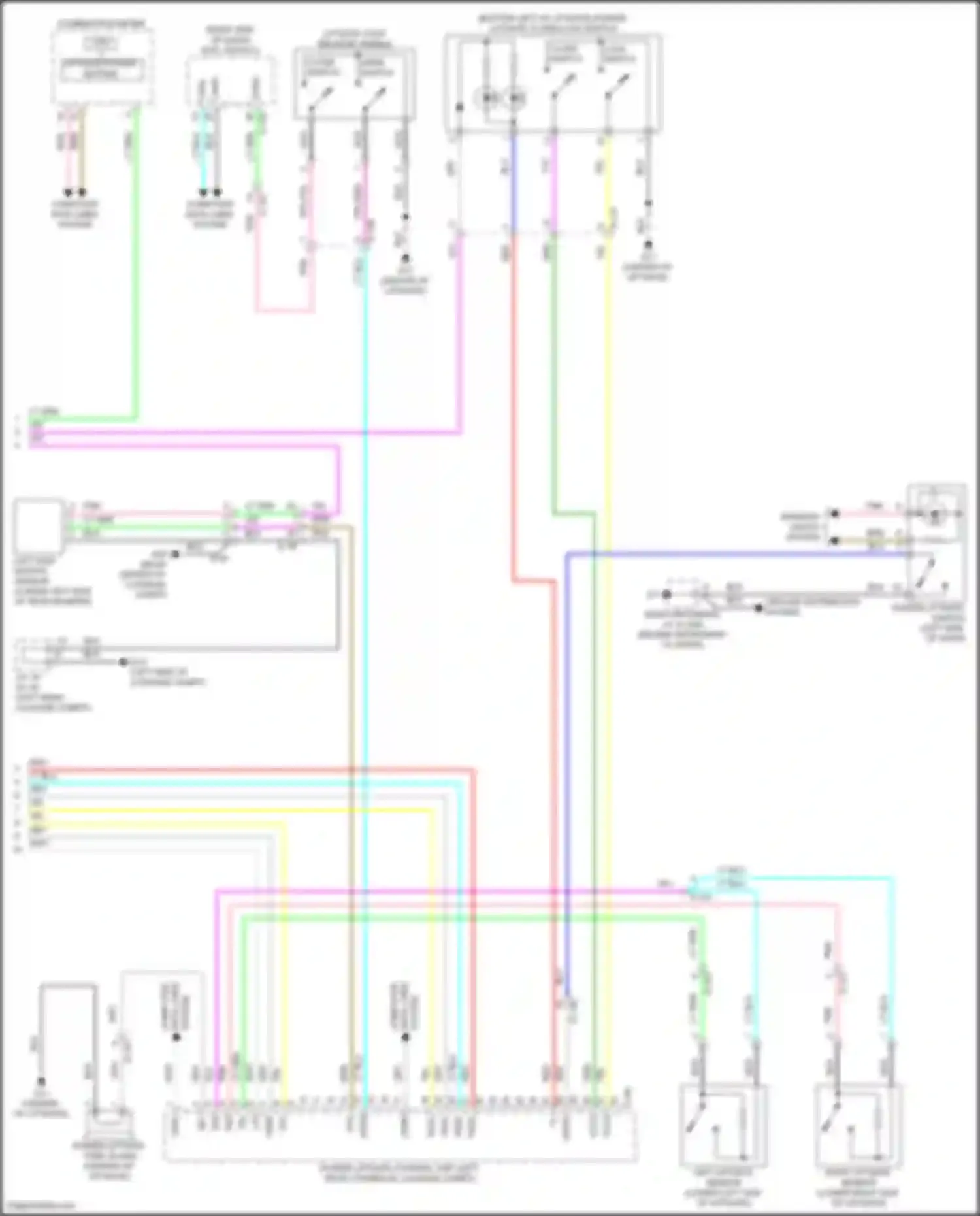

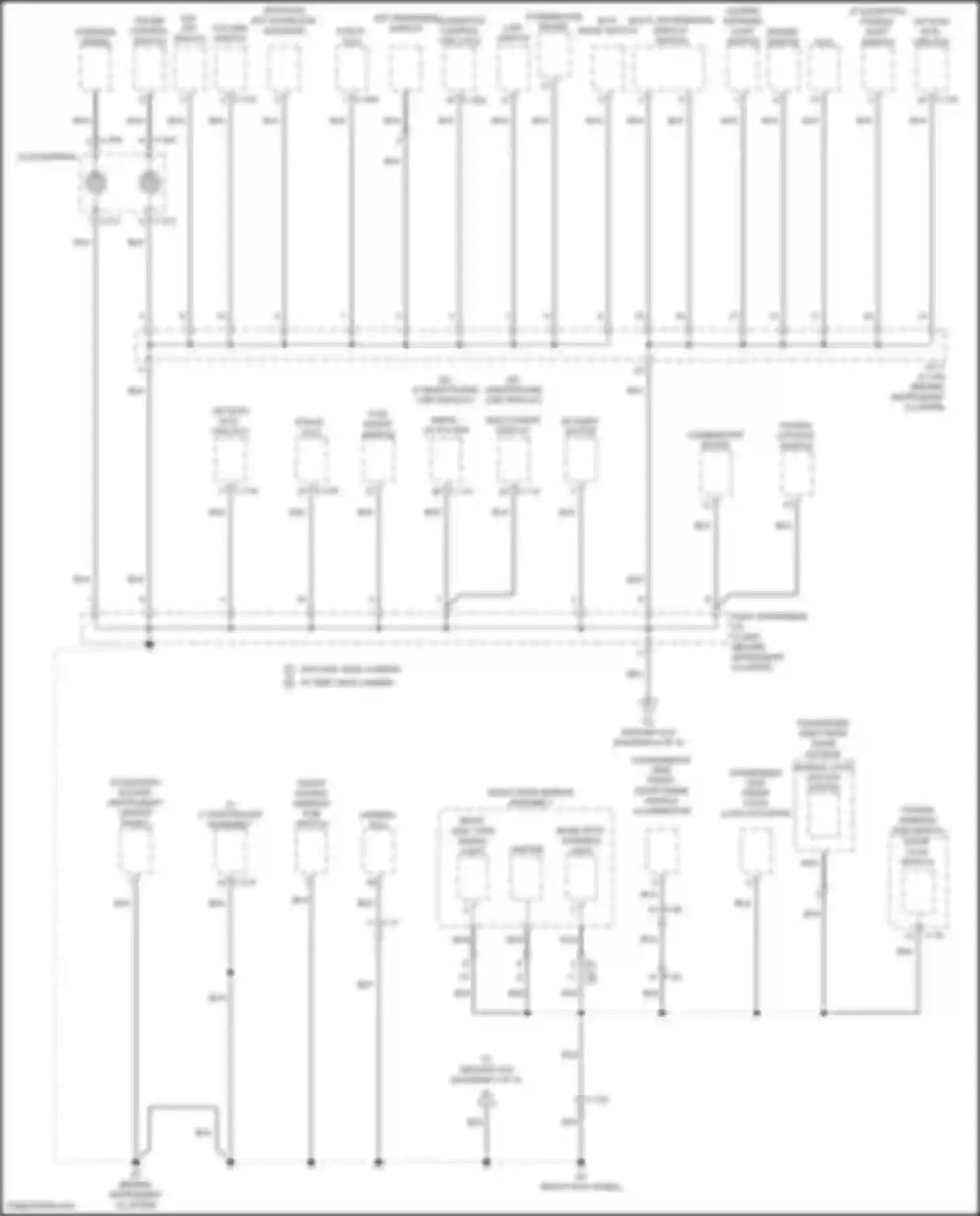

Mitsubishi Eclipse Cross I facelift (2020-2024) power liftgate switch Wiring diagrams

A/C CONTROLLER ASSEMBLY ACCESSORY SOCKET (INSTRUMENT CENTER PANEL) ASC OFF SWITCH BLIND SPOT WARNING LIGHT BLK WIRE BLOWER MOTOR C-113 C-114 C-118 C-122 C-129 C-17 C-214 C-252 C-303 C-304 C-311 C-312 C-315 C-403 C-418 CAMERA- ECU CLOCKSPRING COLUMN SWITCH COMBINATION METER CRUISE CONTROL SWITCH DASH GROUNDING J/C (C-202) ECO MODE SWITCH ENGINE SWITCH ETACS-ECU F-19 F-23 F-28 FCM ON/OFF SWITCH FRONT POWER WINDOW SUB SWITCH HAZARD WARNING LIGHT SWITCH HEATER HUD J/C 4 (C-104) KEY INTERLOCK SOLENOID KEY REMINDER SWITCH KOS, OSS-ECU LDW SWITCH MULTI VISION DISPLAY MULTI- INFORMATION DISPLAY SWITCH NCA WIRE PADDLE SHIFT SWITCH PASSENGER SIDE FRONT DOOR LOCK ACTUATOR PASSENGER SIDE FRONT DOOR OUTSIDE HANDLE LOCK/ UNLOCK SWITCH PASSENGER'S SIDE FRONT DOOR INSIDE HANDLE ILLUMINATION POWER LIFTGATE SWITCH POWER WINDOW SUB SWITCH DOOR LOCK SWITCH RADIO, CD PLAYER RIGHT DOOR MIRROR ASSEMBLY RIGHT SIDE TURN SIGNAL LIGHT STEERING WHEEL) TELEMATICS CONTROL UNIT (TCU) W/ KOS W/ SIDE VIEW CAMERA W/O KOS W/O SIDE VIEW CAMERA

BLK WIRE BLU WIRE BRN WIRE BZ + C-122 C-147 CLOSE SWITCH COMBINATION METER COMPUTER COMPUTER DATA LINES SYSTEM D-108 D-141 D-148 D-16 D-58 DASH GROUNDING J/C (C-202) DATA LINES G-20 GCLS GOPN GRN WIRE GROUND DISTRIBUTION SYSTEM GRY WIRE GTRQ HARF HFIL ILL J/C 16 (D-13) KOS, OSS-ECU LEFT KICK MOTION SENSOR LEFT LIFTGATE SENSOR LIFTGATE LOCK RELEASE HANDLE LIFTGATE POWER SETTING LOCK SWITCH LT BLU WIRE LT GRN WIRE LTH NCA WIRE NTL OPEN SWITCH OPSW PLCS PNK WIRE POWER LIFTGATE CONTROL UNIT (LEFT REAR CORNER OF LUGGAGE COMPT) POWER LIFTGATE SWITCH POWER LIFTGATE TONE ALARM PPL/RED WIRE PPL/YEL WIRE PSAL PSBL PSGL PSVL RED WIRE RIGHT LIFTGATE SENSOR SYSTEM TSG TSL TSR VIO WIRE WHT WIRE YEL WIRE
