Mitsubishi Eclipse Cross I (2017-2022) left turn signal indicator light Wiring diagram
This page shows the only wiring diagram for the component.left turn signal indicator light, which is found in the car Mitsubishi Eclipse Cross I (2017-2022). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

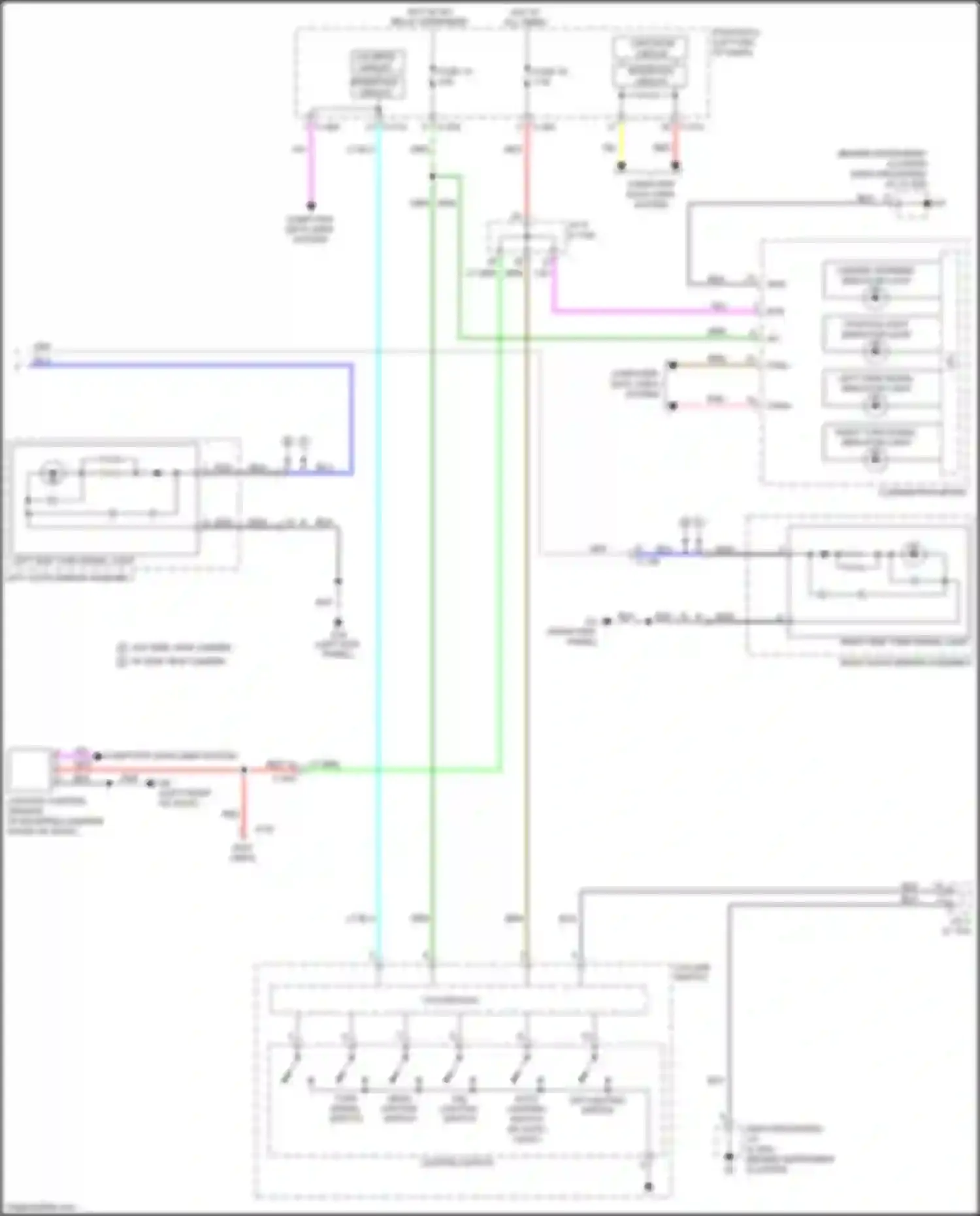

Wiring diagram left turn signal indicator light (1 of 1)
+BB
AUTO LIGHTING SWITCH
BLK WIRE
BLU WIRE
BRN WIRE
C-128
C-243
C-402
C-403
C-405
C-414
CAN DRIVE CIRCUIT
COLUMN ECU
COLUMN SWITCH
COMBINATION METER
COMPUTER DATA LINES SYSTEM
DASH GROUNDING J/C (C-202)
E-05
ETACS-ECU
FUSE 15
FUSE 18
GRN WIRE
GRY WIRE
HAZARD WARNING INDICATOR LIGHT
HEAD LIGHTING SWITCH
HOT AT ALL TIMES
INTERFACE CIRCUIT
J/C 4 (C-104)
J/C 8 (C-103)
LEFT DOOR MIRROR ASSEMBLY
LEFT SIDE TURN SIGNAL LIGHT
LEFT TURN SIGNAL INDICATOR LIGHT
LIGHTING CONTROL SENSOR
LIGHTING SWITCH
LIN DRIVE CIRCUIT
LT BLU WIRE
LT GRN WIRE
NCA WIRE
OFF LIGHTING SWITCH
PNK WIRE
POSITION LIGHT INDICATOR LIGHT
RED WIRE
RELAY ENERGIZED
RIGHT DOOR MIRROR ASSEMBLY
RIGHT SIDE TURN SIGNAL LIGHT
RIGHT TURN SIGNAL INDICATOR LIGHT
TAIL LIGHTING SWITCH
TURN SIGNAL SWITCH
VIO WIRE
W/ AUTO LIGHT
W/O SIDE VIEW CAMERA W/ SIDE VIEW CAMERA
YEL WIRE
Go to component -> Exterior lamps circuit (3 of 3) -> LEFT TURN SIGNAL INDICATOR LIGHT
