MINI John Cooper Works III facelift (2018-2021) tailgate central locking drive Wiring diagrams

This page contains all the electrical diagrams for the component. tailgate central locking drive, in which he is found in the car MINI John Cooper Works III facelift (2018-2021). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

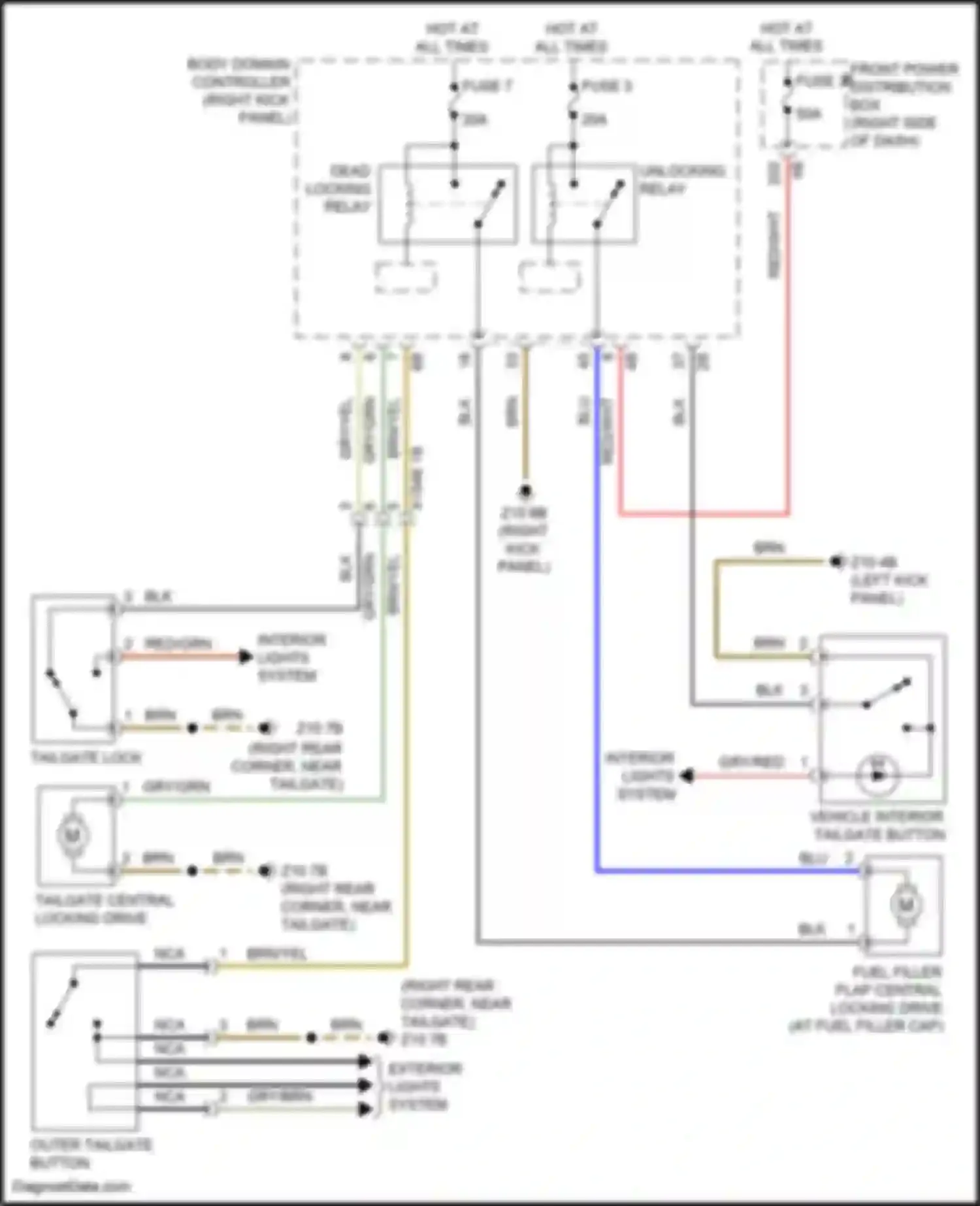

Wiring diagram tailgate central locking drive (2 of 4)

Go to component -> Ground distribution circuit (3 of 4) -> TAILGATE CENTRAL LOCKING DRIVE
