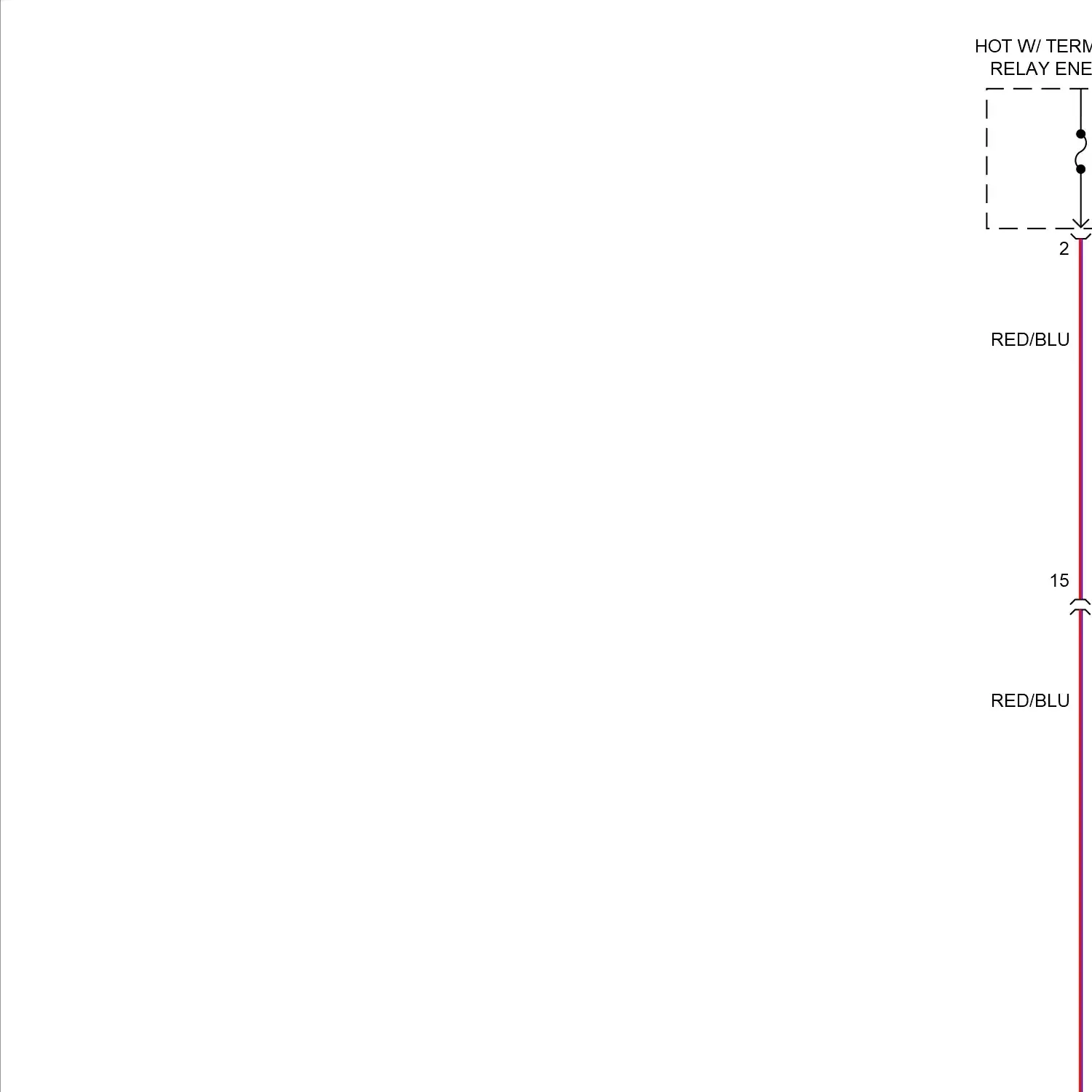

Wiring Diagrams for MINI John Cooper Works III facelift (2018-2021)

Automatic a/c circuit

Anti-lock brakes circuit

Access/start circuit Anti-theft & central locking circuit, convertible Anti-theft & central locking circuit, hatchback

Body control modules circuit

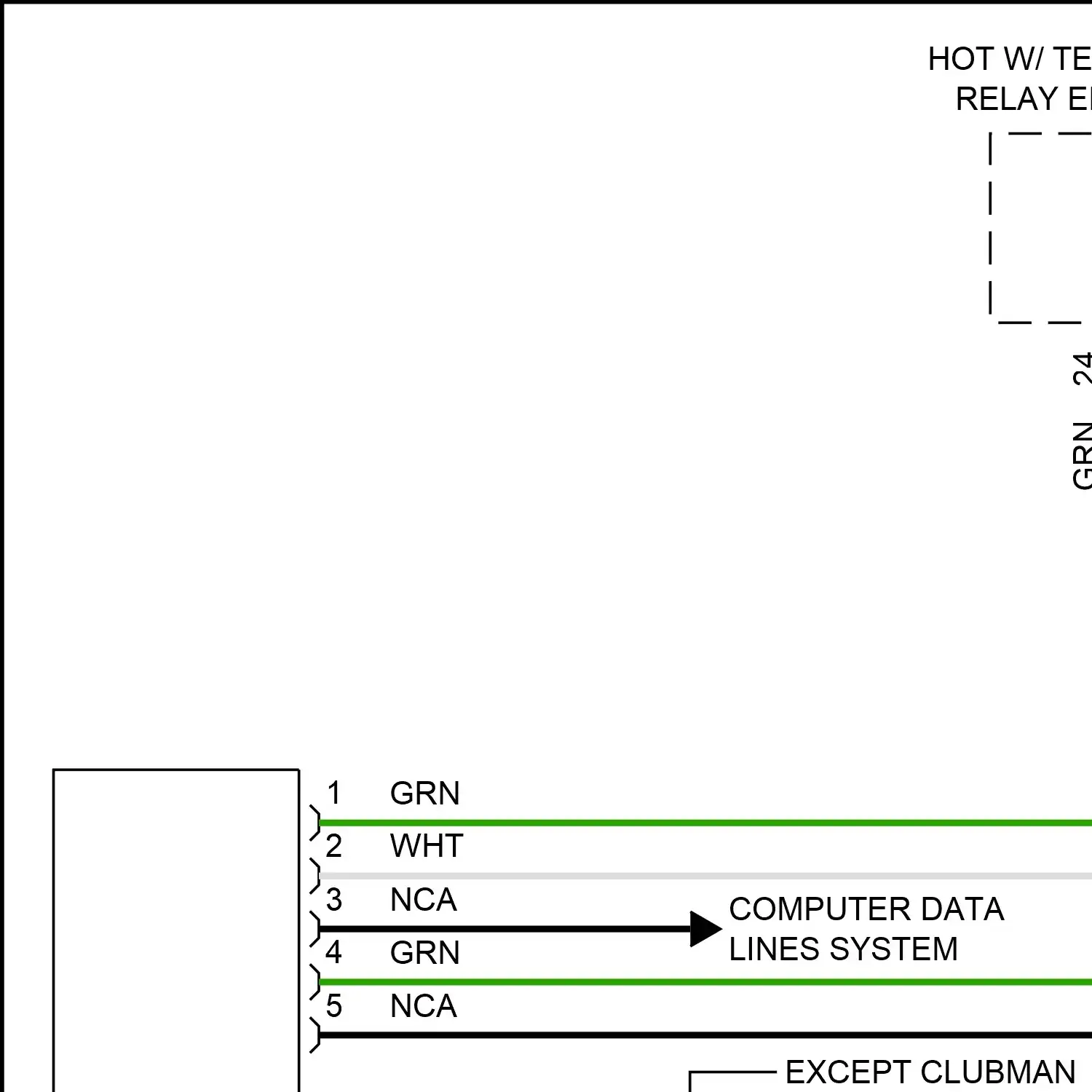

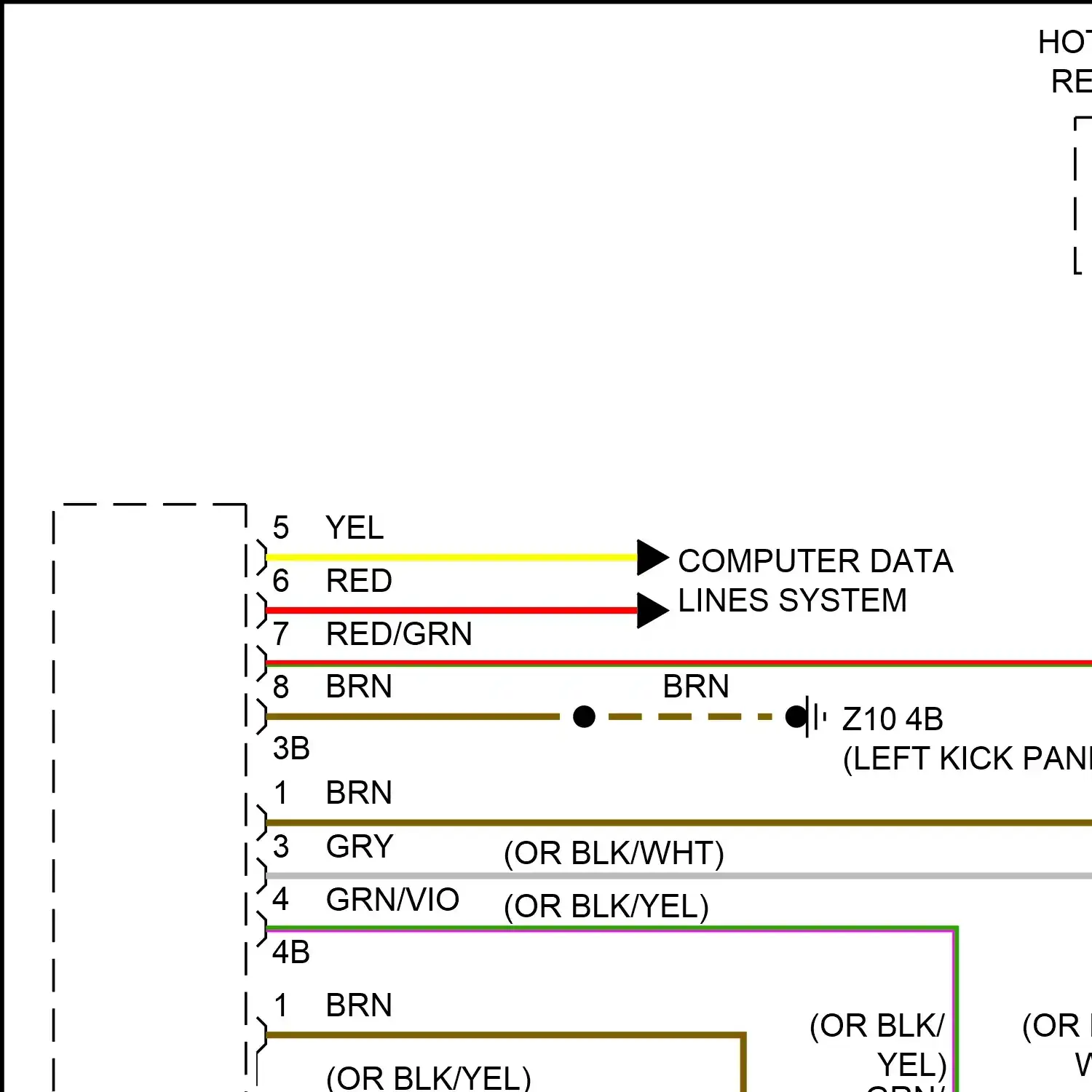

Data link connector circuit High/low bus circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

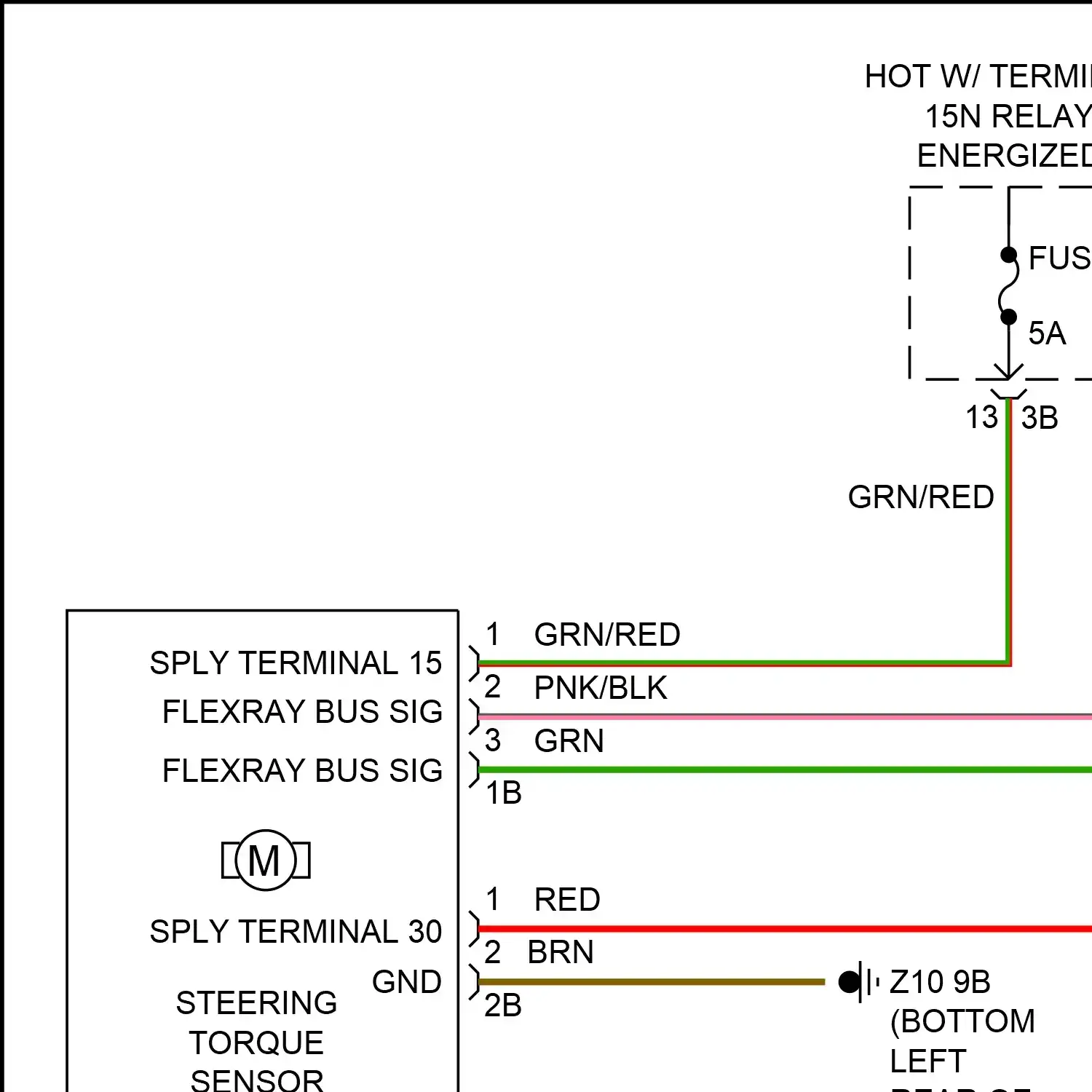

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 1.5l turbo

Wiring diagram engine performance 2.0l turbo

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory mirrors circuit Memory seat circuit

Lane departure warning circuit Navigation circuit, hatchback 3-door w/ base radio w/o active sound design Navigation circuit, hatchback 5-door w/ base radio w/o active sound design Navigation circuit, w/ base radio & active sound design Navigation circuit, w/ hifi radio & active sound design Navigation circuit, w/ hifi radio w/o active sound design Parking assistant circuit Rear camera circuit

Power distribution circuit

Power door locks circuit, convertible Power door locks circuit, hatchback

Electrochromic mirror circuit Power mirrors circuit, w/ lin bus function Power mirrors circuit, w/o lin bus function

Heated seats circuit, w/ memory Heated seats circuit, w/o memory Lumbar circuit Passenger power seat circuit

Convertible top circuit Sunroof circuit

Power windows circuit

Radio circuit, hatchback 3-door w/ base radio w/o active sound design Radio circuit, hatchback 5-door w/ base radio w/o active sound design Radio circuit, w/ base radio & active sound design Radio circuit, w/ hifi radio & active sound design Radio circuit, w/ hifi radio w/o active sound design

Charging circuit Starting circuit

Supplemental restraints circuit

Transmission circuit

Contact-free tailgate opening circuit Trunk & fuel door release circuit, convertible Trunk & fuel door release circuit, hatchback

Warning systems circuit

Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, CRUISE CONTROL, EXTERIOR LIGHTS SYSTEMS BOOT LID/ TAILGATE LOCK BOOT LID/TAILGATE LOCK SIG DRIVER BELT FORCE LIMITER GAS GENERATOR DRIVER KNEE AIR BAG GAS GENERATOR DRIVER SIDE AIR BAG GAS GENERATOR DRIVER'S DOOR LOCK DRIVER'S SIDE REAR DOOR LOCK ELECTRIC STEERING LOCK ELECTRIC STEERING LOCK SPLY FRONT PASSENGER BELT FORCE LIMITER GAS GENERATOR FRONT PASSENGER DOOR LOCK FRONT PASSENGER KNEE AIR BAG GAS GENERATOR FRONT PASSENGER SIDE AIR BAG GAS GENERATOR HIFI AMPLIFIER HIGH-VOLTAGE STARTER GENERATOR HOOD CONTACT LOCK SIG IGN COIL 1 ACTIVATION IGN COIL 1 SPLY IGN COIL 2 ACTIVATION IGN COIL 2 SPLY IGN COIL 3 ACTIVATION IGN COIL 3 SPLY IGN COIL 4 ACTIVATION IGN COIL 4 SPLY IGNITION COIL CYLINDER 1 IGNITION COIL CYLINDER 2 IGNITION COIL CYLINDER 3 IGNITION COIL CYLINDER 4 LEFT FRONT VALVE COIL LEFT HEAD AIR BAG GAS GENERATOR LEFT REAR VALVE COIL LEFT ROLLOVER PROTECTION GAS GENERATOR LEFT SPLIT DOOR LOCK LEFT WASHER NOZZLE HEATER LIGHT-EMITTING DIODE LIGHT ACT PARKING LOCK SIG PASSENGER'S SIDE REAR DOOR LOCK RIGHT FRONT VALVE COIL RIGHT HEAD AIR BAG GAS GENERATOR RIGHT REAR VALVE COIL RIGHT ROLLOVER PROTECTION GAS GENERATOR RIGHT SPLIT DOOR LOCK RIGHT WASHER NOZZLE HEATER RIGHT-HAND SPLIT DOOR LOCK SAFETY BATTERY GAS GENERATOR SAFETY BATTERY TERMINAL GAS GENERATOR SUBWOOFER FANFARE HORN SUBWOOFER FANFARE HORN ACT TAILGATE LOCK TERMINATING RESISTOR 2 TWEETER FANFARE HORN TWEETER FANFARE HORN ACT VEHICLE SOUND GENERATOR W/ TERMINATING RESISTOR W/O TERMINATING RESISTOR W/O TERMINATING RESISTOR

(RIGHT FRONT OF ENGINE AIR DISTRIBUTION FLAP MOTOR BLOWER MOTOR DEFROSTER FLAP MOTOR DIGITAL MOTOR ELECTRONICS ELECTROMOTIVE THROTTLE ACTUATOR ENGINE CONTROLS SYSTEM ENGINE START SIG ENGINE STRT SIG ENGINE VENTILATION HEATING EXHAUST VANOS SOLENOID ACTUATOR FOOTWELL FLAP MOTOR FRESH AIR/RECIRCULATED AIR FLAP MOTOR INTAKE VANOS SOLENOID ACTUATOR LED ACT AUTOMATIC ENGINE START STOP FUNCTION LEFT FRONT PEDESTRIAN PROTECTION ACTUATOR LEFT MIXED AIR FLAP MOTOR LEFT REAR PEDESTRIAN PROTECTION ACTUATOR PUMP MOTOR RIGHT FRONT PEDESTRIAN PROTECTION ACTUATOR RIGHT MIXED AIR FLAP MOTOR RIGHT REAR PEDESTRIAN PROTECTION ACTUATOR SERVO MOTOR STARTER MOTOR

ANTENNA DIVERSITY ANTENNA SIGNAL AMPLIFIER 2 BLUETOOTH ANTENNA BUMPER ANTENNA DRIVER'S SIDE EXTERIOR ANTENNA FRONT CENTER CONSOLE INTERIOR ANTENNA LEFT SIDE WINDOW ANTENNA LUGGAGE COMPARTMENT ANTENNA PASSENGER SIDE EXTERIOR ANTENNA REAR BUMPER ANTENNA REAR BUMPER ANTENNA 2 REAR SPOILER ANTENNA REAR WINDOW ANTENNA RIGHT SIDE WINDOW ANTENNA RING ANTENNA WIRELESS CHARGING SHELF ANTENNA AMPLIFIER WLAN ANTENNA

DRIVER'S DOOR CENTRAL LOCKING ACT BUTTON DRIVER'S DOOR CENTRAL LOCKING BUTTON DTC BUTTON SIG EXTERIOR BOOT LID BUTTON SIG FANFARE HORN BUTTON FRONT PASS DOOR CENTRAL LOCKING ACT BUTTON LF DOOR CONTACT SIG FRONT PASSENGER DOOR CENTRAL LOCKING BUTTON INTERIOR LIGHTS BUTTON INTERIOR SIG REAR LID BUTTON LAMP BUTTON LEFT SPLIT DOOR BUTTON OUTER TAILGATE BUTTON PARKING BRAKE BUTTON REAR LID BUTTON REFUELING BUTTON RIGHT SPLIT DOOR BUTTON START-STOP BUTTON SIG TAILGATE BUTTON ON INSIDE OF TRUNK LID VEHICLE INTERIOR TAILGATE BUTTON

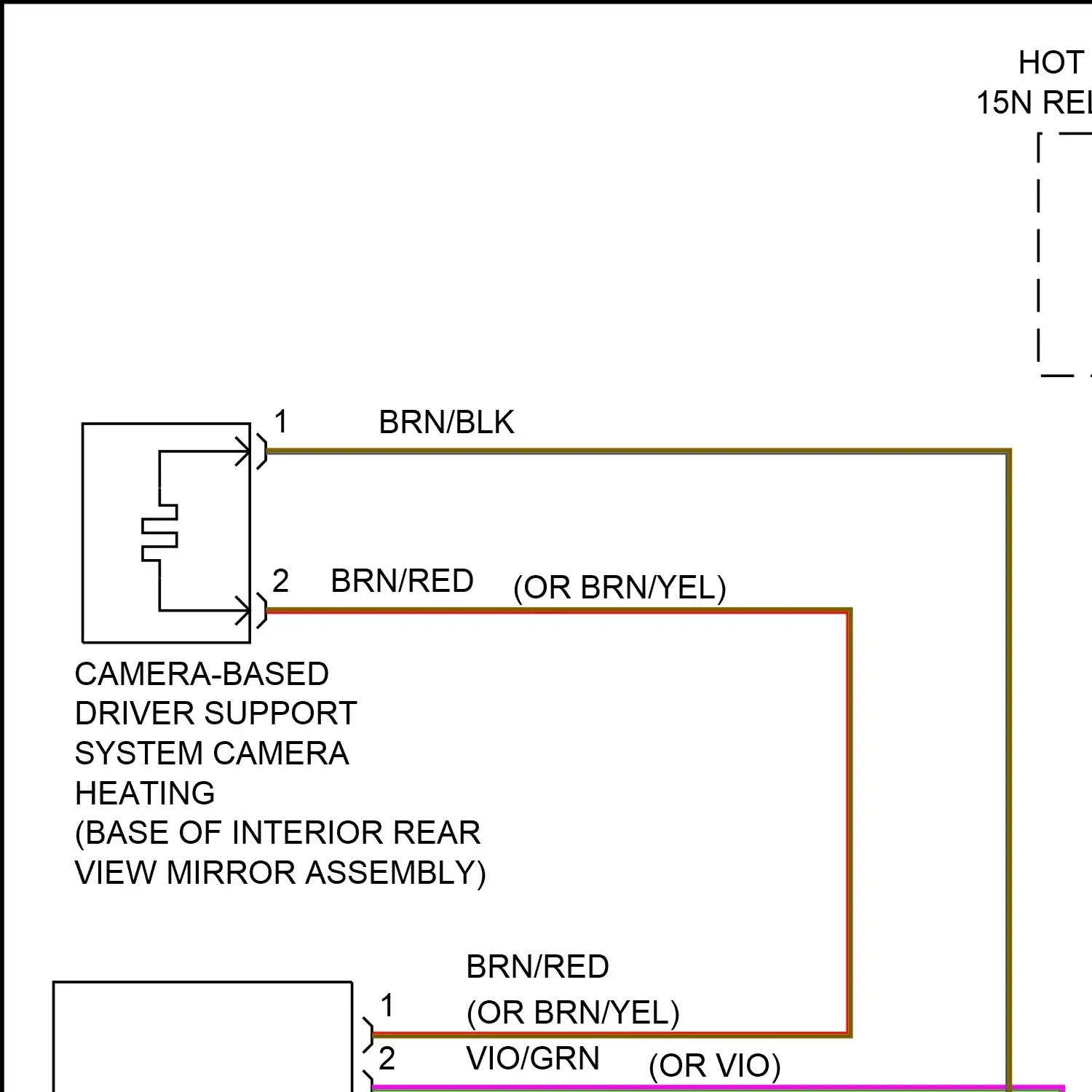

CAMERA BASED DRIVER SUPPORT SYSTEMS CAMERA-BASED DRIVER ASSISTANCE SYSTEMS CAMERA-BASED DRIVER SUPPORT SYSTEM CAMERA HEATING LANE DEPARTURE WARNING CAMERA REAR VIEW CAMERA W/O NIGHT VISION CAMERA

DIAGNOSTIC SOCKET HIGH VOLTAGE SAFETY CONNECTOR HIGH-VOLTAGE CHARGING SOCKET TRAILER SOCKET

DIGITAL MOTOR ELECTRONICS CONTROL MODULE

DRIVER ASSISTANCE SYSTEM OPERATING UNIT W/ HAZARD WARNING SWITCH DRIVER'S SEAT ANGLE ADJUSTMENT DRIVE UNIT DRIVER'S SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE UNIT DRIVER'S SEAT HEIGHT ADJUSTMENT DRIVE UNIT FOLDING SUNROOF, SOFT TOP LOCKING DRIVE UNIT HEAD UNIT HEAD UNIT BASIS W/ HIGH-VOLTAGE BATTERY UNIT HYBRID PRESSURE REFUELING ELECTRONIC CONTROL UNIT HYDRAULIC SHIFT UNIT LEFT CONVERTIBLE TOP DRIVE UNIT LIGHT OPERATING UNIT RIGHT CONVERTIBLE TOP DRIVE UNIT USB/ETHERNET SELECTOR SWITCH HEAD UNIT BASIS W/ NAVIGATION

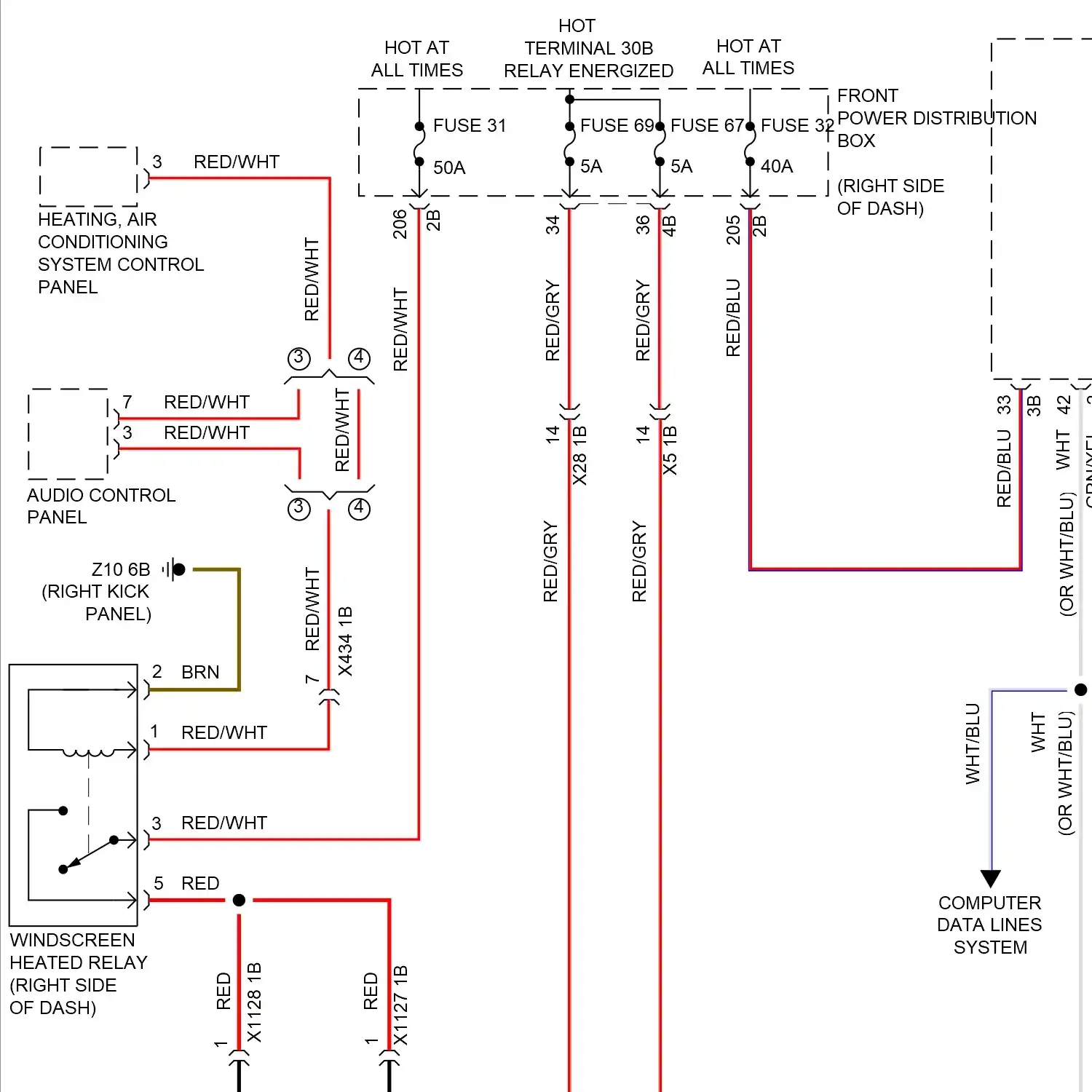

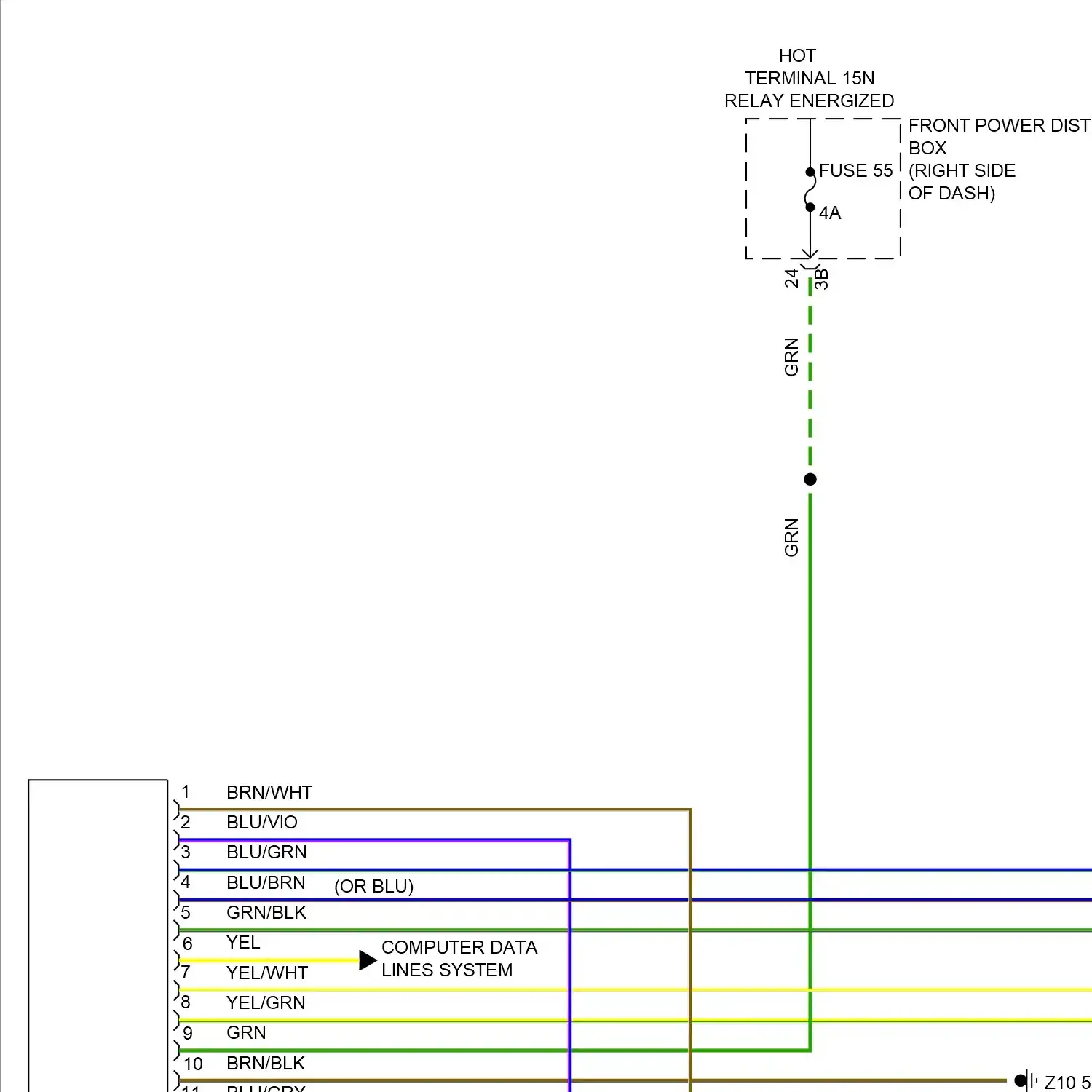

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 14 FUSE 31 FUSE 32 FUSE 34 FUSE 35 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 49 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 58 FUSE 59 FUSE 60 FUSE 61 FUSE 62 FUSE 63 FUSE 64 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 71 FUSE 72 FUSE 73 FUSE 75 FUSE 79 FUSE 80 FUSE 81 FUSE 82 FUSE 83 FUSE 84 FUSE 87 FUSE 89 FUSE 91 FUSE 92 FUSE 93 FUSE 94 FUSE 95 FUSE 96 FUSE 100 FUSE 101 FUSE 107 FUSE 109 FUSE 110 FUSE 111 FUSE 115 FUSE 119 FUSE 120 FUSE 122 FUSE 123 FUSE 124 FUSE 127 FUSE 128 FUSE 129 FUSE 130 FUSE 131 FUSE 132 FUSE 400 FUSE 401 FUSE 402 FUSE 403 FUSE 404 FUSE 405 FUSE BOX HOT AT ALL TIMES FUSE BOX

HEADLIGHT BEAM THROW ADJUSTMENT DRIVE HIGH BEAM HEADLIGHT HIGH BEAM HEADLIGHT ACT LEFT HEADLIGHT LOW BEAMS HEADLIGHT RIGHT HEADLIGHT

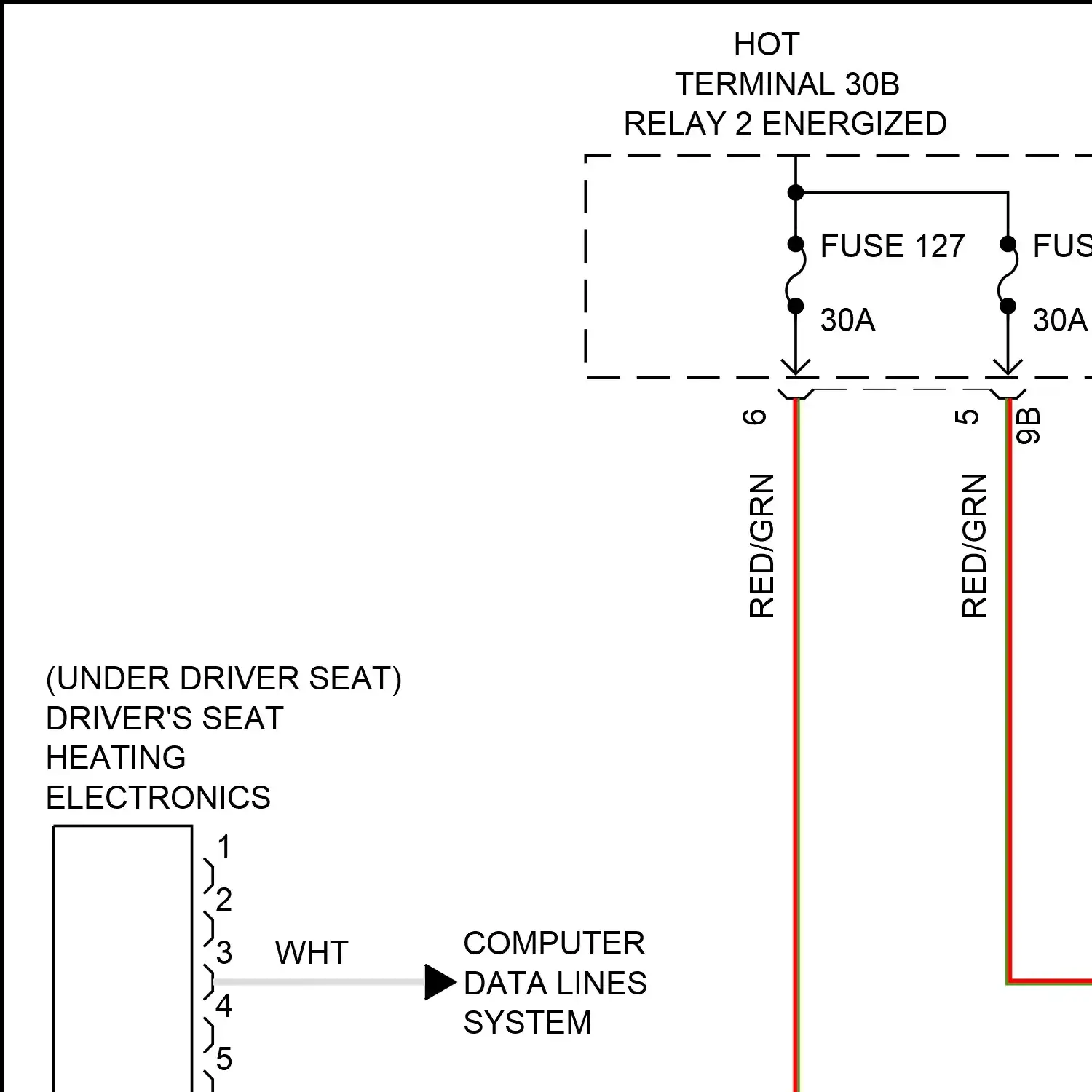

DRIVER MIRROR HEATER ACT DRIVER THIGH SUPPORT HEATING DRIVER'S SEAT BACKREST HEATING DRIVER'S SEAT HEATING ELECTRONICS DRIVER'S SEAT SURFACE HEATING ELECTRIC AUXILIARY HEATER FRONT ELECTRIC AUXILIARY HEATER FRONT PASS MIRROR HEATER ACT FRONT PASSENGER SEAT HEATING ELECTRONICS FRONT PASSENGER THIGH SUPPORT HEATING FRONT PASSENGER'S SEAT BACKREST HEATING FRONT PASSENGER'S SEAT CUSHION HEATING HEATING ACTIVATION HEATING SPLY HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL MIRROR HEATING WATER JET HEATER ACT

AIR BAG INDICATOR LAMP AIR BAG INDICATOR LIGHT FLASHING INDICATOR LAMP ACT GEAR INDICATOR LIGHT TURN INDICATOR

AUXILIARY STOP LAMP AUXILIARY TURN SIGNAL LAMP BASIS SIG INTERIOR LIGHTS DAYTIME DRIVING LIGHTS DRIVER'S DOOR GROUND LIGHTS DRIVER'S SIDE REAR GROUND LIGHTS EXTERIOR LIGHTS SYSTEMS FLASHING IND LAMP ACT FRONT PASSENGER DOOR GROUND LIGHTS HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS LEFT FRONT AUXILIARY TURN SIGNAL LAMP LEFT LICENSE PLATE LAMP LT FOG LIGHTS ACT RH FOG LIGHTS ACT RIGHT FRONT AUXILIARY TURN SIGNAL LAMP RIGHT LICENSE PLATE LAMP SIDE LAMP SIDE LIGHTS/ DAYTIME DRIVING LIGHTS SIDE/DAYTIME DRIVING LIGHTS ACT TAIL LAMP

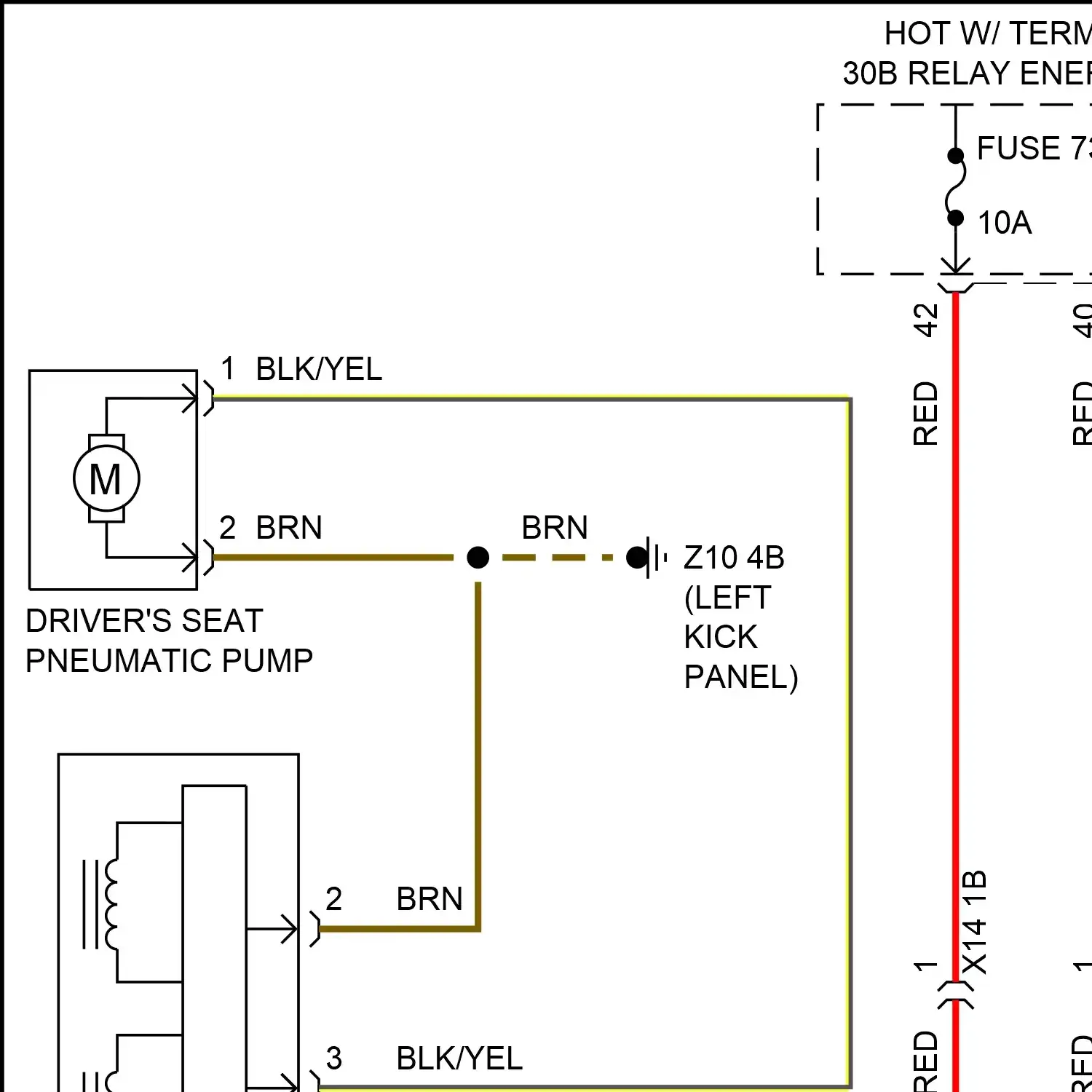

AUX WATER PUMP AUXILIARY WATER PUMP DRIVER'S SEAT PNEUMATIC PUMP ELECTRIC FUEL PUMP ELECTRIC FUEL PUMP CONTROL ELECTRONICS ELECTRIC FUEL PUMP ELECTRONICS CONTROL ELECTRIC VACUUM PUMP FRONT PASSENGER SEAT PNEUMATIC PUMP LOW TEMPERATURE COOLANT CIRCUIT COOLANT PUMP LOW TEMPERATURE COOLANT CIRCUIT COOLANT PUMP 2 SPLY TURBOCHARGER COOLANT PUMP TRANSMISSION OIL PUMP TURBOCHARGER COOLANT PUMP TURBOCHARGER COOLANT PUMP ACT TURBOCHARGER COOLANT PUMP GND WINDSCREEN WASHER PUMP WINDSCREEN WASHER PUMP ACT WINDSCREEN WASHER PUMP, REAR WASHER PUMP

BI-STABLE RELAY BI-STABLE RELAY ACT CUT-OUT RELAY DEAD LOCKING RELAY DEADLOCKING RELAY DME MAIN RELAY DRIVER'S DOOR LOCKING RELAY ELECTRIC FAN CUTOFF RELAY ELECTRIC FAN RELAY HOT W/ BI-STABLE RELAY ENERGIZED IGNITION, FUEL INJECTION RELAY IGNITION, FUEL INJECTION RELAY INTEGRATED SUPPLY MODULE INTEGRATED SUPPLY MODULE DME MAIN RELAY LOCKING RELAY PWR SPLY ELECTRIC FAN ACT CUT-OUT RELAY REAR WINDOW HEATED RELAY REAR WINDOW WIPER RELAY 2 RELAY 2 ENERGIZED RELAY ENERGIZED UNLOCKING RELAY VALVETRONIC RELAY WINDSCREEN HEATED RELAY

ACU SENSOR AUTOMATIC AIR RECIRCULATION CONTROL SENSOR BRAKE VACUUM PRESSURE SENSOR CHARGE AIR TEMPERATURE CHARGING PRESSURE SENSOR CONTACT-FREE TAILGATE OPENING LOWER SENSOR CONTACT-FREE TAILGATE OPENING UPPER SENSOR COOLANT TEMP SENSOR SIG COOLANT TEMPERATURE SENSOR COWL PANEL LOCK DRIVE OPEN HALL EFFECT SENSOR CRANKSHAFT SENSOR DIRECTION INCREMENTAL ENCODER HALL EFFECT SENSOR DRIVER SEAT POSITION SENSOR DRIVER'S DOOR MICROWAVE SENSOR ELECTRIC AUXILIARY HEATER TEMPERATURE SENSOR ENGINE OIL PRESSURE SENSOR ETHANOL SENSOR EVAPORATOR TEMPERATURE SENSOR EXHAUST CAMSHAFT SENSOR EXHAUST GAS PRESSURE GASOLINE PARTICULATE FILTER SENSOR FOLDING SUNROOF POSITION HALL EFFECT SENSOR FRONT PASSENGER SEAT POSITION SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 GEAR SENSOR HIGH BEAM ASSISTANT SENSOR, CONTROL INCREMENTAL TRANSDUCER HALL EFFECT SENSOR INTAKE CAMSHAFT SENSOR INTAKE-MANIFOLD PRESSURE SENSOR INTELLIGENT BATTERY SENSOR KNOCK SENSOR LEFT "B" PILLAR AIR BAG SENSOR LEFT CONVERTIBLE TOP RAISED HALL EFFECT SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT DOOR AIR BAG SENSOR LEFT FRONT OUTER ULTRASONIC SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT PEDESTRIAN PROTECTION SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR MICROWAVE SENSOR LEFT REAR OUTER ULTRASONIC SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE FRONT PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR MEMORY FUNCTION HALL SENSOR MOTOR POSITION SENSOR OIL LEVEL SENSOR OUTSIDE TEMPERATURE SENSOR OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR BEFORE CATALYTIC CONVERTER PASSENGER'S DOOR MICROWAVE SENSOR POSITION INCREMENTAL ENCODER HALL EFFECT SENSOR RAIL PRESSURE SENSOR RAIN/ LIGHT/ SOLAR/ CONDENSATION SENSOR RAIN/LIGHT/ SOLAR CONDENSATION SENSOR RAIN/LIGHT/SOLAR CONDENSATION SENSOR REFRIGERANT PRESSURE SENSOR RIGHT "B" PILLAR AIR BAG SENSOR RIGHT CONVERTIBLE TOP RAISED HALL EFFECT SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT DOOR AIR BAG SENSOR RIGHT FRONT OUTER ULTRASONIC SENSOR RIGHT FRONT RIDE HEIGHT SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT PEDESTRIAN PROTECTION SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR MICROWAVE SENSOR RIGHT REAR OUTER ULTRASONIC SENSOR RIGHT REAR RIDE HEIGHT SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE FRONT PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR ROTOR POSITION SENSOR RPM SENSOR SELECTOR ANGLE SENSOR SENSOR GND SIREN W/ TILT ALARM SENSOR SIREN, TILT SENSOR SOFT TOP STOWED HALL EFFECT SENSOR STEERING TORQUE SENSOR STOWAGE LOCK CLOSED HALL EFFECT SENSOR TEMPERATURE SENSOR VENTILATION TEMPERATURE SENSOR VENTURI NOZZLE PRESSURE SENSOR WASHER FLUID LEVEL SENSOR

FRONT CENTER MID-RANGE SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT MID-RANGE SPEAKER LEFT REAR MID-RANGE SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR MID-RANGE SPEAKER

BRAKE FLUID LEVEL SWITCH BRAKE LIGHT SWITCH CENTER CONSOLE SWITCH CENTER DRIVE EXPERIENCE SWITCH DRIVER LUMBAR SUPPORT SWITCH DRIVER'S DOOR SWITCH BLOCK DRIVER'S SEAT LUMBAR SUPPORT SWITCH DRIVER'S SIDE REAR POWER WINDOW SWITCH DRIVER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK FRONT PASSENGER LUMBAR SUPPORT SWITCH FRONT PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK FRONT PASSENGER'S DOOR POWER WINDOW SWITCH GEAR SELECTOR SWITCH GLOVE BOX LIGHT SWITCH HOOD CONTACT SWITCH LEFT MULTI- FUNCTION STEERING WHEEL SWITCH BLOCK LEFT MULTI-FUNCTION STEERING COLUMN SWITCH CLUSTER LEFT MULTI-FUNCTION STEERING WHEEL SWITCH CLUSTER OIL PRESSURE SWITCH PARKING BRAKE SWITCH PARKING BRAKE WARNING SWITCH PASSENGER'S DOOR POWER WINDOW SWITCH PASSENGER'S SIDE REAR POWER WINDOW SWITCH PRESSURE SWITCH RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH BLOCK RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH CLUSTER SELECTOR SWITCH STEERING COLUMN SWITCH CLUSTER

CONTROL VALVE CONTROL VALVE ACT DRIVER LUMBAR SUPPORT VALVE BLOCK DRIVER'S LUMBAR SUPPORT VALVE BLOCK ELECTRIC AUXILIARY HEATER COOLANT CHANGEOVER VALVE ELECTRICAL WASTEGATE VALVE FRONT PASSENGER LUMBAR SUPPORT VALVE BLOCK OIL PRESSURE CONTROL VALVE PRESSURE CONTROL VALVE QUANTITY CONTROL VALVE SOLENOID CONTROLLED OIL PUMP SOLENOID VALVE VANOS SOLENOID SIG VANOS SOLENOID SPLY

(OR GRN/GRY WIRE (OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE PNK/RED WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/BRN) BLK WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

2.0L TURBO 4 DOOR 15 SPLY (OR ACCELERATOR PEDAL MODULE ACCENT LIGHT ACT REAR WIPER 2 ACT RLY ACTIVE SOUND DESIGN ADJUSTMENT DRIVE AIR CONDITIONING AIR CONDITIONING COMPRESSOR AIR CONDITIONING SYSTEM AIR DISTRIBUTION MICROSWITCH AIR RECIRCULATION CONTROL AM/ FM AERIAL AMBIENT LIGHT ANTI-THEFT ALARM SYSTEM IND ANTI-THEFT ALARM SYSTEM LED ANTI-THEFT SYSTEM AUDIO CONTROL PANEL AUX-IN CONNECTION USB CONNECTION AUXILIARY STOP LAMPS AUXILIARY STOP LIGHT BASE PLATE BASE PLATE FAN BASIC VERSION BLOWER OUTPUT STAGE BODY DOMAIN CONTROLLER BRAKE LIGHT BRAKE LIGHT ACT BRAKE LIGHT SIG BRAKE LIGHT SW SIG BRK LT BUS - BUS SIG BUS SIG DIAGNOSIS CAMSHAFT SENS GND CAMSHAFT SENS SIG CAMSHAFT SENS SPLY CAN BUS SIG CAR SHARING MODULE CATALYTIC CONV GND CATALYTIC CONV SIG CATALYTIC CONV SPLY CENTER CONSOLE CENTER CONSOLE CONTROL PANEL CENTER REAR SEAT BELT BUCKLE CONTACT CENTRAL INFORMATION DISPLAY CENTRAL INSTRUMENT CHARACTERISTIC MAP THERMOSTAT CHARACTERISTIC MAP THERMOSTAT ACT CHRONO METER CLUBMAN COUNTRYMAN CLUBMAN, CONVERTIBLE CLUBMAN, HATCHBACK COUNTRYMAN CLUTCH MODULE CLUTCH MODULE SIG CLUTCH SIG COMFORT ACCESS COMFORT ACCESS AERIAL SIG COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM ELECTRONIC SUSPENSION SYSTEM CONT LK SIG CONTACT FREE TAILGATE OPENING EVALUATION ELECTRONICS CONVENIENCE CHARGING ELECTRONICS CONVENIENCE CHARGING ELECTRONICS SHIELDS CONVERTIBLE COUNTRYMAN, CLUBMAN, HATCHBACK CONVERTIBLE TOP COMPARTMENT FLOOR MICROSWITCH CONVERTIBLE TOP DRIVE CONVERTIBLE TOP MODULE CONVERTIBLE, HATCHBACK CLUBMAN, COUNTRYMAN CONVERTIBLE, HATCHBACK COUNTRYMAN, CLUBMAN CLUBMAN COOLANT PMP COOLANT PMP GND COOLANT PMP SPLY COOLING FANS SYSTEM COOPER COOPER CLUBMAN, COOPER COUNTRYMAN COOPER COUNTRYMAN CORNERING LIGHT CORNERING LIGHT LED MODULE COUNTRYMAN EXCEPT COUNTRYMAN W/ TRAILER MODULE W/O TRAILER MODULE COURTESY LIGHT COURTESY LIGHTING COURTESY LIGHTING ACT CRANK SENS GND CRANK SENS SIG CRANK SENS SPLY CRASH SAFETY MODULE CRUISE CONTROL SYSTEM DASH BOARD LIGHTING CENTER DASHBOARD LIGHTING CENTER DATA LINES DEFOGGER SYSTEM DEFOGGER, MIRRORS SYSTEMS DIRECTION IND DOOR LK SIG DOOR LOCKS DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVER LOCKING DRIVE ACT DRIVER OUTSIDE DOOR HANDLE ELECTRONIC MODULE DRIVER POWER WINDOW DRIVE DRIVER RETRACTOR TENSIONER DRIVER SEAT MODULE DRIVER SIDE REAR FOOTWELL LIGHT DRIVER VEHICLE EXTERIOR MIRROR DRIVER'S AIR BAG GAS GENERATORS DRIVER'S DOOR CONTOUR LIGHTING DRIVER'S DOOR CONTOUR LIGHTING 2 DRIVER'S DOOR ENTRY LIGHTING DRIVER'S DOOR GROUND LIGHT DRIVER'S DOOR INSIDE DOOR HANDLE LIGHTING DRIVER'S DOOR INSIDE HANDLE LIGHT DRIVER'S DOOR POCKET LIGHTING DRIVER'S DOOR POCKET LIGHTING 2 DRIVER'S DOOR TRIM PANEL LIGHTING DRIVER'S SEAT BACKREST ANGLE ADJUSTMENT DRIVE DRIVER'S SEAT BELT BUCKLE CONTACT DRIVER'S SEAT MODULE DRIVER'S SIDE DASHBOARD DECORATIVE STRIP LIGHTING DRIVER'S SIDE REAR DOOR CONTOUR LIGHTING DRIVER'S SIDE REAR DOOR POCKET LIGHTING DRIVER'S SIDE REAR DOOR SILL COURTESY LIGHT DRIVER'S SIDE REAR DOOR TRIM PANEL LIGHTING DRIVER'S SIDE REAR INSIDE DOOR HANDLE LIGHT DRIVER'S SIDE REAR INSIDE DOOR HANDLE LIGHTING DRIVER'S SIDE REAR POWER WINDOW DRIVE DRV EXP SW SIG DVD CHANGER DVD CHARGER DYNAMIC BRAKE LIGHT ACT DYNAMIC STABILITY CONTROL ELEC THR ACT ELEC THR ACT GND ELEC THR ACT SIG ELEC THR ACT SPLY ELECTRIC FAN ELECTRIC FAN ACT ELECTRIC- MACHINE ELECTRONICS ELECTRICAL EXHAUST FLAP ELECTRICAL MACHINE ELECTRICAL MACHINE ELECTRONICS ELECTRO- MECHANICAL POWER STEERING ELECTROCHROMIC INTERIOR MIRROR ELECTROCHROMIC INTERIOR REAR VIEW MIRROR ELECTROCHROMIC MIRROR ELECTROMECHANICAL POWER STEERING ELECTRONIC OUTER DOOR HANDLE MODULE SIG ELECTRONIC POWER STEERING SYSTEM ELECTRONIC SUSPENSION SYSTEM ELECTRONIC TRANSMISSION CONTROL ELECTRONICS JUNCTION BOX ETHERNET DATA LINE EXCEPT 1.5L TURBO HYBRID EXCEPT CLUBMAN EXCEPT CONVERTIBLE EXCEPT COUNTRYMAN COUNTRYMAN EXCEPT COUNTRYMAN COUNTRYMAN HATCHBACK EXCEPT HYBRID FLAP ACTIVATION TERM 15 WAKE UP SIG 15 FLEXRAY BUS FLEXRAY BUS SIG FOLDING SUNROOF, CONVERTIBLE TOP LOCKING DRIVE FRONT CENTER TWEETER FRONT INTERIOR LIGHT FRONT PASSENGER AIR BAG GAS GENERATORS FRONT PASSENGER DOOR ENTRY LIGHTING FRONT PASSENGER DOOR INSIDE DOOR HANDLE LIGHT FRONT PASSENGER DOOR POCKET LIGHTING FRONT PASSENGER DOOR POCKET LIGHTING 2 FRONT PASSENGER DOOR TRIM PANEL LIGHTING FRONT PASSENGER INSIDE DOOR HANDLE LIGHTING FRONT PASSENGER POWER WINDOW DRIVE FRONT PASSENGER RETRACTOR TENSIONER FRONT PASSENGER SEAT ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT BACKREST ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT FORWARD/ BACKWARD SEAT ADJUSTMENT DRIVE FRONT PASSENGER SEAT HEIGHT ADJUSTMENT DRIVE FRONT PASSENGER SEAT OCCUPANCY DETECTION FRONT PASSENGER VEHICLE EXTERIOR MIRROR FRONT PASSENGER'S DOOR CONTOUR LIGHTING FRONT PASSENGER'S DOOR CONTOUR LIGHTING 2 FRONT PASSENGER'S DOOR POCKET LIGHTING FRONT PASSENGER'S SEAT BELT BUCKLE CONTACT FRONT PASSENGER'S SIDE REAR DOOR CONTOUR LIGHTING FRONT PASSENGER'S SIDE REAR DOOR TRIM PANEL LIGHTING FRONT POWER DISTRIBUTION BOX FRONT RIGHT LEVEL SENS SIG FT PASS LOCKING DRIVE ACT FUEL FILLER FLAP CENTRAL LOCKING DRIVE FUEL FILLER LOCKING DRIVE ACT FUEL INJ 1 ACTIVATION FUEL INJ 2 ACTIVATION FUEL INJ 3 ACTIVATION FUEL INJ 4 ACTIVATION FUEL INJ CYL 1 FUEL INJ CYL 2 FUEL INJ CYL 3 FUEL INJ CYL 4 FUEL INJ SPLY FUEL INJECTOR CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL LEVEL SENS SIG FUEL PMP CTRL GEAR GND GEAR SENS SIG GLOVE COMPARTMENT LIGHT GPS AERIAL HALL SENS GND HALL SENS SIG HALL SENS SPLY HATCHBACK 3-DOOR HATCHBACK 3-DOOR, CONVERTIBLE HATCHBACK, CONVERTIBLE CLUBMAN, COUNTRYMAN HAZARD WARNING LIGHT SW SIG HEAD-UP DISPLAY HEADLIGHTS SYSTEM HEATED REAR WINDOW BAND ELIMINATION CIRCUIT 2 HEATED WINDSCREEN HIGH BASIC HIGH BEAM HIGH BEAM HEADLIGHTS ACT HIGH VERSION HORNS SYSTEM HOT AT ALL TIMES HOT FILM AIR MASS METER HOT W/ HOT W/ TERMINAL ID READER IGN SPLY INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INSTRUMENT PANEL INTEGRATED SUPPLY MODULE INTERFERENCE SUPPRESSOR FILTER INTERIOR LIGHT ACT INTERIOR LIGHTING KNOCK SENS SIG LEAK DETECTION SIG LED ACT LED ACTIVATION LED ALARM SYSTEM IND LED ANTI- THEFT ALARM SYSTEM LED FUNCTION IND PARK DISTANCE CONTROL ACT LEFT BOTTOM REAR LIGHT LEFT FOG LIGHT LEFT FRONT LEFT FRONT ELECTRONIC WHEEL MODULE LEFT FRONT FOOTWELL LIGHT LEFT FRONT SIDE MARKER LIGHT LEFT FRONT TWEETER LEFT FRONT VANITY MIRROR LIGHT LEFT FRONTAL LIGHT ELECTRONICS LEFT LICENSE PLATE LIGHT LEFT OUTER TAILLIGHT LEFT READING LEFT REAR ELECTRONIC WHEEL MODULE LEFT REAR RETRACTOR TENSIONER LEFT REAR SEAT BELT BUCKLE CONTACT LEFT REAR SIDE MARKER LIGHT LEFT REAR TWEETER LEFT SHIFT PADDLE LEFT SIDE FRONT MARKER LIGHT LEFT SIDE REAR MARKER LIGHT LEFT SPLIT DOOR HEATED REAR WINDOW LEFT TOP REAR LIGHT LEFT TURN SIGNAL LIGHT ACT LICENSE PLATE LIGHT ACT LIGHTING LOCATOR LIN BUS SIG LIN BUS SIGNAL LIN DATA BUS LOCATOR LIGHT, AMBIENT LIGHT SIG LOCATOR LIGHTING LONGITUDINAL TORQUE DISTRIBUTION LOW BEAM LIGHT ACT LOW BEAMS LR DOOR CONTACT SIG LR LOCKING DRIVE ACT LUGGAGE COMPARTMENT LIGHT MAGNETIC CLUTCH ACT MAGNETIC COUPLING MAP THERMOSTAT METER SIG METER SPLY MIRROR ELECTRONICS MIRROR FOLD- IN DRIVE MTR ACTIVATION NATURAL VACUUM LEAK DETECTION OIL LVL SENS SIG OIL LVL SENS SPLY OIL PRESS CTRL OIL PRESS SIG OPTIONAL EQUIPMENT SYSTEM OPTIONAL EXTRA SYSTEM OUTSIDE TEMP SENS SIG OUTSIDE TEMP SIG OXYGEN SENS SIG PARK DISTANCE CONTROL SIG PARKING BRAKE SW SIG PARKING MANEUVERING ASSISTANT PASSENGER OUTSIDE DOOR HANDLE ELECTRONIC MODULE PASSENGER POWER WINDOW DRIVE PASSENGER'S DOOR SW SIG PASSENGER'S SIDE DASHBOARD DECORATIVE STRIP LIGHTING PASSENGER'S SIDE DASHBOARD DECORATIVE STRIP LIGHTING 2 PASSENGER'S SIDE DASHBOARD DECORATIVE STRIP LIGHTING 3 PASSENGER'S SIDE REAR COURTESY LIGHT PASSENGER'S SIDE REAR COURTESY LIGHTING PASSENGER'S SIDE REAR DOOR POCKET LIGHTING PASSENGER'S SIDE REAR DOOR SILL COURTESY LIGHT PASSENGER'S SIDE REAR FOOTWELL LIGHT PASSENGER'S SIDE REAR INSIDE DOOR HANDLE LIGHT PASSENGER'S SIDE REAR INSIDE DOOR HANDLE LIGHTING PASSENGER'S SIDE REAR POWER WINDOW DRIVE PASSENGER'S SIDE REAR SILL COURTESY LIGHT POWER DISTRIBUTION SYSTEM POWER DISTRIBUTION, ANTI-THEFT SYSTEMS POWER TOPS SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS, DOOR LOCKS SYSTEMS PRESS SENS GND PRESS SENS SIG PRESS SENS SPLY PT-CAN BUS SIG PT-CAN BUS SIGNAL PWR WINDOW DRIVE ACT RADIATOR BLIND DRIVE REAR FOG LIGHT REAR FOG LIGHT 2 REAR INTERIOR LIGHT REAR RIGHT LEVEL SENS SIG REAR WINDOW ATENNA REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER REJECTOR CIRCUIT REAR WIPER REAR WIPER 2 REFRIGERANT PRESS SENS SIG REFRIGERANT PRESS SENS SPLY REMOTE CONTROL RECEIVER RESET CONTACT SIG REVERSING LIGHT REVERSING LIGHT ACT RF DOOR CONTACT SIG RIGHT BOTTOM REAR LIGHT RIGHT FOG LIGHT RIGHT FRONT ELECTRONIC WHEEL MODULE RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT SIDE MARKER LIGHT RIGHT FRONT TWEETER RIGHT FRONT VANITY MIRROR LIGHT RIGHT FRONTAL LIGHT ELECTRONICS RIGHT LICENSE PLATE LIGHT RIGHT OUTER TAILLIGHT RIGHT READING RIGHT REAR ELECTRONIC WHEEL MODULE RIGHT REAR RETRACTOR TENSIONER RIGHT REAR SEAT BELT BUCKLE CONTACT RIGHT REAR SIDE MARKER LIGHT RIGHT REAR TWEETER RIGHT SHIFT PADDLE RIGHT SIDE REAR MARKER LIGHT RIGHT SPLIT DOOR HEATED REAR WINDOW RIGHT TAIL LIGHT ACT RIGHT TOP REAR LIGHT RIGHT TURN SIG LIGHT ACT RLY ACTIVATION ROOF AERIAL ROOF FUNCTION CENTER RR DOOR CONTACT SIG RR FOG LIGHT ACT RR LOCKING DRIVE ACT RR PASS SIDE PWR WINDOW RR WINDOW DEFOGGER ACT RR WIPER 2 ACT RR WIPER ACT SEATS SYSTEM SELECTOR LEVER SENS GND SENS GROUND SENS SIG SENS SPLY SHIFT PADDLES SIG SIDE MARKER LIGHT SIDE MARKER LIGHT ACT SOUND SYSTEMS SPARK PLUG SPD SIG SPLY CHARACTERISTIC MAP THERMOSTAT SPLY FUEL TANK SPLY TERMINAL 15 SPLY TERMINAL 30 STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM SW SIG TAIL LIGHT ACT TAILGATE CENTRAL LOCKING DRIVE TAILGATE FUNCTION MODULE TELEMATIC COMMUNICATION BOX TELEMATICS COMMUNICATION BOX TELEPHONE AERIAL TEMP SENS SIG TERM 15 TERM 15 SPLY TERM 30 TERMINAL 15 SPLY TERMINAL 15 WAKE-UP SIG TERMINAL 30 PWR SPLY TERMINAL 30 SPLY THIRD ROW SEATS INTERIOR LIGHT TOP OF TRANSMISSION) TOUCH BOX TRAILER MODULE TRANSMISSIONS SYSTEM TRUNK COMPARTMENT LIGHT 2 TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN IND TURN SIGNALS LED MODULE USB CONNECTION USB- HUB VALVETRONIC SERVOMOTOR VANITY MIRROR LIGHT VLV ACTIVATION VLV SPLY W/ INTERFERENCE SUPPRESSION FILTER W/ LED W/ LED W/O LED W/ LIN BUS FUNCTION W/ LIN BUS FUNCTION W/O LIN BUS FUNCTION W/ NAVIGATION W/ PANORAMA GLASS ROOF W/ ROOF FUNCTIONING CENTER W/O ROOF FUNCTIONING CENTER W/ TELEMATICS W/ TRAILER MODULE W/ TRAILER MODULE W/O TRAILER MODULE COOPER COUNTRYMAN, CLUBMAN W/ TRAILER MODULE W/O TRAILER MODULE W/ MEMORY W/O MEMORY W/ WIRELESS CHARGING STORAGE W/ WIRELESS CHARGING STORAGE W/O WIRELESS CHARGING STORAGE W/O ELECTRIC SEAT ADJUSTMENT W/ ELECTRIC SEAT ADJUSTMENT W/O INTERFERENCE SUPPRESSION FILTER W/O LED W/O LED W/ LED W/O LIN BUS FUNCTION W/O NAVIGATION W/O PANORAMA GLASS ROOF W/O TELEMATICS W/O WIRELESS CHARGING STORAGE WASHER FLUID LEVEL SENS SIG WASTEGATE GND WASTEGATE SIG WASTEGATE SPLY WINDOW HALL SENS SPLY WINDSCREEN WIPER ACT WIPER DRIVE WIPER/WASHER SYSTEM WIRELESS CHARGING STORAGE
