MINI Cooper II (2006-2010) rear window defogger Wiring diagram
This page shows the only wiring diagram for the component.rear window defogger, which is found in the car MINI Cooper II (2006-2010). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

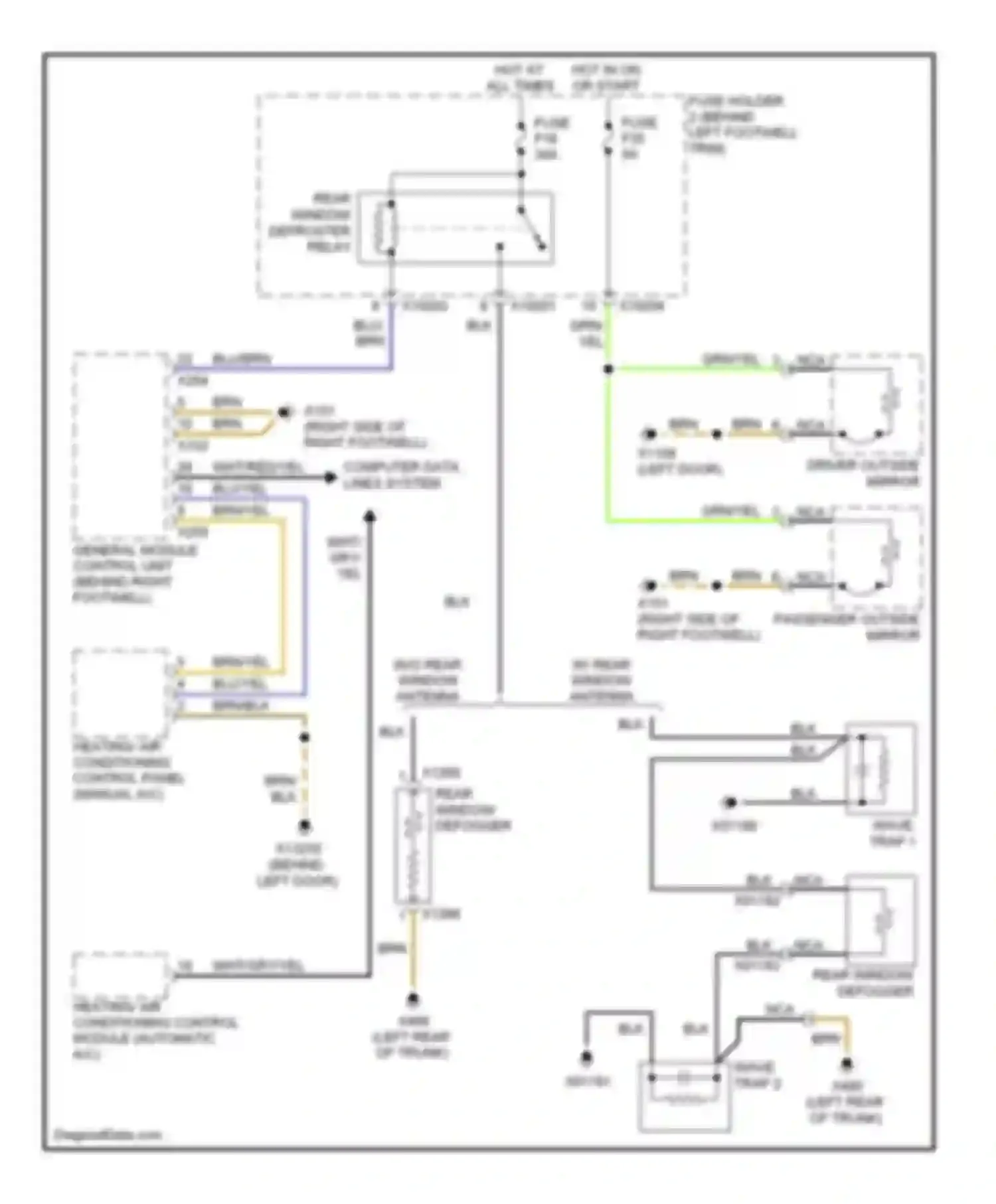

Wiring diagram rear window defogger (1 of 1)
BLK WIRE
BLU WIRE
BLU/BRN WIRE
BLU/YEL WIRE
BRN WIRE
BRN/BLK WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
DRIVER OUTSIDE MIRROR
FUSE
FUSE HOLDER 2 (BEHIND LEFT FOOTWELL TRIM)
GENERAL MODULE CONTROL UNIT (BEHIND RIGHT FOOTWELL)
GRN WIRE
GRN/YEL WIRE
GRY WIRE
HEATING/ AIR CONDITIONING CONTROL MODULE (AUTOMATIC A/C)
HEATING/ AIR CONDITIONING CONTROL PANEL (MANUAL A/C)
HOT AT ALL TIMES
HOT IN ON OR START
NCA WIRE
PASSENGER OUTSIDE MIRROR
REAR WINDOW DEFOGGER
REAR WINDOW DEFROSTER RELAY
W/O REAR WINDOW ANTENNA
WAVE TRAP 1
WAVE TRAP 2
WHT WIRE
WHT/GRY/YEL WIRE
WHT/RED/YEL WIRE
YEL WIRE
Go to component -> Rear defogger & heated mirrors circuit, convertible -> REAR WINDOW DEFOGGER
