MINI Cooper II (2006-2010) horizontal actuator Wiring diagrams
This page contains all the electrical diagrams for the component. horizontal actuator, in which he is found in the car MINI Cooper II (2006-2010). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

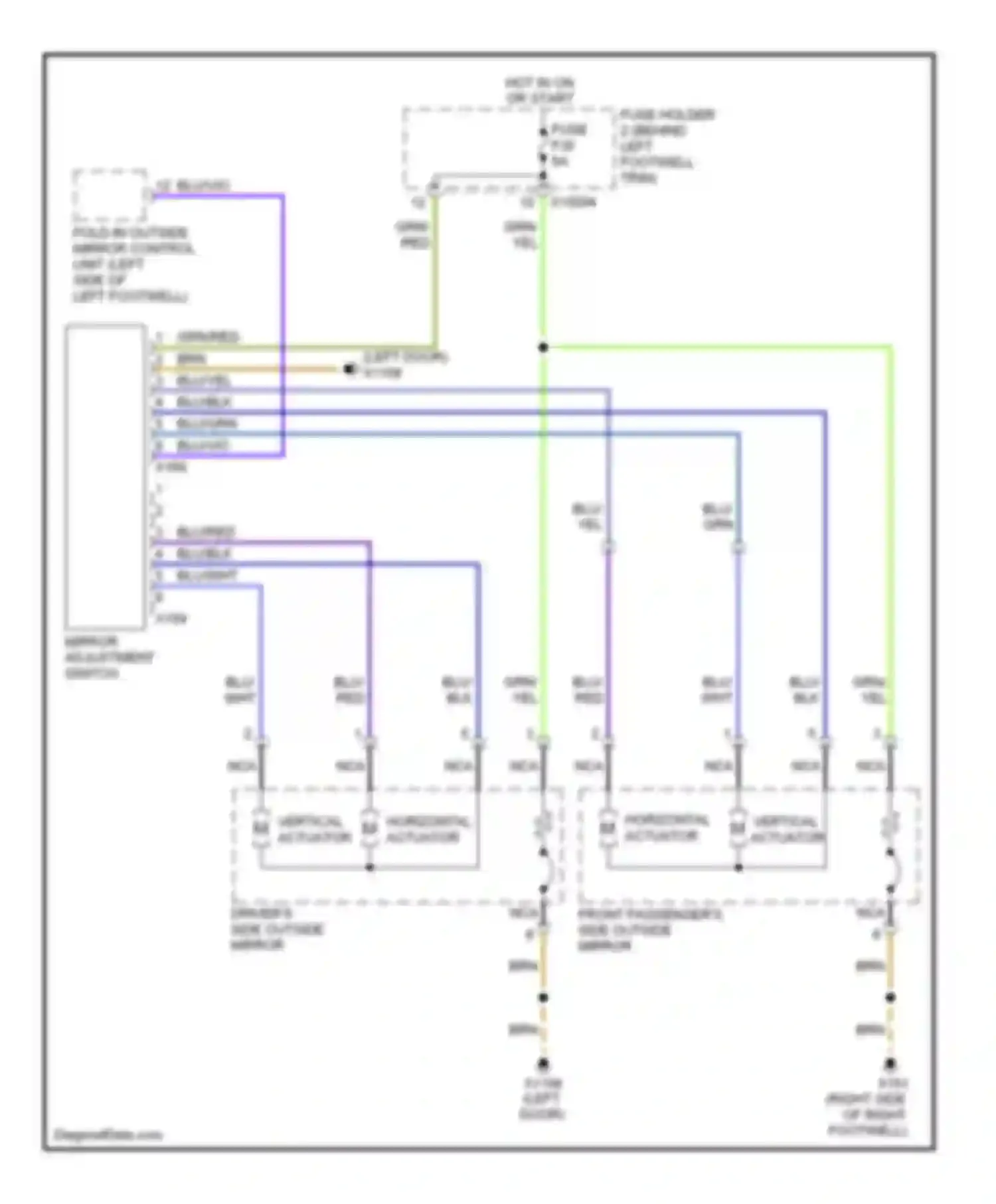

horizontal actuator wiring diagram (1 of 2)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/VIO WIRE
BLU/WHT WIRE
BLU/YEL WIRE
BRN WIRE
DRIVER'S SIDE OUTSIDE MIRROR
FOLD-IN OUTSIDE MIRROR CONTROL UNIT (LEFT SIDE OF LEFT FOOTWELL)
FRONT PASSENGER'S SIDE OUTSIDE MIRROR
FUSE
FUSE HOLDER 2 (BEHIND LEFT FOOTWELL TRIM)
GRN WIRE
GRN/RED WIRE
HORIZONTAL ACTUATOR
HOT IN ON OR START
MIRROR ADJUSTMENT SWITCH
NCA WIRE
RED WIRE
VERTICAL ACTUATOR
WHT WIRE
YEL WIRE
Go to component -> Power mirror circuit, convertible -> HORIZONTAL ACTUATOR
horizontal actuator wiring diagram (2 of 2)
BLU/BLK WIRE
BLU/BRN WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
BRN WIRE
DEFOGGER SYSTEM
DRIVER'S SIDE OUTSIDE MIRROR
FUSE (RIGHT SIDE OF RIGHT FOOTWELL)
GRN/WHT WIRE
GRN/YEL WIRE
HORIZONTAL ACTUATOR
HOT IN ON OR START
JUNCTION BOX
MIRROR ADJUSTMENT SWITCH
NCA WIRE
OUTSIDE MIRROR FOLD-IN (BEHIND LEFT REAR TRIM PANEL)
PASSENGER'S SIDE OUTSIDE MIRROR
RED WIRE
RED/BLU WIRE
VERTICAL ACTUATOR
YEL/GRN WIRE
Go to component -> Power mirror circuit, except convertible -> HORIZONTAL ACTUATOR
