MINI Cooper II (2006-2010) electrochromic interior Wiring diagram
This page shows the only wiring diagram for the component.electrochromic interior, which is found in the car MINI Cooper II (2006-2010). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

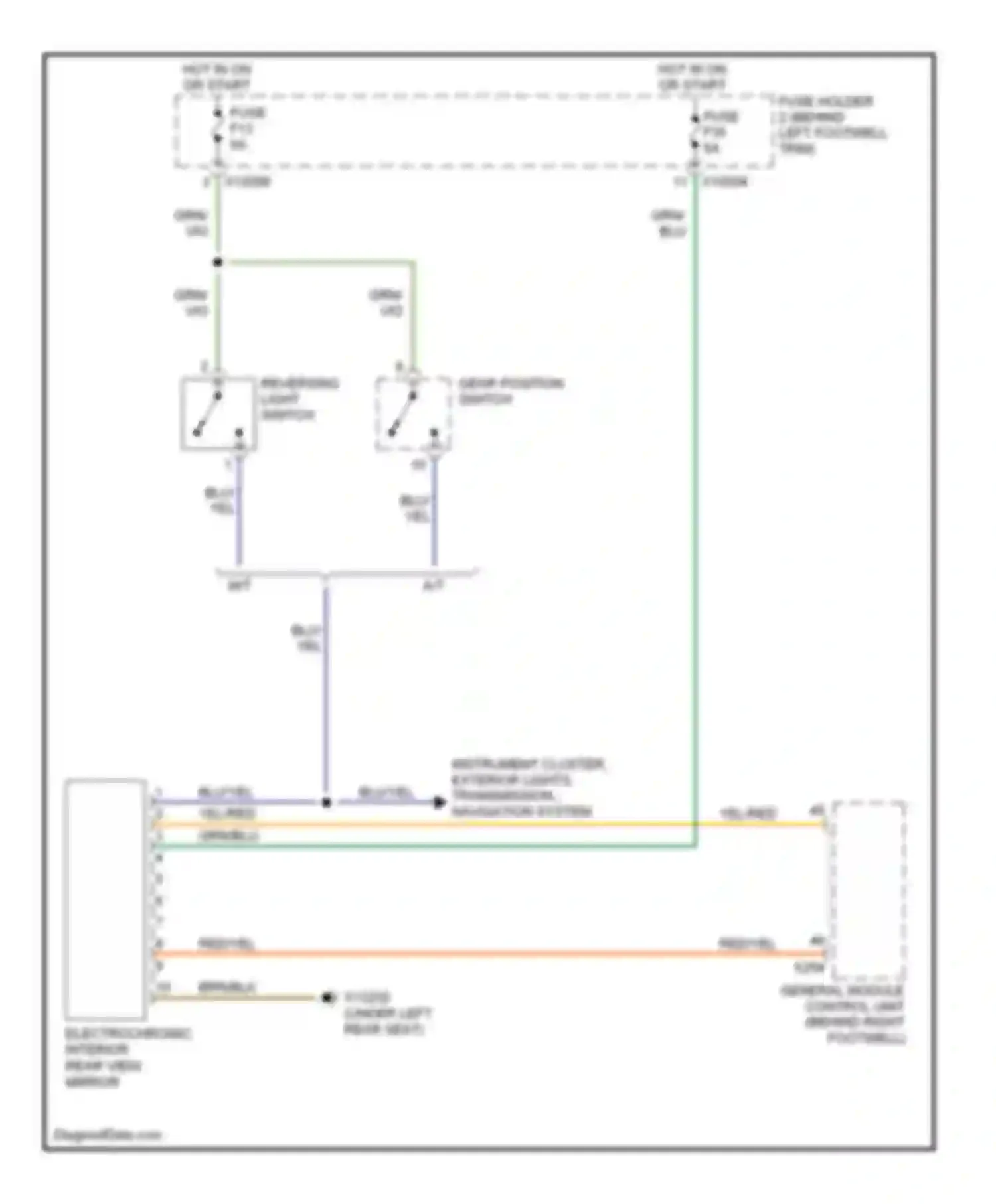

Wiring diagram electrochromic interior (1 of 1)
A/T
BLU WIRE
BLU/YEL WIRE
BRN/BLK WIRE
ELECTROCHROMIC INTERIOR
FUSE
FUSE HOLDER 2 (BEHIND LEFT FOOTWELL TRIM)
GEAR POSITION SWITCH
GENERAL MODULE CONTROL UNIT (BEHIND RIGHT FOOTWELL)
GRN WIRE
GRN/BLU WIRE
HOT IN ON OR START
INSTRUMENT CLUSTER, EXTERIOR LIGHTS, TRANSMISSION,, NAVIGATION SYSTEM
M/T
REAR VIEW MIRROR)
RED/YEL WIRE
REVERSING LIGHT SWITCH
VIO WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Electrochromic mirror circuit, convertible -> ELECTROCHROMIC INTERIOR
