MINI Cooper S Clubman II (2015-2019) blu/red Wiring diagrams
This page contains all the electrical diagrams for the component. blu/red, in which he is found in the car MINI Cooper S Clubman II (2015-2019). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram blu/red (12 of 31)
Go to component -> Cruise control circuit -> BLU/RED WIRE
Wiring diagram blu/red (13 of 31)
Go to component -> Navigation circuit, w/ hifi radio w/o active sound design (4 of 4) -> BLU/RED WIRE
Wiring diagram blu/red (14 of 31)
Go to component -> Radio circuit, w/ base radio & active sound design (3 of 4) -> BLU/RED WIRE
Wiring diagram blu/red (15 of 31)
Go to component -> Radio circuit, w/ base radio w/o active sound design (3 of 4) -> BLU/RED WIRE
Wiring diagram blu/red (16 of 31)
Go to component -> Radio circuit, w/ hifi radio & active sound design (3 of 5) -> BLU/RED WIRE
Wiring diagram blu/red (17 of 31)

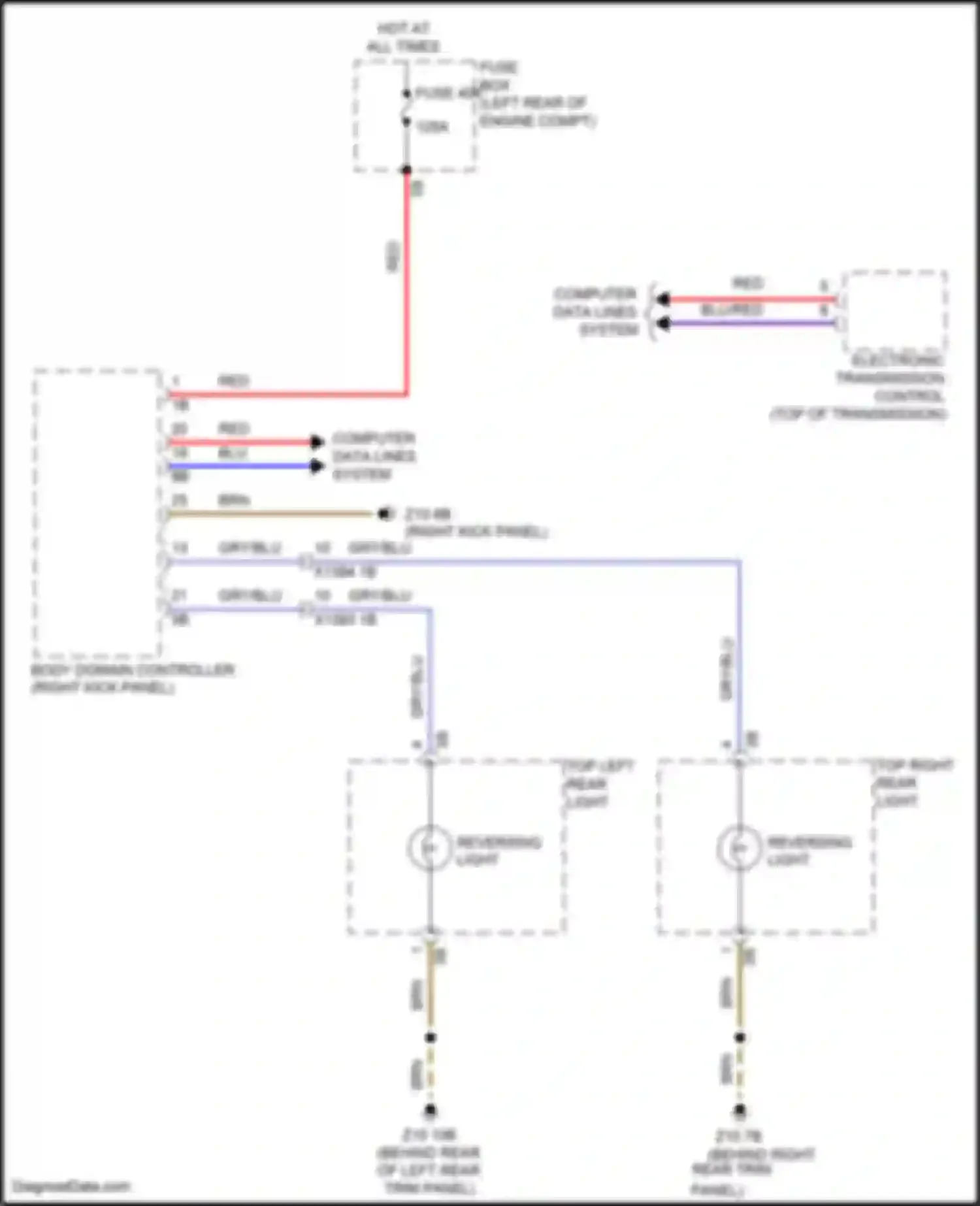

Go to component -> Starting circuit -> BLU/RED WIRE
Wiring diagram blu/red (18 of 31)
Go to component -> Supplemental restraints circuit (2 of 3) -> BLU/RED WIRE
Wiring diagram blu/red (19 of 31)
Go to component -> Trailer tow circuit -> BLU/RED WIRE
Wiring diagram blu/red (20 of 31)
Go to component -> Transmission circuit (1 of 2) -> BLU/RED WIRE
