MINI Cooper Clubman I facelift (2010-2014) except clubman, clubman 6 w/o rapid cargo 7 clubman w/ rapid cargo Wiring diagram
This page shows the only wiring diagram for the component.except clubman, clubman 6 w/o rapid cargo 7 clubman w/ rapid cargo, which is found in the car MINI Cooper Clubman I facelift (2010-2014). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

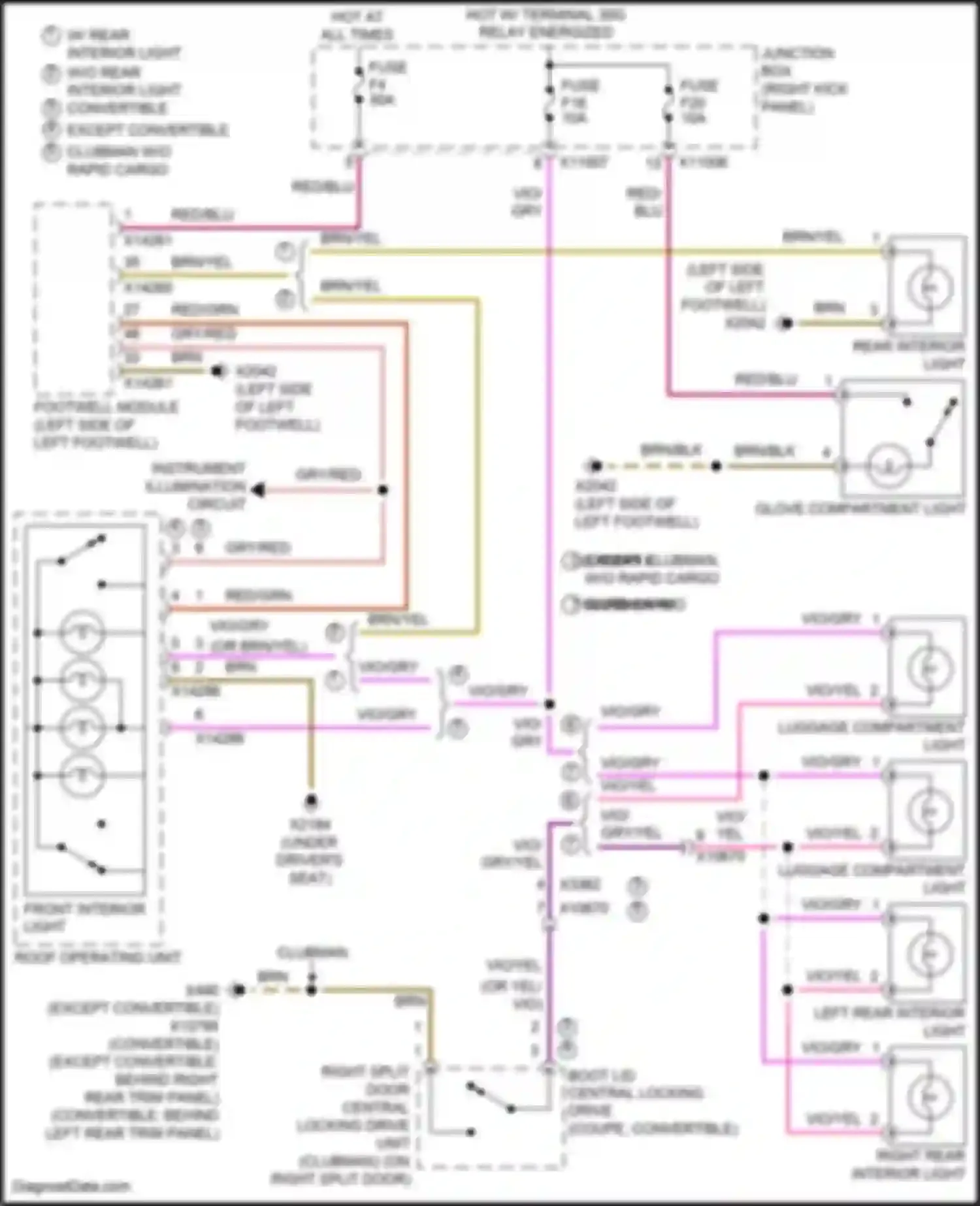

Wiring diagram except clubman, clubman 6 w/o rapid cargo 7 clubman w/ rapid cargo (1 of 1)
BLU WIRE
BOOT LID, CENTRAL LOCKING DRIVE
BRN WIRE
BRN/BLK WIRE
BRN/YEL WIRE
COUPE CONVERTIBLE
EXCEPT CLUBMAN, CLUBMAN 6 W/O RAPID CARGO 7 CLUBMAN W/ RAPID CARGO
EXCEPT CONVERTIBLE
FOOTWELL MODULE
FRONT INTERIOR LIGHT
GLOVE COMPARTMENT LIGHT
GRY WIRE
GRY/RED WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
INSTRUMENT ILLUMINATION CIRCUIT
JUNCTION BOX
LEFT REAR INTERIOR LIGHT
LUGGAGE COMPARTMENT LIGHT
REAR INTERIOR LIGHT
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
RELAY ENERGIZED
RIGHT REAR INTERIOR LIGHT
RIGHT SPLIT DOOR CENTRAL LOCKING DRIVE UNIT
ROOF OPERATING UNIT
VIO WIRE
VIO/GRY WIRE
VIO/YEL WIRE
YEL WIRE
Go to component -> Courtesy lamps circuit, w/o interior lights package -> EXCEPT CLUBMAN, CLUBMAN 6 W/O RAPID CARGO 7 CLUBMAN W/ RAPID CARGO
