Mercury Sable V (2007-2009) 1 2 3 vpwr rear sounder + reverse Wiring diagram
This page shows the only wiring diagram for the component.1 2 3 vpwr rear sounder + reverse, which is found in the car Mercury Sable V (2007-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

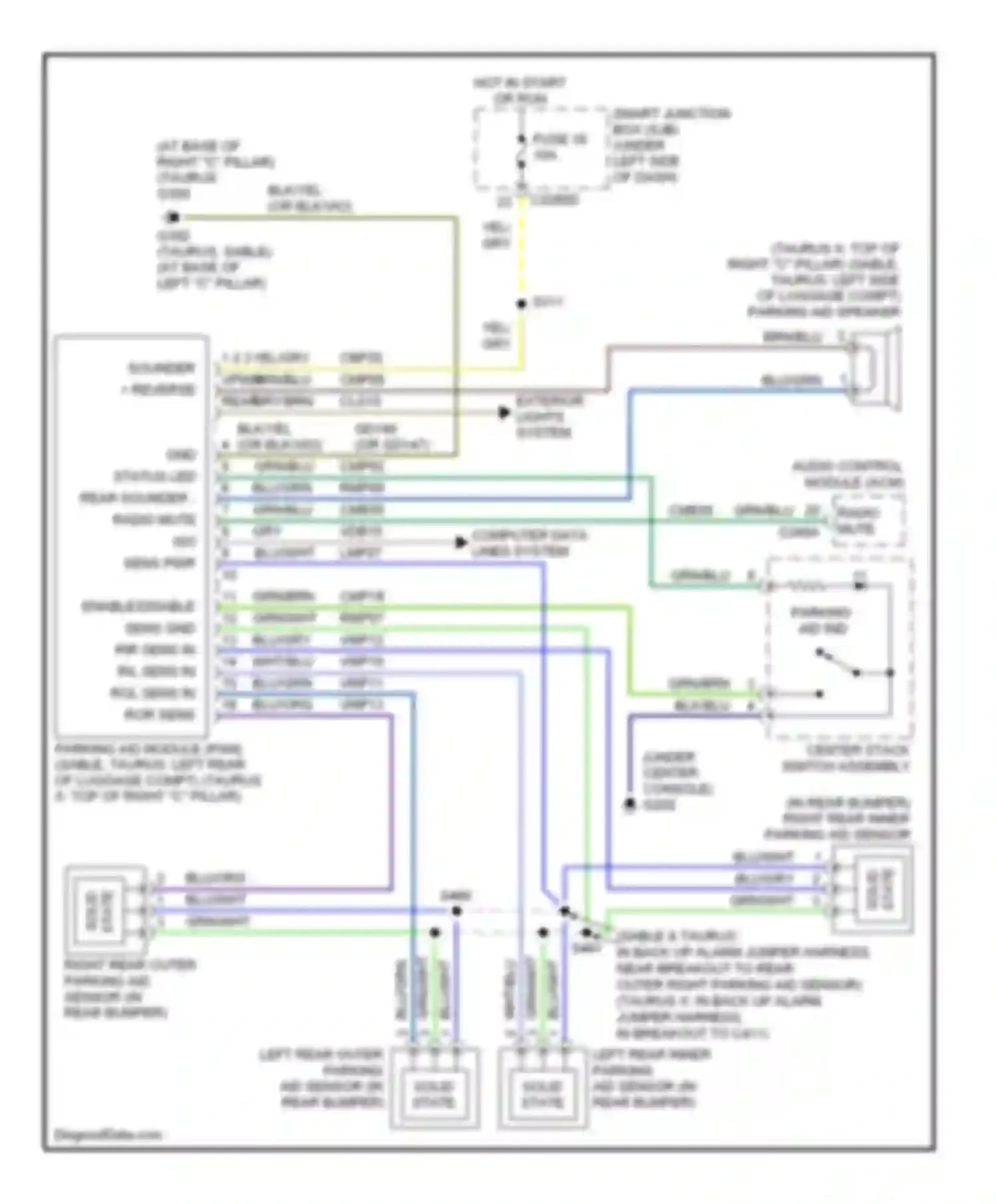

Wiring diagram 1 2 3 vpwr rear sounder + reverse (1 of 1)
1 2 3 VPWR REAR SOUNDER + REVERSE
AUDIO CONTROL MODULE (ACM)
BLK/BLU WIRE
BLK/YEL WIRE
BLU/GRN WIRE
BLU/GRY WIRE
BLU/ORG WIRE
BLU/WHT WIRE
BRN/BLU WIRE
CENTER STACK SWITCH ASSEMBLY
COMPUTER DATA LINES SYSTEM
ENABLE/DISABLE SENS GND RIR SENS IN RIL SENS IN ROL SENS IN ROR SENS IN
FUSE 35
GRN/BLU WIRE
GRN/BRN WIRE
GRN/WHT WIRE
GRY WIRE
GRY/BRN WIRE
HOT IN START OR RUN
LEFT REAR INNER PARKING AID SENSOR (IN REAR BUMPER)
LEFT REAR OUTER PARKING AID SENSOR (IN REAR BUMPER)
OF LUGGAGE COMPT) (TAURUS X: TOP OF RIGHT "C" PILLAR)
PARKING AID IND
PARKING AID MODULE (PAM) (SABLE, TAURUS: LEFT REAR
PARKING AID SPEAKER
RADIO MUTE
RIGHT REAR OUTER PARKING AID SENSOR (IN REAR BUMPER)
SMART JUNCTION BOX (SJB) (UNDER LEFT SIDE OF DASH)
SOLID SOLID STATE STATE
SOLID STATE
STATE SOLID
WHT/BLU WIRE
YEL WIRE
YEL/GRY WIRE
Go to component -> Parking assistant circuit -> 1 2 3 VPWR REAR SOUNDER + REVERSE
