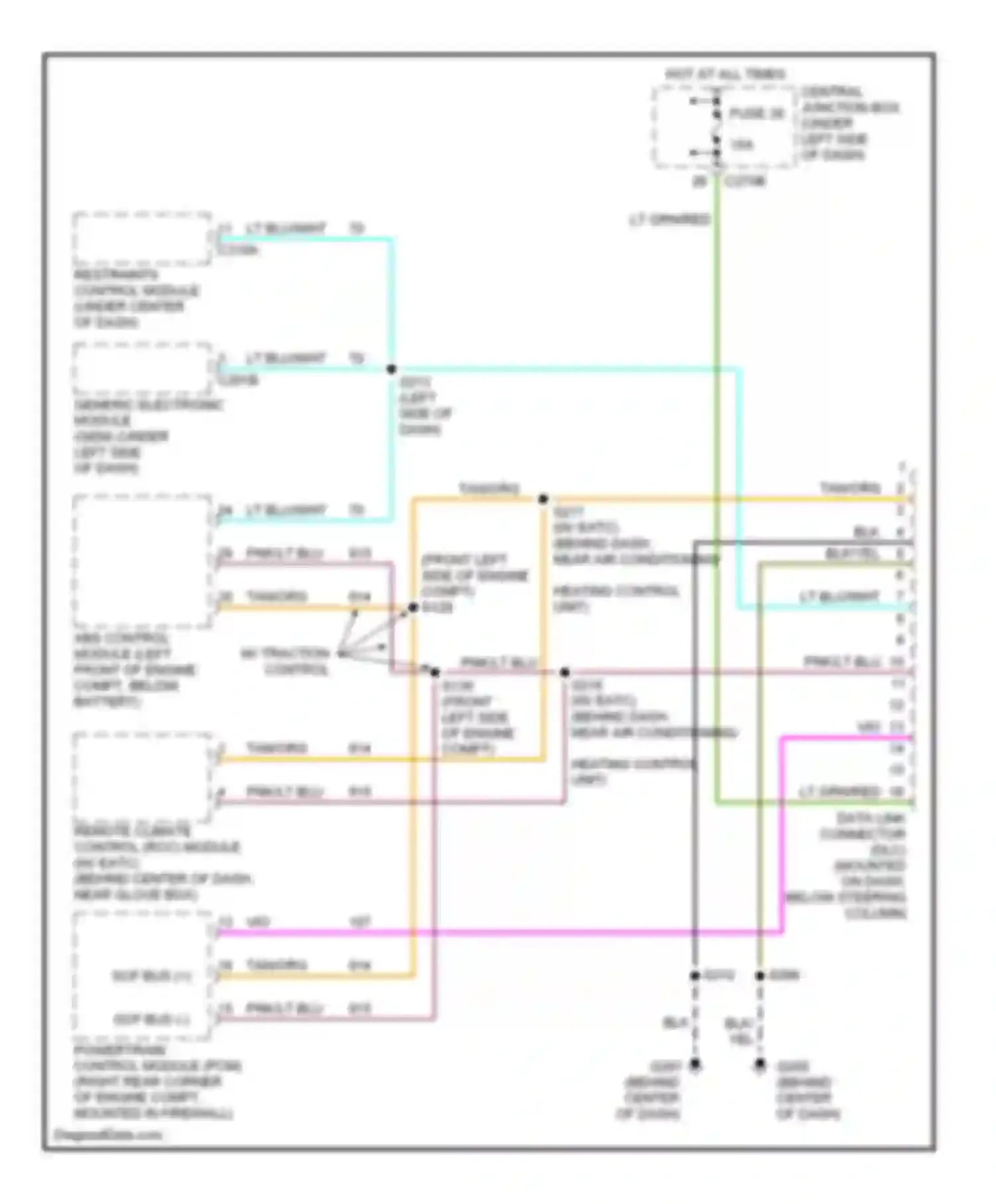

Computer data lines circuit for Mercury Sable IV (1999-2005)
Computer data lines circuit
ABS CONTROL MODULE (LEFT FRONT OF ENGINE COMPT, BELOW BATTERY)
BLK WIRE
BLK/YEL WIRE
CENTRAL JUNCTION BOX (UNDER LEFT SIDE OF DASH)
DATA LINK CONNECTOR (DLC) (MOUNTED ON DASH, BELOW STEERING COLUMN)
FUSE 30
GENERIC ELECTRONIC MODULE (GEM) (UNDER LEFT SIDE OF DASH)
HOT AT ALL TIMES
LT BLU/WHT WIRE
LT GRN/RED WIRE
PNK/LT BLU WIRE
RESTRAINTS CONTROL MODULE (UNDER CENTER OF DASH)
SCP BUS (+)
TAN/ORG WIRE
VIO WIRE
W/ TRACTION CONTROL
YEL WIRE
