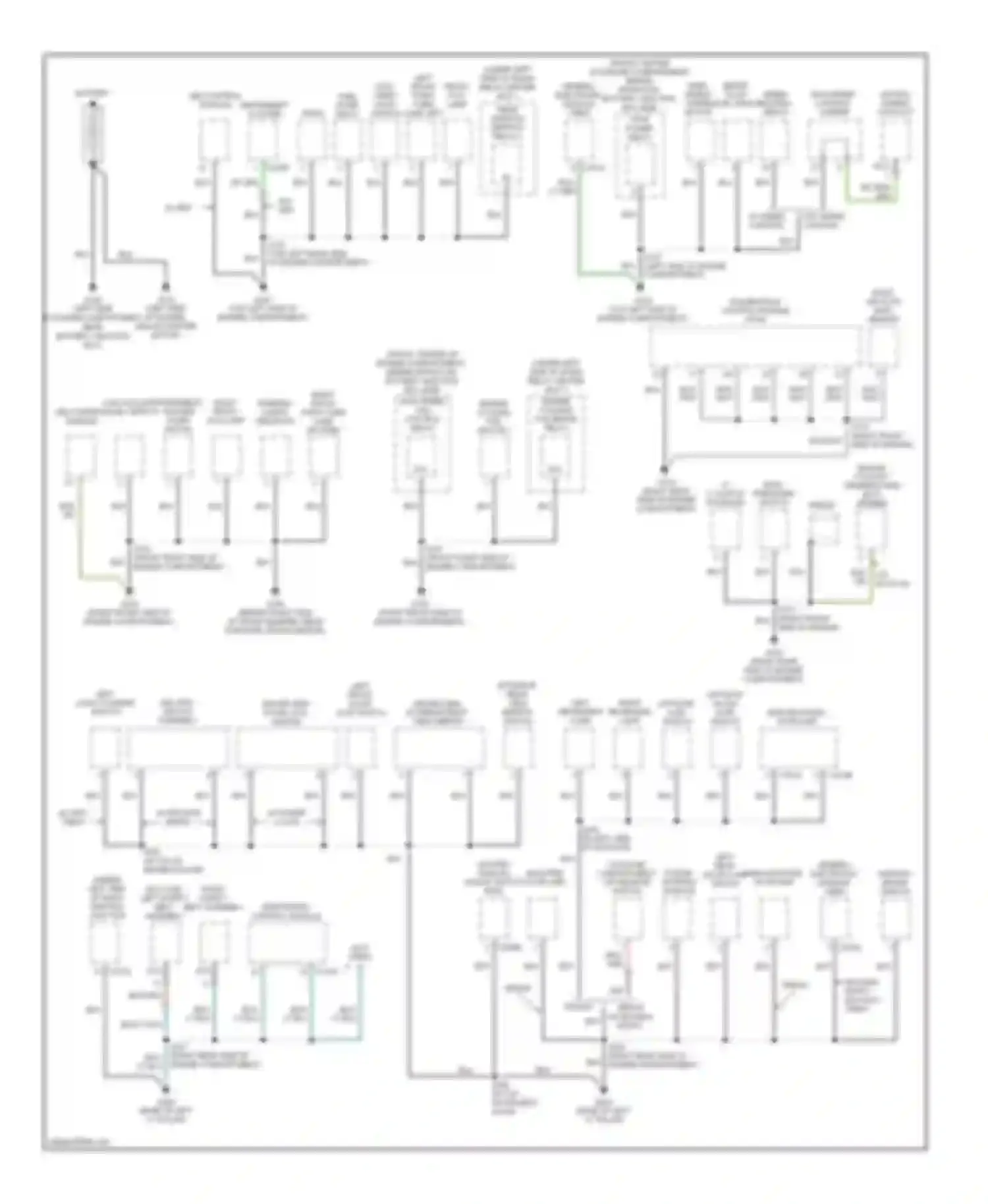

Mercury Sable IV (1999-2005) liftgate glass ajar switch Wiring diagrams

4 6 VBATT GROUND AUTO- LAMP HEADLAMP RELAY AUTO- LAMP PARK RELAY BLK WIRE BLK/LT GRN WIRE BRN WIRE CENTRAL JUNCTION BOX (UNDER LEFT SIDE OF DASH) DK GRN WIRE DOOR LOCK DOOR UNLOCK DRIVER SIDE DOOR LOCK SWITCH FUSE 11 FUSE 16 FUSE 26 FUSE 27 FUSE 29 FUSE 30 GENERIC ELECTRONIC MODULE (GEM) (UNDER LEFT SIDE OF DASH) GRY/RED WIRE HEADLIGHTS SYSTEM HORN RELAY HOT AT ALL TIMES HOT IN RUN OR ACC HOT IN START OR RUN INTERIOR LIGHTS SYSTEM (AT BASE OF LEFT "A" PILLAR) LEFT FRONT DOOR AJAR SWITCH LEFT LOCK CYLINDER SWITCH LEFT REAR DOOR AJAR SWITCH LIFTGATE AJAR SWITCH (WAGON) LIFTGATE GLASS AJAR SWITCH LIFTGATE LOCK CYLINDER SWITCH LOCK LOCK/UNLOCK LT BLU/BLK WIRE LT GRN/YEL WIRE LUGGAGE COMPARTMENT ANTI-THEFT SWITCH (SEDAN) NCA WIRE PASSENGER SIDE DOOR LOCK SWITCH PNK/LT BLU WIRE PNK/LT GRN WIRE PNK/WHT WIRE PNK/YEL WIRE PULSE STRETCHER MODULE (WAGON) (IN LIFTGATE) RIGHT FRONT DOOR AJAR SWITCH RIGHT LOCK CYLINDER SWITCH RIGHT REAR DOOR AJAR SWITCH ANTI- THEFT HOOD SWITCH TAN/LT GRN WIRE UNLOCK WAGON WHT/RED WIRE WHT/VIO WIRE YEL/BLK WIRE YEL/LT GRN WIRE

3.0L 24-VALVE A/C CLUTCH SOLENOID ABS CONTROL MODULE AIR BAG SLIDING CONTACT ANTI-THEFT HOOD SWITCH BATTERY BLK WIRE BLK/LT BLU WIRE BLK/ORG WIRE BLK/WHT WIRE BRAKE FLUID LEVEL SWITCH DK GRN WIRE DRIVER SIDE DOOR LOCK SWITCH DRIVER SIDE EXTERIOR REAR VIEW MIRROR DUAL PRESSURE SWITCH ENGINE COOLANT TEMPERATURE (ECT) SENDER ENGINE COOLING FAN BRAKE RELAY ENGINE COOLING FAN MOTOR 1 EXTERIOR REAR VIEW MIRROR SWITCH FUEL PUMP RELAY GENERIC ELECTRONIC MODULE (GEM) GRY WIRE HIGH MOUNTED STOPLAMP HIGH SPEED FAN CONTROL RELAY HORN INSTRUMENT CLUSTER KEY PAD SWITCH ASSEMBLY KEYLESS ENTRY W/O ANTI- THEFT LEFT FRONT DOOR AJAR SWITCH LEFT FRONT PARK/ TURN LAMP LEFT FRONT FOG LAMP LEFT LOCK CYLINDER SWITCH LEFT REAR DOOR AJAR SWITCH LEFT REVERSING LAMP LIFTGATE GLASS AJAR SWITCH LOW COOLANT LEVEL SWITCH LT BLU WIRE LT GRN WIRE LUGGAGE COMPARTMENT LID RELEASE SWITCH POWER ANTENNA MODULE MASS AIR FLOW (MAF SENSOR) MASTER WINDOW ADJUST SWITCH HIGH MOUNTED STOPLAMP NCA WIRE NON-SPEED CONTROL JUMPER ORG/ WIRE PARKING BRAKE SWITCH PCM POWER RELAY POWERTRAIN CONTROL MODULE (PCM) REAR WINDOW DEFROST RELAY 2 RED WIRE RESTRAINTS CONTROL MODULE RIGHT FRONT PARK/ TURN LAMP DAYTIME RUNNING LAMPS RESISTOR RIGHT REVERSING LAMP LIFTGATE AJAR SWITCH RIGHT SAFETY BELT ASSEMBLY SEDAN SEDAN SE SEDAN W/ KEYLESS ENTRY SHIELD SPEED CONTROL SERVO W/ ABS W/ ANTI- THEFT W/ KEYLESS ENTRY W/ POWER LOCKS W/ SPEED CONTROL W/O ABS W/O SPEED CONTROL WAGON WHT WIRE WIND- SHIELD WIPER MOTOR WINDSHIELD WASHER PUMP MOTOR RIGHT FRONT FOG LAMP YEL WIRE
