Mercury Mystique I (1994-2000) w/ speed control w/o speed control Wiring diagram
This page shows the only wiring diagram for the component.w/ speed control w/o speed control, which is found in the car Mercury Mystique I (1994-2000). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

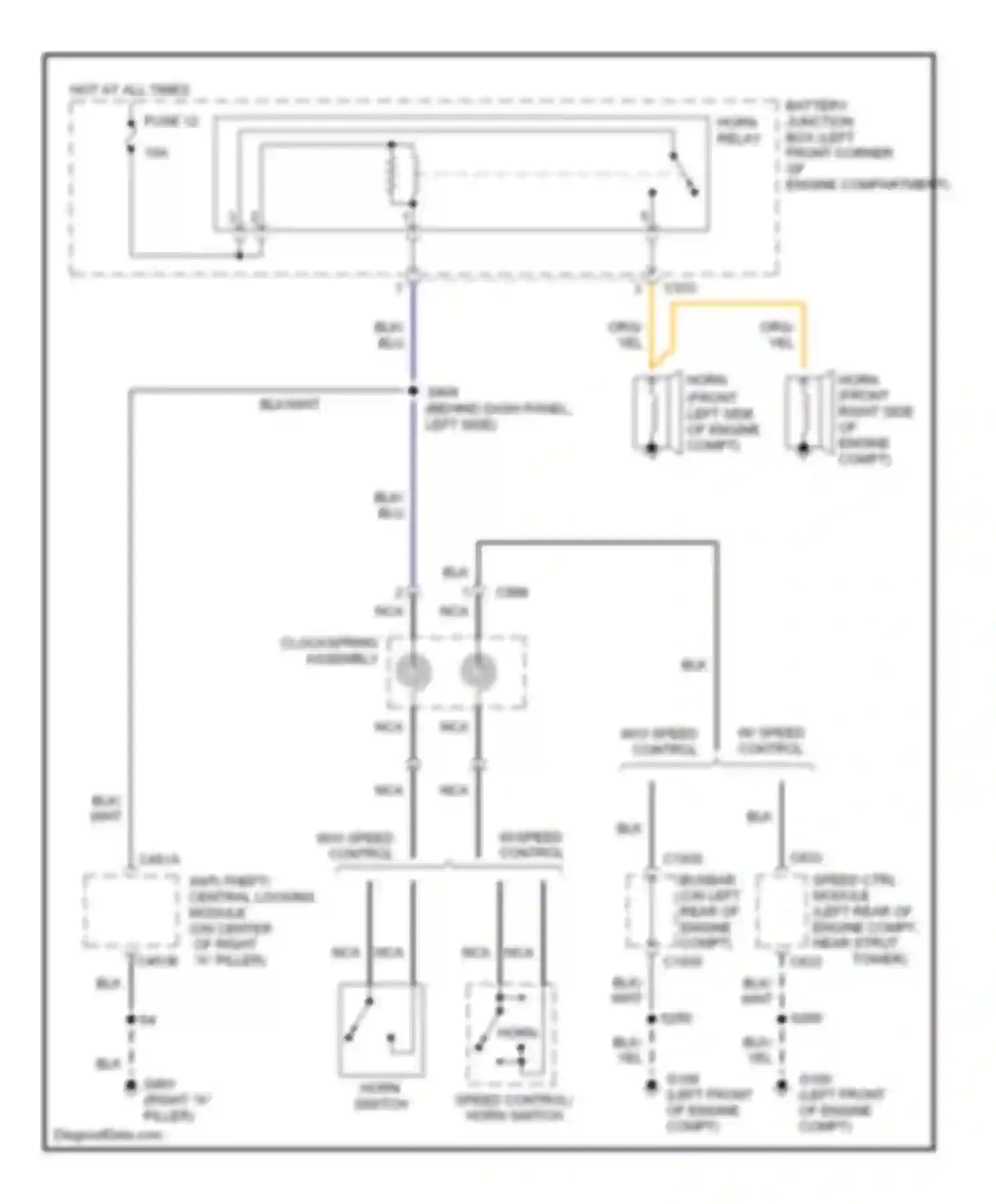

Wiring diagram w/ speed control w/o speed control (1 of 1)
ANTI-THEFT/ CENTRAL LOCKING MODULE (ON CENTER
BATTERY JUNCTION BOX (LEFT FRONT CORNER OF ENGINE COMPARTMENT)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
CLOCKSPRING ASSEMBLY
FUSE 12
HORN
HORN (FRONT LEFT SIDE OF ENGINE COMPT)
HORN (FRONT RIGHT SIDE OF ENGINE COMPT)
HORN RELAY
HORN SWITCH
HOT AT ALL TIMES
NCA WIRE
OF RIGHT "A" PILLER)
ORG/ WIRE
SPEED CONTROL/ HORN SWITCH
TOWER)
W/ SPEED CONTROL W/O SPEED CONTROL
W/O SPEED CONTROL
W/SPEED CONTROL
WHT WIRE
YEL WIRE
Go to component -> Horn circuit -> W/ SPEED CONTROL W/O SPEED CONTROL
