Mercury Mountaineer III (2005-2010) pwr gnd he power Wiring diagram
This page shows the only wiring diagram for the component.pwr gnd he power, which is found in the car Mercury Mountaineer III (2005-2010). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

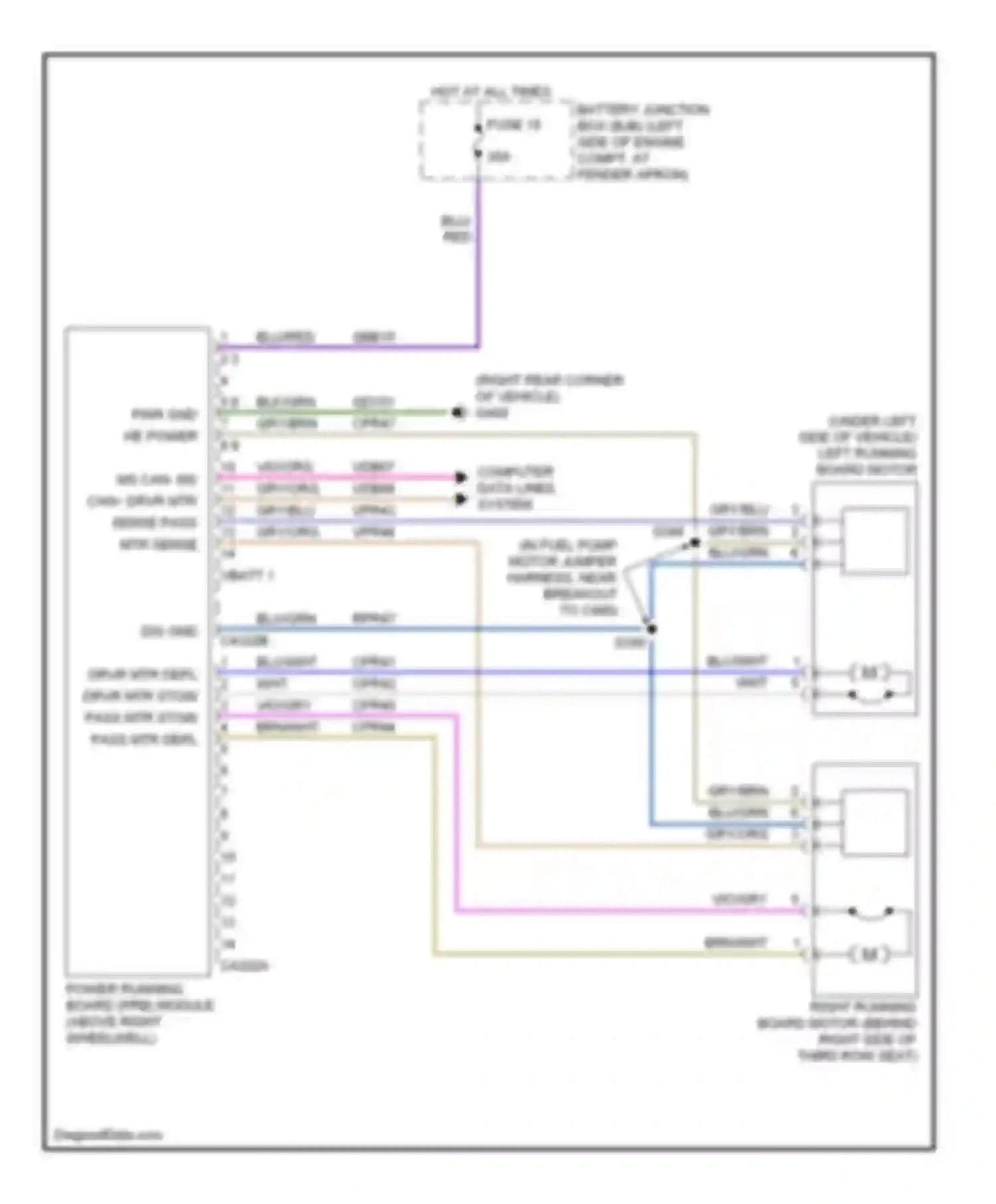

Wiring diagram pwr gnd he power (1 of 1)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 VBATT 1
BATTERY JUNCTION BOX (BJB) (LEFT SIDE OF ENGINE COMPT, AT FENDER APRON)
BLK/GRN WIRE
BLU WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/WHT WIRE
BRN/WHT WIRE
COMPUTER DATA LINES SYSTEM
DIG GND
FUSE 19
GRY/BLU WIRE
GRY/BRN WIRE
GRY/ORG WIRE
HOT AT ALL TIMES
MS CAN- MS CAN+ DRVR MTR SENSE PASS MTR SENSE
POWER RUNNING BOARD (PRB) MODULE (ABOVE RIGHT WHEELWELL)
PWR GND HE POWER
RED WIRE
RIGHT RUNNING BOARD MOTOR (BEHIND RIGHT SIDE OF THIRD ROW SEAT)
VIO/GRY WIRE
VIO/ORG WIRE
WHT WIRE
Go to component -> Power running boards circuit -> PWR GND HE POWER
