Mercury Mountaineer II (2001-2005) 39 11 14 22 rly ctrl tx rx ind ctrl Wiring diagram
This page shows the only wiring diagram for the component.39 11 14 22 rly ctrl tx rx ind ctrl, which is found in the car Mercury Mountaineer II (2001-2005). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

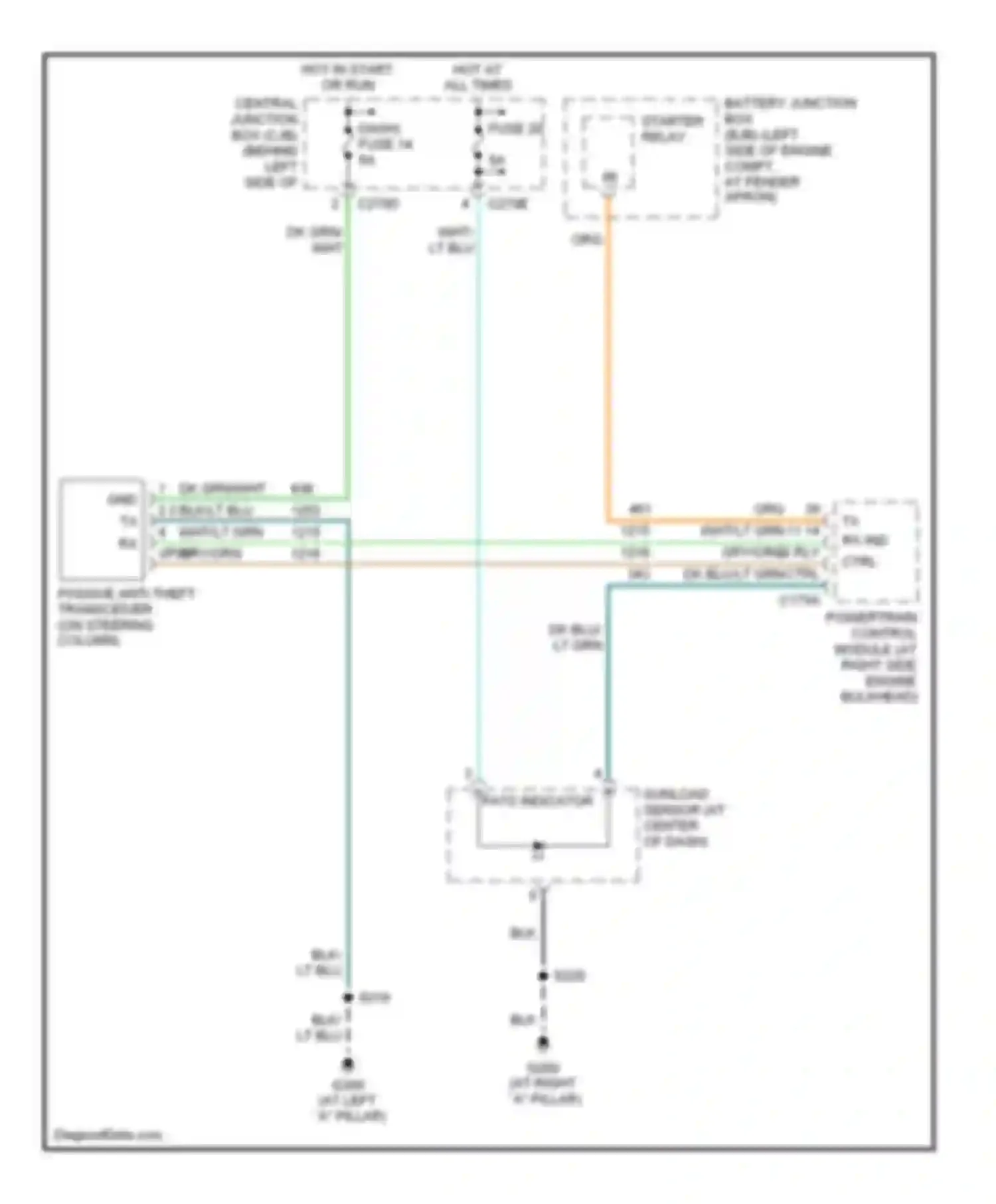

Wiring diagram 39 11 14 22 rly ctrl tx rx ind ctrl (1 of 1)
1 2 3 4 VPWR GND TX RX
39 11 14 22 RLY CTRL TX RX IND CTRL
BATTERY JUNCTION BOX (BJB) (LEFT SIDE OF ENGINE COMPT, AT FENDER APRON)
BLK WIRE
BLK/LT BLU WIRE
CENTRAL JUNCTION BOX (CJB) (BEHIND LEFT SIDE OF DASH) FUSE 14
DK BLU WIRE
DK BLU/LT GRN WIRE
DK GRN WIRE
DK GRN/WHT WIRE
FUSE 20
GRY/ORG WIRE
HOT AT ALL TIMES
HOT IN START OR RUN
LT BLU WIRE
LT GRN WIRE
ORG/ WIRE
PASSIVE ANTI-THEFT TRANSCEIVER (ON STEERING COLUMN)
PATS INDICATOR
POWERTRAIN CONTROL MODULE (AT RIGHT SIDE ENGINE BULKHEAD)
STARTER RELAY
SUNLOAD SENSOR (AT CENTER OF DASH)
WHT WIRE
WHT/LT GRN WIRE
Go to component -> Passive anti-theft circuit -> 39 11 14 22 RLY CTRL TX RX IND CTRL
