Adjustable pedal circuit for Mercury Montego III (2004-2007)

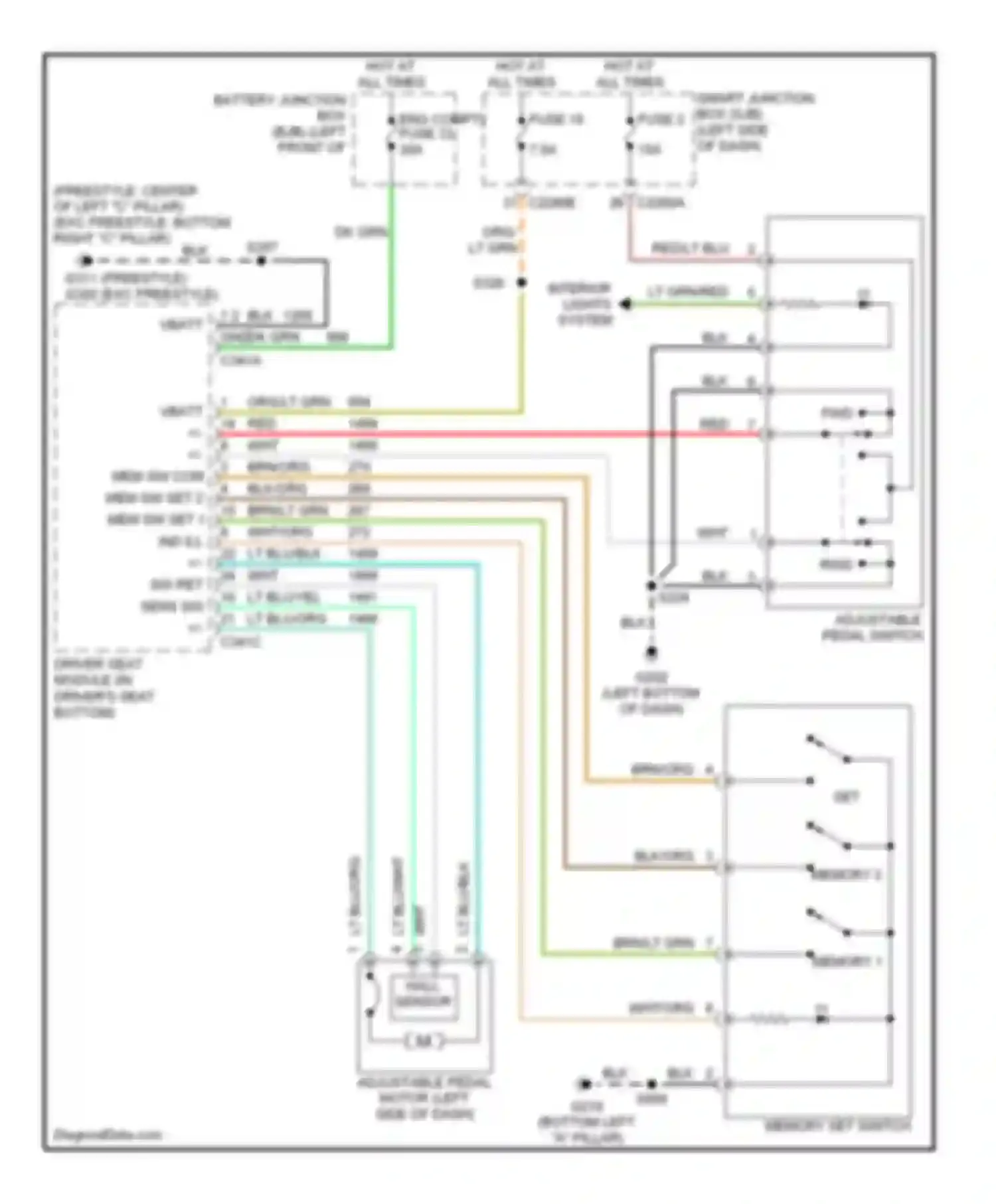

Adjustable pedal circuit
1 2 GND VBATT
ADJUSTABLE PEDAL MOTOR (LEFT SIDE OF DASH)
ADJUSTABLE PEDAL SWITCH
BATTERY JUNCTION BOX (BJB) (LEFT FRONT OF ENG COMPT) FUSE 33
BLK WIRE
BLK/ORG WIRE
BRN/LT GRN WIRE
BRN/ORG WIRE
DK GRN WIRE
DRIVER SEAT MODULE (IN DRIVER'S SEAT BOTTOM)
FUSE 10
FUSE 2
HALL SENSOR
HOT AT ALL TIMES
LT BLU/BLK WIRE
LT BLU/ORG WIRE
LT BLU/WHT WIRE
LT BLU/YEL WIRE
LT GRN WIRE
LT GRN/RED WIRE
MEMORY 1
MEMORY 2
MEMORY SET SWITCH
ORG/ WIRE
ORG/LT GRN WIRE
RED WIRE
RED/LT BLU WIRE
RWD
SET-
SMART JUNCTION BOX (SJB) (LEFT SIDE OF DASH)
WHT WIRE
WHT/ORG WIRE
