Mercedes-Benz S-class W140 facelift (1994-1999) instrument charge cluster indicator Wiring diagram
This page shows the only wiring diagram for the component.instrument charge cluster indicator, which is found in the car Mercedes-Benz S-class W140 facelift (1994-1999). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

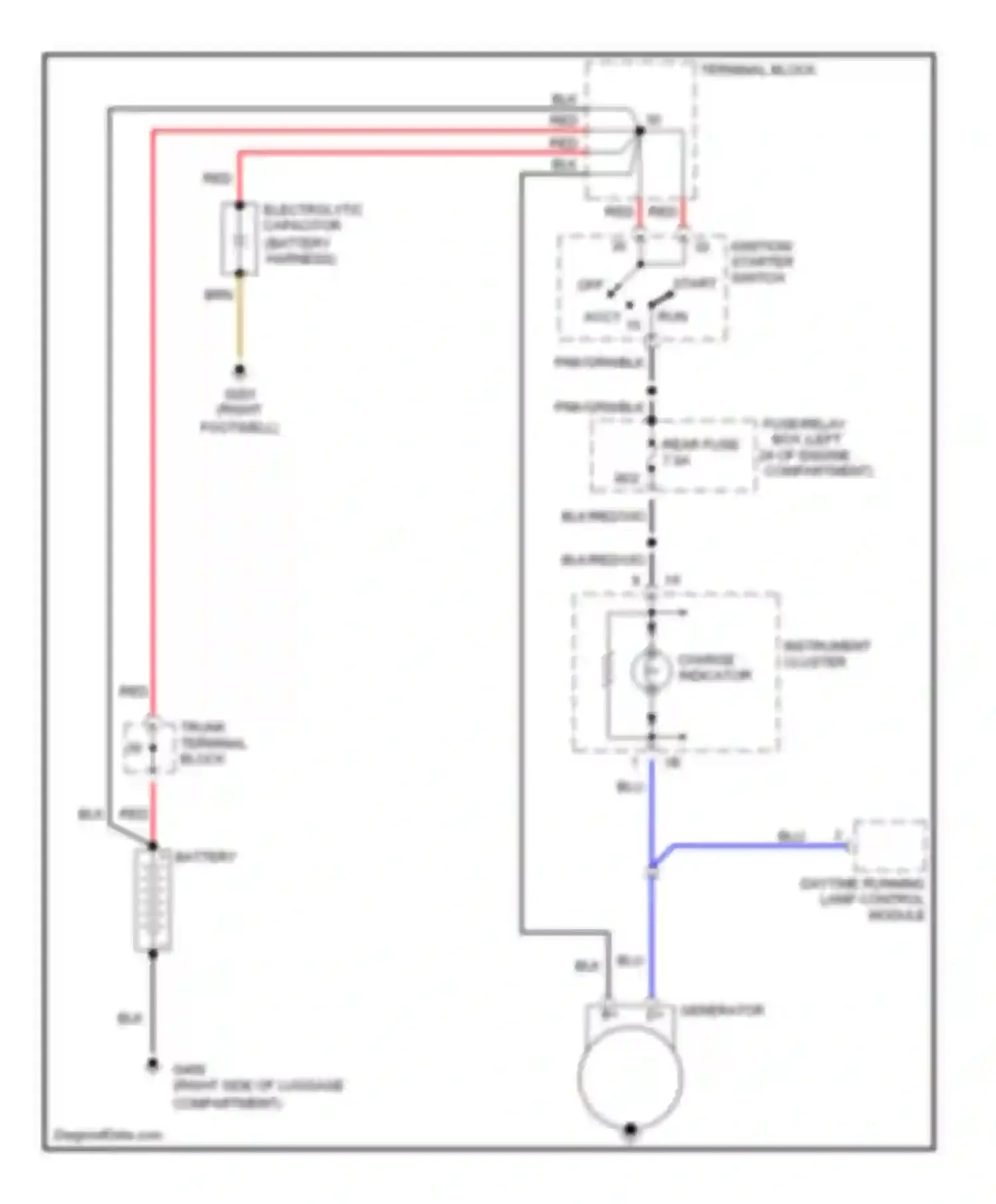

Wiring diagram instrument charge cluster indicator (1 of 1)
ACCY
BATTERY
BLK WIRE
BLK/RED/VIO WIRE
BLU WIRE
BRN WIRE
DAYTIME RUNNING LAMP CONTROL MODULE
ELECTROLYTIC CAPACITOR
FUSE/RELAY BOX (LEFT REAR FUSE 24 OF ENGINE COMPARTMENT) 36/2
GENERATOR B+ D+
IGNITION/ STARTER SWITCH
INSTRUMENT CHARGE CLUSTER INDICATOR
OFF
PNK/GRN/BLK WIRE
RED WIRE
RUN WIRE
TERMINAL BLOCK
TRUNK TERMINAL BLOCK
