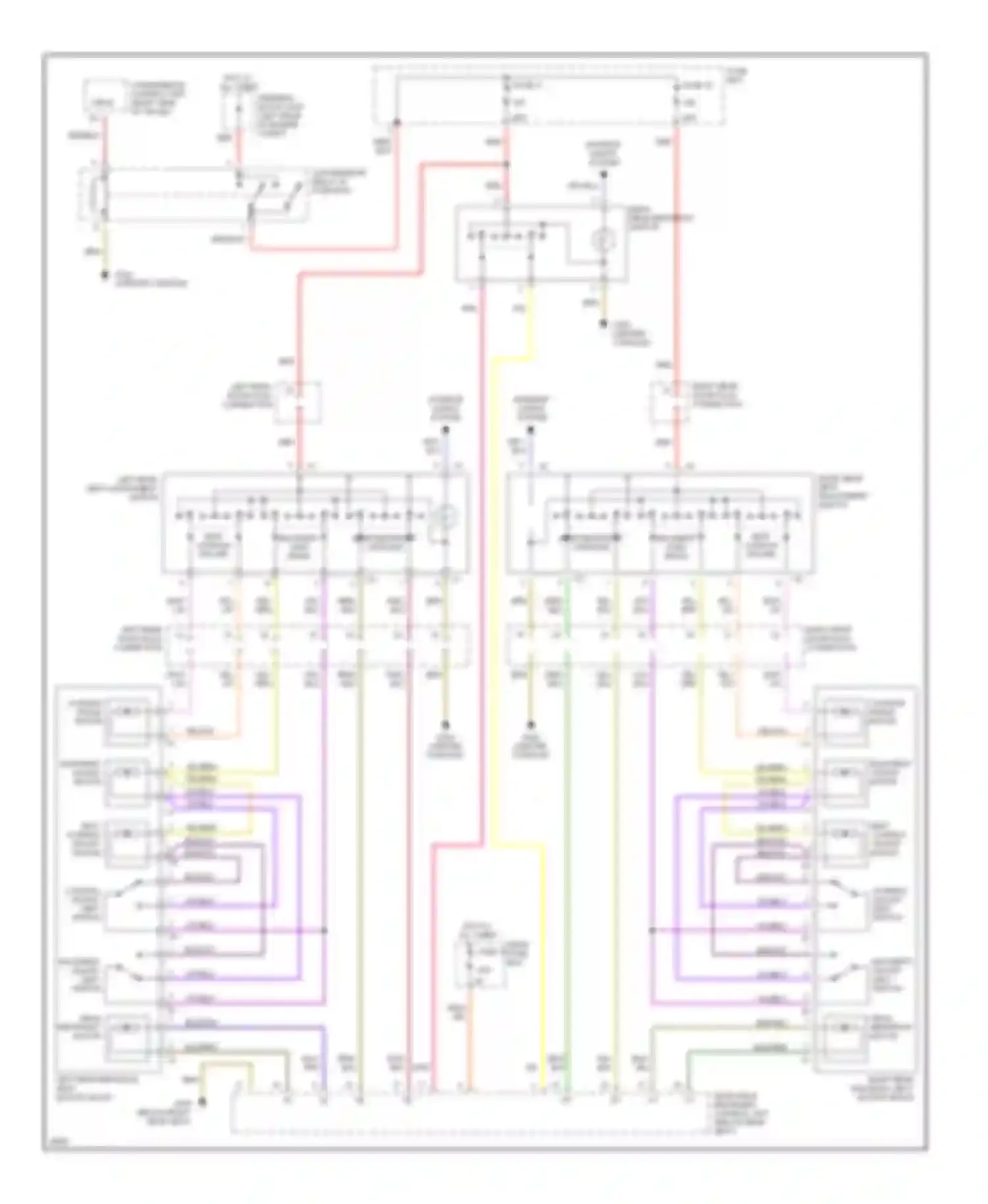

Mercedes-Benz S-class W140 facelift (1994-1999) backrest adjust limit switch Wiring diagram

69/1 69/2 BACKREST ADJUST LIMIT SWITCH BACKREST ADJUST MOTOR BLK WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/PNK WIRE BLK/VIO WIRE BLK/YEL WIRE BLU WIRE BRN WIRE CENTER CONSOLE CONVENIENCE CONTROL UNIT (RIGHT SIDE OF TRUNK) CONVENIENCE RELAY (IN FUSE BOX) CUSHION ADJUST LIMIT SWITCH CUSHION ANGLE MOTOR FUSE 31 FUSE 32 FUSE BOX GRN WIRE GRY WIRE GRY/BLU WIRE HEAD RESTRAINT MOTOR HEAD RESTRAINT UP/DOWN HOT AT ALL TIMES INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM LEFT REAR DOOR PLUG CONNECTION LEFT REAR INDIVIDUAL SEAT MOTOR GROUP LEFT REAR SEAT ADJUSTMENT SWITCH PNK WIRE REAR FUSE BOX FUSE 15 REAR HEAD RESTRAINT CONTROL UNIT (BELOW REAR SEAT) REAR HEAD RESTRAINT SWITCH RED WIRE RED/BLK WIRE RED/WHT WIRE RIGHT REAR DOOR PLUG CONNECTION RIGHT REAR INDIVIDUAL SEAT MOTOR GROUP RIGHT REAR SEAT ADJUSTMENT SWITCH SEAT CUSHION ADJUST MOTOR SEAT CUSHION INCLINE BACKREST FWD/ BKWD TERMINAL VIO WIRE VIO/BLK WIRE VIO/BLU WIRE WHT WIRE YEL WIRE YEL/BRN WIRE YEL/VIO WIRE
