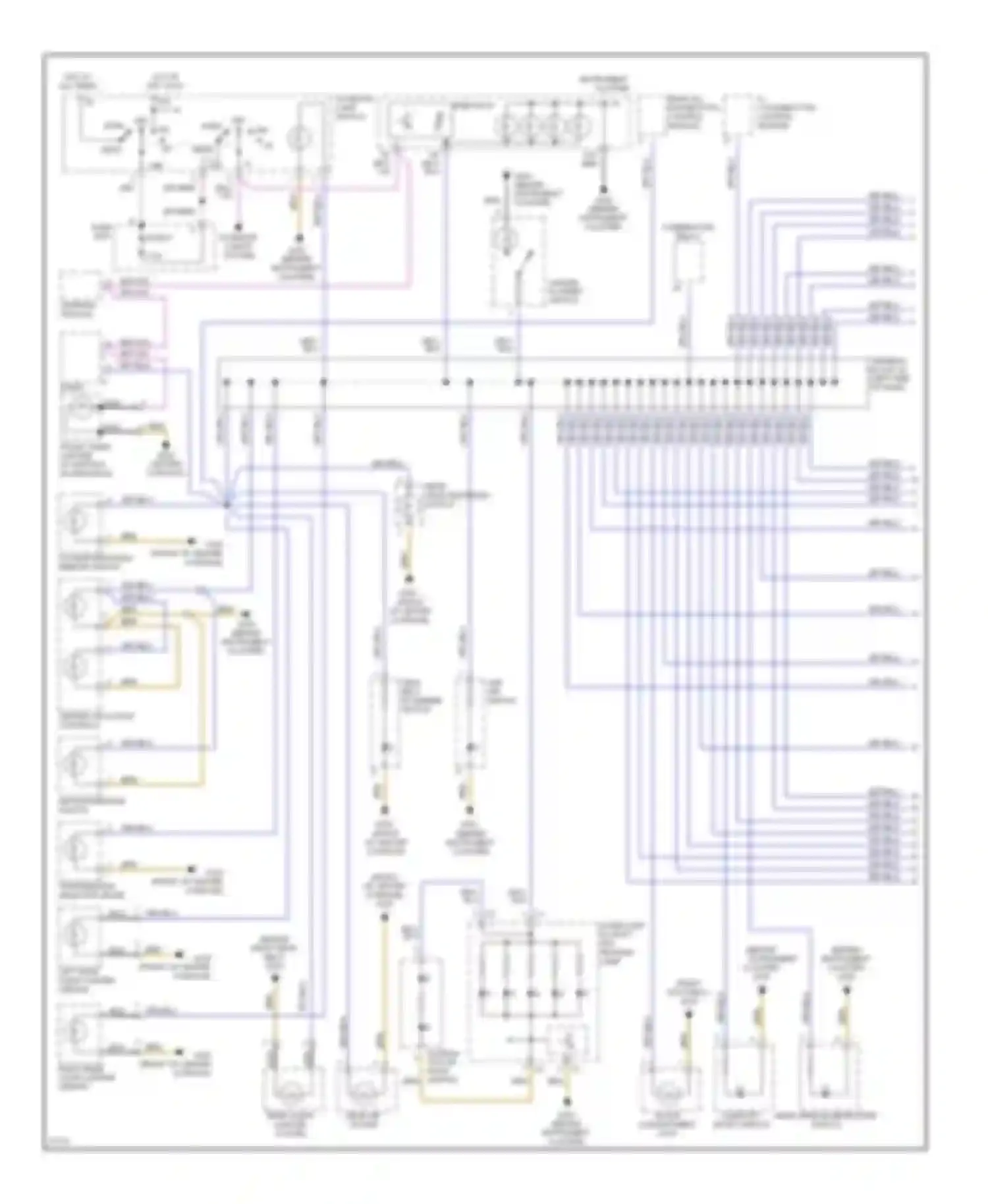

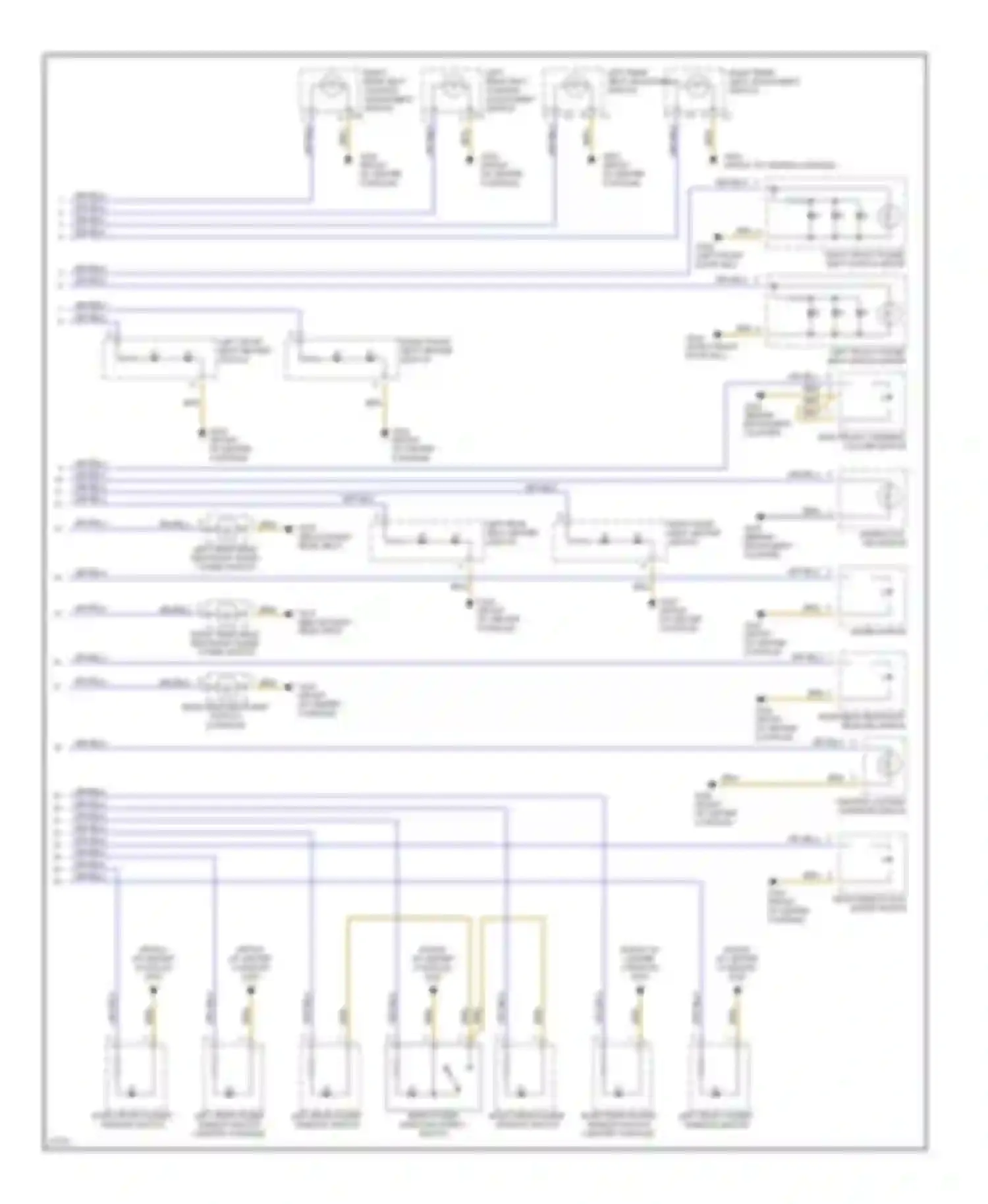

Instrument illumination circuit for Mercedes-Benz S-class W140 (1991-1998)

A/C PUSHBUTTON CONTROL MODULE AIR DISTRIBUTION SWITCH BLU WIRE BRN WIRE CENTER AIR OUTLET CONTROLS CENTER CONSOLE COMBINATION RELAY COMFORT, SPORT SWITCH DOME LAMP W/ SHUT- OFF, READING LAMP EXTERIOR LAMP SWITCH FRONT CIGAR LIGHTER W/ ASHTRAY ILLUMINATION FUSE BOX FUSE 9 GLOVE COMPARTMENT LOCK GRY WIRE GRY/BLU WIRE GRY/RED WIRE GRY/VIO WIRE HAZARD FLASHER SWITCH HEAD HOT AT ALL TIMES HOT IN OFF, ACCY INSTRUMENT CLUSTER LEFT REAR CIGAR LIGHTER (SEDAN) LH HEAD NCA WIRE OFF PARK RH OFF RH OUTSIDE REARVIEW MIRROR SWITCH PARK RADIO REAR A/C PUSHBUTTON CONTROL MODULE REAR AIR OUTLET REAR CIGAR LIGHTER (COUPE) REAR HEAD RESTRAINT SWITCH REAR WINDOW DEFROSTER SWITCH RHEOSTAT RIGHT REAR CIGAR LIGHTER (SEDAN) SEAT BELT EXTENDER SWITCH ASR OFF SWITCH SLIDING/ POP-UP ROOF SWITCH TERMINAL TRANSMISSION SELECTOR LEVER VIO WIRE WARNING MODULE

BRN WIRE CENTRAL LOCKING INTERIOR SWITCH ELECTRONIC STEERING COLUMN SWITCH FADER SWITCH GRY/BLU WIRE LEFT FRONT POWER SEAT SWITCH GROUP LEFT FRONT SEAT HEATER SWITCH LEFT REAR HEAD RESTRAINT RAISE/ LOWER SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR POWER WINDOW SWITCH (CENTER CONSOLE) LEFT REAR SEAT ADJUSTMENT SWITCH LEFT REAR SEAT CUSHION ADJUSTMENT SWITCH LEFT REAR SEAT HEATER SWITCH REAR HEAD RESTRAINT RELEASE SWITCH REAR HEAD RESTRAINT SWITCH (CONSOLE) REAR POWER WINDOWS SAFETY SWITCH REAR WINDOW SUN SHADE SWITCH RIGHT FRONT POWER SEAT SWITCH GROUP RIGHT FRONT POWER WINDOW SWITCH RIGHT FRONT SEAT HEATER SWITCH RIGHT REAR HEAD RESTRAINT RAISE/ LOWER SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR POWER WINDOW SWITCH (CENTER CONSOLE) LEFT FRONT POWER WINDOW SWITCH RIGHT REAR SEAT ADJUSTMENT SWITCH RIGHT REAR SEAT CUSHION ADJUSTMENT SWITCH RIGHT REAR SEAT HEATER SWITCH (BEHIND INSTRUMENT CLUSTER) WARM/COOL AIR SWITCH
