Mercedes-Benz S-class W140 (1991-1998) right front door closing assist microswitch Wiring diagrams

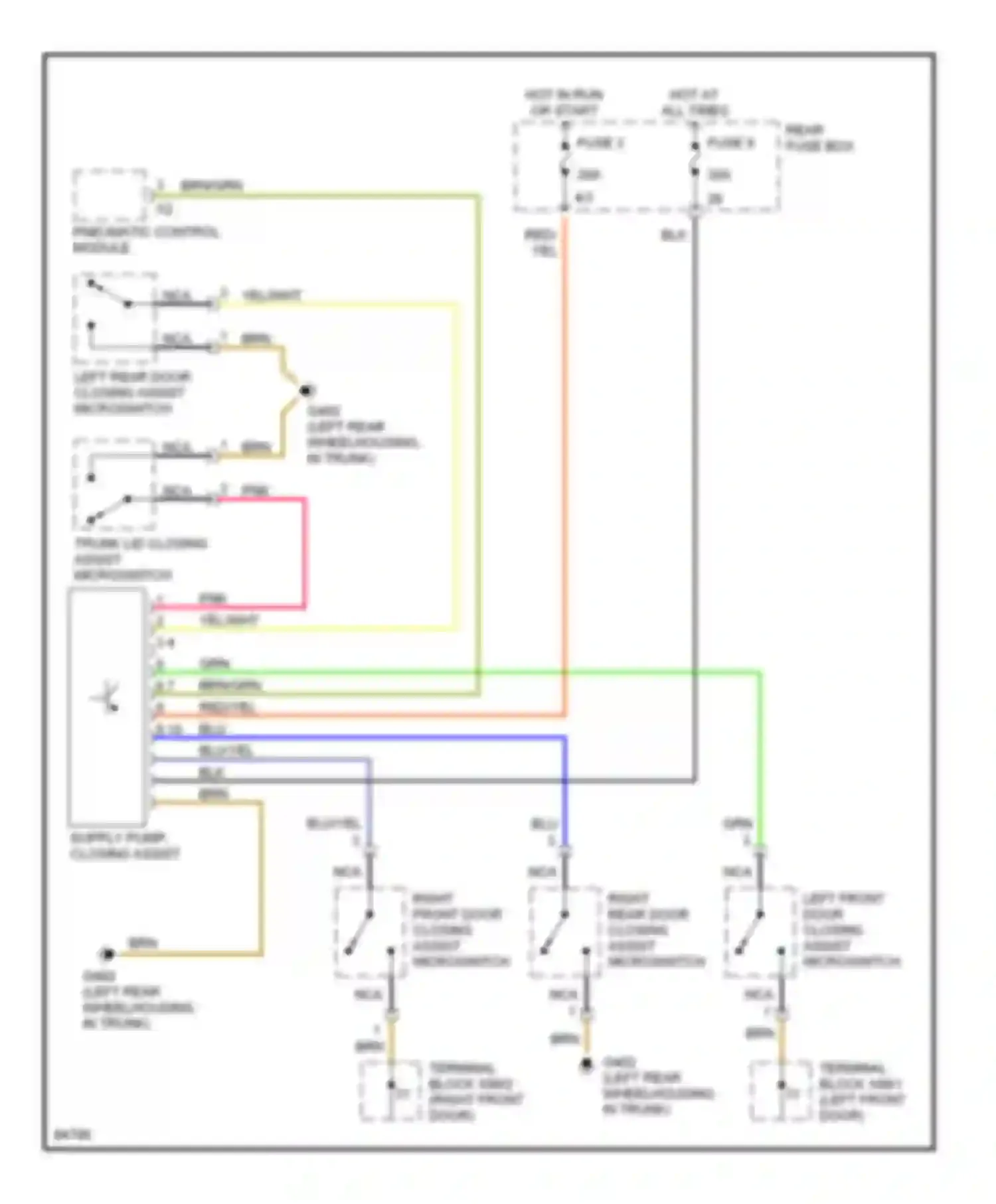

4/3 BLK WIRE BLU WIRE BLU/YEL WIRE BRN WIRE BRN/GRN WIRE FUSE 3 FUSE 9 GRN WIRE HOT AT ALL TIMES HOT IN RUN OR START LEFT FRONT DOOR CLOSING ASSIST MICROSWITCH LEFT REAR DOOR CLOSING ASSIST MICROSWITCH NCA WIRE PNEUMATIC CONTROL MODULE PNK 1 2 3 4 5 6 7 8 9 10 WIRE PNK WIRE REAR FUSE BOX RED WIRE RED/YEL WIRE RIGHT FRONT DOOR CLOSING ASSIST MICROSWITCH RIGHT REAR DOOR CLOSING ASSIST MICROSWITCH SUPPLY PUMP, CLOSING ASSIST TERMINAL TRUNK LID CLOSING ASSIST MICROSWITCH YEL WIRE YEL/WHT WIRE

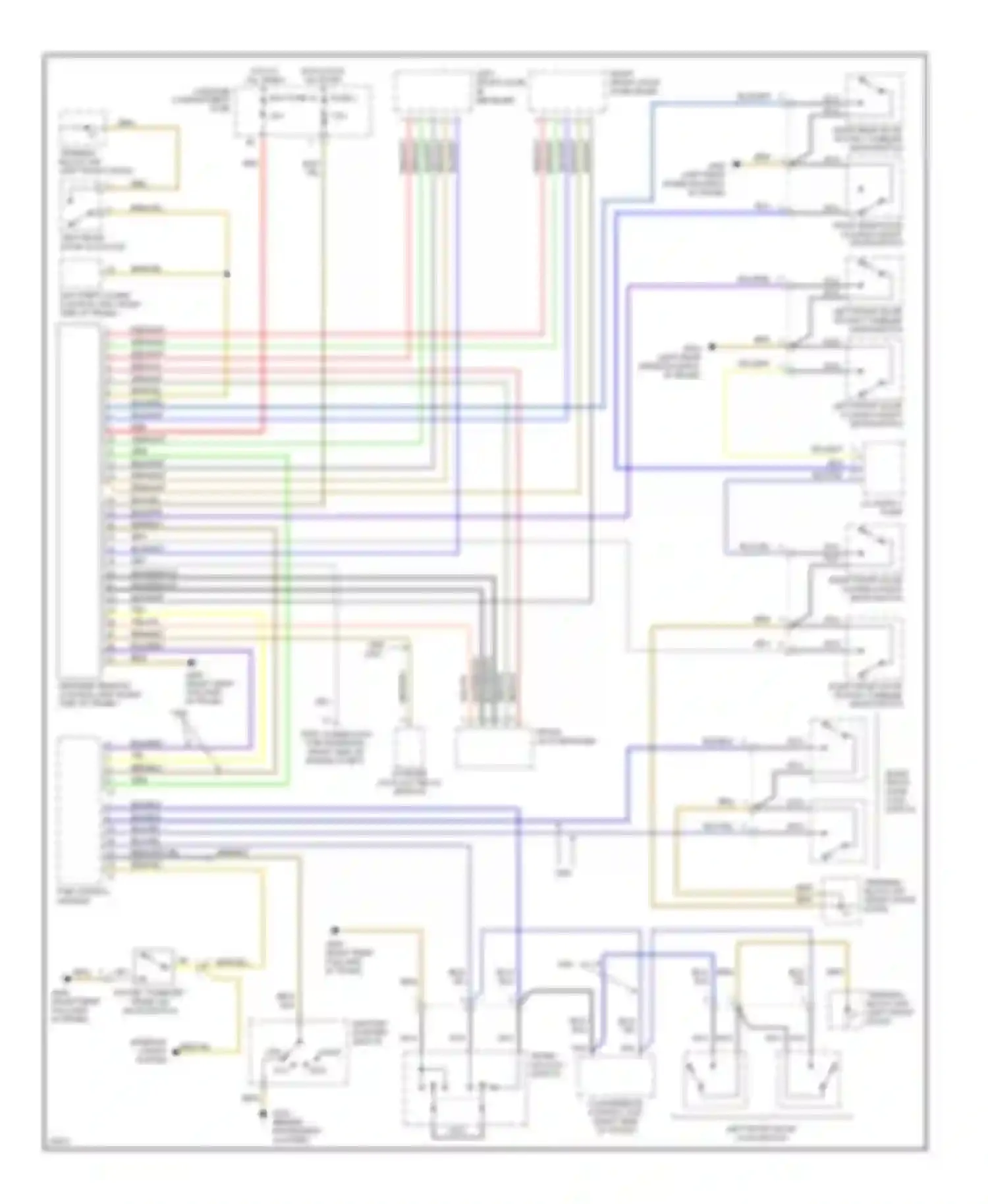

ANTI-THEFT ALARM CONTROL UNIT (RIGHT SIDE OF TRUNK) BLK WIRE BLK/GRN/VIO WIRE BLK/RED/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/PNK WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/GRY WIRE BRN/GRY/YEL WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE CA SUPPLY PUMP CONVENIENCE CONTROL UNIT (RIGHT SIDE OF TRUNK) FUSE 2 GRN WIRE GRN/VIO WIRE GRN/WHT WIRE GRY WIRE HOT AT ALL TIMES HOT IN RUN OR START IGNITION/ STARTER SWITCH INFRARED REMOTE CONTROL UNIT (RIGHT SIDE OF TRUNK) LEFT FRONT DOOR ACTUATOR LEFT FRONT DOOR CLOSING ASSIST MICROSWITCH LEFT FRONT DOOR IR RECEIVER LEFT FRONT DOOR LOCK SWITCH LEFT FRONT DOOR ROTARY TUMBLER MICROSWITCH LUGGAGE COMPARTMENT FUSE BOX FUSE 15 NCA WIRE OFF PSE CONTROL MODULE RED WIRE RED/WHT WIRE RIGHT FRONT DOOR CLOSING ASSIST MICROSWITCH RIGHT FRONT DOOR IR RECEIVER RIGHT FRONT DOOR LOCK SWITCH RIGHT FRONT DOOR ROTARY TUMBLER MICROSWITCH RIGHT REAR DOOR CLOSING ASSIST MICROSWITCH RIGHT REAR DOOR ROTARY TUMBLER MICROSWITCH ROTARY TUMBLER/ TRUNK LID MICROSWITCH RUN WIRE STARTER LOCK-OUT RELAY MODULE TERMINAL TEST CONNECTION FOR DIAGNOSIS (RIGHT SIDE OF ENGINE COMPT) TRUNK LID IR RECEIVER TRUNK LID LOCK SWITCH YEL WIRE YEL/VIO WIRE YEL/WHT WIRE
