Mercedes-Benz S-class W140 (1991-1998) left rear head restraint raise/lower switch Wiring diagram
This page shows the only wiring diagram for the component.left rear head restraint raise/lower switch, which is found in the car Mercedes-Benz S-class W140 (1991-1998). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

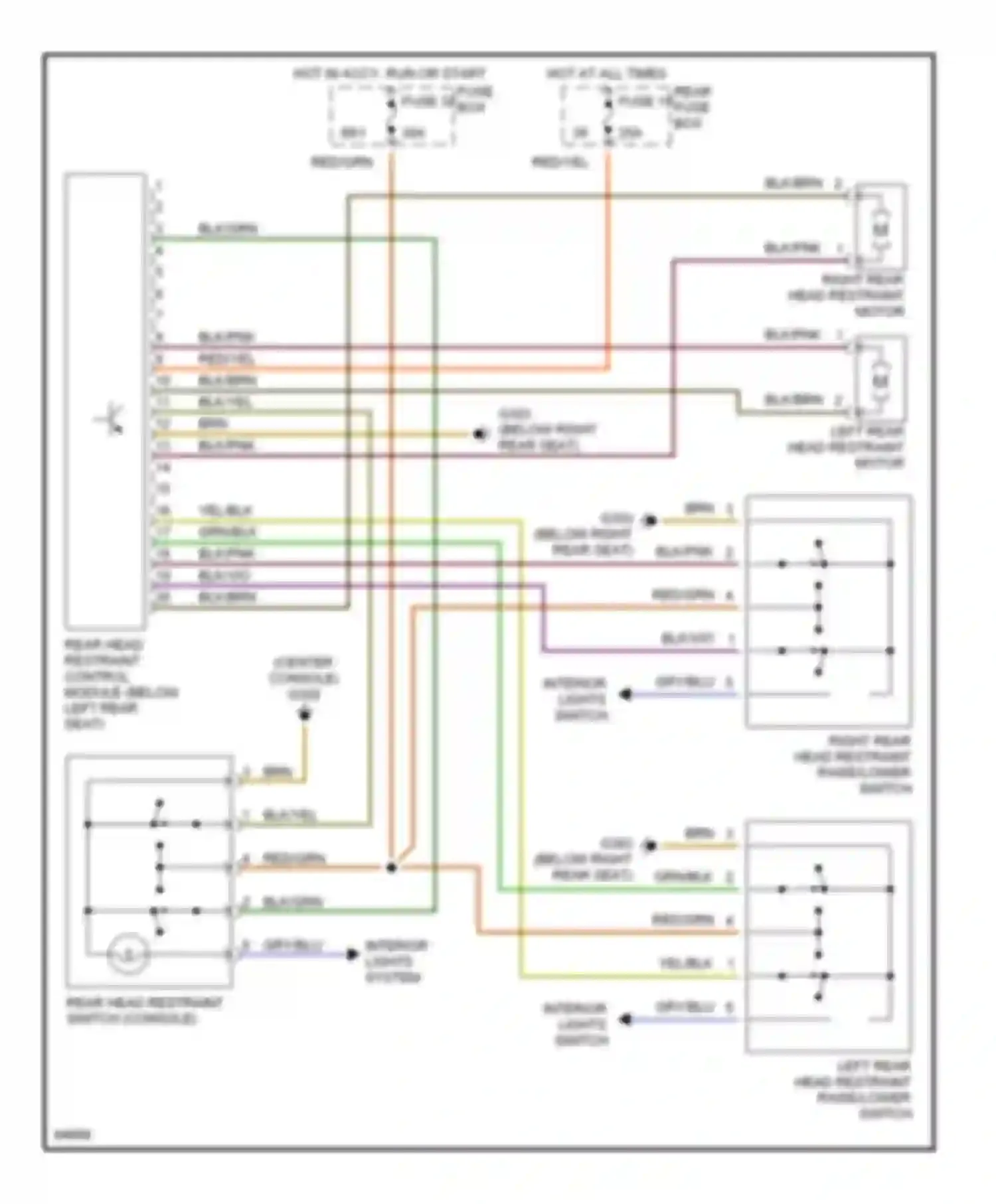

Wiring diagram left rear head restraint raise/lower switch (1 of 1)
69/1
BLK/BRN WIRE
BLK/GRN WIRE
BLK/PNK WIRE
BLK/VIO WIRE
BLK/YEL WIRE
BRN WIRE
CENTER CONSOLE
FUSE 15
FUSE 32
FUSE BOX
GRN/BLK WIRE
GRY/BLU WIRE
HOT AT ALL TIMES
HOT IN ACCY, RUN, OR START
INTERIOR LIGHTS SWITCH
LEFT REAR HEAD RESTRAINT MOTOR
LEFT REAR HEAD RESTRAINT RAISE/LOWER SWITCH
REAR FUSE BOX
REAR HEAD RESTRAINT CONTROL MODULE (BELOW LEFT REAR SEAT)
REAR HEAD RESTRAINT SWITCH (CONSOLE)
RED/GRN WIRE
RED/YEL WIRE
RIGHT REAR HEAD RESTRAINT MOTOR
RIGHT REAR HEAD RESTRAINT RAISE/LOWER SWITCH
YEL/BLK WIRE
Go to component -> Rear head restraint circuit, coupe -> LEFT REAR HEAD RESTRAINT RAISE/LOWER SWITCH
