Mercedes-Benz S-class W140 (1991-1998) fuse and relay box fuse 12 Wiring diagram
This page shows the only wiring diagram for the component.fuse and relay box fuse 12, which is found in the car Mercedes-Benz S-class W140 (1991-1998). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

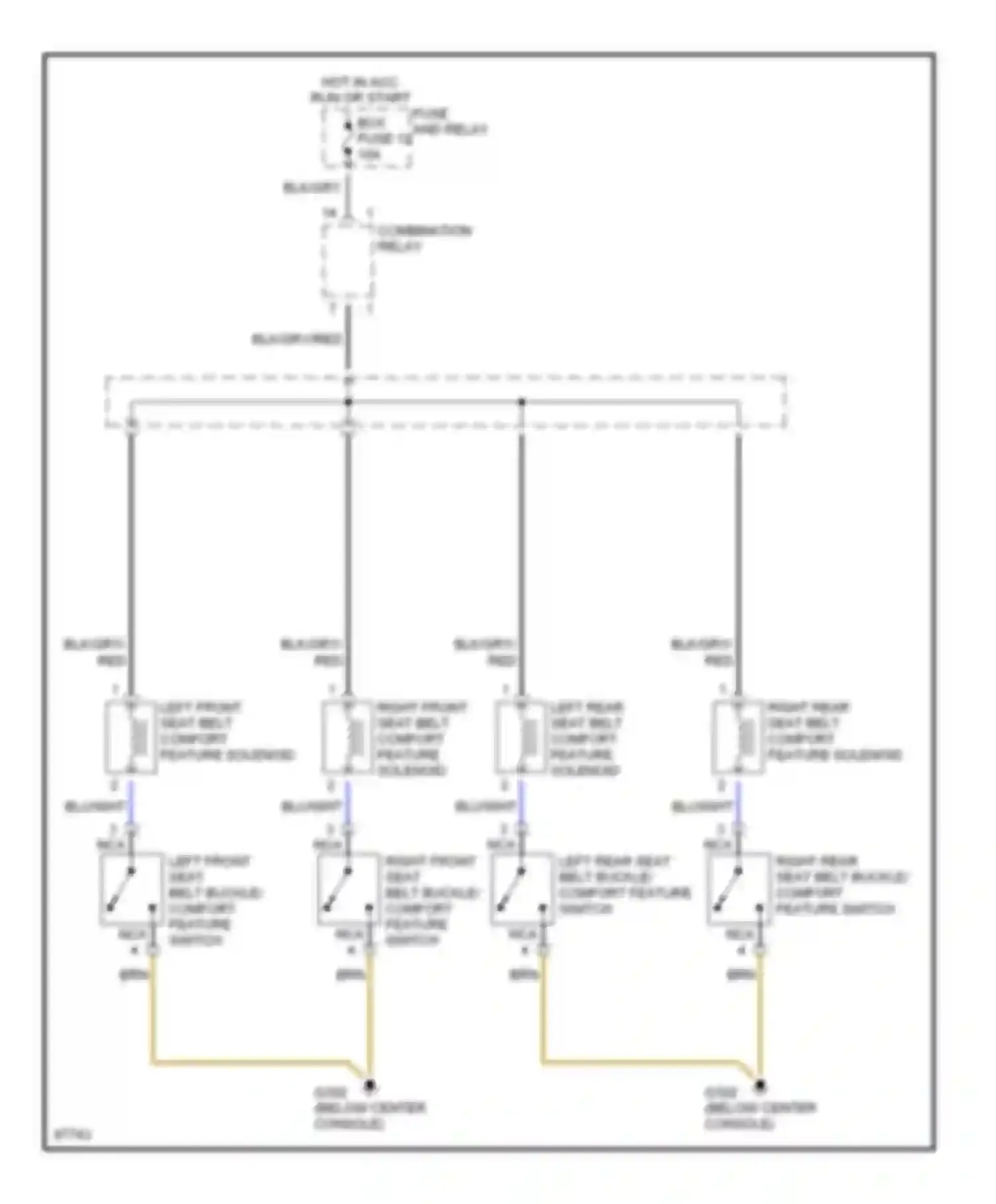

Wiring diagram fuse and relay box fuse 12 (1 of 1)
BLK/GRY WIRE
BLK/GRY/RED WIRE
BLU/WHT WIRE
BRN WIRE
COMBINATION RELAY
FUSE AND RELAY BOX FUSE 12
HOT IN ACC, RUN OR START
LEFT FRONT SEAT BELT BUCKLE/ COMFORT FEATURE SWITCH
LEFT FRONT SEAT BELT COMFORT FEATURE SOLENOID
LEFT REAR SEAT BELT BUCKLE/ COMFORT FEATURE SWITCH
LEFT REAR SEAT BELT COMFORT FEATURE SOLENOID
NCA WIRE
RED WIRE
RIGHT FRONT SEAT BELT BUCKLE/ COMFORT FEATURE SWITCH
RIGHT FRONT SEAT BELT COMFORT FEATURE SOLENOID
RIGHT REAR SEAT BELT BUCKLE/ COMFORT FEATURE SWITCH
RIGHT REAR SEAT BELT COMFORT FEATURE SOLENOID
Go to component -> Seat belt comfort feature circuit -> FUSE AND RELAY BOX FUSE 12
