Mercedes-Benz S-class W140 (1991-1998) combination relay Wiring diagrams
This page contains all the electrical diagrams for the component. combination relay, in which he is found in the car Mercedes-Benz S-class W140 (1991-1998). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

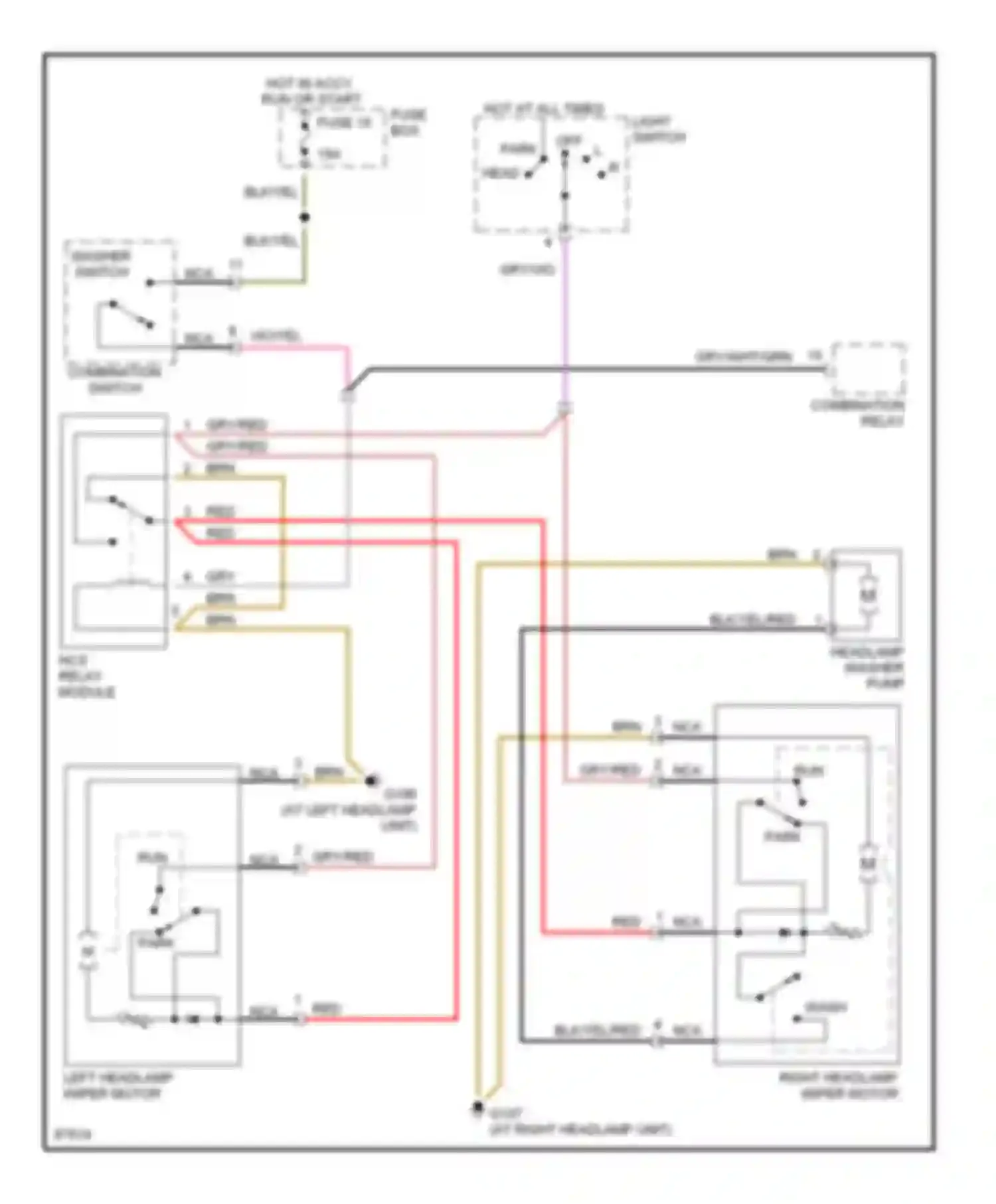

combination relay wiring diagram (1 of 3)
BLK/YEL WIRE
BLK/YEL/RED WIRE
BRN WIRE
COMBINATION RELAY
COMBINATION SWITCH
FUSE 15
FUSE BOX
GRY WIRE
GRY/RED WIRE
GRY/VIO WIRE
GRY/WHT/GRN WIRE
HCS RELAY MODULE
HEADLAMP WASHER PUMP
HOT AT ALL TIMES
HOT IN ACCY, RUN, OR START
LEFT HEADLAMP WIPER MOTOR
LIGHT SWITCH
NCA WIRE
OFF PARK HEAD
PARK
RED WIRE
RIGHT HEADLAMP WIPER MOTOR
RUN WIRE
VIO/YEL WIRE
WASH
WASHER SWITCH
Go to component -> Headlamp wiper/washer circuit -> COMBINATION RELAY

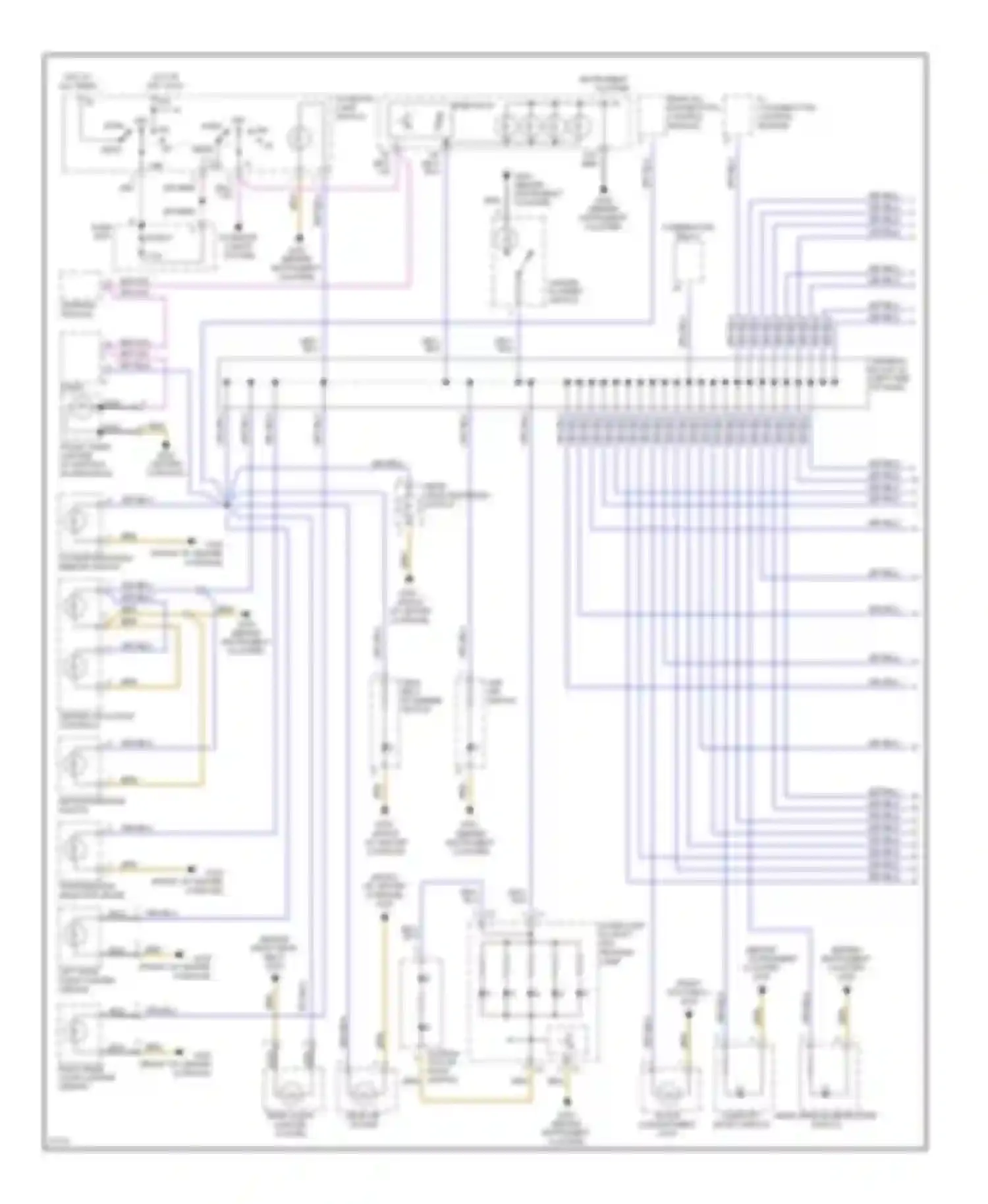

combination relay wiring diagram (2 of 3)
A/C PUSHBUTTON CONTROL MODULE
AIR DISTRIBUTION SWITCH
BLU WIRE
BRN WIRE
CENTER AIR OUTLET CONTROLS
CENTER CONSOLE
COMBINATION RELAY
COMFORT, SPORT SWITCH
DOME LAMP W/ SHUT- OFF, READING LAMP
EXTERIOR LAMP SWITCH
FRONT CIGAR LIGHTER W/ ASHTRAY ILLUMINATION
FUSE BOX FUSE 9
GLOVE COMPARTMENT LOCK
GRY WIRE
GRY/BLU WIRE
GRY/RED WIRE
GRY/VIO WIRE
HAZARD FLASHER SWITCH
HEAD
HOT AT ALL TIMES
HOT IN OFF, ACCY
INSTRUMENT CLUSTER
LEFT REAR CIGAR LIGHTER (SEDAN)
LH HEAD
NCA WIRE
OFF PARK RH
OFF RH
OUTSIDE REARVIEW MIRROR SWITCH
PARK
RADIO
REAR A/C PUSHBUTTON CONTROL MODULE
REAR AIR OUTLET
REAR CIGAR LIGHTER (COUPE)
REAR HEAD RESTRAINT SWITCH
REAR WINDOW DEFROSTER SWITCH
RHEOSTAT
RIGHT REAR CIGAR LIGHTER (SEDAN)
SEAT BELT EXTENDER SWITCH ASR OFF SWITCH
SLIDING/ POP-UP ROOF SWITCH
TERMINAL
TRANSMISSION SELECTOR LEVER
VIO WIRE
WARNING MODULE
Go to component -> Instrument illumination circuit (1 of 2) -> COMBINATION RELAY

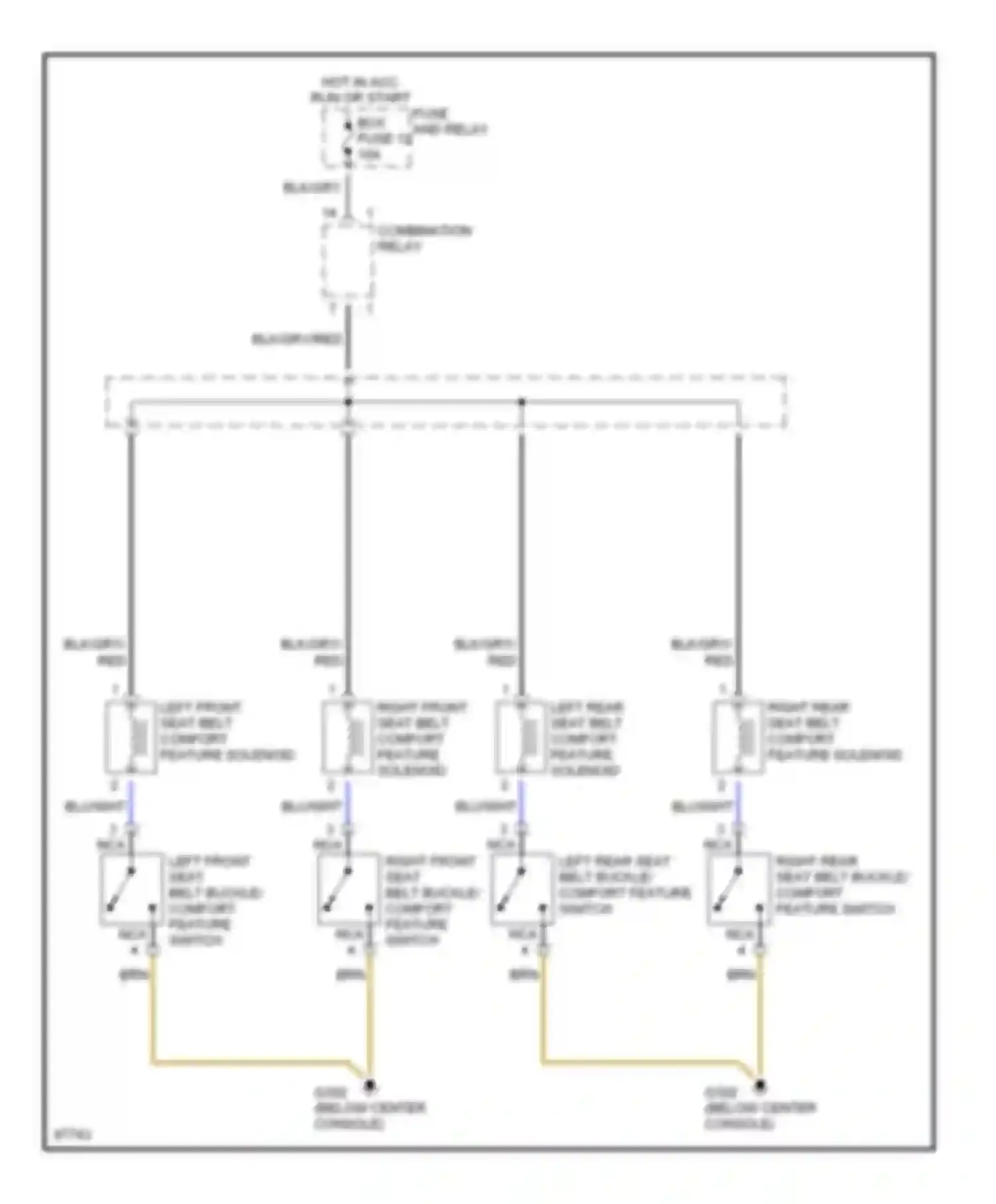

combination relay wiring diagram (3 of 3)
BLK/GRY WIRE
BLK/GRY/RED WIRE
BLU/WHT WIRE
BRN WIRE
COMBINATION RELAY
FUSE AND RELAY BOX FUSE 12
HOT IN ACC, RUN OR START
LEFT FRONT SEAT BELT BUCKLE/ COMFORT FEATURE SWITCH
LEFT FRONT SEAT BELT COMFORT FEATURE SOLENOID
LEFT REAR SEAT BELT BUCKLE/ COMFORT FEATURE SWITCH
LEFT REAR SEAT BELT COMFORT FEATURE SOLENOID
NCA WIRE
RED WIRE
RIGHT FRONT SEAT BELT BUCKLE/ COMFORT FEATURE SWITCH
RIGHT FRONT SEAT BELT COMFORT FEATURE SOLENOID
RIGHT REAR SEAT BELT BUCKLE/ COMFORT FEATURE SWITCH
RIGHT REAR SEAT BELT COMFORT FEATURE SOLENOID
Go to component -> Seat belt comfort feature circuit -> COMBINATION RELAY
