Mercedes-Benz Metris W447 (2015-2024) becker map pilot control unit Wiring diagrams
This page contains all the electrical diagrams for the component. becker map pilot control unit, in which he is found in the car Mercedes-Benz Metris W447 (2015-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
becker map pilot control unit wiring diagram (1 of 2)
BECKER MAP PILOT CONTROL UNIT
BECKER MAP PILOT CONTROL UNIT MOUNT
BLK WIRE
BLK/WHT WIRE
BRN WIRE
BRN/RED WIRE
CAMERA COVER (KAB) CONTROL UNIT
CAN A H
CAN A L
CAN B H
CAN B L
FRONT PASSENGER FOOTWELL FUSE, RELAY MODULE
FUSE 303
FUSE 304
HOT AT ALL TIMES
LEFT FRONT DOOR CONTROL UNIT
LEFT SLIDING DOOR (E-LSTL) CONTROL UNIT
OVERHEAD CONTROL PANEL (OCP (DBE)) CONTROL UNIT
PARAMETERIZABLE SPECIAL MODULE (PSM) CONTROL UNIT
RED WIRE
RED/BLK WIRE
RIGHT FRONT DOOR CONTROL UNIT
RIGHT SLIDING DOOR (E-LSTR) CONTROL UNIT
TRAILER RECOGNITION (AAG) CONTROL UNIT
Go to component -> High/low bus circuit (1 of 3) -> BECKER MAP PILOT CONTROL UNIT

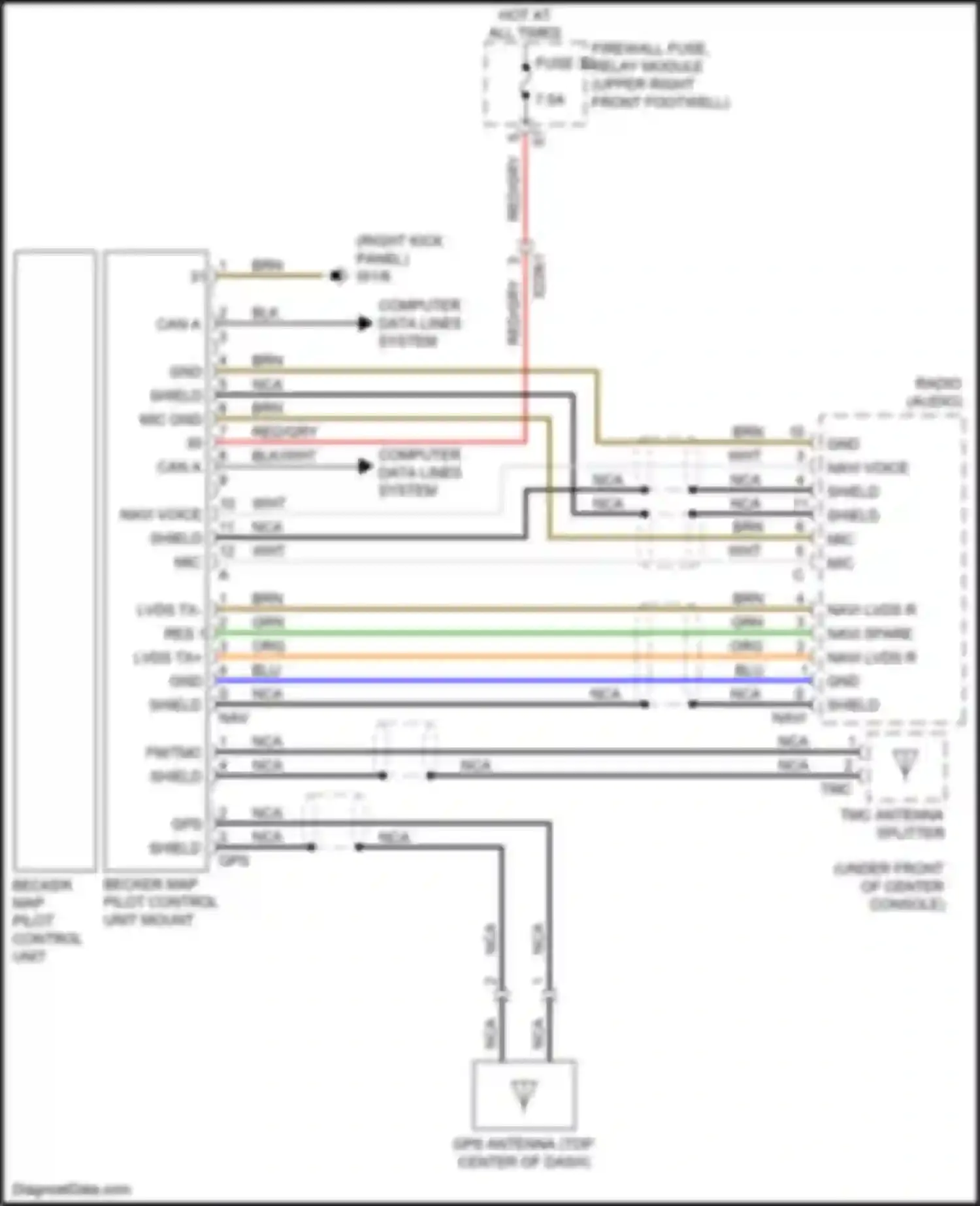

becker map pilot control unit wiring diagram (2 of 2)
BECKER MAP PILOT CONTROL UNIT
BECKER MAP PILOT CONTROL UNIT MOUNT
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BRN WIRE
CAN A H
CAN A L
COMPUTER DATA LINES SYSTEM
FIREWALL FUSE, RELAY MODULE
FM/TMC
FUSE 32
GPS
GPS ANTENNA (TOP CENTER OF DASH)
GRN WIRE
HOT AT ALL TIMES
LVDS TX-
MIC -
MIC GND
NAVI LVDS R-
NAVI SPARE
NAVI VOICE (+)
NCA WIRE
ORG/ WIRE
RADIO (AUDIO)
RED/GRY WIRE
RES 1
SHIELD
SHIELD GPS
SHIELD NAV
SHIELD NAVI
TMC
TMC ANTENNA SPLITTER
WHT WIRE
Go to component -> Navigation circuit -> BECKER MAP PILOT CONTROL UNIT
