Mercedes-Benz GL-class X166 (2012-2016) rear window wave trap Wiring diagrams
This page contains all the electrical diagrams for the component. rear window wave trap, in which he is found in the car Mercedes-Benz GL-class X166 (2012-2016). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram rear window wave trap (1 of 2)
BATTERY SENSOR
BOOST PRESSURE CONTROL PRESSURE TRANSDUCER (3.0L TURBO DIESEL)
BRN WIRE
DIRECT SELECT INTELLIGENT SERVO MODULE (EXCEPT 3.0L TURBO DIESEL),
ELECTRICAL POWER STEERING CONTROL UNIT
ELECTRONIC STABILITY PROGRAM CONTROL UNIT
ENGINE COMPARTMENT FUSE, RELAY MODULE, ALARM SIREN (IF EQUIPPED),
FAN MOTOR
FOLDING BACKREST SWITCH,
FUEL PUMP CONTROL UNIT
FULLY INTEGRATED TRANSMISSION CONTROL UNIT (EXCEPT 3.0L TURBO DIESEL),
IGNITION COIL CYLINDERS 1, 2, 3, 4, 5, 6, 7, 8 (4.6L TURBO),
INTAKE PORT SHUTOFF ACTUATOR MOTOR
NCA WIRE
PTC HEATER BOOSTER (IF EQUIPPED)
REAR WINDOW HEATER
REAR WINDOW WAVE TRAP
RIGHT REAR BRAKE WEAR SENSOR
ROW BACKREST RELEASE UNIT (IF EQUIPPED),
SEAT BELT BUCKLE SWITCH (GL-CLASS),
TRAILER SOCKET
TRANSMISSION OIL AUXILIARY PUMP CONTROL UNIT (EXCEPT 3.0L TURBO DIESEL),
Go to component -> Ground distribution circuit (2 of 2) -> REAR WINDOW WAVE TRAP

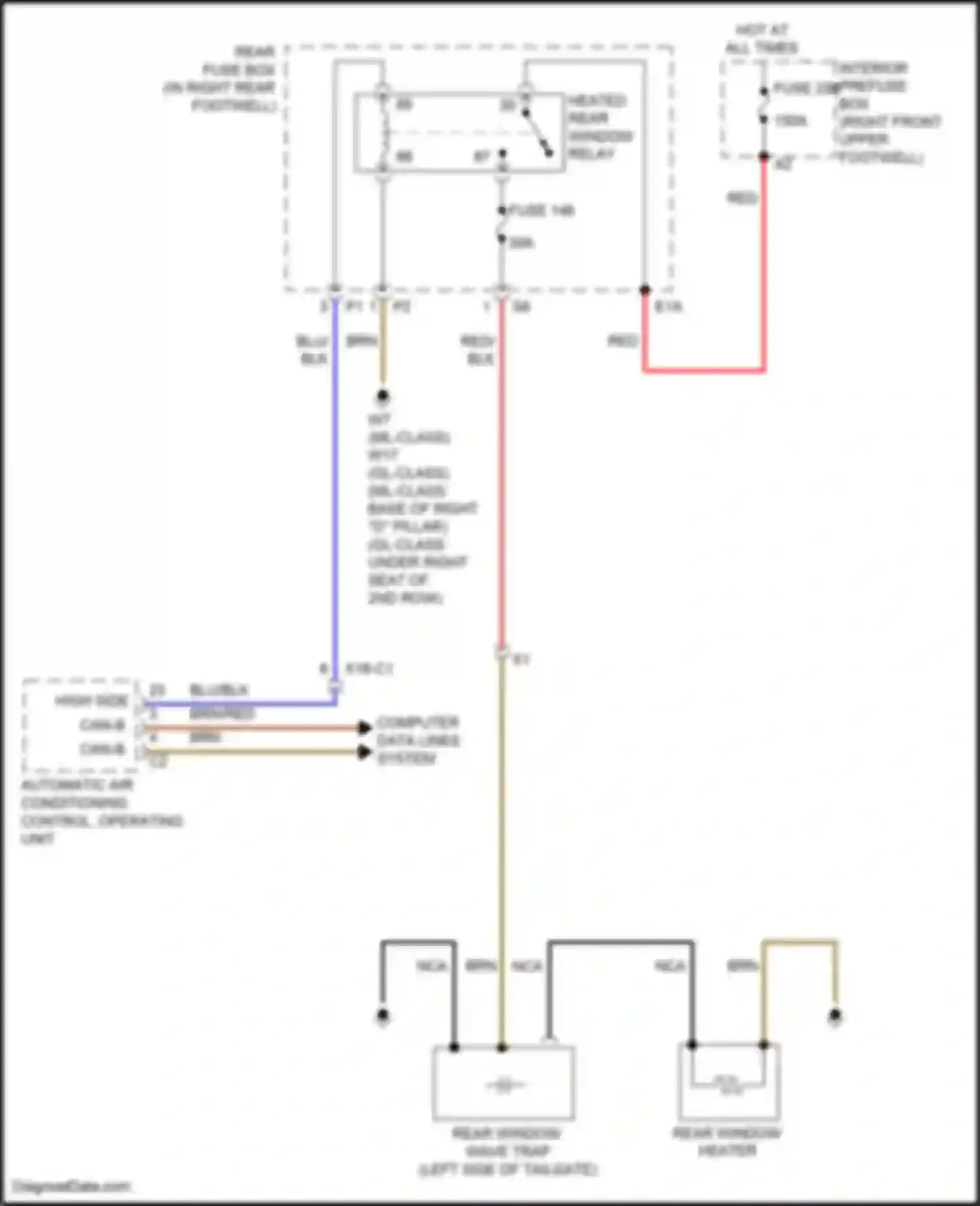

Wiring diagram rear window wave trap (2 of 2)
AUTOMATIC AIR CONDITIONING CONTROL, OPERATING UNIT
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BRN WIRE
BRN/RED WIRE
CAN B H
CAN B L
COMPUTER DATA LINES SYSTEM
FUSE 146
FUSE 256
HEATED REAR WINDOW RELAY
HIGH SIDE
HOT AT ALL TIMES
INTERIOR PREFUSE BOX
NCA WIRE
REAR FUSE BOX
REAR WINDOW HEATER
REAR WINDOW WAVE TRAP
RED WIRE
Go to component -> Rear defogger circuit -> REAR WINDOW WAVE TRAP
