Heated mirrors circuit for Mercedes-Benz E-class W211/S211 facelift (2006-2009)

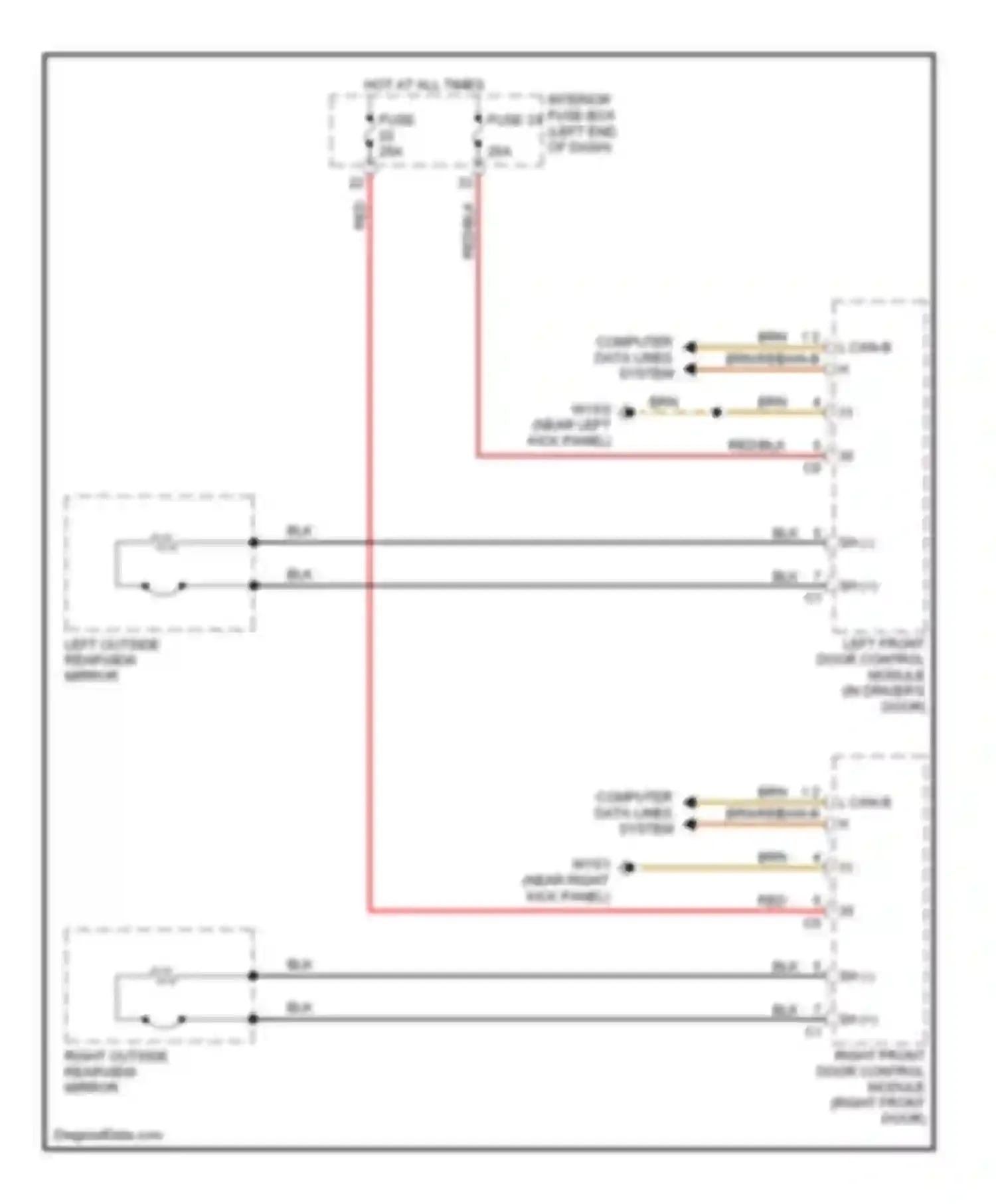

Heated mirrors circuit
1 2 CAN B L CAN B H
BLK WIRE
BRN WIRE
BRN/RED WIRE
COMPUTER DATA LINES SYSTEM
FUSE 22 FUSE 33
HOT AT ALL TIMES
INTERIOR FUSE BOX (LEFT END OF DASH)
LEFT FRONT DOOR CONTROL MODULE (IN DRIVER'S DOOR)
LEFT OUTSIDE REARVIEW MIRROR
RED WIRE
RED/BLK WIRE
RIGHT FRONT DOOR CONTROL MODULE (RIGHT FRONT DOOR)
RIGHT OUTSIDE REARVIEW MIRROR
