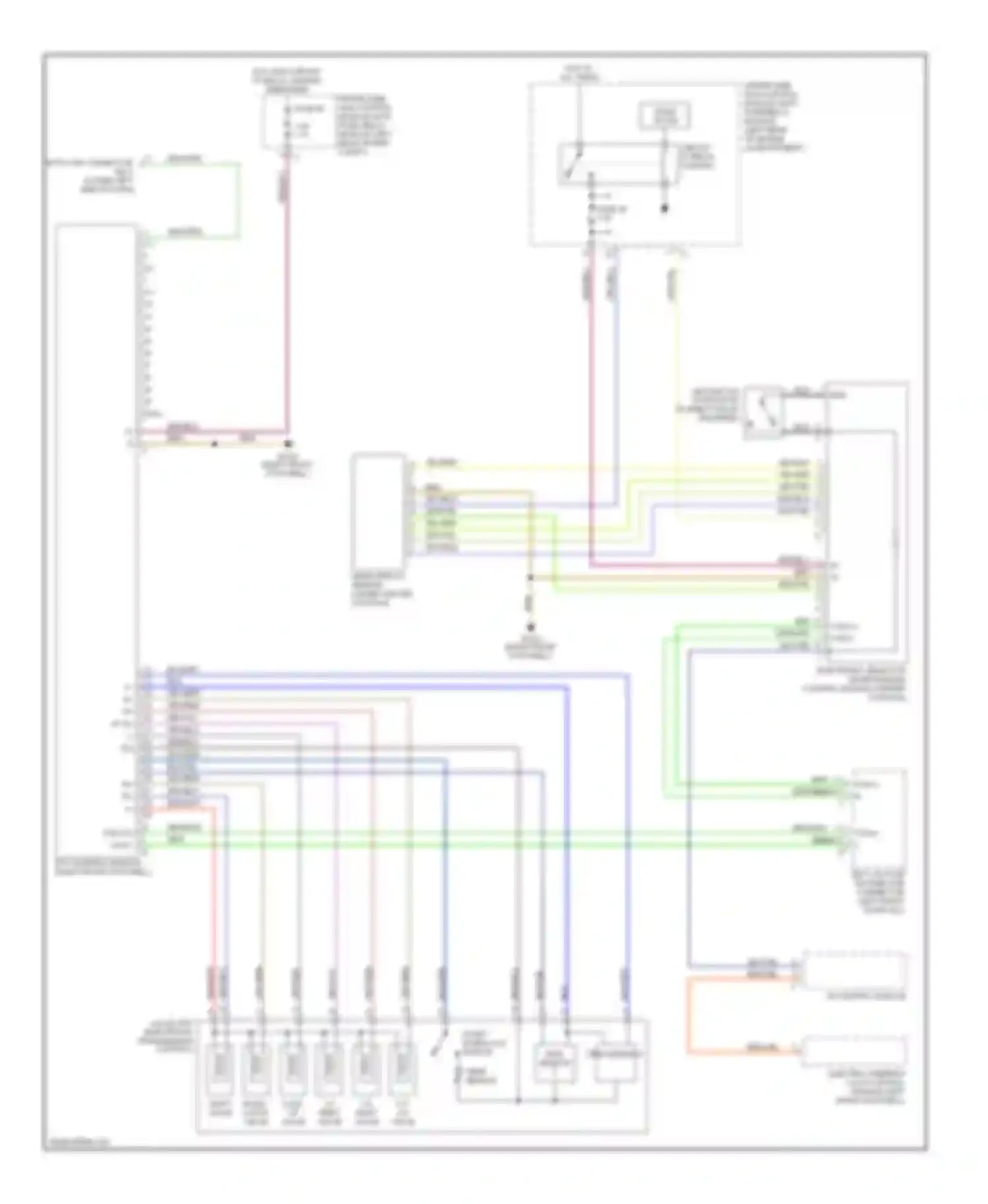

A/t circuit, 5 speed a/t for Mercedes-Benz E-class W211/S211 (2002-2006)

1 2 3 4 5 6 7 8 9 10 23 24 25 26 27 28 29 30 DIAG 1 2 4 CAN-C H CAN-C L 2 1 9 CAN-C L CAN-C H BLU WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/YEL WIRE BRN WIRE BRN/BLU WIRE CAN C H CAN C L CAN C L CAN C H CIRCUIT 87 RELAY (CHASSIS) DATA LINK CONNECTOR (DLC) (LOWER LEFT SIDE OF DASH) DI CONTROL MODULE DRIVER SIDE SAM CONTROL MODULE WITH FUSE, RELAY MODULE (LEFT REAR OF ENG COMPT) ELECTRIC STEERING LOCK CONTROL MODULE (LEFT FRONT FOOTWELL) ELECTRONIC SELECTOR LEVER MODULE CONTROL MODULE (CENTER CONSOLE) ETC CONTROL MODULE (RIGHT FRONT FOOTWELL) FUSE 45 FUSE 46 GEAR DISPLAY SENSOR (UNDER CENTER CONSOLE) GRN WIRE GRN/WHT WIRE GRN/YEL WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/YEL WIRE HOT AT ALL TIMES HOT WITH CIRCUIT 87 RELAY CHASSIS ENERGIZED INTERLOCK SWITCH KEYLESS GO START/STOP PUSHBUTTON (IF EQUIPPED) LEFT VOLTAGE DISTRIBUTOR CONNECTOR (LEFT FRONT DOOR SILL) NCA WIRE RED/BLU WIRE RED/WHT WIRE RED/YEL WIRE RPM SENSOR 3 RPM SENSOR 2 RV RV (+) SOLID STATE TEMP SENSOR VALVE UNIT (ELECTRONIC TRANSMISSION CONTROL) WHT/BLU WIRE WHT/YEL WIRE YEL/GRN WIRE YEL/WHT WIRE
