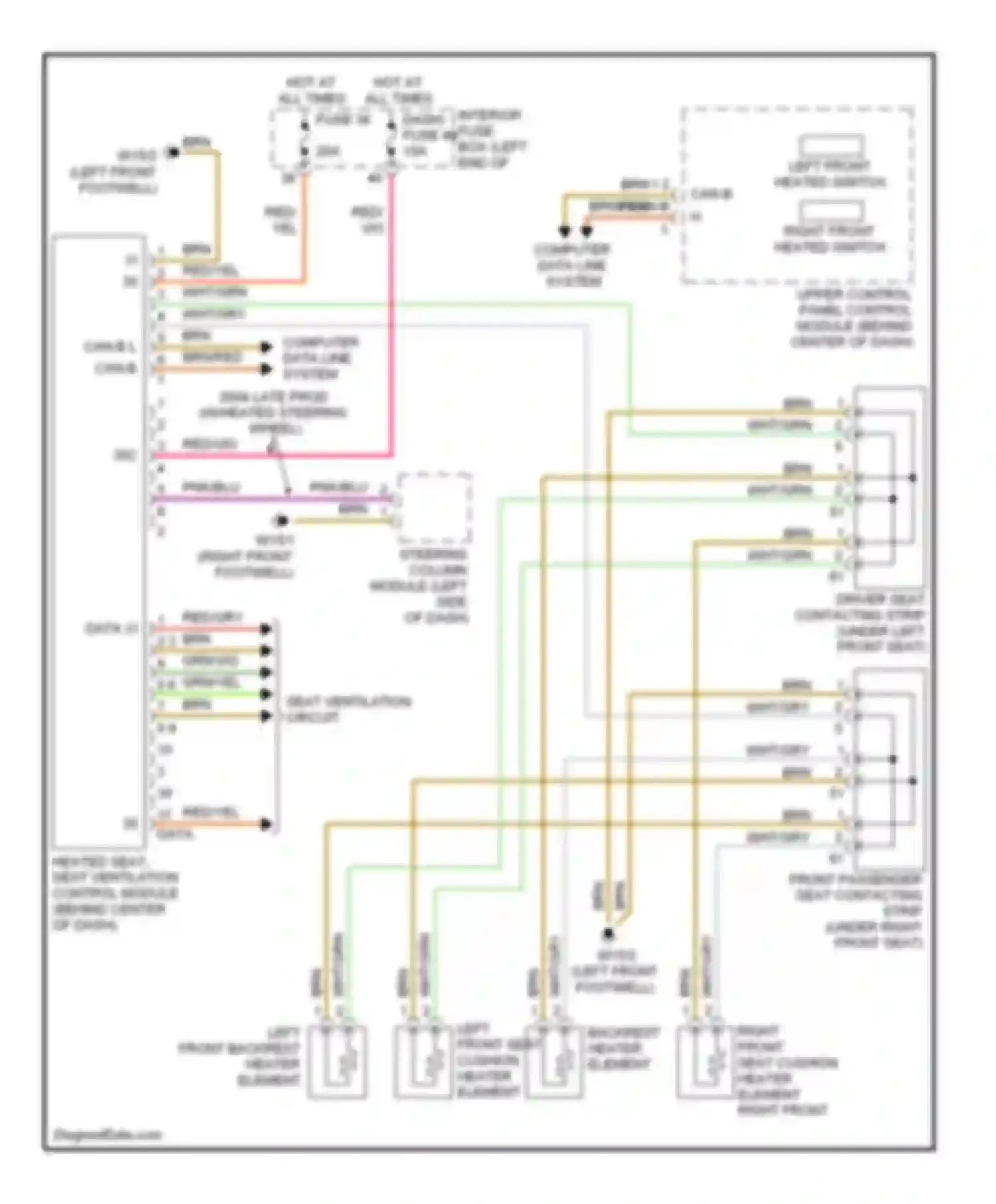

Heated seats circuit for Mercedes-Benz E-class W211/S211 (2002-2006)

1 2 1 CAN-B L CAN-B H 1 2 3 4 5 6 7 8 9 10 3 30 31 DATA DATA 31 2004 LATE PROD (W/HEATED STEERING WHEEL) BRN WIRE BRN/RED WIRE CAN B L CAN B H COMPUTER DATA LINE SYSTEM DRIVER SEAT CONTACTING STRIP (UNDER LEFT FRONT SEAT) FRONT PASSENGER SEAT CONTACTING STRIP (UNDER RIGHT FRONT SEAT) GRN/VIO WIRE GRN/YEL WIRE HEATED SEAT, SEAT VENTILATION CONTROL MODULE (BEHIND CENTER OF DASH) HOT AT ALL TIMES FUSE 36 HOT AT ALL TIMES INTERIOR FUSE BOX (LEFT END OF DASH) FUSE 40 LEFT FRONT BACKREST HEATER ELEMENT LEFT FRONT HEATED SWITCH LEFT FRONT SEAT CUSHION HEATER ELEMENT PNK/BLU WIRE RED WIRE RED/GRY WIRE RED/VIO WIRE RED/YEL WIRE RIGHT FRONT HEATED SWITCH RIGHT FRONT SEAT CUSHION HEATER ELEMENT RIGHT FRONT BACKREST HEATER ELEMENT SEAT VENTILATION CIRCUIT STEERING COLUMN MODULE (LEFT SIDE OF DASH) UPPER CONTROL PANEL CONTROL MODULE (BEHIND CENTER OF DASH) VIO WIRE WHT/GRN WIRE WHT/GRY WIRE YEL WIRE
