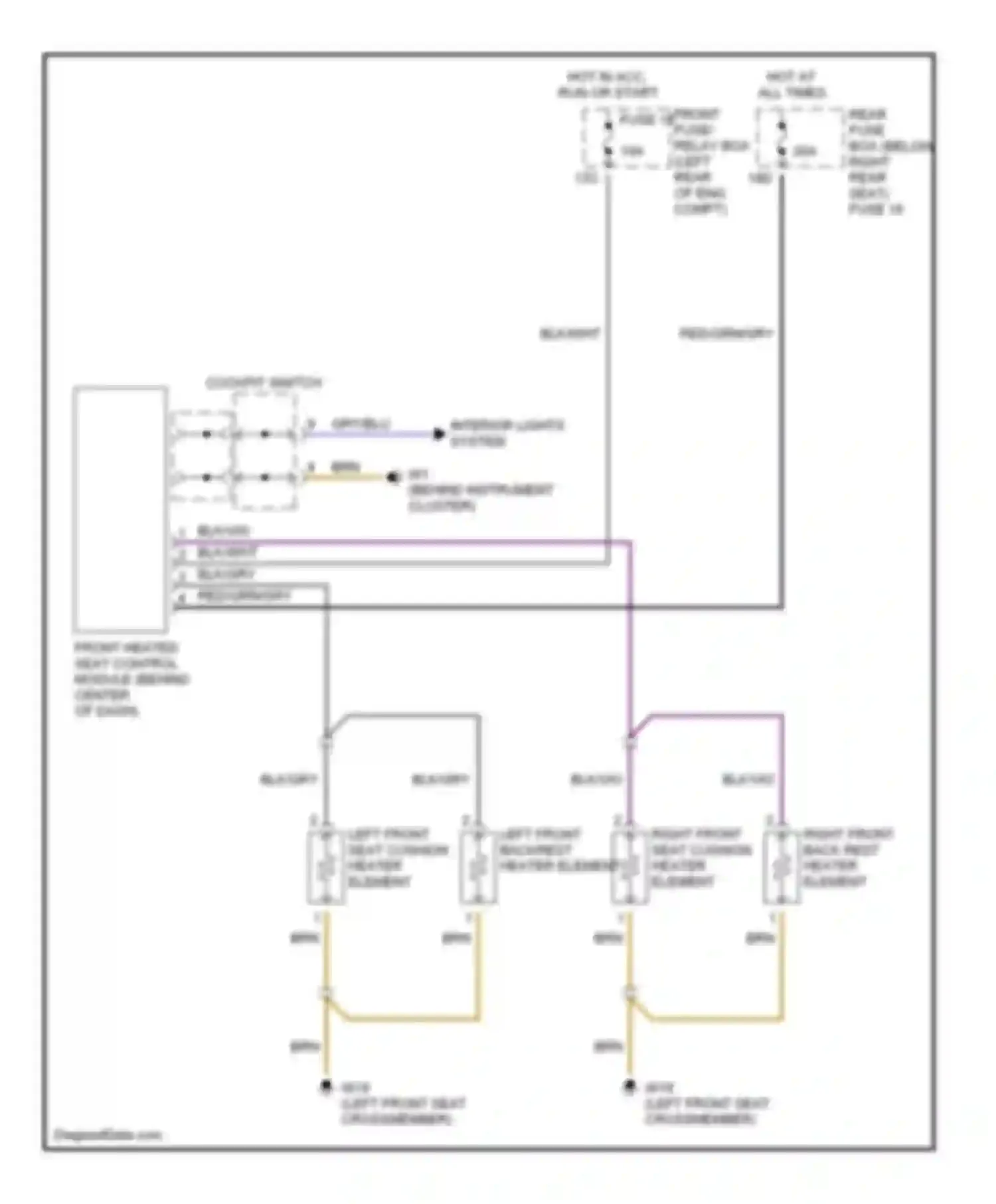

Heated seats circuit for Mercedes-Benz E-class W210/S210 facelift (1999-2003)

BLK/GRY WIRE BLK/VIO WIRE BLK/WHT WIRE BRN WIRE COCKPIT SWITCH FRONT FUSE/ RELAY BOX (LEFT REAR OF ENG COMPT) FUSE 12 FRONT HEATED SEAT CONTROL MODULE (BEHIND CENTER OF DASH) GRY/BLU WIRE HOT AT ALL TIMES HOT IN ACC, RUN OR START LEFT FRONT SEAT CUSHION HEATER ELEMENT LEFT FRONT BACKREST HEATER ELEMENT REAR FUSE BOX (BELOW RIGHT REAR SEAT) FUSE 18 RED/GRN/GRY WIRE RIGHT FRONT BACK REST HEATER ELEMENT RIGHT FRONT SEAT CUSHION HEATER ELEMENT
