Parktronic circuit for Mercedes-Benz CLA-class C118 (2019-2023)

Parktronic circuit (1 of 3)

CLA-class Mercedes-Benz C118 (2019-2023): Parktronic circuit (1 of 3)

Get access

BLK WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/RED WIRE BLU/YEL WIRE BRN WIRE BRN/BLU WIRE BRN/WHT WIRE CENTER LEFT REAR PARKING SYSTEM DISTANCE SENSOR CENTER RIGHT REAR PARKING SYSTEM DISTANCE SENSOR COMPUTER DATA LINES SYSTEM ELECTRONIC IGNITION SWITCH CONTROL UNIT ENGINE COMPARTMENT FUSE, RELAY MODULE FLEX-E BM FLEX-E BP FUSE 171 FUSE 42 GRN WIRE HOT AT ALL TIMES INNER LEFT REAR PARKING SYSTEM DISTANCE SENSOR INNER RIGHT REAR PARKING SYSTEM DISTANCE SENSOR OUTER LEFT REAR PARKING SYSTEM DISTANCE SENSOR OUTER RIGHT REAR PARKING SYSTEM DISTANCE SENSOR PARKING SYSTEM CONTROL UNIT PNK WIRE RED WIRE RED/WHT WIRE SIG VEHICLE INTERIOR FUSE, RELAY MODULE WHT/RED WIRE WHT/YEL WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

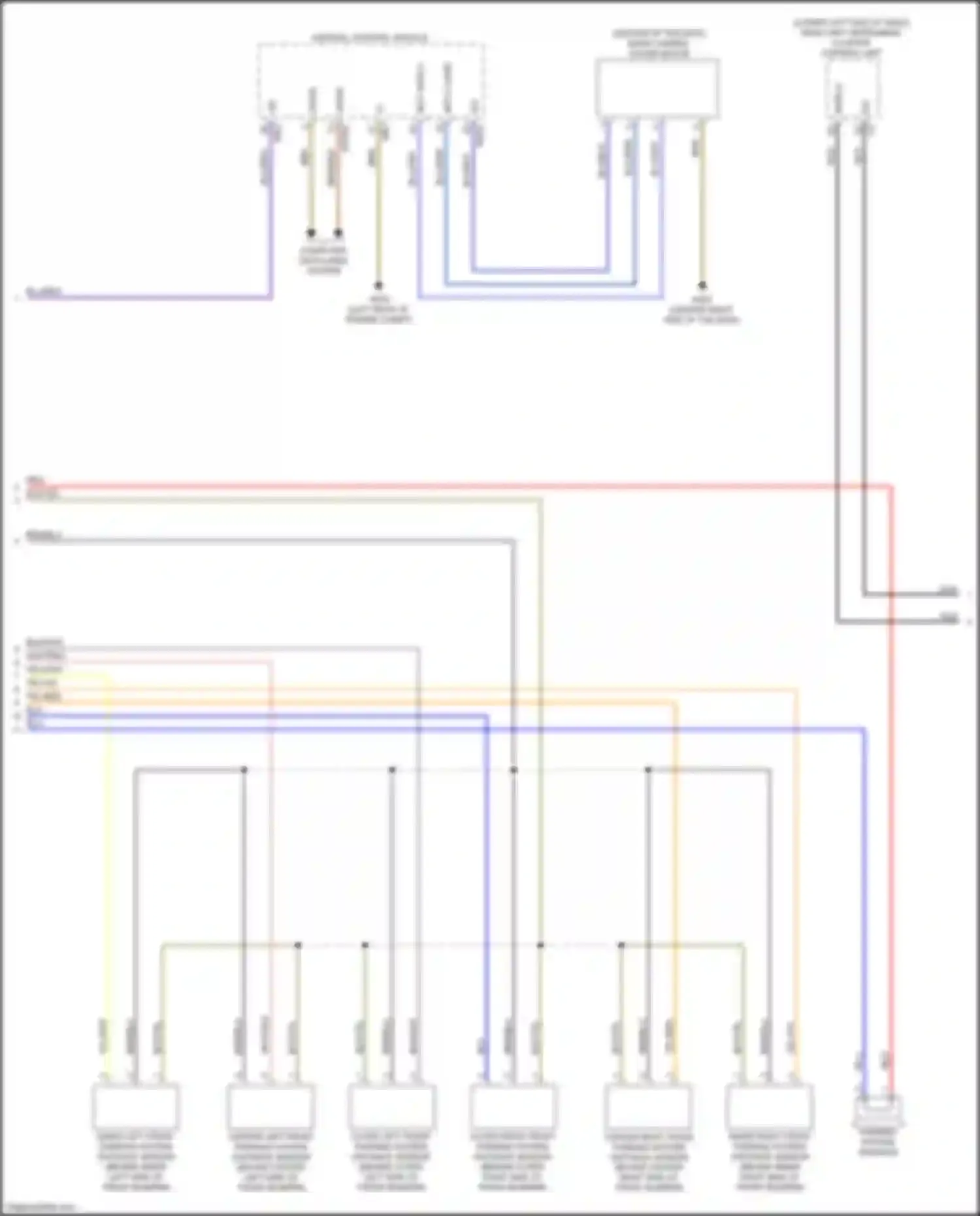

Parktronic circuit (2 of 3)

CLA-class Mercedes-Benz C118 (2019-2023): Parktronic circuit (2 of 3)

Get access

BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BRN WIRE BRN/BLU WIRE BRN/RED WIRE CAN B H CAN B L CENTER LEFT FRONT PARKING SYSTEM DISTANCE SENSOR CENTER RIGHT FRONT PARKING SYSTEM DISTANCE SENSOR CENTRAL CONTROL MODULE COMPUTER DATA LINES SYSTEM HEAD UNIT/ INSTRUMENT CLUSTER CONTROL UNIT INNER LEFT FRONT PARKING SYSTEM DISTANCE SENSOR INNER RIGHT FRONT PARKING SYSTEM DISTANCE SENSOR MOT GND/(+) NCA WIRE OUTER LEFT FRONT PARKING SYSTEM DISTANCE SENSOR OUTER RIGHT FRONT PARKING SYSTEM DISTANCE SENSOR PARKING SYSTEM SPEAKER REAR CAMERA COVER MOTOR RED WIRE SHIELD SIG STERN WHT/RED WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

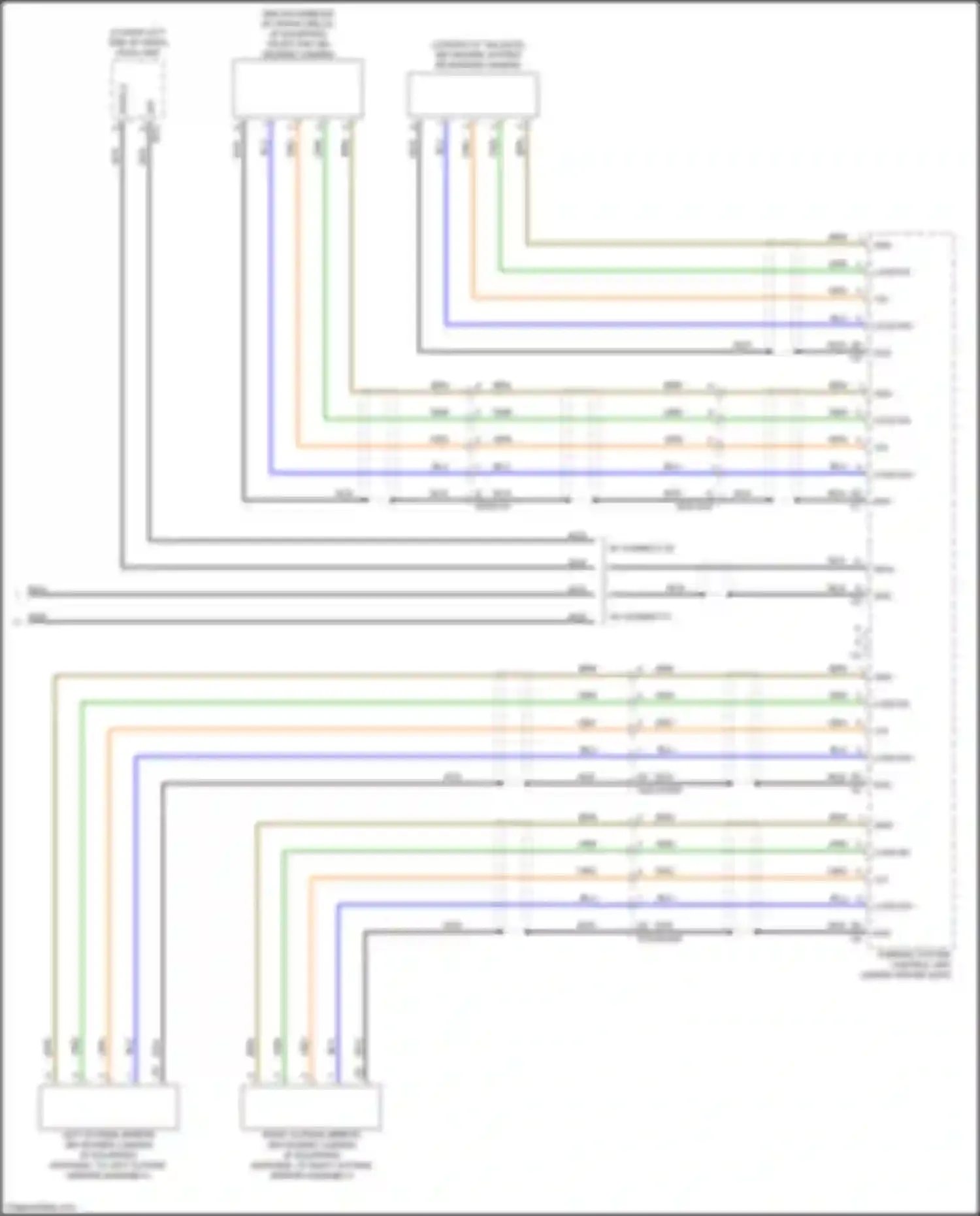

Parktronic circuit (3 of 3)

CLA-class Mercedes-Benz C118 (2019-2023): Parktronic circuit (3 of 3)

Get access

360 DEGREE SYSTEM REVERSING CAMERA BLU WIRE BRN WIRE FRONT END 360 DEGREE CAMERA GRN WIRE HEAD UNIT HSVL LEFT OUTSIDE MIRROR 360 DEGREE CAMERA LVDS RX+ NCA WIRE ORG/ WIRE PARKING SYSTEM CONTROL UNIT RIGHT OUTSIDE MIRROR 360 DEGREE CAMERA RVC SHD SHIELD SIG W/ CONNECT 20 W/ CONNECT 5
