Mercedes-Benz C-class AMG W202 facelift (1997-2000) automatic dimming inside rearview mirror Wiring diagram
This page shows the only wiring diagram for the component.automatic dimming inside rearview mirror, which is found in the car Mercedes-Benz C-class AMG W202 facelift (1997-2000). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

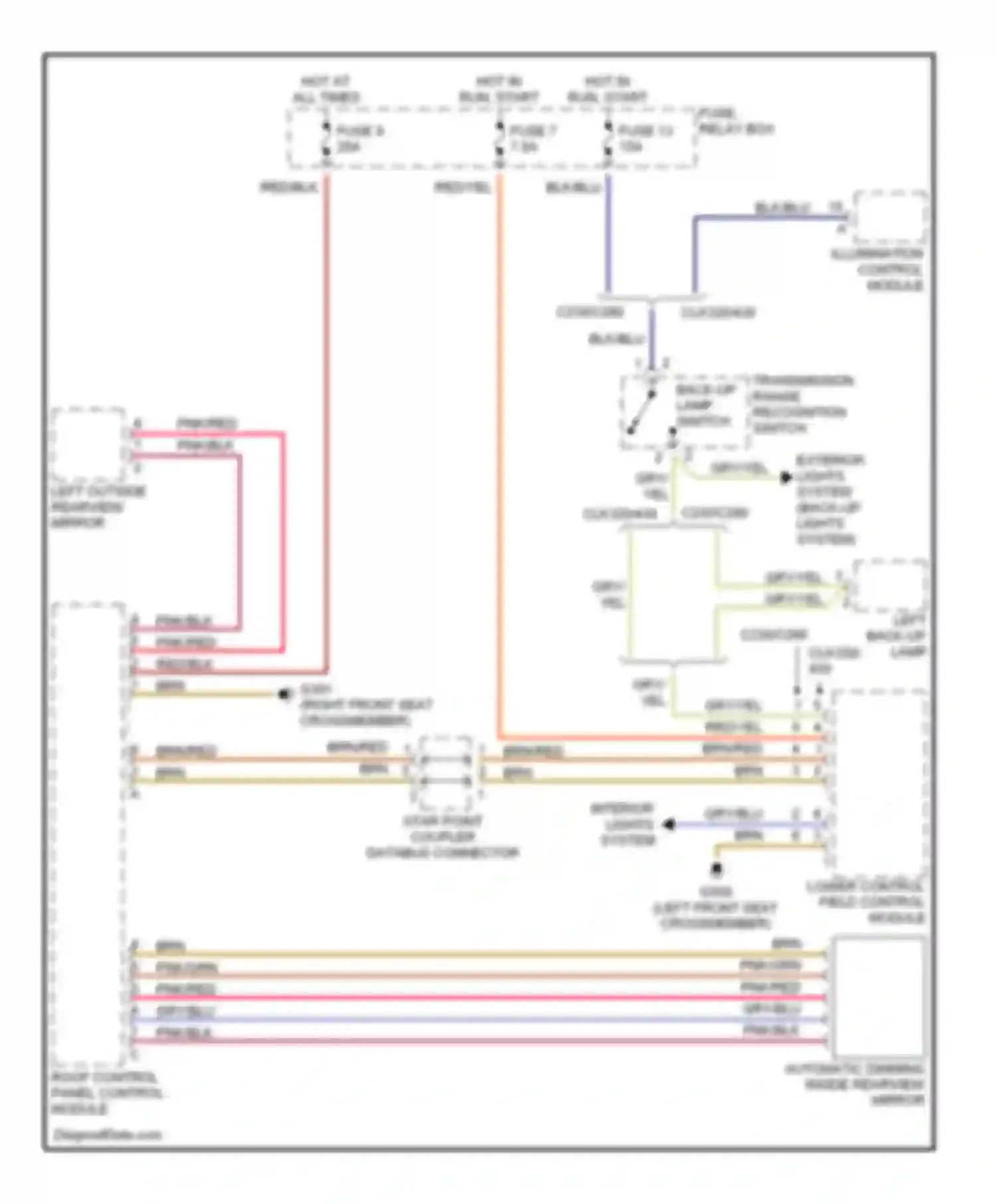

Wiring diagram automatic dimming inside rearview mirror (1 of 1)
AUTOMATIC DIMMING INSIDE REARVIEW MIRROR
BACK-UP LAMP SWITCH
BLK/BLU WIRE
BRN WIRE
BRN/RED WIRE
EXTERIOR LIGHTS SYSTEM (BACK-UP LIGHTS SYSTEM)
FUSE 13
FUSE 7
FUSE 9
FUSE/ RELAY BOX
GRY WIRE
GRY/BLU WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
HOT IN RUN, START
ILLUMINATION CONTROL MODULE
LEFT BACK-UP LAMP
LEFT OUTSIDE REARVIEW MIRROR
LOWER CONTROL FIELD CONTROL MODULE
PNK/BLK WIRE
PNK/GRN WIRE
PNK/RED WIRE
RED/BLK WIRE
RED/YEL WIRE
ROOF CONTROL PANEL CONTROL MODULE
STAR POINT COUPLER DATABUS CONNECTOR
TRANSMISSION RANGE RECOGNITION SWITCH
YEL WIRE
