Mercedes-Benz B-class W246 facelift (2014-2018) roof light bar signaling system operating unit electrical connector Wiring diagram
This page shows the only wiring diagram for the component.roof light bar signaling system operating unit electrical connector, which is found in the car Mercedes-Benz B-class W246 facelift (2014-2018). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

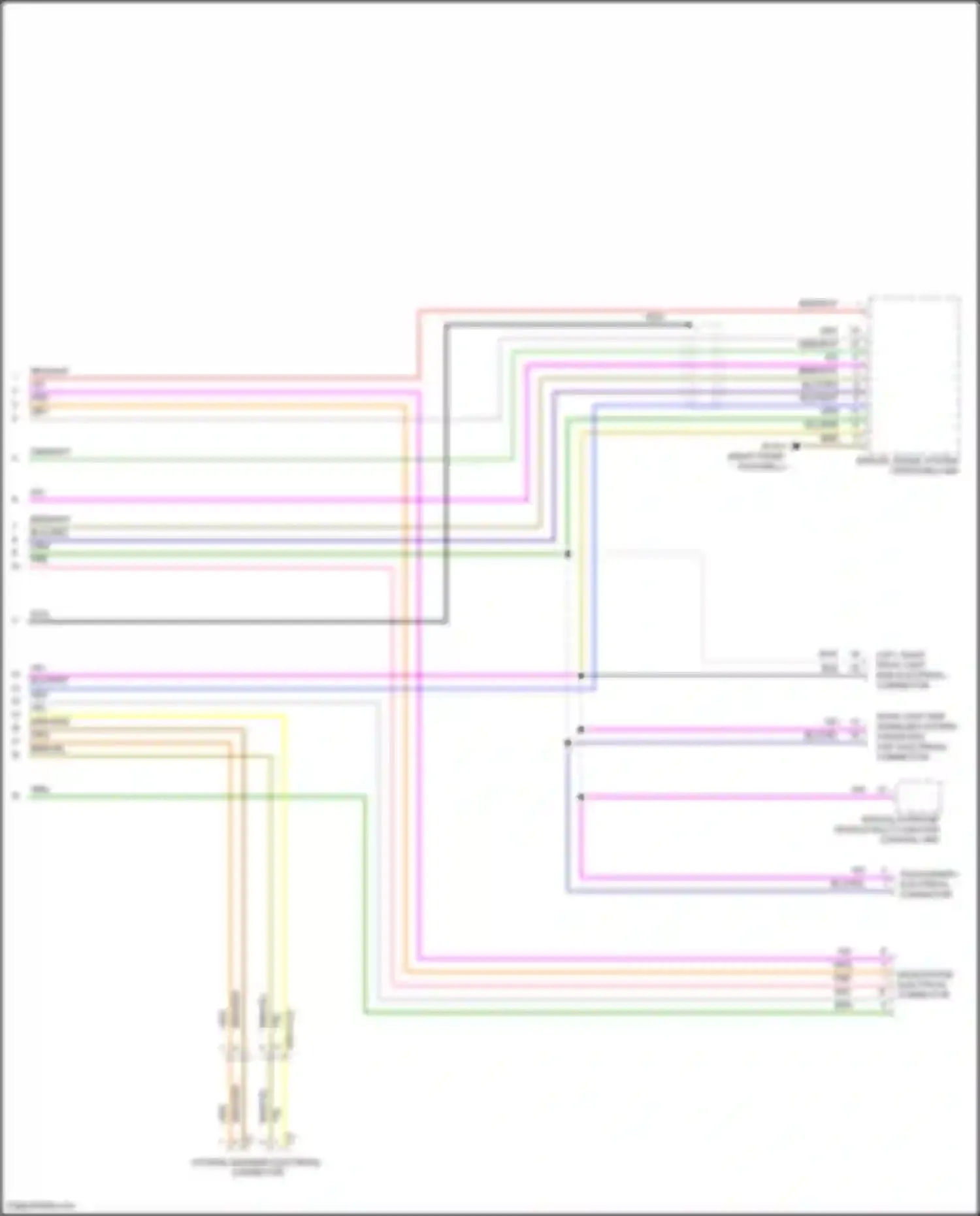

Wiring diagram roof light bar signaling system operating unit electrical connector (1 of 1)
BLK WIRE
BLU/ORG WIRE
BLU/WHT WIRE
BLU/YEL WIRE
BRN WIRE
BRN/ORG WIRE
BRN/WHT WIRE
BRN/YEL WIRE
GRN WIRE
GRN/WHT WIRE
GRY WIRE
LEFT, RIGHT ROOF LIGHT BAR ELECTRICAL CONNECTOR
MICROPHONE ELECTRICAL CONNECTOR
NCA WIRE
ORG/ WIRE
OUTSIDE SPEAKER ELECTRICAL CONNECTOR
PNK WIRE
RED/WHT WIRE
ROOF LIGHT BAR SIGNALING SYSTEM OPERATING UNIT ELECTRICAL CONNECTOR
SPECIAL SIGNAL SYSTEM OPERATING UNIT
SPECIAL-PURPOSE VEHICLE MULTI-FUNCTION CONTROL UNIT
TACHOGRAPH ELECTRICAL CONNECTOR
VIO WIRE
WHT WIRE
YEL WIRE
YEL/BRN WIRE
Go to component -> Panic alarm circuit (2 of 2) -> ROOF LIGHT BAR SIGNALING SYSTEM OPERATING UNIT ELECTRICAL CONNECTOR
