Mazda Protege BJ (1998-2004) Charging circuit

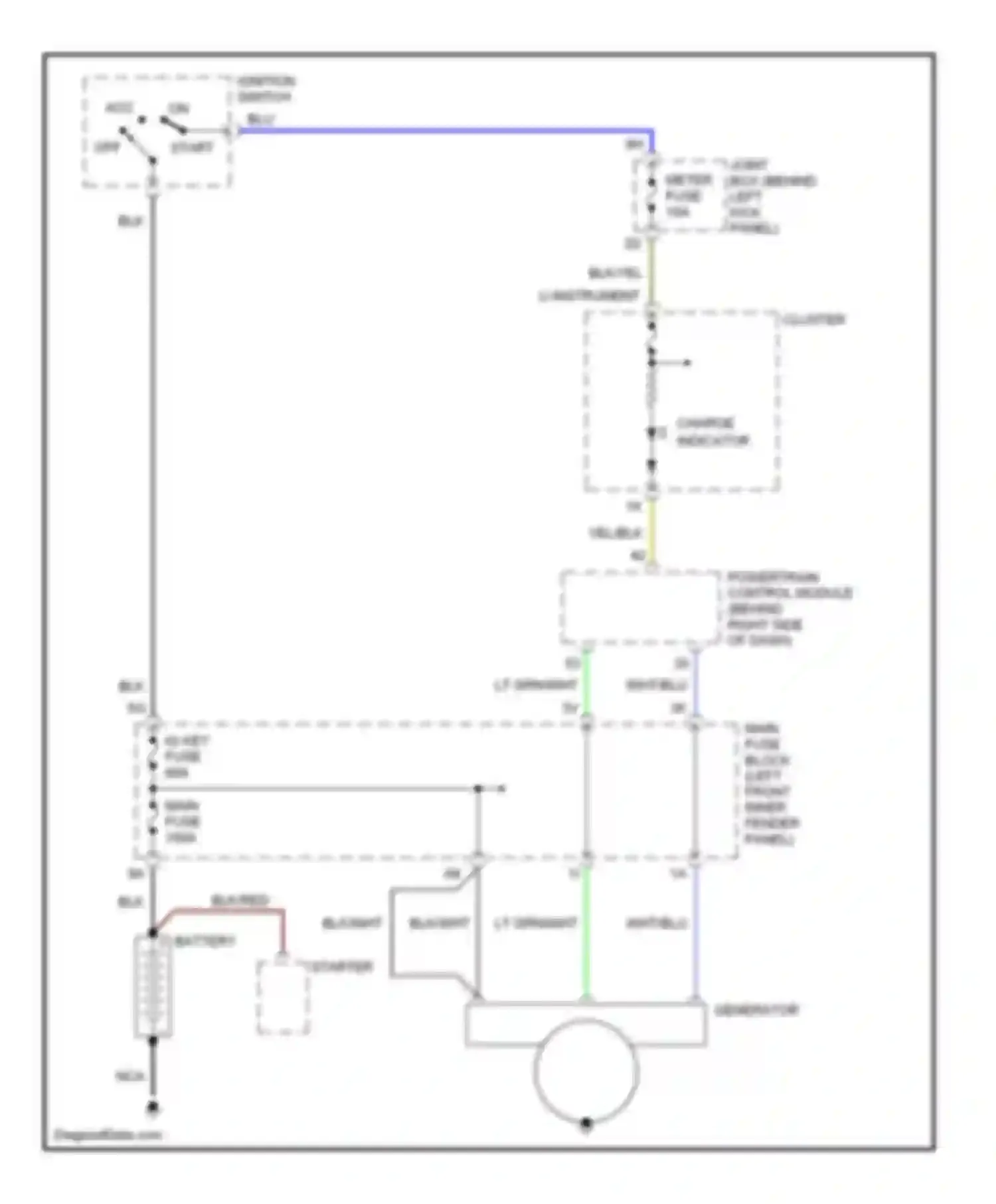

BATTERY BLK WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE CHARGE INDICATOR GENERATOR IG KEY FUSE IGNITION SWITCH IJ INSTRUMENT CLUSTER JOINT BOX (BEHIND LEFT KICK PANEL) METER FUSE LT GRN/WHT WIRE MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT INNER FENDER PANEL) NCA WIRE OFF POWERTRAIN CONTROL MODULE (BEHIND RIGHT SIDE OF DASH) STARTER WHT/BLU WIRE YEL/BLK WIRE
