Mazda MX-6 I (1992-1997) main fuse block (left front fender Wiring diagrams

This page contains all the electrical diagrams for the component. main fuse block (left front fender, in which he is found in the car Mazda MX-6 I (1992-1997). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

Wiring diagram main fuse block (left front fender (1 of 10)

Wiring diagram main fuse block (left front fender for Mazda MX-6 I (1992-1997) (1 of 10)

Get access

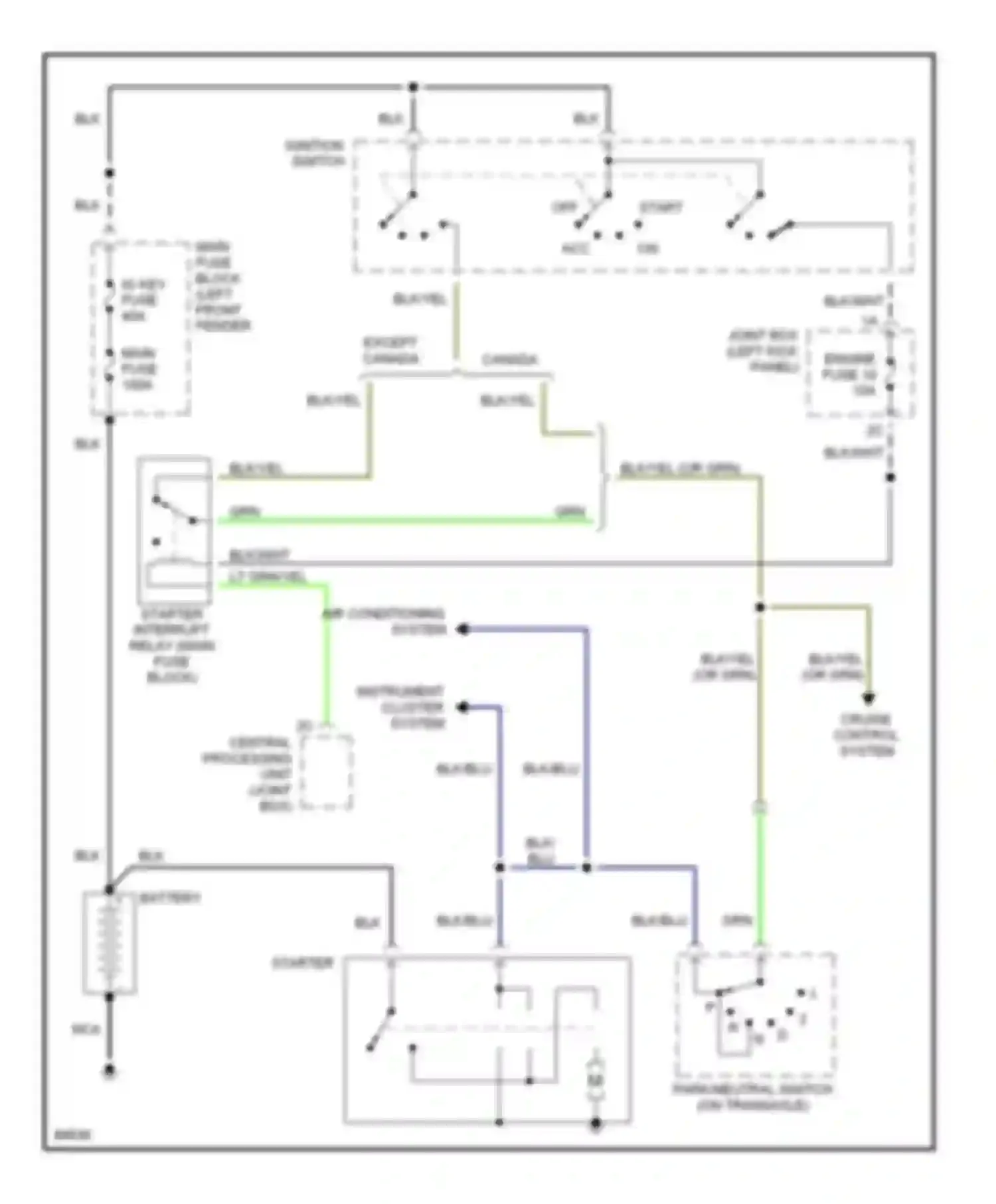

AIR CONDITIONING SYSTEM BATTERY BLK WIRE BLK/BLU WIRE BLK/WHT WIRE BLK/YEL (OR GRN) WIRE BLK/YEL WIRE BLU WIRE CANADA CENTRAL PROCESSING UNIT (JOINT BOX) CRUISE CONTROL SYSTEM ENGINE FUSE 10 EXCEPT CANADA GRN WIRE IG KEY FUSE IGNITION SWITCH INSTRUMENT CLUSTER SYSTEM JOINT BOX (LEFT KICK PANEL) LT GRN/YEL WIRE MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT FENDER NCA WIRE OFF PARK/NEUTRAL SWITCH (ON TRANSAXLE) STARTER STARTER INTERRUPT RELAY (MAIN FUSE BLOCK)

Go to component -> 2.0l, starting/charging circuit, a/t -> MAIN FUSE BLOCK (LEFT FRONT FENDER

Wiring diagram main fuse block (left front fender (2 of 10)

Wiring diagram main fuse block (left front fender for Mazda MX-6 I (1992-1997) (2 of 10)

Get access

1995 ONLY AIR CONDITIONING SYSTEM BATTERY BLK WIRE BLK/BLU WIRE BLK/WHT WIRE BLK/YEL (OR GRN) WIRE BLK/YEL WIRE BLU WIRE CANADA CENTRAL PROCESSING UNIT (JOINT BOX) ENGINE CONTROLS SYSTEM ENGINE FUSE 10 EXCEPT CANADA GRN WIRE IG KEY FUSE IGNITION SWITCH INSTRUMENT CLUSTER SYSTEM JOINT BOX (LEFT KICK PANEL) LT GRN/YEL WIRE MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT FENDER NCA WIRE OFF STARTER STARTER INTERLOCK SWITCH (ABOVE CLUTCH PEDAL) STARTER INTERRUPT RELAY (MAIN FUSE BLOCK)

Go to component -> 2.0l, starting/charging circuit, m/t -> MAIN FUSE BLOCK (LEFT FRONT FENDER

Wiring diagram main fuse block (left front fender (3 of 10)

Wiring diagram main fuse block (left front fender for Mazda MX-6 I (1992-1997) (3 of 10)

Get access

AIR CONDITIONING SYSTEM BATTERY BLK WIRE BLK/BLU WIRE BLK/WHT WIRE BLK/YEL (OR GRN) WIRE BLK/YEL WIRE BLU WIRE CANADA CENTRAL PROCESSING UNIT (JOINT BOX) CRUISE CONTROL SYSTEM ENGINE FUSE 10 EXCEPT CANADA GRN WIRE IG KEY FUSE IGNITION SWITCH INSTRUMENT CLUSTER SYSTEM JOINT BOX (LEFT KICK PANEL) LT GRN/YEL WIRE MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT FENDER NCA WIRE OFF PARK/NEUTRAL SWITCH (ON TRANSAXLE) STARTER STARTER INTERRUPT RELAY (MAIN FUSE BLOCK)

Go to component -> 2.0l, starting circuit, a/t -> MAIN FUSE BLOCK (LEFT FRONT FENDER

Wiring diagram main fuse block (left front fender (4 of 10)

Wiring diagram main fuse block (left front fender for Mazda MX-6 I (1992-1997) (4 of 10)

Get access

1995 ONLY AIR CONDITIONING SYSTEM BATTERY BLK WIRE BLK/BLU WIRE BLK/WHT WIRE BLK/YEL (OR GRN) WIRE BLK/YEL WIRE BLU WIRE CANADA CENTRAL PROCESSING UNIT (JOINT BOX) ENGINE CONTROLS SYSTEM ENGINE FUSE 10 EXCEPT CANADA GRN WIRE IG KEY FUSE IGNITION SWITCH INSTRUMENT CLUSTER SYSTEM JOINT BOX (LEFT KICK PANEL) LT GRN/YEL WIRE MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT FENDER NCA WIRE OFF STARTER STARTER INTERLOCK SWITCH (ABOVE CLUTCH PEDAL) STARTER INTERRUPT RELAY (MAIN FUSE BLOCK)

Go to component -> 2.0l, starting circuit, m/t -> MAIN FUSE BLOCK (LEFT FRONT FENDER

Wiring diagram main fuse block (left front fender (5 of 10)

Wiring diagram main fuse block (left front fender for Mazda MX-6 I (1992-1997) (5 of 10)

Get access

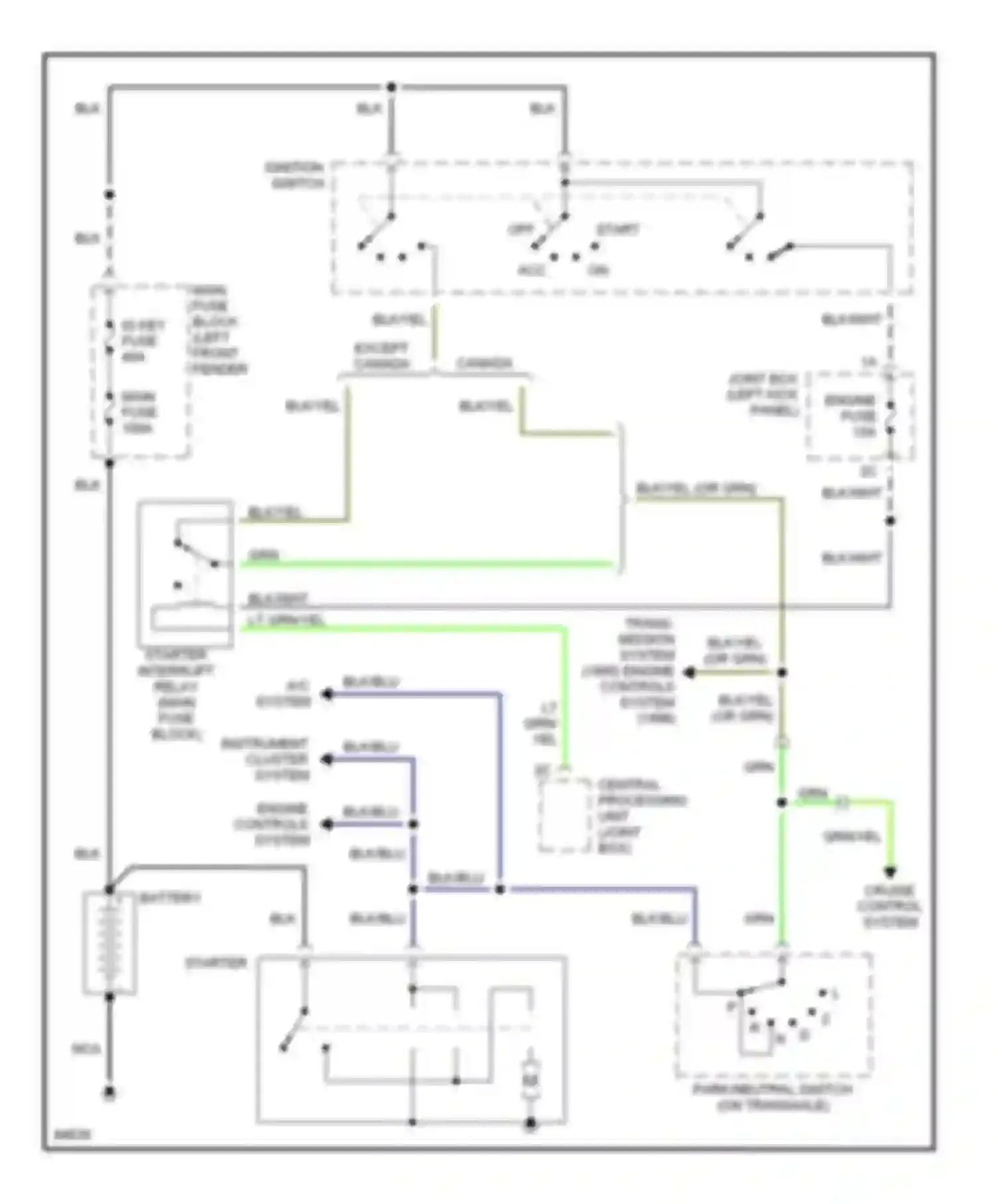

A/C SYSTEM BATTERY BLK WIRE BLK/BLU WIRE BLK/WHT WIRE BLK/YEL (OR GRN) WIRE BLK/YEL WIRE CANADA CENTRAL PROCESSING UNIT (JOINT BOX) CRUISE CONTROL SYSTEM ENGINE CONTROLS SYSTEM ENGINE FUSE EXCEPT CANADA GRN WIRE GRN/YEL WIRE IG KEY FUSE IGNITION SWITCH INSTRUMENT CLUSTER SYSTEM JOINT BOX (LEFT KICK PANEL) LT GRN/YEL WIRE MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT FENDER NCA WIRE OFF PARK/NEUTRAL SWITCH (ON TRANSAXLE) STARTER STARTER INTERRUPT RELAY (MAIN FUSE BLOCK) TRANS- MISSION SYSTEM (1995) ENGINE CONTROLS SYSTEM (1996) YEL WIRE

Go to component -> 2.5l, starting/charging circuit, a/t -> MAIN FUSE BLOCK (LEFT FRONT FENDER

Wiring diagram main fuse block (left front fender (6 of 10)

Wiring diagram main fuse block (left front fender for Mazda MX-6 I (1992-1997) (6 of 10)

Get access

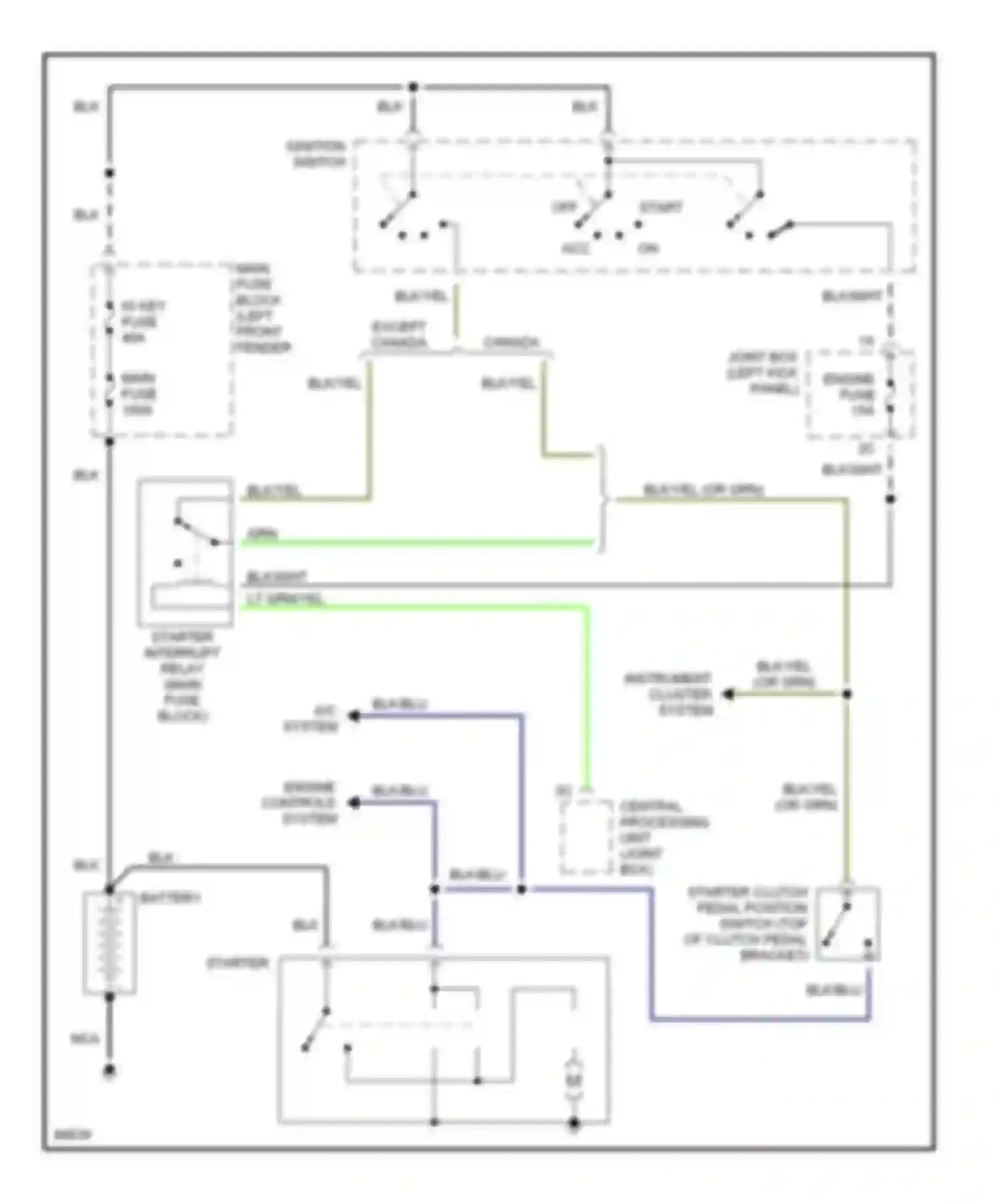

A/C SYSTEM BATTERY BLK WIRE BLK/BLU WIRE BLK/WHT WIRE BLK/YEL (OR GRN) WIRE BLK/YEL WIRE CANADA CENTRAL PROCESSING UNIT (JOINT BOX) ENGINE CONTROLS SYSTEM ENGINE FUSE EXCEPT CANADA GRN WIRE IG KEY FUSE IGNITION SWITCH INSTRUMENT CLUSTER SYSTEM JOINT BOX (LEFT KICK PANEL) LT GRN/YEL WIRE MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT FENDER NCA WIRE OFF STARTER STARTER CLUTCH PEDAL POSITION SWITCH (TOP OF CLUTCH PEDAL BRACKET) STARTER INTERRUPT RELAY (MAIN FUSE BLOCK)

Go to component -> 2.5l, starting/charging circuit, m/t -> MAIN FUSE BLOCK (LEFT FRONT FENDER

Wiring diagram main fuse block (left front fender (7 of 10)

Wiring diagram main fuse block (left front fender for Mazda MX-6 I (1992-1997) (7 of 10)

Get access

A/C SYSTEM BATTERY BLK WIRE BLK/BLU WIRE BLK/WHT WIRE BLK/YEL (OR GRN) WIRE BLK/YEL WIRE CANADA CENTRAL PROCESSING UNIT (JOINT BOX) CRUISE CONTROL SYSTEM ENGINE CONTROLS SYSTEM ENGINE FUSE EXCEPT CANADA GRN WIRE GRN/YEL WIRE IG KEY FUSE IGNITION SWITCH INSTRUMENT CLUSTER SYSTEM JOINT BOX (LEFT KICK PANEL) LT GRN/YEL WIRE MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT FENDER NCA WIRE OFF PARK/NEUTRAL SWITCH (ON TRANSAXLE) STARTER STARTER INTERRUPT RELAY (MAIN FUSE BLOCK) TRANS- MISSION SYSTEM (1995) ENGINE CONTROLS SYSTEM (1996) YEL WIRE

Go to component -> 2.5l, starting circuit, a/t -> MAIN FUSE BLOCK (LEFT FRONT FENDER

Wiring diagram main fuse block (left front fender (8 of 10)

Wiring diagram main fuse block (left front fender for Mazda MX-6 I (1992-1997) (8 of 10)

Get access

A/C SYSTEM BATTERY BLK WIRE BLK/BLU WIRE BLK/WHT WIRE BLK/YEL (OR GRN) WIRE BLK/YEL WIRE CANADA CENTRAL PROCESSING UNIT (JOINT BOX) ENGINE CONTROLS SYSTEM ENGINE FUSE EXCEPT CANADA GRN WIRE IG KEY FUSE IGNITION SWITCH INSTRUMENT CLUSTER SYSTEM JOINT BOX (LEFT KICK PANEL) LT GRN/YEL WIRE MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT FENDER NCA WIRE OFF STARTER STARTER CLUTCH PEDAL POSITION SWITCH (TOP OF CLUTCH PEDAL BRACKET) STARTER INTERRUPT RELAY (MAIN FUSE BLOCK)

Go to component -> 2.5l, starting circuit, m/t -> MAIN FUSE BLOCK (LEFT FRONT FENDER

Wiring diagram main fuse block (left front fender (9 of 10)

Wiring diagram main fuse block (left front fender for Mazda MX-6 I (1992-1997) (9 of 10)

Get access

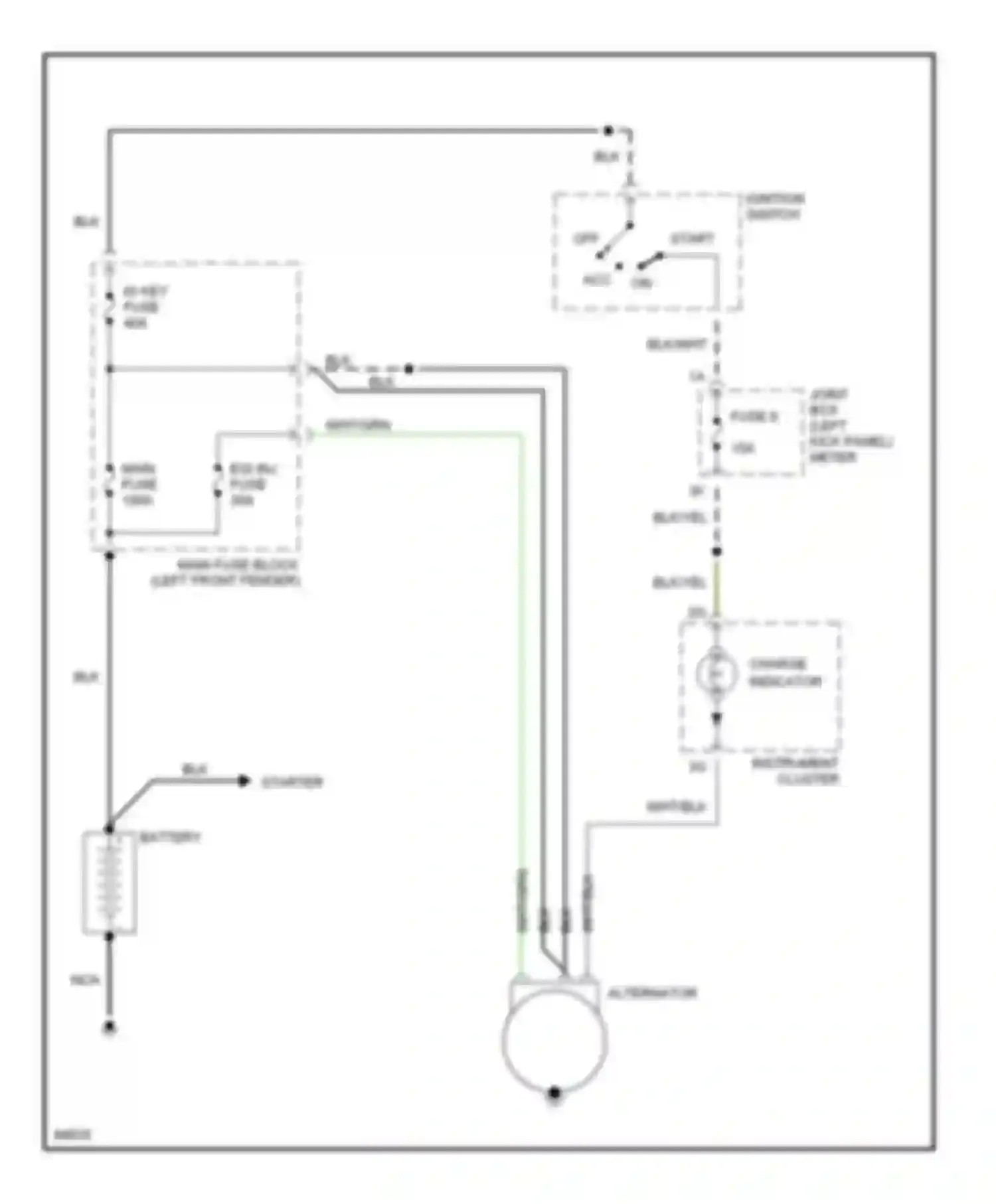

ALTERNATOR BATTERY BLK WIRE BLK/WHT WIRE BLK/YEL WIRE CHARGE INDICATOR EGI INJ FUSE IG KEY FUSE IGNITION SWITCH INSTRUMENT CLUSTER JOINT BOX (LEFT KICK PANEL) METER FUSE 8 MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT FENDER NCA WIRE OFF STARTER WHT/BLK WIRE WHT/GRN WIRE

Go to component -> Charging circuit -> MAIN FUSE BLOCK (LEFT FRONT FENDER

Wiring diagram main fuse block (left front fender (10 of 10)

Wiring diagram main fuse block (left front fender for Mazda MX-6 I (1992-1997) (10 of 10)

Get access

ALTERNATOR BATTERY BLK WIRE BLK/WHT WIRE BLK/YEL WIRE CHARGE INDICATOR EGI INJ FUSE IG KEY FUSE IGNITION SWITCH INSTRUMENT CLUSTER JOINT BOX (LEFT KICK PANEL) METER FUSE 8 MAIN FUSE MAIN FUSE BLOCK (LEFT FRONT FENDER NCA WIRE OFF STARTER WHT/BLK WIRE WHT/GRN WIRE

Go to component -> Charging circuit -> MAIN FUSE BLOCK (LEFT FRONT FENDER
