Mazda MX-6 I (1992-1997) left inboard brake light right inboard brake light Wiring diagram
This page shows the only wiring diagram for the component.left inboard brake light right inboard brake light, which is found in the car Mazda MX-6 I (1992-1997). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

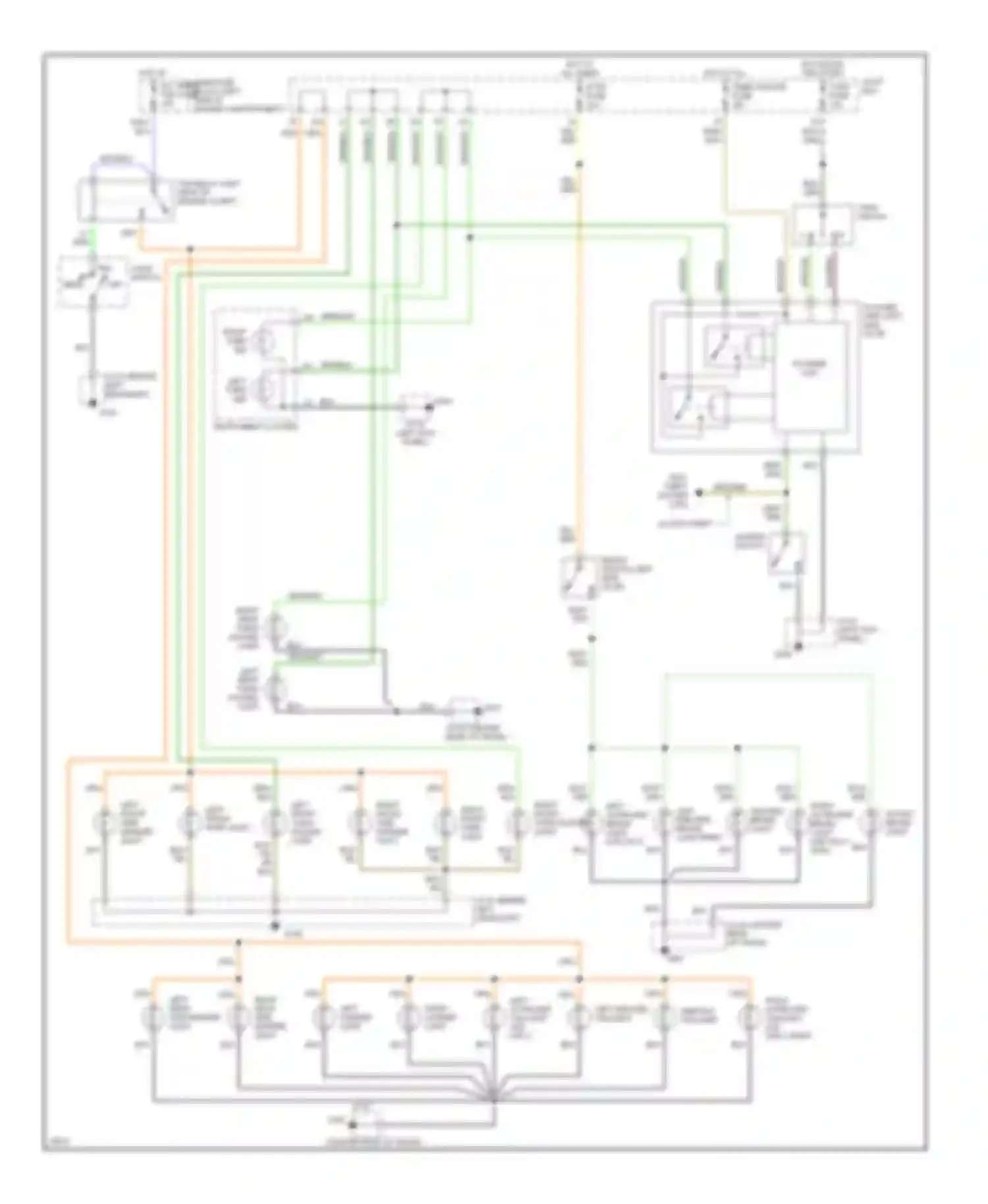

Wiring diagram left inboard brake light right inboard brake light (1 of 1)
ANTI- THEFT SYSTEM (CPU)
BLK WIRE
BLK/RED WIRE
BLU WIRE
BRAKE SWITCH (LEFT SIDE OF I/P)
BRN WIRE
BRN/WHT WIRE
FLASHER UNIT
FLASHER UNIT (LEFT SIDE OF I/P)
GRN WIRE
GRN/BLK WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HEAD
HOT AT ALL TIMES
HOT AT ALL TIMES HAZARD FUSE
HOT AT ALL TIMES TAIL FUSE
HOT IN RUN AND START
INSTRUMENT CLUSTER
J/C 05
JC-01 (BEHIND LEFT HEADLIGHT)
JC-02 (LEFT KICK PANEL)
JC-05 (CENTER REAR OF TRUNK)
JOINT BOX
LEFT FRONT SIDE MARKER LIGHT LEFT FRONT PARK LIGHT
LEFT FRONT TURN/ HAZARD LIGHT
LEFT INBOARD BRAKE LIGHT RIGHT INBOARD BRAKE LIGHT
LEFT INBOARD TAILLIGHT
LEFT LICENSE LIGHT
LEFT OUTBOARD BRAKE LIGHT (626 ONLY)
LEFT OUTBOARD TAILLIGHT (626 ONLY) RIGHT LICENSE LIGHT
LEFT REAR SIDE MARKER LIGHT
LEFT REAR TURN/ HAZARD LIGHT
LEFT TURN IND
LIGHT SWITCH
MAIN FUSE BLOCK (LEFT SIDE OF ENGINE COMPARTMENT)
OFF
ORG/ WIRE
RED WIRE
RIGHT FRONT PARK LIGHT
RIGHT FRONT SIDE MARKER LIGHT
RIGHT FRONT TURN/ HAZARD LIGHT
RIGHT OUTBOARD BRAKE LIGHT (626 ONLY) HIGH MOUNT BRAKE LIGHT
RIGHT OUTBOARD TAILLIGHT (626 ONLY) RIGHT INBOARD TAILLIGHT
RIGHT REAR SIDE MARKER LIGHT
RIGHT REAR TURN/ HAZARD LIGHT
RIGHT TURN IND
STOP FUSE
TNS
TNS RELAY (LEFT REAR OF ENGINE COMPT)
TURN FUSE
TURN SWITCH
W/ ANTI-THEFT HAZARD SWITCH
WHT WIRE
WHT/BLU WIRE
YEL WIRE
