Mazda MX-6 I (1992-1997) audio unit power mirrors Wiring diagram
This page shows the only wiring diagram for the component.audio unit power mirrors, which is found in the car Mazda MX-6 I (1992-1997). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

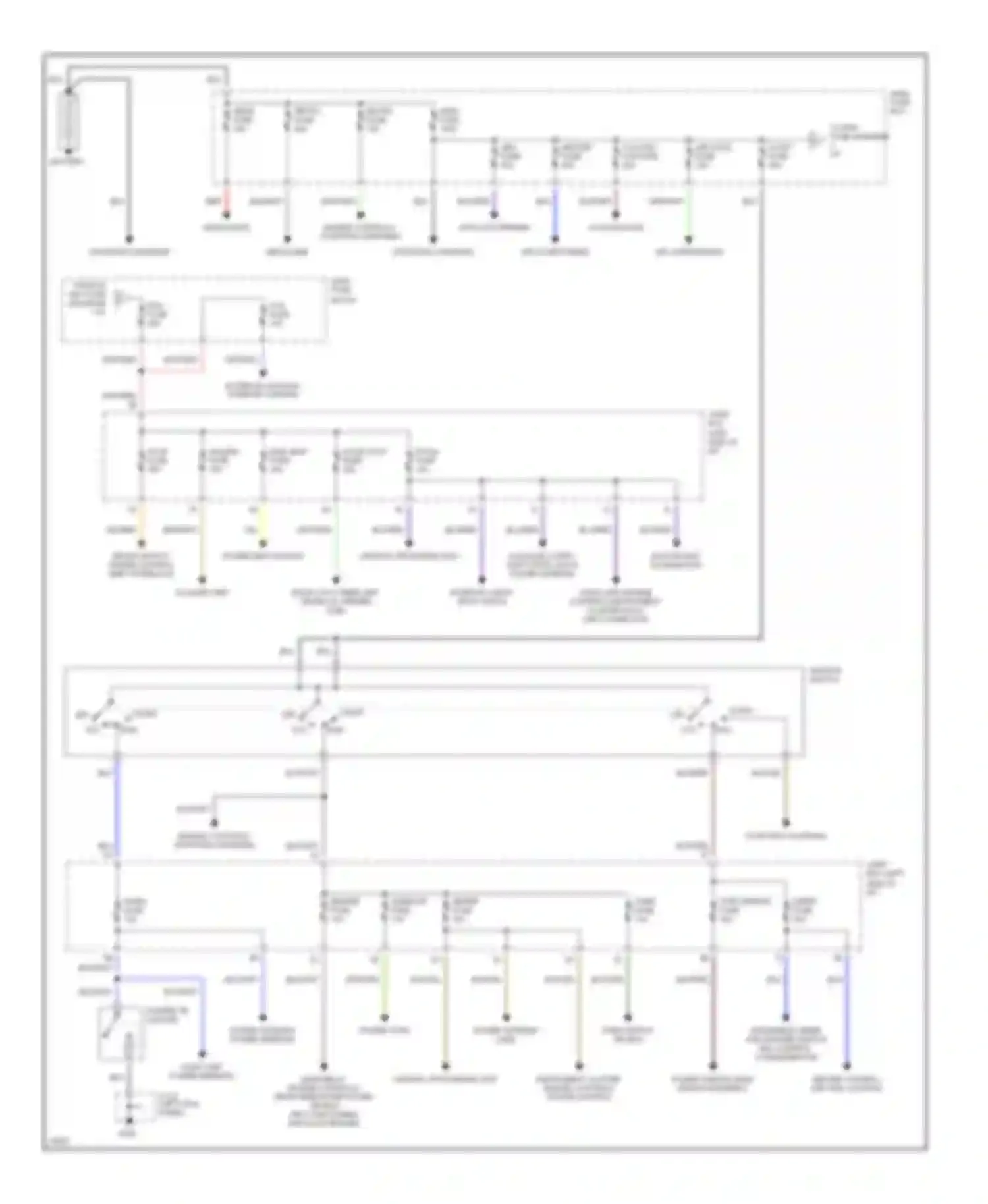

Wiring diagram audio unit power mirrors (1 of 1)
ABS FUSE
AIR COND FUSE
AIR CONDITIONING
ANTI-LOCK BRAKES
AUDIO UNIT ENGINE CONTROLS INSTRUMENT CLUSTER DATA LINK CONNECTOR
AUDIO UNIT POWER MIRRORS
BATTERY
BLK WIRE
BLK/GRN WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
BLU/RED WIRE
BLU/WHT WIRE
BRAKE SWITCH CRUISE CONTROL SHIFT INTERLOCK
BRN/WHT WIRE
BTN FUSE
CENTRAL PROCESING UNIT
CENTRAL PROCESSING UNIT
CIGARETTE LIGHTER
COOLING FAN FUSE
COOLING FANS
DEFOG FUSE
DEFOGGER
DOOR LOCK FUSE
DOOR LOCK TIMER UNIT TRUNK LID OPENER
EGI INJ FUSE
ENGINE CONTROLS STARTING/ CHARGING
ENGINE FUSE
EXTERIOR LIGHTING INTERIOR LIGHTING
FLASHER UNIT
FROM IG KEY FUSE (DIAGRAM 1 OF 1)
GRN/ORG WIRE
GRN/WHT WIRE
HEAD FUSE
HEADLIGHTS
HEATER CONTROL UNIT DRL CONTROL
HEATER FUSE
IG KEY FUSE
IGNITION KEY ILLUMINATION
IGNITION SWITCH
INSTRUMENT CLUSTER ENGINE CONTROLS CRUISE CONTROL
INTERIOR LIGHTS SPOT LIGHTS
JC-02 (LEFT KICK PANEL)
JOINT BOX (LEFT SIDE OF I/P)
LUGGAGE COMPT. LIGHT DOOR LOCKS POWER ANTENNA
MAIN FUSE
MAIN FUSE BLOCK
MAIN FUSE BOX
METER FUSE SUNROOF FUSE
OFF
POWER ANTENNA (1995)
POWER ANTENNA POWER MIRRORS
POWER SEAT SWITCH
POWER TOPS
POWER WINDOW MAIN SWITCH ASSEMBLY
PWR SEAT FUSE HAZARD FUSE
PWR WINDOW FUSE
RADIO FUSE
RED WIRE
ROOM FUSE
RUN WIRE
STARTING/ CHARGING
STOP FUSE
TAIL FUSE
TO BTN FUSE (DIAGRAM 1 OF 1)
TURN FUSE
TURN SWITCH AIR BAG
WHT/BLU WIRE
WHT/GRN WIRE
WHT/RED WIRE
WINDSHIELD WIPER AND WASHER SWITCH DRL CONTROL CONDENSER FAN
WIPER FUSE
YEL WIRE
YEL/RED WIRE
Go to component -> Power distribution circuit -> AUDIO UNIT POWER MIRRORS
