Mazda MX-5 NC (2005-2008) ignition switch on Wiring diagram
This page shows the only wiring diagram for the component.ignition switch on, which is found in the car Mazda MX-5 NC (2005-2008). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

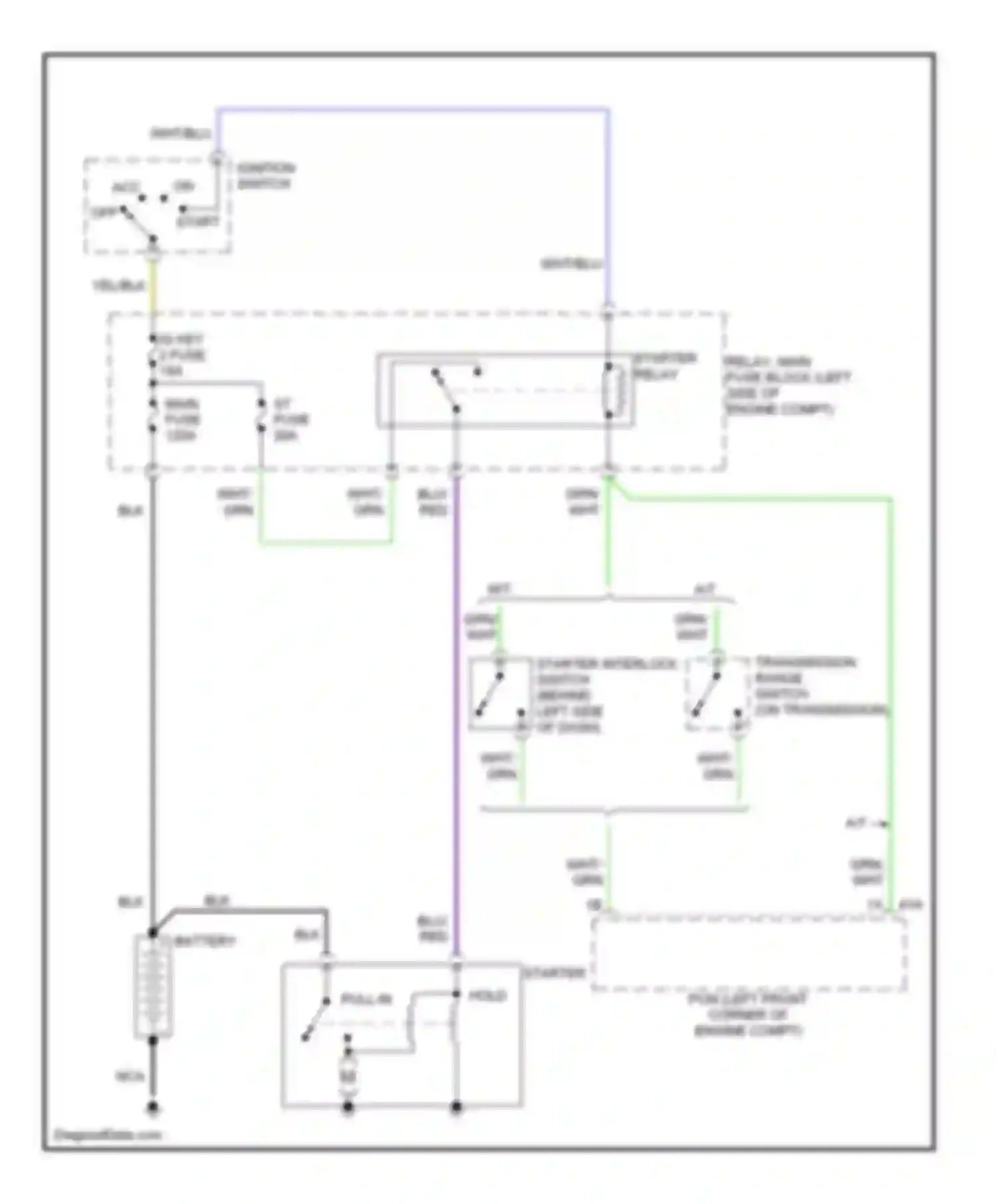

Wiring diagram ignition switch on (1 of 1)
A/T
BATTERY
BLK WIRE
BLU WIRE
GRN WIRE
IG KEY 2 FUSE
IGNITION SWITCH ON
M/T
NCA WIRE
OFF
PCM (LEFT FRONT CORNER OF ENGINE COMPT)
PULL- IN
RED WIRE
RELAY, MAIN FUSE BLOCK (LEFT SIDE OF ENGINE COMPT)
ST FUSE MAIN FUSE
STARTER HOLD
STARTER INTERLOCK SWITCH (BEHIND LEFT SIDE OF DASH)
STARTER RELAY
TRANSMISSION RANGE SWITCH (ON TRANSMISSION)
WHT WIRE
WHT/BLU WIRE
YEL/BLK WIRE
Go to component -> Starting circuit -> IGNITION SWITCH ON
