Mazda CX-9 II facelift (2020-2024) ldws off ind Wiring diagrams
This page contains all the electrical diagrams for the component. ldws off ind, in which he is found in the car Mazda CX-9 II facelift (2020-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram ldws off ind (1 of 2)
BLK WIRE
BLU WIRE
BRAKE FLUID LEVEL SENSOR
BRAKE FLUID LEVEL SW
BRN WIRE
BUZZER
C-04
C-07
CAN H (PCM)
CAN L (PCM)
COMPUTER DATA LINES SYSTEM
DIMMER CANCEL SWITCH
FBCM
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HS CAN-H
HS CAN-L
ILLUMINATION
INSTRUMENT CLUSTER
INTERIOR FUSE
LCD
LDWS OFF IND
LDWS OFF SWITCH
LEFT THIRD-ROW BUCKLE SWITCH
LEFT THIRD-ROW BUCKLE SWITCH/ RIGHT THIRD-ROW BUCKLE SWITCH
LT BLU WIRE
LT GRN WIRE
METER 1 FUSE
MICROCOMPUTER
MONITOR SWITCH
MS CAN-H
MS CAN-L
NAVIGATION SYSTEM
PANEL LIGHT CONTROL
PARKING SENSOR IND
PARKING SENSOR SWITCH
PLG FRONT SWITCH/ CLUSTER SWITCH
PNK WIRE
PNK/BLK WIRE
RED WIRE
RELAY & FUSE BLOCK
RELAY ENERGIZED
RIGHT THIRD-ROW BUCKLE SWITCH
SHIFT INTERLOCK SYSTEM
SOUND SYSTEMS
SPEEDOMETER
TACHOMETER
TAN WIRE
TCS OFF/ OFF- ROAD TRACTION ASSIST SWITCH
TCS OFF/ OFF-ROAD TRACTION ASSIST IND
TRANSMISSIONS SYSTEM
TRIPMETER SWITCH
VIO WIRE
W/ PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR
W/O REAR SEAT BELT REMINDER UNIT
W/O SECOND CONSOLE
WARNING SYSTEMS
WARNING/ INDICATOR LIGHTS
WHT WIRE
WHT/BLK WIRE
WHT/GRN WIRE
WHT/RED WIRE
Go to component -> Instrument cluster circuit (1 of 2) -> LDWS OFF IND

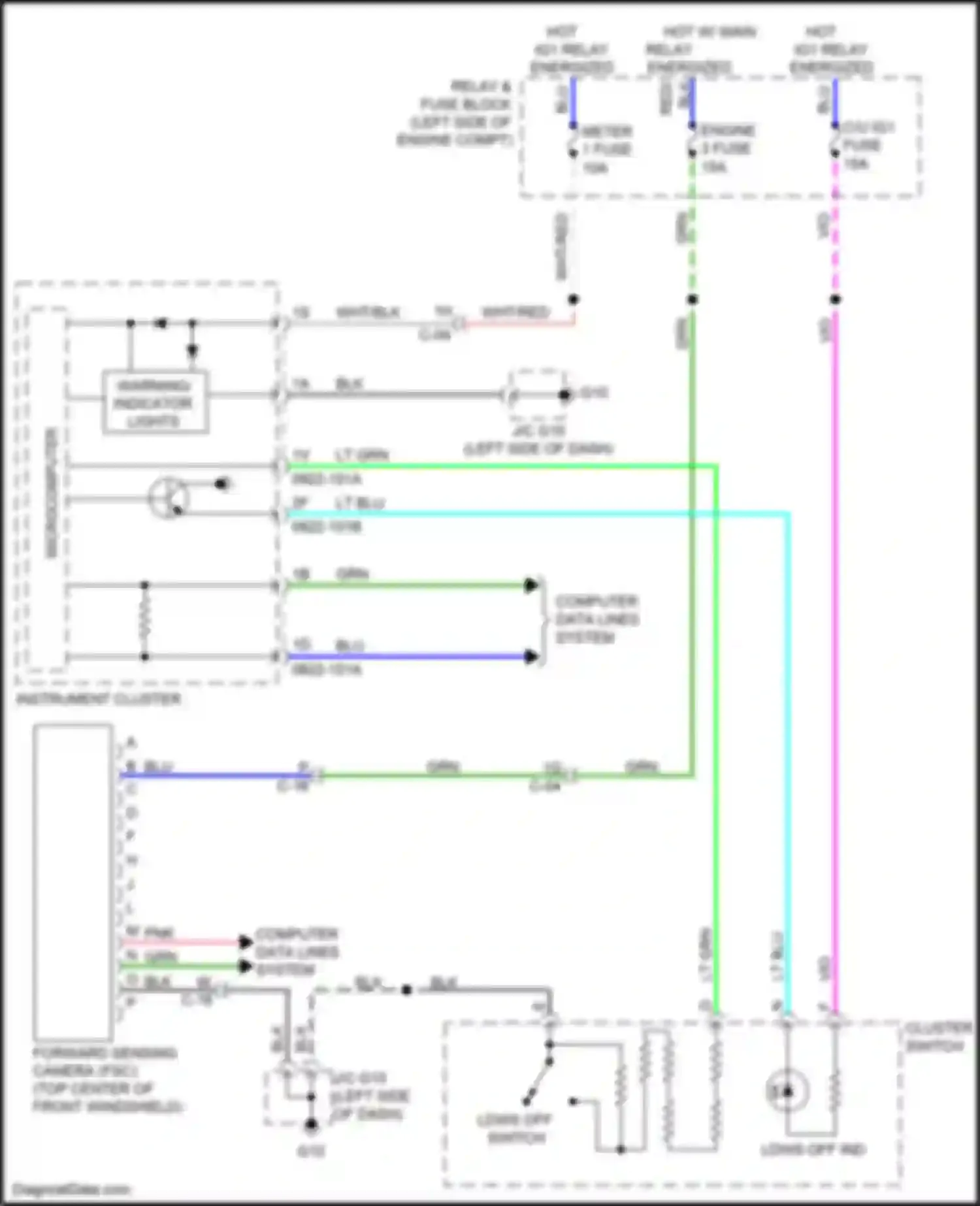

Wiring diagram ldws off ind (2 of 2)
BLK WIRE
BLU WIRE
C-04
C-16
CLUSTER SWITCH
COMPUTER DATA LINES SYSTEM
ENGINE 3 FUSE
FORWARD SENSING CAMERA (FSC)
GRN WIRE
HOT W/
HOT W/ MAIN RELAY ENERGIZED
INSTRUMENT CLUSTER
LDWS OFF IND
LDWS OFF SWITCH
LT BLU WIRE
LT GRN WIRE
METER 1 FUSE
MICROCOMPUTER
PNK WIRE
RED WIRE
RELAY & FUSE BLOCK
VIO WIRE
WARNING/ INDICATOR LIGHTS
WHT/BLK WIRE
WHT/RED WIRE
Go to component -> Lane departure warning circuit -> LDWS OFF IND
