Mazda CX-50 I (2021-2024) lifter motor Wiring diagram
This page shows the only wiring diagram for the component.lifter motor, which is found in the car Mazda CX-50 I (2021-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

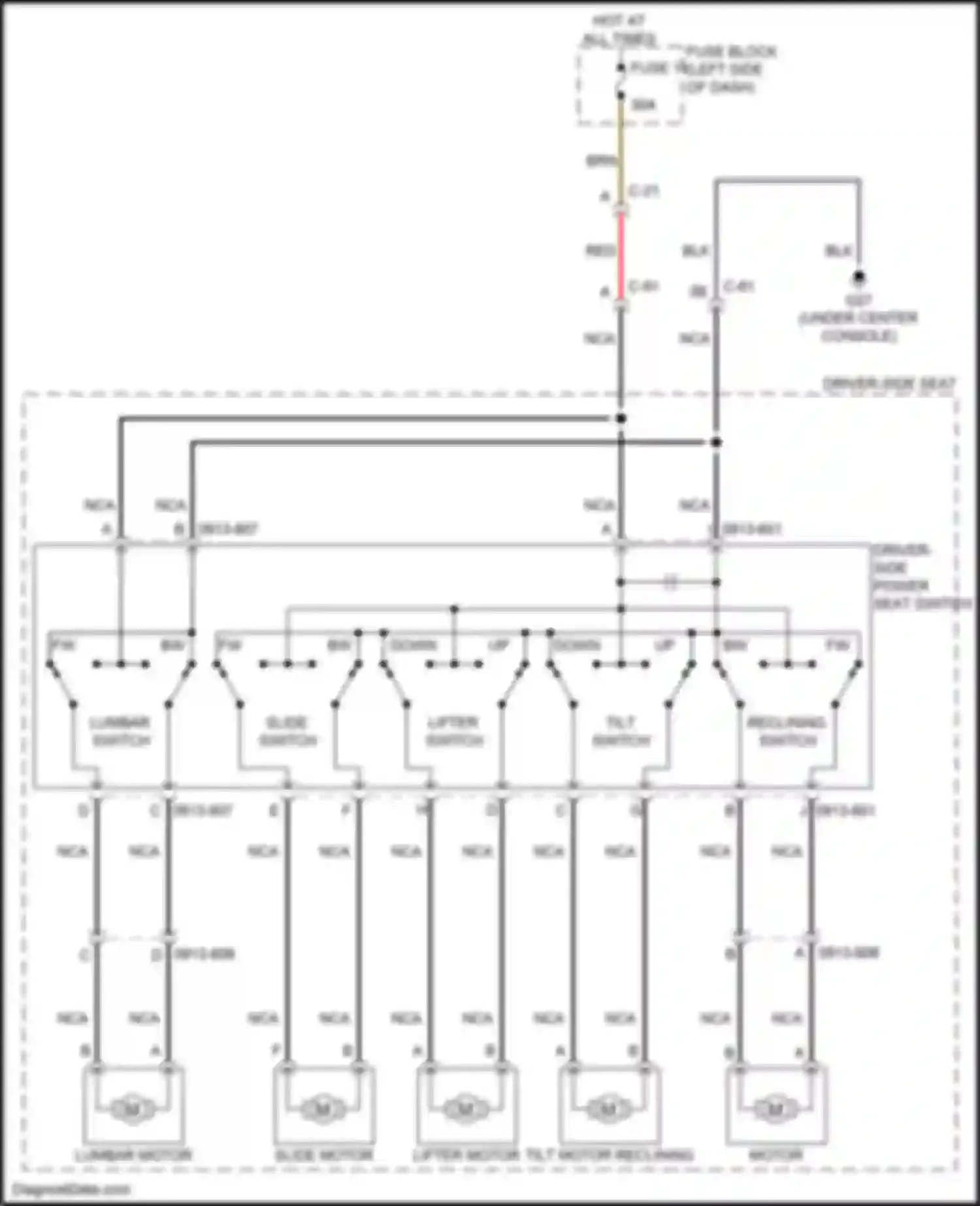

Wiring diagram lifter motor (1 of 1)
0913-601
0913-607
0913-608
BLK WIRE
BRN WIRE
BW DOWN
BW FW
C-21
C-61
C-91
DRIVER SIDE POWER SEAT SWITCH
DRIVER-SIDE SEAT
FUSE 11
FUSE BLOCK
HOT AT ALL TIMES
LIFTER MOTOR
LIFTER SWITCH
LUMBAR MOTOR
LUMBAR SWITCH
NCA WIRE
RECLINING SWITCH
RED WIRE
SLIDE MOTOR
SLIDE SWITCH
TILT MOTOR RECLINING MOTOR
TILT SWITCH
UP BW DOWN
Go to component -> Driver power seat circuit -> LIFTER MOTOR
