Mazda CX-50 I (2021-2024) fuse 50 Wiring diagrams
This page contains all the electrical diagrams for the component. fuse 50, in which he is found in the car Mazda CX-50 I (2021-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram fuse 50 (1 of 15)
Go to component -> Anti-lock brakes circuit (1 of 2) -> FUSE 50
Wiring diagram fuse 50 (3 of 15)
Go to component -> Anti-theft circuit (1 of 4) -> FUSE 50

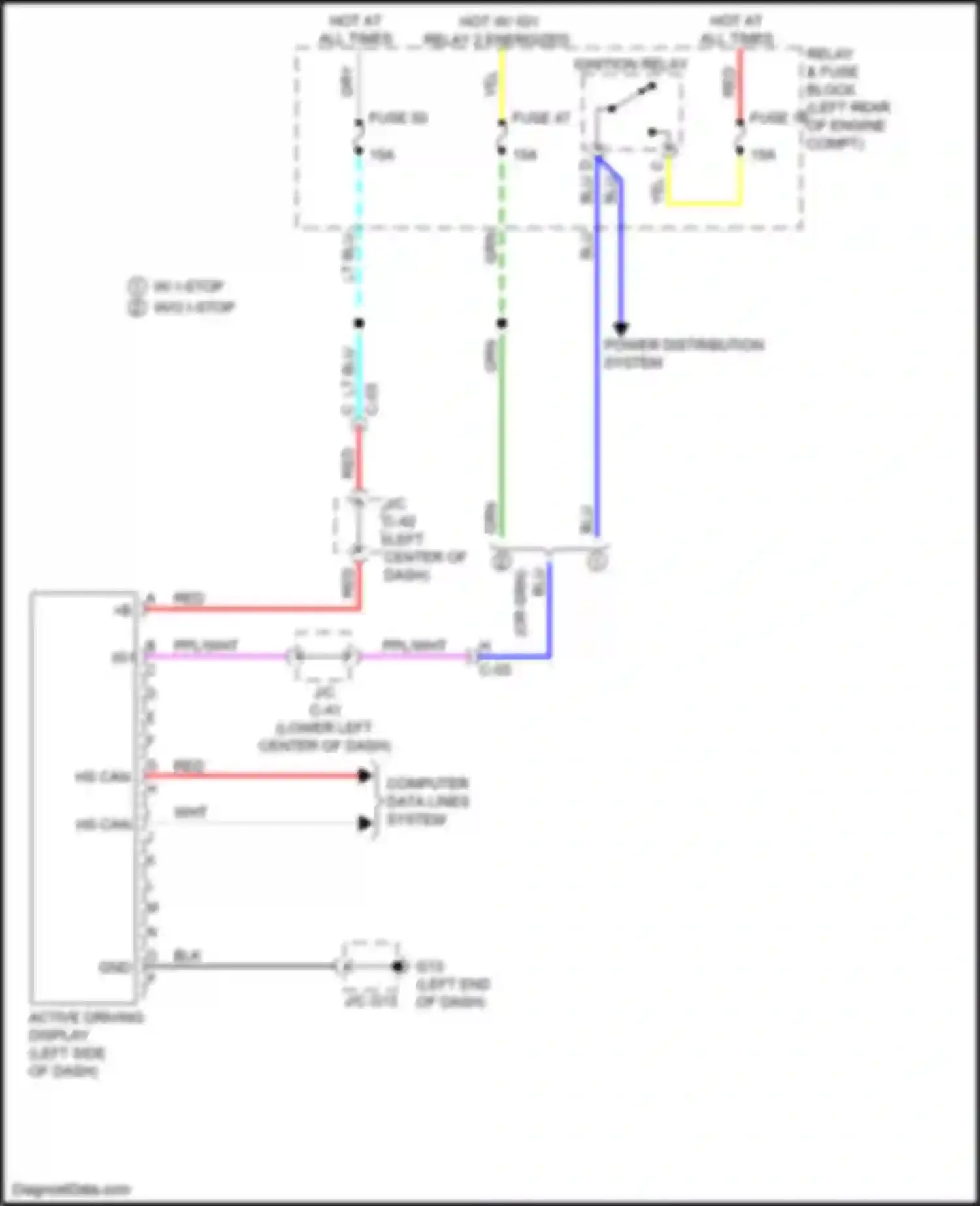

Wiring diagram fuse 50 (4 of 15)
Go to component -> A/t circuit (2 of 2) -> FUSE 50
Wiring diagram fuse 50 (5 of 15)
Go to component -> Courtesy lamps circuit (1 of 2) -> FUSE 50
Wiring diagram fuse 50 (6 of 15)
Go to component -> Memory seat circuit (1 of 2) -> FUSE 50
Wiring diagram fuse 50 (7 of 15)
Go to component -> Multi-information system circuit -> FUSE 50

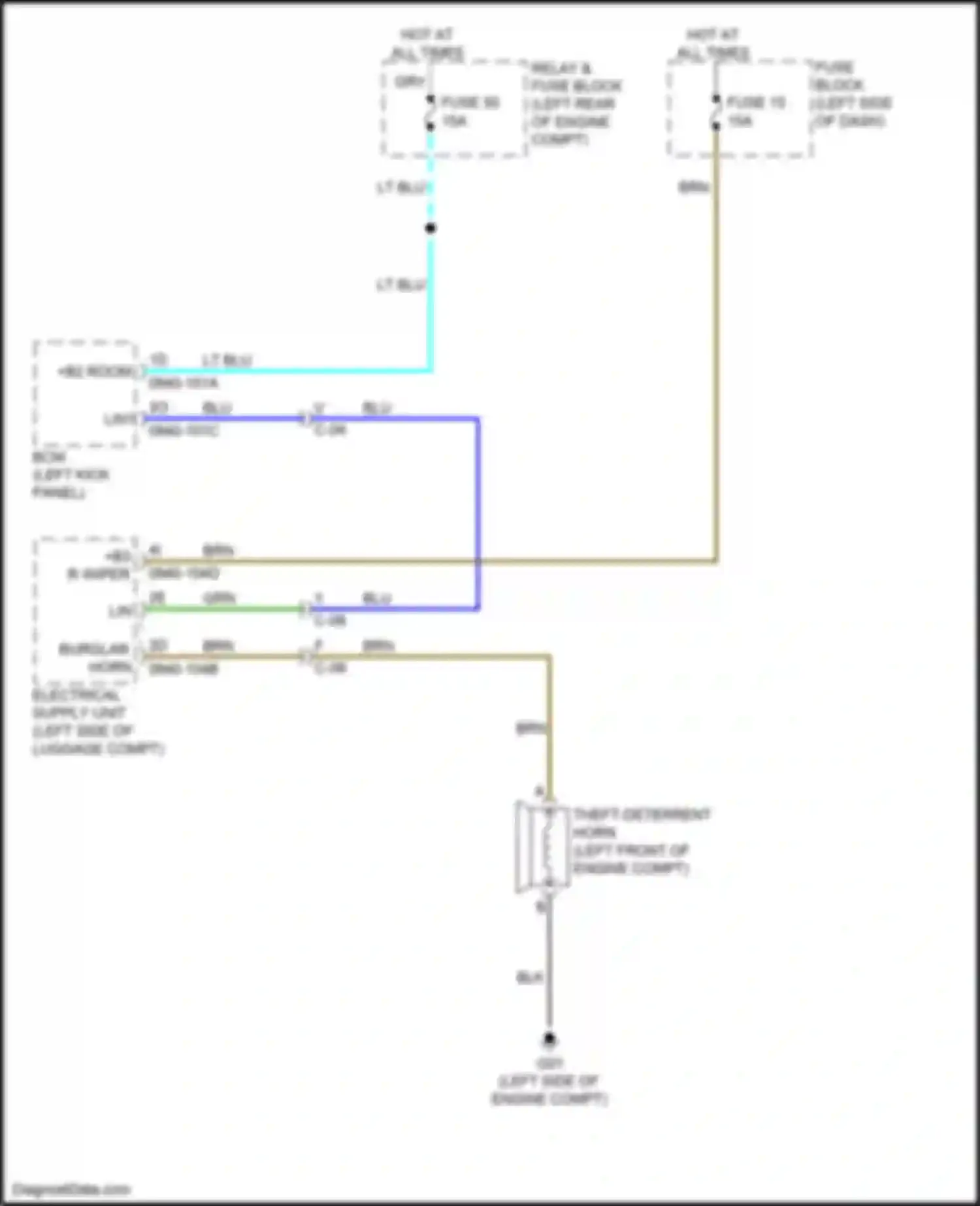

Wiring diagram fuse 50 (8 of 15)
Go to component -> Power distribution circuit (5 of 6) -> FUSE 50
Wiring diagram fuse 50 (9 of 15)
Go to component -> Power door locks circuit (1 of 4) -> FUSE 50
Wiring diagram fuse 50 (10 of 15)
Go to component -> Power tailgate circuit (1 of 2) -> FUSE 50
