Power sliding door circuit for Mazda 5 I (2005-2007)

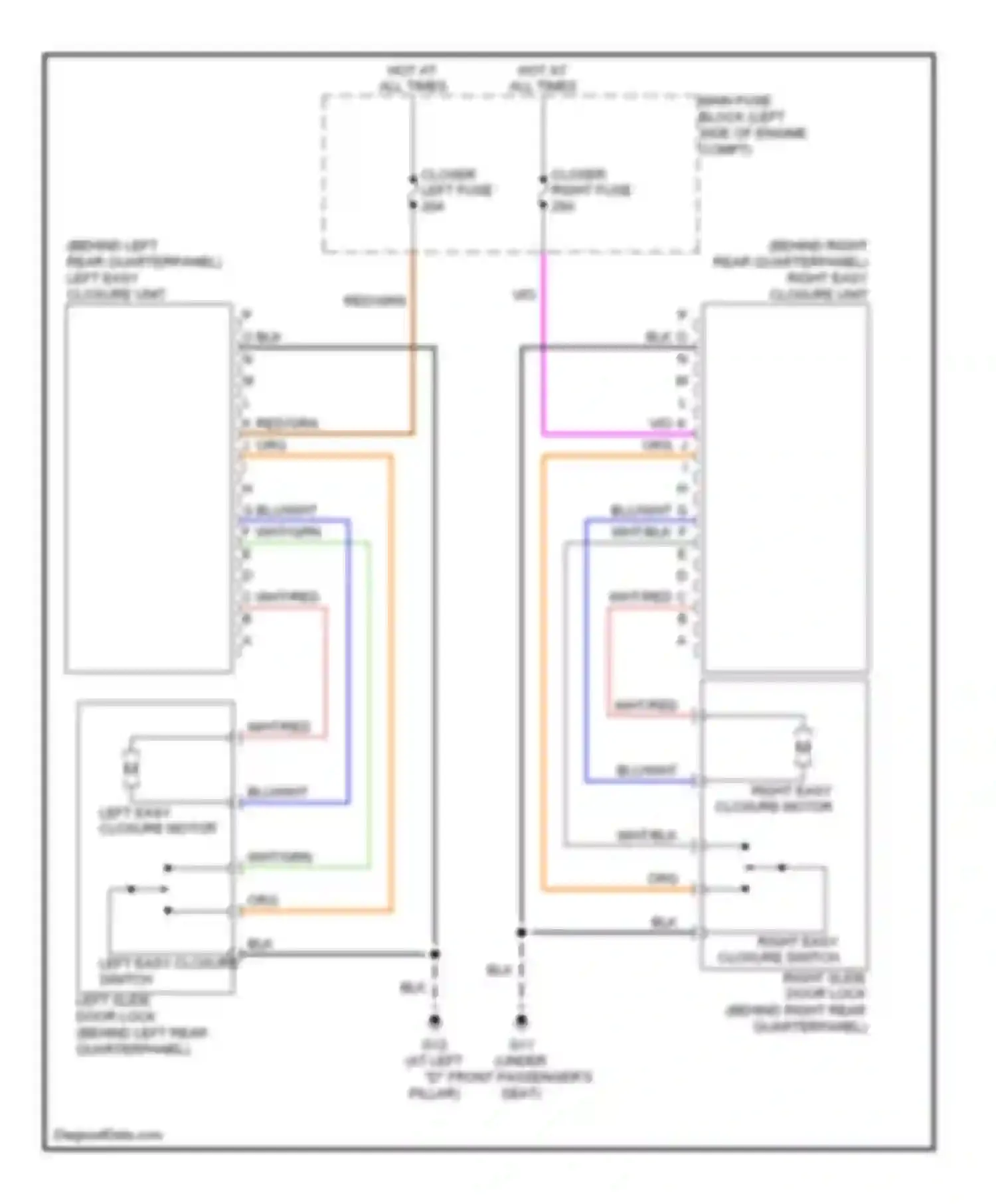

Power sliding door circuit
BLK WIRE
BLU/WHT WIRE
CLOSER LEFT FUSE
CLOSER RIGHT FUSE
HOT AT ALL TIMES
LEFT EASY CLOSURE MOTOR
LEFT EASY CLOSURE SWITCH
LEFT SLIDE DOOR LOCK
MAIN FUSE BLOCK (LEFT SIDE OF ENGINE COMPT)
ORG/ WIRE
RED/GRN WIRE
RIGHT EASY CLOSURE MOTOR
RIGHT EASY CLOSURE SWITCH
RIGHT SLIDE DOOR LOCK
VIO WIRE
WHT/BLK WIRE
WHT/GRN WIRE
WHT/RED WIRE
