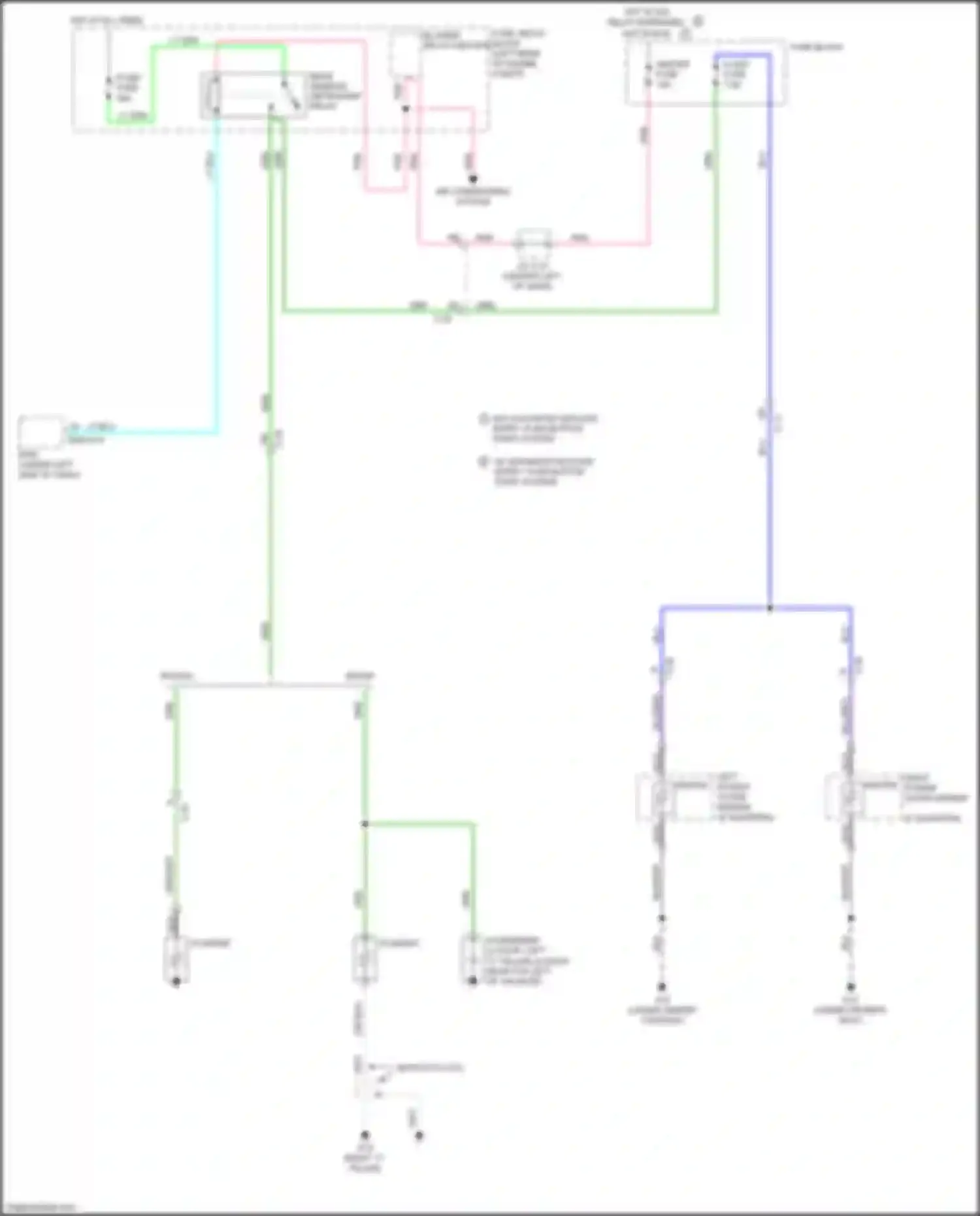

Car Wiring Diagrams for Defoggers circuit for Mazda 3 BL facelift (2011-2013)

AB PNK WIRE AD C-03 AIR CONDITIONING SYSTEM BCM BCM (UNDER LEFT SIDE OF DASH) BLK WIRE BLK/WHT WIRE BLOWER RELAY (HEATER) BLU WIRE BLU/RED WIRE C-03 C-04 C-17 C-20 C-29 C-30 CONDENSER CONDENSER (4 DOOR: LEFT "C" PILLAR) (5 DOOR: NEAR TOP LEFT OF TAILGATE) FILAMENT FUSE BLOCK FUSE, RELAY BLOCK FUSE, RELAY BLOCK (LEFT REAR OF ENGINE COMPT) GRN WIRE GRN/WHT WIRE HEATER HEATER FUSE HOT AT ALL TIMES J/C C-51 J/C C-51 (CENTER LEFT OF DASH) LEFT POWER OUTER MIRROR LT BLU WIRE LT GRN WIRE M DEF FUSE NCA WIRE PNK WIRE R DEF FUSE REAR WINDOW DEFROSTER RELAY RELAY ENERGIZED HOT IN RUN RIGHT POWER OUTER MIRROR RIGHT POWER OUTER MIRROR HEATER SEDAN SKYACTIV-G 2.0L W/ ADVANCED KEYLESS ENTRY, PUSH BUTTON START SYSTEM W/O ADVANCED KEYLESS ENTRY, PUSH BUTTON START SYSTEM WAGON WHT WIRE
