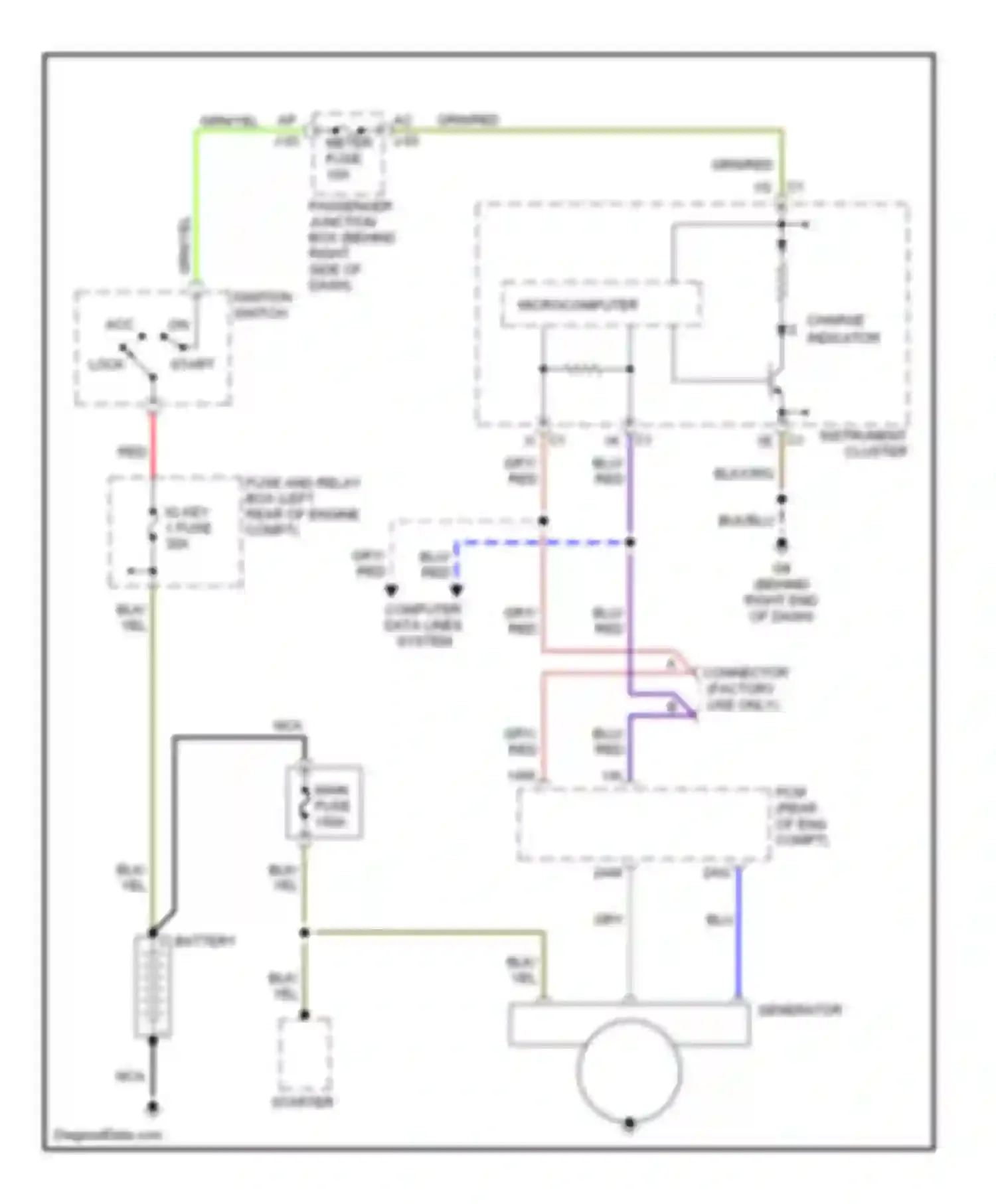

Car Wiring Diagrams for Charging circuit for Mazda 3 BK (2003-2006)

AC J-03 AP J-03 METER FUSE BATTERY BLK WIRE BLK/BLU WIRE BLK/ORG WIRE BLU WIRE CHARGE INDICATOR COMPUTER DATA LINES SYSTEM CONNECTOR (FACTORY USE ONLY) FUSE AND RELAY BOX (LEFT REAR OF ENGINE COMPT) GENERATOR GRN/RED WIRE GRN/YEL WIRE GRY WIRE IG KEY 1 FUSE IGNITION SWITCH INSTRUMENT CLUSTER LOCK MAIN FUSE MICROCOMPUTER NCA WIRE PASSENGER JUNCTION BOX (BEHIND RIGHT SIDE OF DASH) PCM (REAR OF ENG COMPT) RED WIRE STARTER YEL WIRE
