Wiring Diagrams for Lincoln Navigator II (2002-2006)

Automatic a/c circuit Auxiliary heater-a/c circuit

Anti-lock brakes circuit

Forced entry circuit Passive anti-theft circuit

Computer data lines circuit

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Electronic suspension circuit

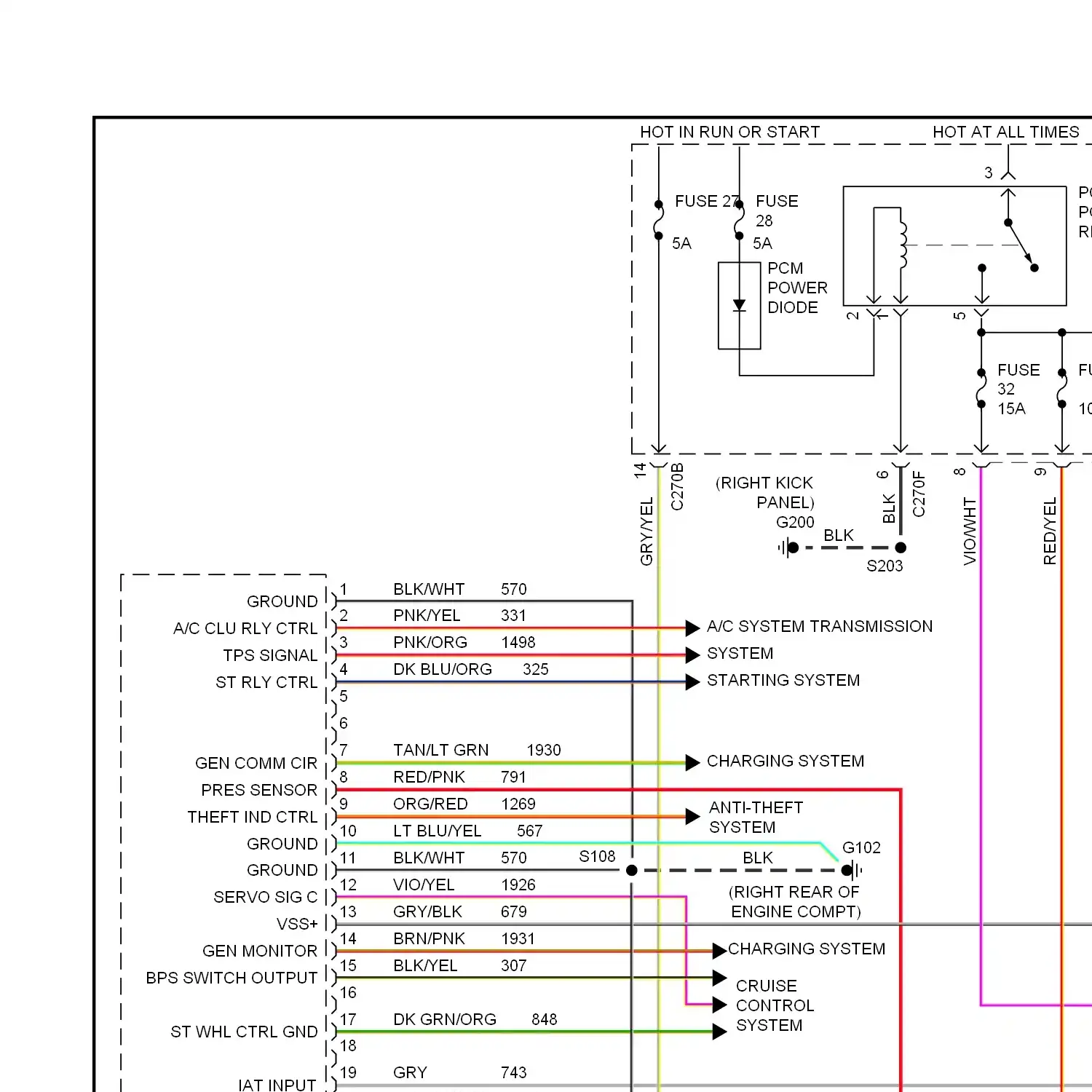

Wiring diagram engine performance 5.4l

Back-up lamps circuit Exterior lamps circuit Trailer/camper adapter circuit

Ground distribution circuit

Headlights circuit, with drl Headlights circuit, without drl

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Adjustable pedal circuit Driver"s memory seat circuit Memory mirrors circuit, without power folding mirrors Memory mirrors circuit, with power folding mirrors

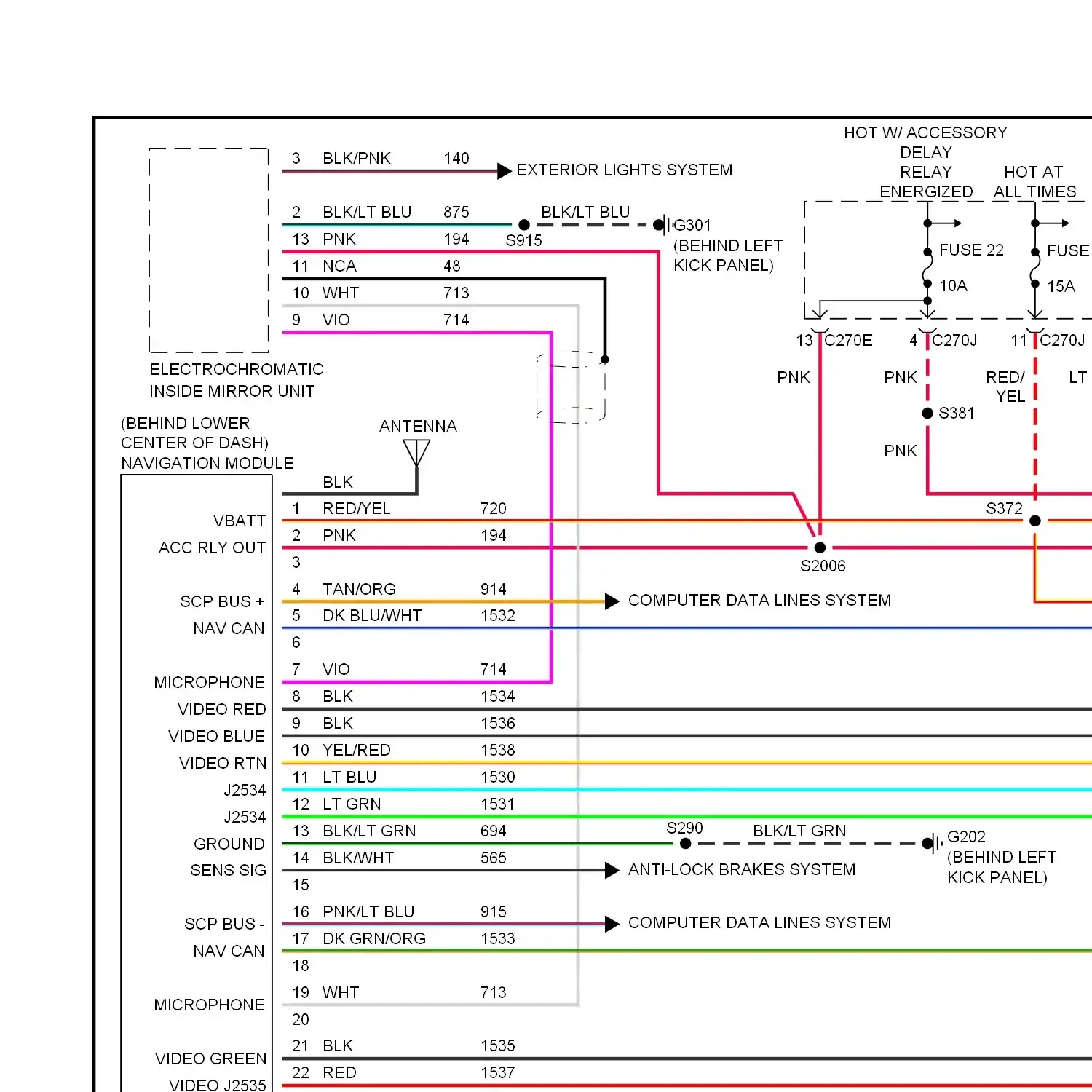

Navigation circuit Parking assistant circuit

Power distribution circuit

Power door locks circuit

Electronic day/night mirror circuit

Adjustable pedal circuit Heated seats circuit Lumbar circuit Passenger power seat circuit Third row folding seat circuit

Power top/sunroof circuit

Power windows circuit

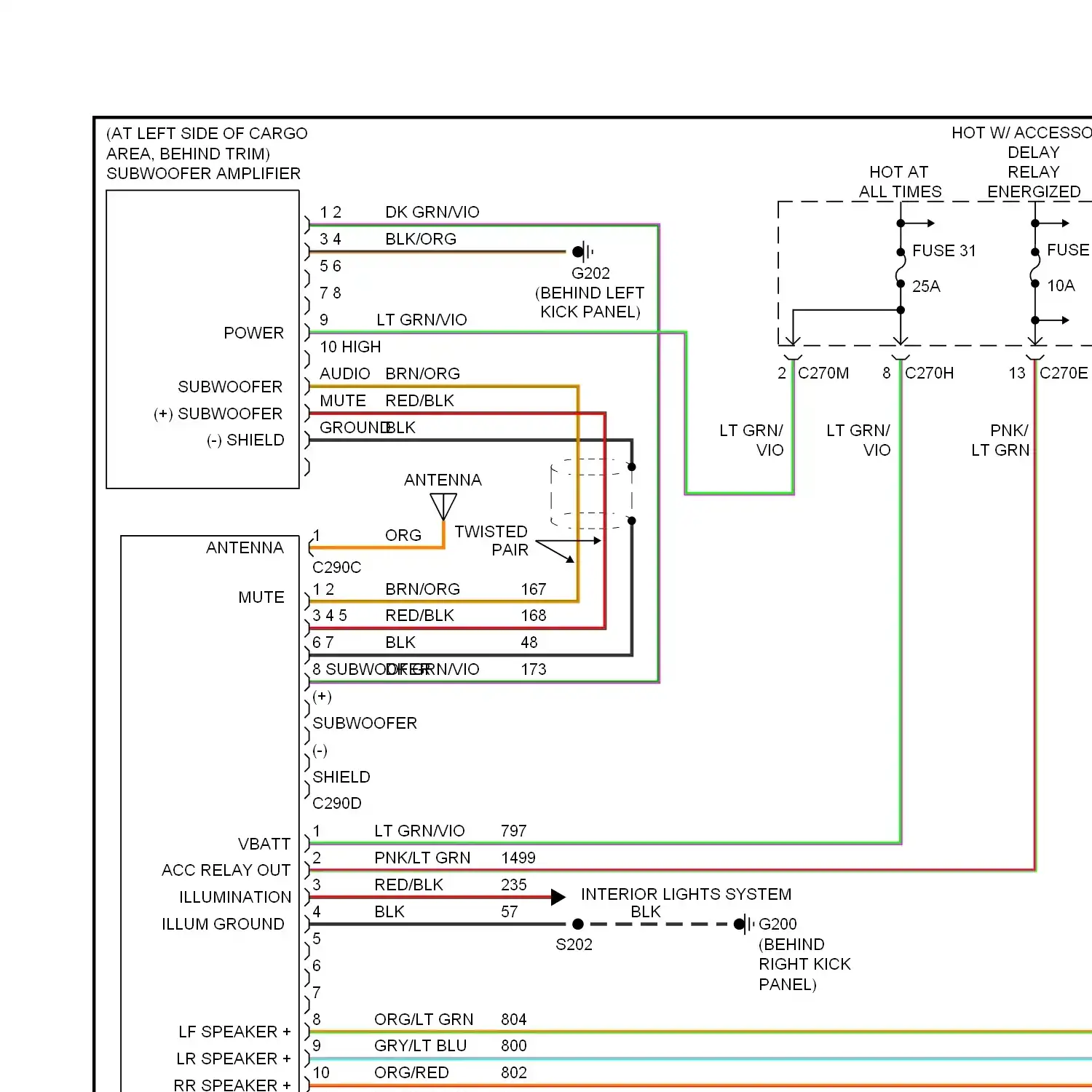

Radio circuit, with navigation Radio circuit, without navigation

Shift interlock circuit

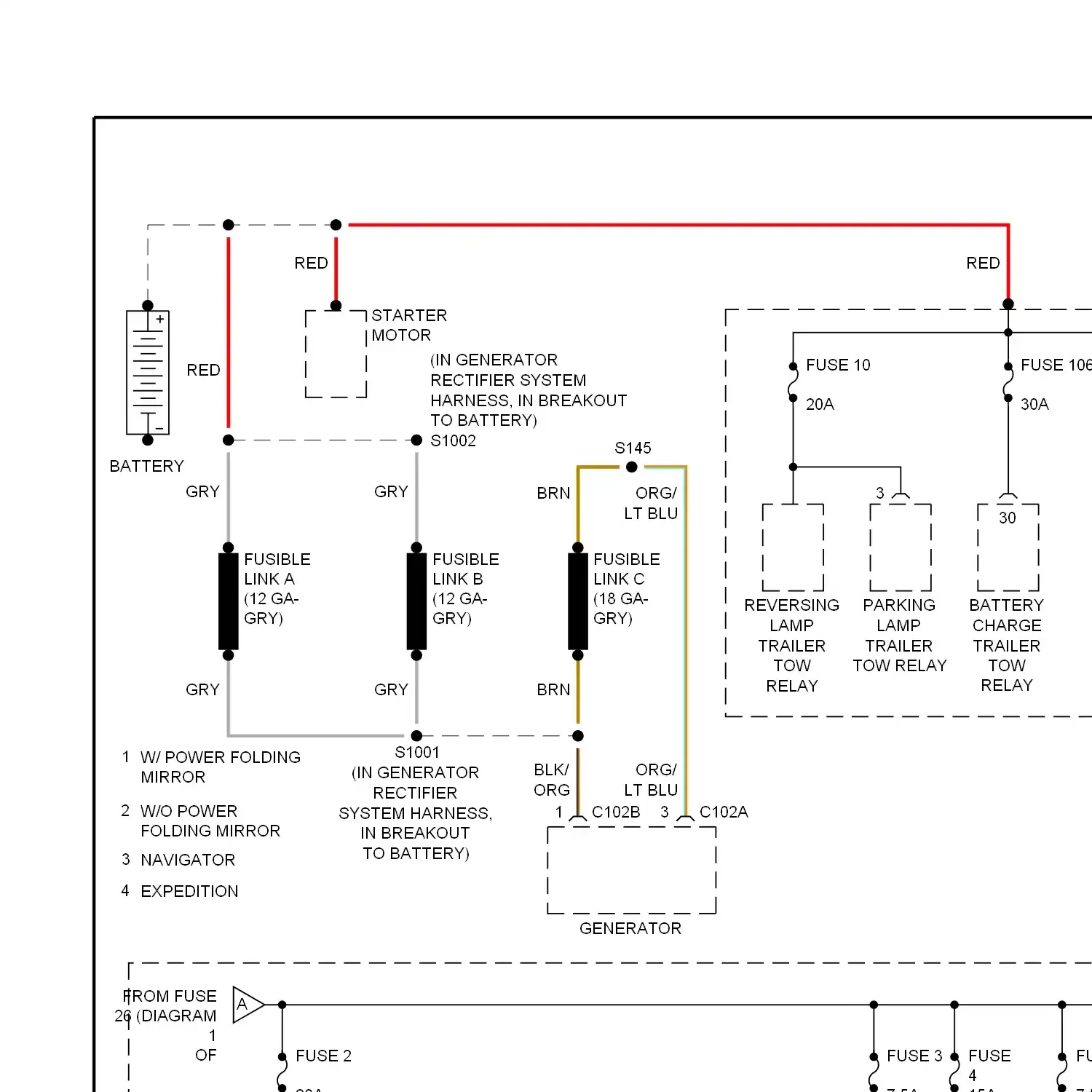

Charging circuit Starting circuit

Supplemental restraints circuit

4wd circuit A/t circuit

Trunk, tailgate, fuel door circuit

Tire pressure monitoring circuit Warning systems circuit

Front wiper/washer circuit Rear washer/wiper circuit

A/C CLUTCH FIELD COIL A/C COMPRESSOR CLUTCH DIODE ANTI-LOCK BRAKES SYSTEM DIFF LOCK SOL HORN RLY CTRL VPWR GND LOCK OFF MAGNETIC CLUTCH COIL PASSIVE ANTI-THEFT TRANSCEIVER PASSIVE ANTI-THEFT TRANSCEIVER INSTRUMENT CLUSTER PCM POWER DIODE RADIO, AMPLIFIER RIGHT SAFETY CANOPY DELETE RESISTOR

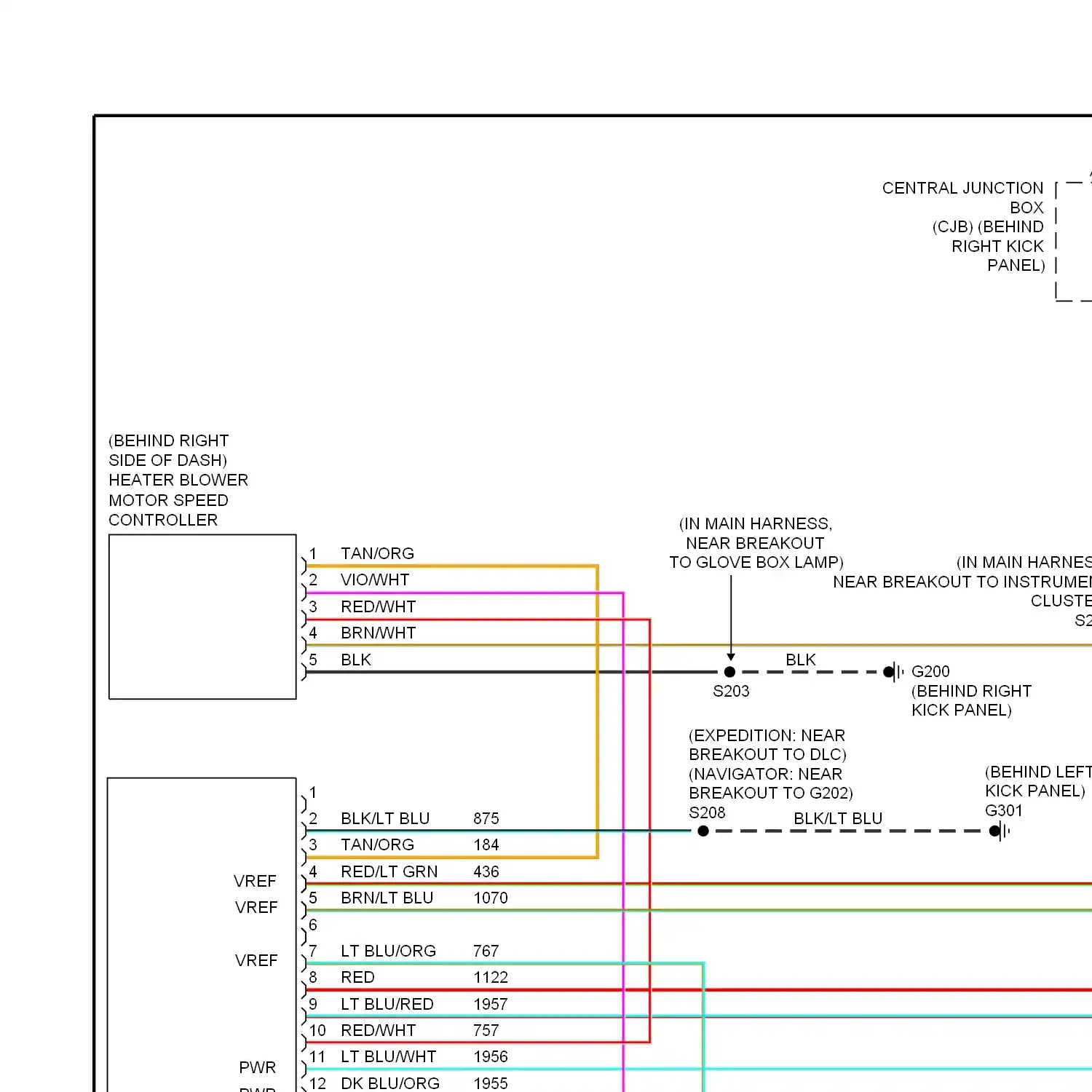

1 2 3 4 HEATER + HEATER - MOTOR - PWR (IN FRONT HEATER BLOWER MOTOR HARNESS, IN BLOWER MOTOR RESISTOR CHECK ENGINE IND DRIVER SIDE FRONT POWER WINDOW MOTOR ENGINE CONTROLS SYSTEM HEATER BLOWER MOTOR SPEED CONTROLLER LEFT RUNNING BOARD MOTOR ASSEMBLY LEFT SIDE REAR QUARTER WINDOW MOTOR LEFT/RIGHT MOTOR LIFTGATE GLASS ACTUATOR HIGH MOUNTED STOPLAMP PASSENGER SEAT REAR HEIGHT MOTOR REAR BLEND DOOR ACTUATOR REAR WIPER MOTOR ASSEMBLY REAR WIPER MOTOR ASSEMBLY LIFTGATE CHIME MODULE RIGHT RUNNING BOARD MOTOR ASSEMBLY RIGHT SIDE REAR QUARTER WINDOW MOTOR STARTER MOTOR TEMPERATURE BLEND DOOR ACTUATOR UP/DN MOTOR UP/DOWN MOTOR WINDSHIELD WIPER MOTOR

(IN RIGHT REAR WINDOW REGULATOR CONTROL SWITCH, WIRING ASSEMBLY, NEAR (NAVIGATOR: IN RIGHT REAR WINDOW REGULATOR CONTROL SWITCH, WIRING ASSEMBLY,

4 PIN TRAILER TOW CONNECTOR 7 PIN TRAILER TOW CONNECTOR (EXPEDITION: IN REAR LAMP CONNECTOR HARNESS, (IN REAR LAMP CONNECTOR (IN REAR LAMP CONNECTOR HARNESS, (IN REAR LAMP CONNECTOR HARNESS, NEAR BREAKOUT TRAILER ELECTRONIC BRAKE CONTROL CONNECTOR

ABS CONTROL MODULE EXPEDITION W/ MEMORY FOUR-WHEEL DRIVE CONTROL MODULE FOUR WHEEL DRIVE CONTROL MODULE FOUR-WHEEL DRIVE CONTROL MODULE PARKING BRAKE SWITCH POWERTRAIN CONTROL MODULE (ON RIGHT SIDE POWERTRAIN CONTROL MODULE, FUEL INJECTORS RESTRAINTS CONTROL MODULE RESTRAINTS CONTROL MODULE IGNITION TRANSFORMER CAPACITOR 1

AUDIO/ NAVIGATION CONTROL UNIT AUDIO/NAVIGATION CONTROL UNIT DRIVER AIR BAG UNIT ELECTRO- CHROMATIC INSIDE MIRROR UNIT ELECTROCHROMATIC INSIDE MIRROR UNIT FUEL TANK UNIT RADIO AUDIO/ NAVIGATION CONTROL UNIT REAR CONTROL UNIT

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 4 FUSE 5 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 16 FUSE 15 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 28 FUSE 27 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 32 FUSE 34 FUSE 33 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 38 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 101 FUSE 102 FUSE 102 FUSE 113 FUSE 103 FUSE 103 FUSE 112 FUSE 104 FUSE 105 FUSE 106 FUSE 107 FUSE 107 FUSE 105 FUSE 108 FUSE 109 FUSE 110 FUSE 111 FUSE 112 FUSE 113 FUSE 114 FUSE 115 FUSE 116 FUSE 117 FUSE 117 FUSE 104 FUSE 118

AUXILIARY AIR CONDITIONER HEATER CIRCUIT

(IN AIR SPRING SUSPENSION PRESSURE INDICATOR SWITCH HARNESS, CHARGE INDICATOR HIGH BEAM INDICATOR INSTRUMENT CLUSTER LEFT TURN INDICATOR RIGHT TURN INDICATOR

ASHTRAY ILLUMINATION LAMP ASHTRAY ILLUMINATION LAMP ILLUMINATION DIMMER CARGO LAMP DEFOGGER SYSTEM EXTERIOR LIGHTS SYSTEM DVD PLAYER LEFT SIDE RAIL LAMP GLOVE BOX LAMP) HEADLIGHTS, INTERIOR LIGHTS SYSTEMS HIGH MOUNTED STOP LAMP ILLUMINATION FOG LAMP LEFT EXTERIOR REAR VIEW MIRROR PUDDLE LAMP LEFT FRONT FOG LAMP LEFT FRONT HIGH BEAM LAMP LEFT FRONT LOW BEAM LAMP LEFT FRONT MAP READING LAMP LEFT FRONT PARK/TURN LAMP LEFT FRONT SIDE LAMP LEFT FRONT SIDE LAMP LEFT FRONT PARK/ TURN LAMP LEFT LICENSE PLATE LAMP LEFT LICENSE PLATE LAMP RIGHT LICENSE PLATE LAMP LEFT REAR PARK/STOP TURN LAMP LEFT REVERSING LAMP LEFT REVERSING LAMP LEFT TAIL LAMP RIGHT TAIL LAMP LEFT SIDE RAIL LAMP LEFT TAIL LAMP LEFT VANITY MIRROR LAMP PUDDLE LAMP REAR POWER POINT RIGHT REAR PARK/STOP/ TURN LAMP RIGHT EXTERIOR REAR VIEW MIRROR PUDDLE LAMP RIGHT FRONT FOG LAMP RIGHT FRONT HIGH BEAM LAMP LEFT FRONT FOG LAMP RIGHT FRONT LOW BEAM LAMP RIGHT FRONT MAP READING LAMP RIGHT FRONT PARK/ TURN LAMP RIGHT FRONT PARK/TURN LAMP RIGHT FRONT SIDE LAMP RIGHT LICENSE PLATE LAMP RIGHT REAR PARK/ STOP/ TURN LAMP RIGHT REVERSING LAMP RIGHT SIDE RAIL LAMP RIGHT SIDE RAIL LAMP CARGO LAMP RIGHT TAIL LAMP RIGHT VANITY MIRROR LAMP WIPER/WASHER SYSTEM DEFOGGER SYSTEM POWER WINDOWS SYSTEM INTERIOR LIGHTS SYSTEM

SERVO COMMON F PUMP RLY CTRL

A/C CLUTCH RELAY ACCESSORY DELAY RELAY AIR SUSPENSION COMPRESSOR RELAY BATTERY CHARGE TRAILER TOW RELAY BATTERY CHARGE TRAILER TOW RELAY FUSE 106 BATTERY SAVER RELAY DOOR LOCK RELAY DRIVER DOOR UNLOCK RELAY ELECTRONIC PARK BRAKE RELEASE RELAY ELECTRONIC PARK BRAKE RESET RELAY FOG LAMP RELAY FRONT BLOWER MOTOR RELAY FRONT WASHER PUMP RELAY FUEL PUMP RELAY FUSE 37 PCM POWER RELAY HEADLAMP RELAY HIGH BEAM RELAY HORN RELAY HOT W/ ACCESSORY DELAY RELAY ENERGIZED INDICATOR FLASHER RELAY INDICATOR FLASHER RELAY ELECTRONIC PARK BRAKE RELEASE RELAY INDICATOR FLASHER RELAY INSTRUMENT CLUSTER INTEGRATED WHEEL ENDS SOLENOID A/C CLUTCH RELAY INTERIOR LAMP RELAY IVD STOP LAMP RELAY LEFT THIRD ROW FOLDING SEAT RELAY LEFT THIRD ROW FOLDING SEAT RELAY RIGHT THIRD ROW FOLDING SEAT RELAY LIFTGATE GLASS RELEASE RELAY PARK LAMP RELAY PARKING LAMP TRAILER TOW RELAY PCM POWER RELAY QUARTER WINDOW CLOSE RELAY QUARTER WINDOW OPEN RELAY REAR BLOWER MOTOR RELAY REAR BLOWER MOTOR RELAY POWER LIFTGATE MODULE REAR WASHER PUMP RELAY REAR WINDOW DEFROST RELAY REAR WIPER RELAY REVERSING LAMP TRAILER TOW RELAY RIGHT THIRD ROW FOLDING SEAT RELAY RIGHT THIRD ROW FOLDING SEAT RELAY LEFT THIRD ROW FOLDING SEAT RELAY SPEED CONTROL RELAY STARTER RELAY TRAILER TOW BATTERY CHARGE RELAY TRAILER TOW PARKING LAMP RELAY PCM POWER RELAY HIGH BEAM RELAY TRAILER TOW REVERSING LAMP RELAY SPEED CONTROL RELAY WIPER HIGH/LOW RELAY WIPER RUN/PARK RELAY

1 3 4 15 19 VBATT SPEED SENSOR VBATT VBATT GROUND 25 27 OSS SENSOR SIG RTN (ENG CTRL SENSOR HARN, NEAR BREAKOUT (IN ENGINE CONTROL SENSOR HARNESS, (IN ENGINE CONTROL SENSOR, FUEL AUTOLAMPS/ SUNLOAD SENSOR BRAKE PEDAL POSITION SWITCH AUTOLAMP/ SUNLOAD SENSOR CRANKSHAFT POSITION SENSOR SHIELD DEPLOYED SENSOR DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR HALL SENSOR HEATED OXYGEN SENSOR HEATED OXYGEN SENSORS, TURBINE SHAFT SPEED SENSOR, IDLE AIR CONTROL VALVE OSS SENSOR OSS SENSOR TSS SENSOR SIGNAL RETURN TFT INPUT RIGHT MIRR L/R POSIT SENS RIGHT MIRR U/D POSIT SENS MIRR POSIT SENSOR FEED STOWED SENSOR TEMP SENSOR RTN SIG TRANSMISSION FLUID TEMPERATURE SENSOR TSS SENSOR

GROUND VBATT RF SPEAKER + RF SPEAKER - LEFT FRONT SPEAKER LEFT FRONT TWEETER RIGHT FRONT TWEETER LEFT FRONT SPEAKER LEFT REAR SPEAKER LR SPEAKER + RR SPEAKER + AUDIO SIG R+ AUDIO SIG R- MUTE SIG LF SPEAKER - LR SPEAKER - RR SPEAKER - RIGHT FRONT SPEAKER RIGHT REAR SPEAKER RR SPEAKER + RR SPEAKER - SUBWOOFER + SHIELD LOW AUDIO MUTE SUBWOOFER - LF SPEAKER - RF SPEAKER - LR SPEAKER - RR SPEAKER - SUBWOOFER AMPLIFIER

5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PWR SWITCH SENS TEMP + ADJUSTABLE PEDAL SWITCH BRAKE FLUID LEVEL SWITCH BRAKE PEDAL POSITION SWITCH CLOCK TRACTION CONTROL SWITCH DEACTIVATOR SWITCH DIRECT- TIONAL SWITCH DRIVER SAFETY BELT BUCKLE SWITCH DRIVER SAFETY BELT BUCKLE SWITCH PASSENGER SAFETY BELT BUCKLE SWITCH DRIVER SEAT MODULE MEMORY SET SWITCH DRIVER SIDE CLIMATE CONTROLLED SEAT MODULE LEFT FRONT LUMBAR ADJUST SWITCH DRIVER SIDE CLIMATE CONTROLLED SEAT SWITCH DRIVER SIDE DOOR LOCK SWITCH DVD PLAYER ROOF OPENING PANEL SWITCH EXTERIOR REAR VIEW MIRROR SWITCH FOUR WHEEL DRIVE SWITCH FOUR-WHEEL DRIVER SWITCH FRONT AUXILIARY FUNCTION SELECTOR SWITCH ASSEMBLY FRONT FUNCTION SELECTOR SWITCH ASSEMBLY FRONT FUNCTION SELECTOR SWITCH ASSEMBLY A/C HIGH PRESSURE SWITCH HORN SWITCH IGNITION SWITCH KEY PAD SWITCH ASSEMBLY KEY-IN IGNITION SWITCH LEFT FRONT DOOR AJAR SWITCH LEFT FRONT LUMBAR ADJUST SWITCH LEFT POWER SEAT SWITCH LEFT POWER SEAT SWITCH DRIVER SEAT MODULE LEFT REAR THIRD ROW FOLDING SEAT SWITCH LEFT REAR WINDOW ADJUST SWITCH LEFT RUNNING BOARD MOTOR ASSEMBLY DRIVER SIDE REAR DOOR AJAR SWITCH LEFT/RIGHT MIRROR SELECT SWITCH LIFTGATE FORK BOLT/DETENT SWITCH LIFTGATE GLASS RELEASE SWITCH LIFTGATE HOME POSITION SWITCH LOW CHARGE PROTECTION SWITCH MAIN LIGHT SWITCH MASTER WINDOW ADJUST SWITCH MASTER WINDOW ADJUST SWITCH DRIVER SIDE DOOR LOCK MEMORY SET SWITCH MESSAGE CENTER SWITCH MULTI- FUNCTION SWITCH MULTI- FUNCTION SWITCH PASS LO MULTI-FUNCTION SWITCH 1. OFF 2. ON 3. REAR WASHER 4. INTERMITTENT WIPE MULTIFUNCTION SWITCH O/D SWITCH OUT IN SWITCH OVERDRIVE CANCEL SWITCH ELECTRONIC COMPASS PASSENGER SAFETY BELT BUCKLE SWITCH PASSENGER SIDE CLIMATE CONTROLLED SEAT SWITCH PASSENGER SIDE DOOR LOCK SWITCH RIGHT REAR WINDOW ADJUST SWITCH PASSENGER SIDE REAR DOOR AJAR SWITCH RIGHT FRONT LUMBAR ADJUST SWITCH POWER LIFTGATE OPEN/CLOSE SWITCH POWER QUARTER WINDOW SWITCH REAR AUXILIARY FUNCTION SELECTOR SWITCH ASSEMBLY RIGHT FRONT DOOR AJAR SWITCH RIGHT FRONT LUMBAR ADJUST SWITCH RIGHT FRONT LUMBAR ADJUST SWITCH IN RIGHT POWER SEAT SWITCH RIGHT REAR THIRD ROW FOLDING SEAT SWITCH RIGHT REAR WINDOW ADJUST SWITCH RIGHT THIRD ROW FOLDING SEAT SWITCH ROOF OPENING PANEL SWITCH SERVICE SWITCH UBP BUS STEERING WHEEL RADIO SWITCH STEERING WHEEL/ SPEED CONTROL SWITCH STEERING WHEEL/SPEED CONTROL SWITCH THERMOSTATIC EXPANSION VALVE SWITCH ASSEMBLY WINDSHIELD WIPER MOTOR TRACTION CONTROL SWITCH UP LEFT/RIGHT MIRROR SELECT SWITCH WASHER FLUID LEVEL SWITCH (ON RIGHT SIDE OF ENGINE COMPT, ON WASHER FLUID LEVEL SWITCH RIGHT FRONT HIGH BEAM LAMP

COAST CLUTCH SOLENOID ELECTRONIC PRESSURE CONTROL SOLENOID KEY REMOVAL INHIBIT SOLENOID LEFT REAR SHOCK ABSORBER SOLENOID VALVE RIGHT REAR SHOCK ABSORBER SOLENOID VALVE TCC SOLENOID TCC SOLENOID SHIFT SOL A SHIFT SOL B TCC SOLENOID TORQUE CONVERTER CLUTCH SOLENOID

1 2 PNK WIRE 2 3 4 5 PNK WIRE 2 13 11 10 9 PNK WIRE BLK WIRE BLK/LT BLU WIRE BLK/LT GRN WIRE BLK/ORG WIRE BLK/PNK WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BRN WIRE BRN/BLK WIRE BRN/LT BLU WIRE BRN/LT GRN WIRE BRN/ORG WIRE BRN/PNK WIRE BRN/WHT WIRE BRN/YEL WIRE DK BLU WIRE DK BLU/LT GRN WIRE DK BLU/ORG WIRE DK BLU/WHT WIRE DK BLU/YEL WIRE DK GRN WIRE DK GRN/LT GRN WIRE DK GRN/ORG WIRE DK GRN/VIO WIRE DK GRN/WHT WIRE DK GRN/YEL WIRE GRN WIRE GRY WIRE GRY/BLK WIRE GRY/LT BLU WIRE GRY/ORG WIRE GRY/RED WIRE GRY/WHT WIRE GRY/YEL WIRE LT BLU RED/ WIRE LT BLU WIRE LT BLU/BLK WIRE LT BLU/ORG WIRE LT BLU/PNK WIRE LT BLU/RED WIRE LT BLU/WHT WIRE LT BLU/YEL WIRE LT GRN WIRE LT GRN/ TAN WIRE LT GRN/BLK WIRE LT GRN/ORG WIRE LT GRN/RED WIRE LT GRN/VIO WIRE LT GRN/WHT WIRE LT GRN/YEL WIRE LT PNK PNK WIRE NAV CAN + VIDEO BLUE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/LT BLU WIRE ORG/LT GRN WIRE ORG/RED WIRE ORG/WHT WIRE ORG/YEL WIRE PNK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 18 19 20 WIRE PNK EXPEDITION WIRE PNK LT WIRE PNK PNK WIRE PNK VPWR WIRE PNK WIRE PNK/BLK WIRE PNK/LT BLU WIRE PNK/LT GRN WIRE PNK/ORG WIRE PNK/WHT WIRE PNK/YEL WIRE RED WIRE RED/BLK WIRE RED/LT BLU WIRE RED/LT GRN WIRE RED/ORG WIRE RED/PNK WIRE RED/WHT WIRE RED/YEL WIRE RUN WIRE TAN WIRE TAN/BLK WIRE TAN/LT BLU WIRE TAN/LT GRN WIRE TAN/ORG WIRE TAN/RED WIRE TAN/WHT WIRE TAN/YEL WIRE VIDEO BLUE VIDEO RTN VIDEO GREEN VIDEO GREEN VIDEO RTN VIDEO RED WIRE VIO WIRE VIO/LT BLU WIRE VIO/LT GRN WIRE VIO/ORG WIRE VIO/WHT WIRE VIO/YEL WIRE WHT LT BLU/ WIRE WHT LT GRN/ WIRE WHT WIRE WHT/BLK WIRE WHT/LT BLU WIRE WHT/LT GRN WIRE WHT/ORG WIRE WHT/PNK WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/LT BLU WIRE YEL/LT GRN WIRE YEL/RED WIRE YEL/WHT WIRE

1 1 2 3 4 UPB BUS VPWR GROUND VBATT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 CAN BUS - GROUND N TOW SW UBP DIAG 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 L DVD SIG + L DVD SIG - SHIELD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 SCP - SCP + VBATT 1 2 3 4 5 6 7 8 9 10 11 12 VBP BUS 1 2 3 4 5 6 7 8 9 10 HIGH AUDIO MUTE GROUND 1 2 3 4 5 6 VPWR SIG C SIG B SIG A SIG VPWR 1 2 3 4 GND PWR GND PWR 1 2 3 4 UPB BUS VPWR GROUND VBATT 1 2 3 4 VPWR GND TX RX 1 2 3 VBATT RF SOL VLV VSS + 1 2 NAVIGATOR EXPEDITION 1 2 POWER GROUND 1 2 VBATT ISO 1 2 W/ POWER FOLDING MIRROR NAVIGATOR 2 4 5 HEAT 4 3 2 1 GND PWR 4 3 2 1 GND VPWR 4 3 2 1 PWR PWR GND VBATT 4 5 EXPEDITION W/O POWER FOLDING MIRROR 8 9 10 19 20 AUDIO SHIELD AUDIO SIG L+ AUDIO SIG L- AUDIO SIG R+ AUDIO SIG R- 9 7 COOL 9 8 SCP- SCP+ 9/0 7/8 5/6 3/4 1/2 10 2 9 1 3 1806 1804 1805 1803 48 R DVD SIG - L DVD SIG - 12 6 11 5 4 VREF VREF VREF VREF VREF 12 24 35 26 37 17 SCS SIG C SCS SIG B SCS SIG A SCS SIG VREF CTRL SW GND 19 20 21 22 +/- +/- 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 UPB BUS 714 713 48 SOUND SYSTEMS 956 1906 268 267 270 875 1491 1493 1492 272 COMPUTER DATA LINES SYSTEM (BODY MAIN HARN, (EXPEDITION: IN MAIN HARNESS, NEAR (IN BODY MAIN HARNESS, (IN BODY MAIN HARNESS, NEAR (IN BODY MAIN HARNESS, NEAR BREAKOUT (IN BREAKOUT (IN CONSOLE PANEL HARNESS, (IN HEADLAMPS HARNESS, (IN HEADLAMPS HARNESS, IN (IN MAIN HARN, IN BREAKOUT (IN MAIN HARNESS, IN BREAKOUT (IN MAIN HARNESS, IN BREAKOUT (IN BODY MAIN HARNESS, IN BREAKOUT (IN MAIN HARNESS, NEAR (IN MAIN HARNESS, NEAR BREAKOUT (IN MAIN HARNESS, NEAR BREAKOUT TO (IN POWER SEATS HARNESS, NEAR (NEAR BREAKOUT (NEAR BREAKOUT (NEAR BREAKOUT (ON RIGHT SIDE OF LUGGAGE COMPARTMENT, (OR A/C SYSTEM A/C SYSTEM ANTI-THEFT SYSTEM A/C SYSTEM TRANSMISSION SYSTEM STARTING SYSTEM ABS IND. ABS W/ IVD ABS W/O IVD ADJUSTABLE PEDAL CIRCUIT AIR BAG IND AIR BAG IND CTRL AIR BAG SLIDING CONTACT AIR CONDITIONING SYSTEM HEADLIGHTS SYSTEM HORNS SYSTEM HEADLIGHTS SYSTEM AIR SUSPENSION COMPRESSOR AIR SUSPENSION COMPRESSOR ASSEMBLY AIR SUSPENSION MODULE ALL OTHERS ANTI-THEFT SYSTEM AREA, BEHIND TRIM) AUDIO SYS ON PROTOCOL A PROTOCOL B AUDIO SYS ON PROTOCOL A PROTOCOL B R DVD SIG + R DVD SIG - AUDIO/CLIMATE SW AUTO HEAD AUTO HEAD OFF PARK BACK-UP LAMPS CIRCUIT BACKREST OF SEAT BEHIND TRIM) BRAKE SHIFT INTERLOCK BRAKE SHIFT INTERLOCK AIR SUSPENSION MODULE BREAKOUT) CC SOL CHARGE HARNESS, NEAR BREAKOUT TO FUEL INJECTOR 7) CHARGE IND CHARGING CIRCUIT CHARGING SYSTEM CHECK SUSPENSION IND CIRCUIT BREAKER 401 COILS ON PLUG COMPUTER DATA LINES SYSTEM CONSOLE 1 POWER POINT COOL IND COP 8 CTRL COP 7 CTRL CRUISE CONTROL SYSTEM DAYTIME RUNNING LAMPS DEFOGGER SYSTEM DEFROSTER ON IND DK LT DN DN UP DN UP ONE- TOUCH UP DOOR AJAR IND DOOR AJAR IND 18 7 6 15 DOWN/ OPEN DRIVER ONE-TOUCH DOWN DRIVER SEAT MODULE DRIVER'S MEMORY SEAT CIRCUIT DVD PLAYER ELECTRONIC COMPASS ELECTRONIC COMPASS, PARKING AID MODULE ELECTRONIC POWER STEERING SYSTEM ENTIRE SEAT EPC SOL CTRL ESP IND EVR CTRL COP 4 CTRL COP 3 CTRL SIGNAL RETURN EXCEPT MANUAL A/C EXCEPT NAVIGATOR W/ NAVIGATION SYSTEM EXCEPT NAVIGATOR W/ NAVIGATION SYSTEM NAVIGATOR W/ NAVIGATION SYSTEM EXPEDITION EDDIE BAUER, NAVIGATOR EXPEDITION W/ CENTER CONSOLE EXPEDITION W/ DUAL ZONE EATC NAVIGATOR W/ DUAL ZONE EATC EXPEDITION W/ NAVIGATION SYSTEM EXPEDITION, NAVIGATOR EXPEDITION, W/O CENTER CONSOLE FLOOR SHIFTER FLOOR SHIFTER CONSOLE 2 POWER POINT FLOOR SHIFTER ELECTRONIC COMPASS FOG LAMPS FOLD IN/ FOLD OUT FOLD OUT FOLD-IN FRONT CIGAR LIGHTER FRONT OF SEAT FUEL INJECTORS FUSIBLE LINK A (12 GA- FUSIBLE LINK B (12 GA- FUSIBLE LINK C (18 GA- FWD RWD GND VPWR GND VSS GROUND REVERSE SENSE GROUND SENS SIG HEAD AUTO HEAT IND HEATED OXYGEN SENSORS HI LO HI REST HIGH BEAM IND HIGH PITCH HORNS SYSTEM HOT AT ALL TIMES HOT IN HOT IN RUN HOT IN RUN OR ACC HOT IN RUN OR START HOT IN START OR RUN IAT INPUT IAT INPUT SW POWER OUT ILLUM GROUND ILLUM PWR ILLUMINATION DIMMER (BEHIND RIGHT SIDE INJ 1 CTRL INJ 2 CTRL INSTRUMENT CLUSTER INSTRUMENT CLUSTER BRAKE SHIFT INTERLOCK INSTRUMENT PANEL POWER POINT INSTUMENT CLUSTER SYSTEM ISO VPWR AIR BAG STAGE 2+ AIR BAG STAGE 2- KEY IN KICK PANEL) KS 1 - CKP - L DVD SIG + LATE PRODUCTION LATE PRODUCTION EARLY PRODUCTION LCD DISPLAY LCD DISPLAY IND LEFT EXTERIOR REAR VIEW MIRROR LEFT FRONT LUMBAR ADJUST LEFT FRONT TWEETER LEFT HEATED MIRROR LEFT REAR LEFT RIGHT LEFT TURN SIGNAL LEFT TURN SIGNAL IND LIFTGATE CHIME MODULE LOGIC GROUND LOW AUD MUTE LOW BRAKE FLUID LEVEL/PARK BRAKE IND LOW FUEL IND LOW OIL PRESSURE IND LOW OIL PRESSURE/HIGH COOLANT TEMPERATURE IND LOW TIRE PRESSURE MODULE LOW WASHER FLUID IND LR SOL VLV RR SOL VLV SOL - SOL + LT DK LT DK LT LT LT LT LT LT ULTRASONIC SIG RT ULTRASONIC SIG LUMBAR CIRCUIT MAF OUTPUT MAF SIG RTN MANUAL A/C MEDIA NEXT MEMORY MIRRORS CIRCUIT MEMORY SET MIX FLOOR MUTE SIG NAV CAN - NAVIGATION SYSTEM NAVIGATION SYSTEM 813 801 803 NAVIGATION SYSTEM WARNING SYSTEM NAVIGATOR 1 2 3 NAVIGATOR W/O NAVIGATION SYSTEM NAVIGATOR, EXPEDITION W/O CENTER CONSOLE NAVIGATOR, W/ NAVIGATION SYSTEM NEAR BREAKOUT TO O/D OFF IND OD CANCEL SW OD CANCEL SW GROUND SERVO SIG B OF DASH) OF FIREWALL) OFF OFF OFF PARK ON OFF ON WITH ANY DOOR OPEN ONE- TOUCH DOWN ONE- TOUCH UP ONE- TOUCH DOWN ONE- TOUCH UP PARK OFF PASS HI LO PASS LO PASSENGER SEAT PASSENGER SIDE CLIMATE CONTROLLED SEAT CUSHION ELEMENT PASSENGER SIDE CLIMATE CONTROLLED SEAT FAN PASSENGER SIDE CLIMATE CONTROLLED SEAT MODULE PASSENGER SIDE CLIMATE CONTROLLED SEAT MODULE (UNDER PATE IND PATS IND PCM SIG POWER DISTRIBUTION SYSTEM POWER LIFTGATE MODULE POWER WINDOWS SYSTEM PROTOCOL A PROTOCOL A PROTOCOL B GROUND GROUND LEFT - RIGHT - PROTOCOL B PROTOCOL B PROTOCOL A PULSE WIDTH MODULE PWR PWR PWR R DVD SIG + R DVD SIG + L DVD SIG + SHIELD RADAR SIG REAR INTEGRATED CONTROL PANEL REAR OF SEAT REAR WINDOW DEFROST GRID REAR WIPER REFERENCE VOLTAGE RIGHT EXTERIOR REAR VIEW MIRROR RIGHT FRONT TWEETER RIGHT HEATED MIRROR RIGHT REAR RIGHT TURN SIGNAL RIGHT TURN SIGNAL IND ROOF OPENING PANEL MODULE RTN SIG RTN SIG SAFETY BELT IND SCP BUS - NAV CAN - SCP+ SEATS SYSTEM SET 1 SET 2 SET- SHIELD SHIELD SHIFT INTERLOCK SYSTEM SHIFT SOL A SHIFT SOL B SHIFT SOLENOIDS SHORTING BAR SIDE OF DASH) SIG RTN SIG RTN- SIG RTN- SIGNAL + REF/GND SIGNAL + REF/GND SIGNAL + REF/GND SIGNAL + SIGNAL - SIGNAL + SIGNAL - 1 1 1 SIGNAL RETURN SOUND SYSTEMS SOUND, MIRRORS SYSTEMS SPEED CONTROL IND ST WHL CTRL GND STAGE 1 STAGE 2 STARTING/ CHARGING SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM SW SIG TFT INPUT TPS INPUT TPS INPUT CYL HEAD TMP SNS COP 6 CTRL TPS SIGNAL TRACTION CONTROL IND TRAILER/CAMPER ADAPTER CIRCUIT TRANSFER CASE ASSEMBLY TRANSFER CASE) TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN SIGNAL TWISTED PAIR TWISTED PAIR 915 914 3049 1 1002 57 TWISTED PAIR TWISTED PAIR TX RX UBP BUS UP DN UP DOWN UP/ CLOSE VBATT CAN BUS + SIG RETURN VENT NORM MAX VOL VOL VPWR TONE DRIVER VPWR VPWR VPWR VPWR GND VPWR +/- VPWR VREF VREF PWR VREF PWR PWR PWR VREF SIG RTN VREF VREF VREF VREF VREF VREF VREF VREF VBATT VREF W/ AIR SUSPENSION W/ CENTER CONSOLE W/ DRL W/ EATC W/ MANUAL A/C W/ MEMORY W/ MEMORY, CLIMATE CONTROLLED SEATS W/ MEMORY, W/O CLIMATE CONTROLLED SEATS W/ NAVIGATION W/ NAVIGATION SYSTEM W/ POWER FOLDING MIRROR W/ POWER FOLDING SEATS W/ POWER LIFTGATE W/ SAFETY CANOPY W/O CENTER CONSOLE W/O EATC W/O IVD W/ IVD W/O MANUAL A/C W/O MEMORY W/O NAVIGATION W/O NAVIGATION SYSTEM W/O NAVIGATION SYSTEM W/ NAVIGATION SYSTEM W/O POWER FOLDING MIRROR NAVIGATOR EXPEDITION W/O POWER LIFTGATE W/O POWER LIFTGATE W/ POWER LIFTGATE W/O SAFETY CANOPY WASHER FLUID RESERVOIR) WINDSHIELD WIPER WIPER/ WASHER SYSTEM
