Lincoln MKZ II (2012-2016) vbatt fan fb fan pwm gnd Wiring diagram
This page shows the only wiring diagram for the component.vbatt fan fb fan pwm gnd, which is found in the car Lincoln MKZ II (2012-2016). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

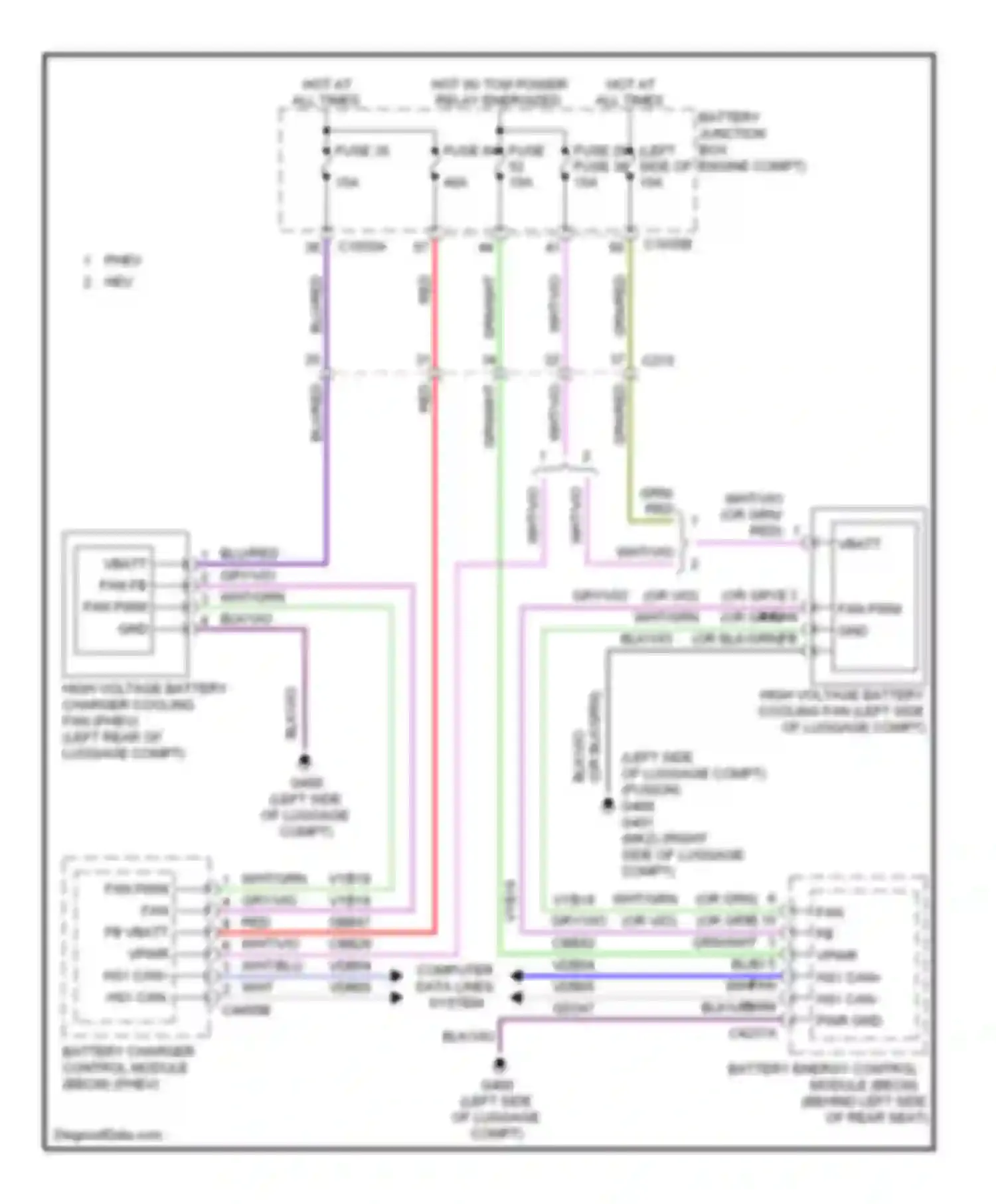

Wiring diagram vbatt fan fb fan pwm gnd (1 of 1)
2 3 4 FAN FB FAN PWM GND
6 15 10 3 13 5 FAN PWM FAN FB VPWR
BATTERY CHARGER CONTROL MODULE (BECM) (PHEV)
BATTERY ENERGY CONTROL MODULE (BECM) (BEHIND LEFT SIDE OF REAR SEAT)
BATTERY JUNCTION BOX
BLK/VIO WIRE
BLU WIRE
BLU/RED WIRE
COMPUTER DATA LINES SYSTEM
FAN PWM FAN FB VBATT VPWR
FUSE 29 FUSE 36 (LEFT SIDE OF ENGINE COMPT)
FUSE 35
FUSE 52 FUSE 64
GRN WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRY/VIO WIRE
HIGH VOLTAGE BATTERY CHARGER COOLING FAN (PHEV) (LEFT REAR OF LUGGAGE COMPT)
HIGH VOLTAGE BATTERY COOLING FAN (LEFT SIDE OF LUGGAGE COMPT)
HOT AT ALL TIMES
HOT W/ TCM POWER RELAY ENERGIZED
PHEV HEV
PWR GND
RED WIRE
VBATT
VBATT FAN FB FAN PWM GND
WHT WIRE
WHT/BLU WIRE
WHT/GRN WIRE
WHT/VIO WIRE
Go to component -> Hybrid cooling fan circuit, hybrid -> VBATT FAN FB FAN PWM GND
