Lincoln MKZ II (2012-2016) mega fuse Wiring diagrams
This page contains all the electrical diagrams for the component. mega fuse, in which he is found in the car Lincoln MKZ II (2012-2016). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

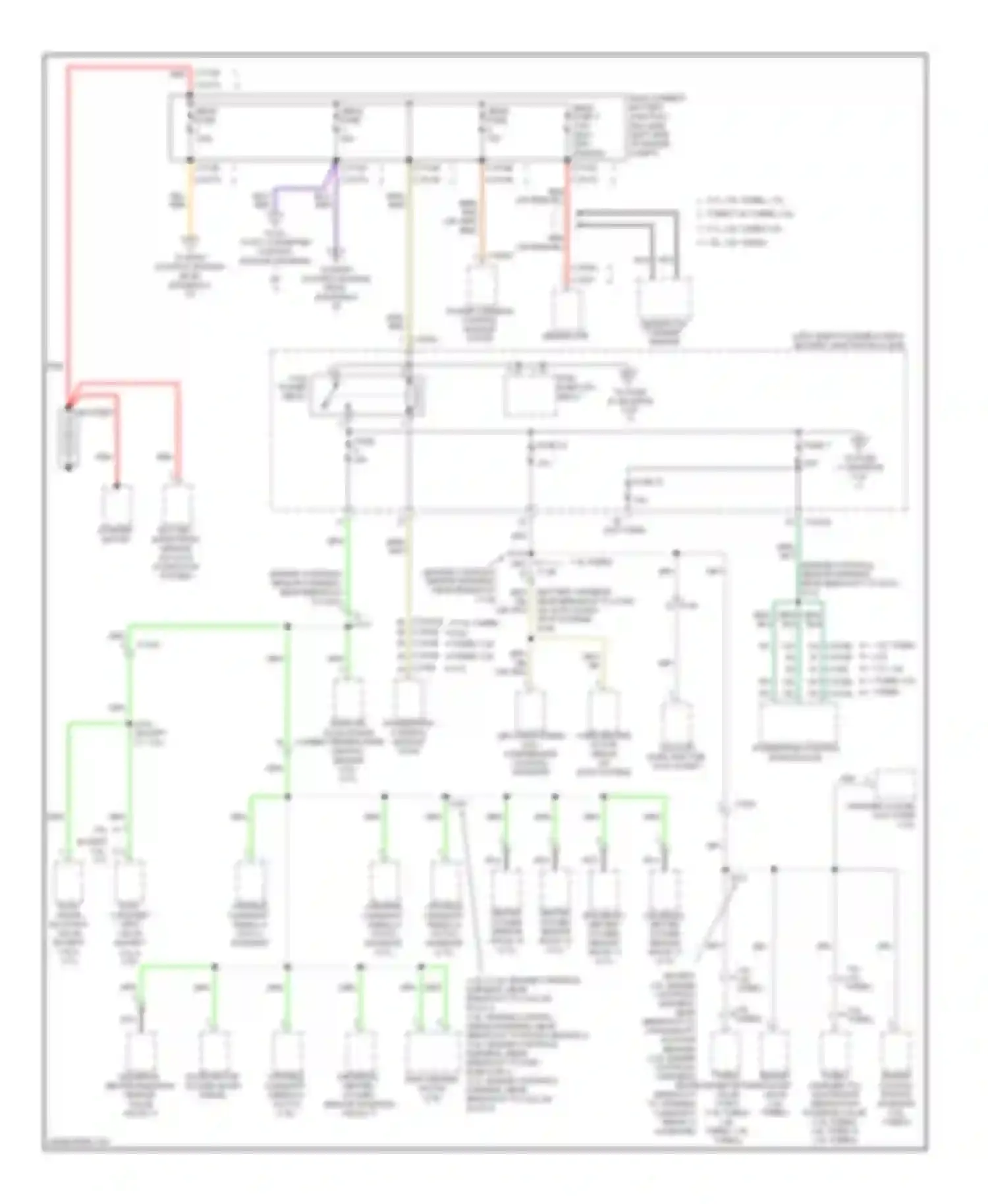

mega fuse wiring diagram (1 of 2)
1.5L TURBO 2.0L TURBO 1.6L TURBO 2.5L 3.7L
1.5L TURBO 2.5L 3.7L 1.6L TURBO 2.0L TURBO
1.5L, 1.6L TURBO
2.0L TURBO
2.5L 3.7L
2.5L EXCEPT
3.7L, 2.0L TURBO 2.5L, 1.6L, 1.5L TURBO
3.7L, 2.0L TURBO, 1.5L TURBO 1.6L TURBO, 2.5L
AIR CONDITIONING (A/C) COMPRESSOR CONTROL SOLENOID
BATTERY
BATTERY MONITORING SENSOR (W/ AUTO START/STOP SYSTEM)
BLU WIRE
BRN WIRE
CABIN HEATER ACTIVE COOLANT GRILLE PUMP SHUTTER (W/ AUTO START/ STOP SYSTEM)
CHARGER COOLER (CAC) PUMP
ENGINE COOLANT VALVE (1.6L TURBO)
FUEL PUMP (FP) RELAY
FUSE
FUSE 12
FUSE 27
FUSE 7
FUSION
GENERATOR
GENERATOR CURRENT SENSOR
GRN WIRE
GRY WIRE
HEATED HEATED OXYGEN OXYGEN SENSOR SENSOR
HIGH CURRENT BATTERY JUNCTION BOX (BJB) (LEFT SIDE OF ENGINE COMPT)
MASS AIR FLOW INTAKE AIR TEMPERATURE (MAF/IAT) SENSOR (2.5L, 3.7L)
MEGA FUSE
MEGA FUSE 8
NCA WIRE
PCM POWER RELAY
POWER STEERING CONTROL MODULE (PSCM)
POWERTRAIN CONTROL MODULE (PCM)
RED WIRE
SOLENOID
SOLENOID (3.7L)
STARTER MOTOR
TO BODY CONTROL MODULE (BCM) (DIAGRAM 4 OF 7)
TO BODY CONTROL MODULE (BCM) (DIAGRAM 6 OF 7)
TO DC TO DC CONVERTER CONTROL MODULE (DIAGRAM 7 OF 7)
TO FUSE 11 (DIAGRAM 2 OF 7)
TO FUSE 37 (DIAGRAM 2 OF 7)
TURBO- CHARGER BYPASS VALVE (TCBY) (1.6L TURBO, 2.0L TURBO, 1.5L TURBO)
UNIVERSAL EVAPORATIVE HEATED EMISSION OXYGEN (EVAP) SENSOR PURGE VALVE
UNIVERSAL UNIVERSAL HEATED HEATED OXYGEN OXYGEN SENSOR SENSOR
VARIABLE CAMSHAFT TIMING 11
VARIABLE CAMSHAFT TIMING 21
VARIABLE CAMSHAFT TIMING 22
VARIABLE UNIVERSAL CAMSHAFT HEATED TIMING 12 OXYGEN SENSOR SOLENOID (2.5L)
WHT WIRE
YEL WIRE
Go to component -> Power distribution circuit, except hybrid (1 of 7) -> MEGA FUSE

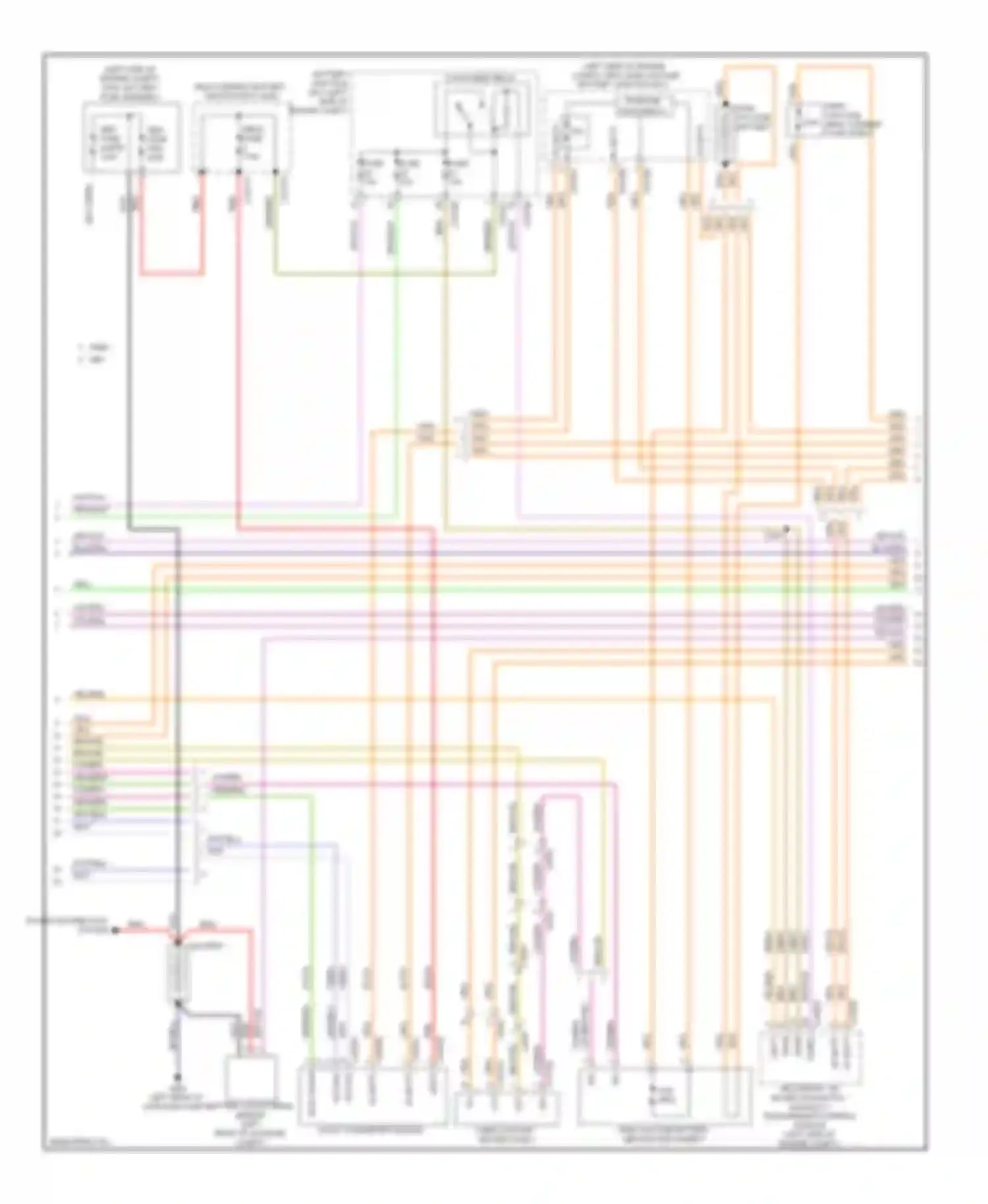

mega fuse wiring diagram (2 of 2)
BATTERY
BATTERY JUNCTION BOX (LEFT SIDE OF ENGINE COMPT)
BATTERY MONITORING SENSOR (LEFT REAR OF LUGGAGE COMPT)
BLK/BLU WIRE
BLU/ORG WIRE
BRN WIRE
BRN/YEL WIRE
CABIN COOLANT HEATER (PHEV)
DC/DC CONVERTER MODULE
DCDC WKUP
FUSE
FUSE FUSE
GRN WIRE
GRN/BRN WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRY/VIO WIRE
HEV
HIGH CURRENT BATTERY JUNCTION BOX (BJB)
HIGH VOLTAGE BATTERY
HIGH VOLTAGE BATTERY SERVICE DISCONNECT
HIGH VOLTAGE HIGH CURRENT FUSE (PHEV)
HS CAN+
HV BATT -
HV-
INT-
MEGA FUSE
MIDI MIDI FUSE FUSE WHITE PNK WIRE
NCA WIRE
ORG/ WIRE
PHEV HEV
POSITIVE PACK RELAY
POWER DISTRIBUTION SYSTEM
RED WIRE
TCM POWER RELAY
TCMRC
VBATT
VIO/BRN WIRE
VIO/GRN WIRE
VPWR
WHT WIRE
WHT/BLU WIRE
WHT/VIO WIRE
YEL/RED WIRE
Go to component -> Wiring diagram engine performance 2.0l turbo hybrid (6 of 10) -> MEGA FUSE
