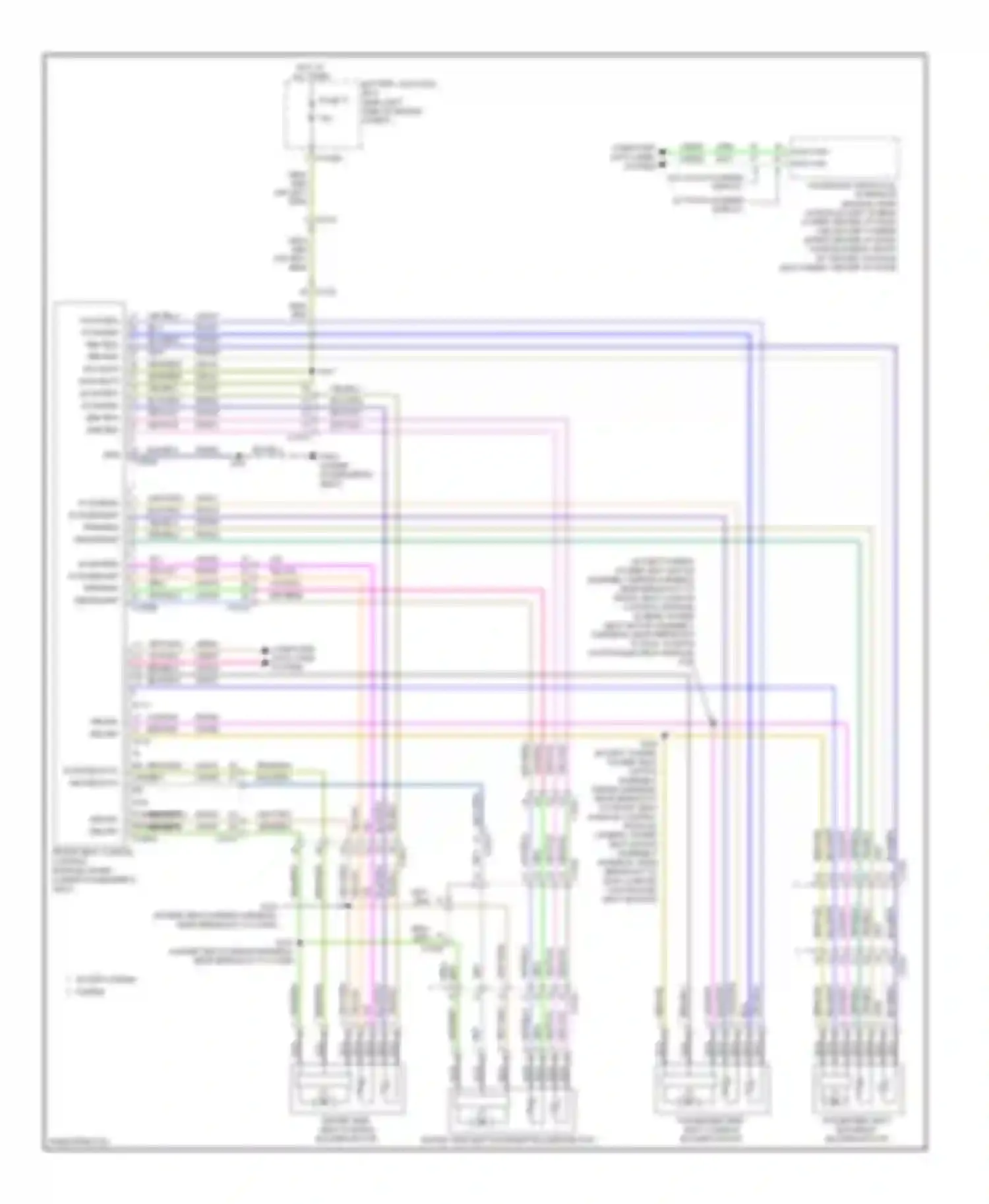

Lincoln MKZ II (2012-2016) driver side seat backrest blower motor Wiring diagram

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 MS CAN+ MS CAN- PCSHCBLWCTL PBCKBLWCTL ACCESSORY PROTOCOL INTERFACE MODULE (APIM) BATTERY JUNCTION BOX (BJB) (LEFT SIDE OF ENGINE COMPT) BLK/BLU WIRE BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/ORG WIRE BLU/WHT WIRE BRN WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/YEL WIRE COMPUTER DATA LINES SYSTEM DBLWR- DBLWR+ DCSHCBLWCTL DBCKBLWCTL DCSHSENS DCSHSENSRT PBKSENS DBKSENSRT DRIVER SIDE SEAT BACKREST BLOWER MOTOR DRIVER SIDE SEAT CUSHION BLOWER MOTOR DUAL CLIMATE CONTROLLED SEAT MODULE EXCEPT HYBRID HYBRID FRONT SEAT CLIMATE CONTROL MODULE (SCME) (UNDER PASSENGER'S SEAT) FUSE 77 GRN WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/RED WIRE GRN/VIO WIRE GRY WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/ORG WIRE GRY/VIO WIRE HOT AT ALL TIMES NCA WIRE ORG/ WIRE PASSENGER SEAT BACKREST BLOWER MOTOR PASSENGER SIDE SEAT CUSHION BLOWER MOTOR PBLWR- PBLWR+ PCSHSENS PCSHSENSRT PBKSENS PBKSENSRT RED WIRE VIO WIRE VIO/ORG WIRE VIO/WHT WIRE W/O TOUCH SCREEN DISPLAY W/ TOUCH SCREEN DISPLAY WHT WIRE WHT/BLU WIRE WHT/ORG WIRE WHT/VIO WIRE YEL/BLU WIRE YEL/VIO WIRE
