Lincoln MKZ I (2006-2009) panel dim gnd Wiring diagrams
This page contains all the electrical diagrams for the component. panel dim gnd, in which he is found in the car Lincoln MKZ I (2006-2009). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

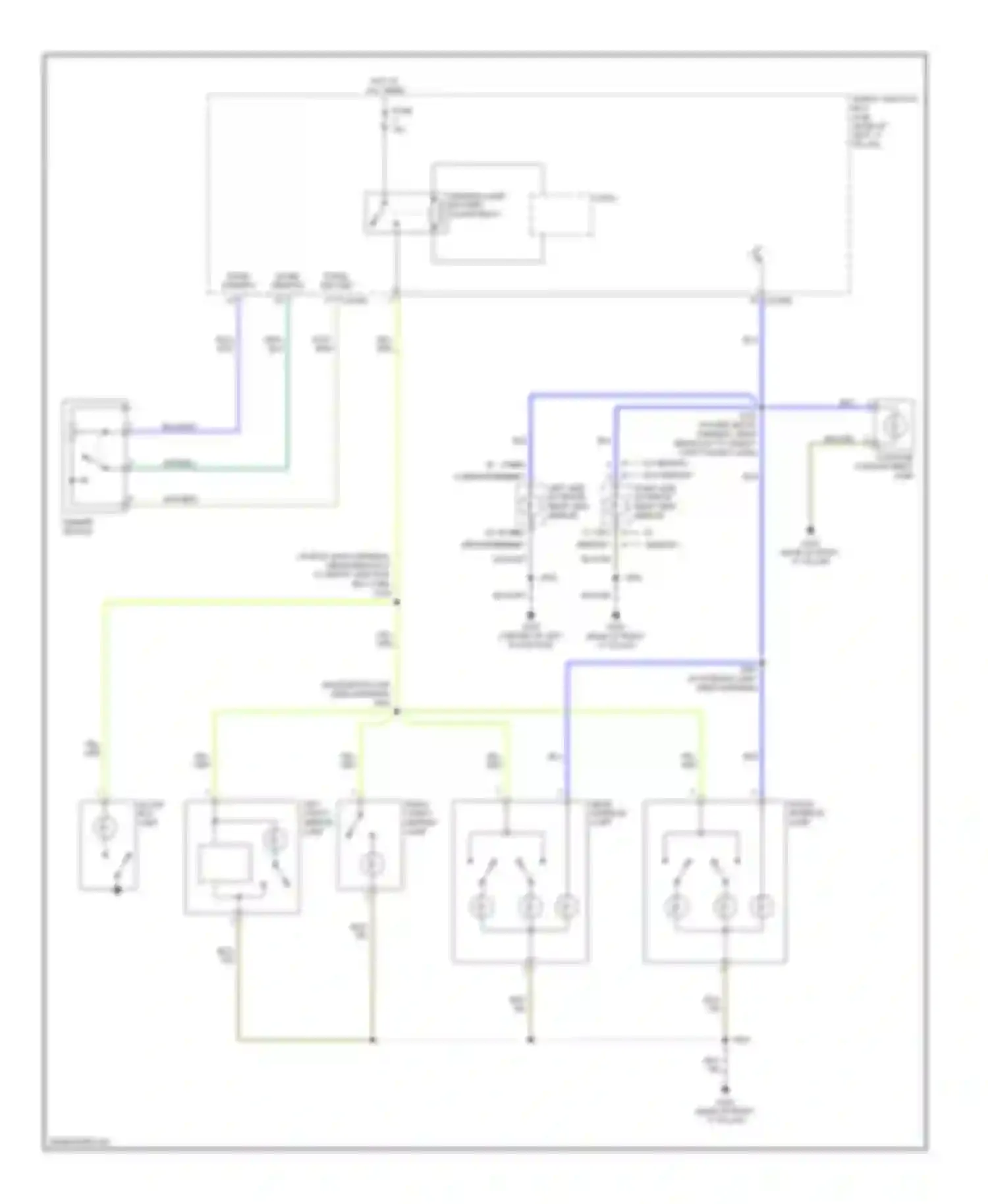

panel dim gnd wiring diagram (1 of 2)
5 4 W/ MEMORY W/O MEMORY
6 7 W/O MEMORY W/ MEMORY
BLK WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
BLU/WHT WIRE
BREAKOUT TO SMART JUNCTION BOX (SJB))
BRN WIRE
DEMAND LAMP/ BATTERY SAVER RELAY
DIMMER SWITCH
DOME DEMAND
FRONT INTERIOR LAMP
FUSE
GLOVE BOX LAMP)
GRN WIRE
GRN/BLU WIRE
HOT AT ALL TIMES
LEFT SIDE EXTERIOR REAR VIEW MIRROR
LEFT VANITY MIRROR LAMP
LOGIC
LUGGAGE COMPARTMENT LAMP
PANEL DIM GND
PANEL DIMMING
REAR INTERIOR LAMP
RIGHT SIDE EXTERIOR REAR VIEW MIRROR
RIGHT VANITY MIRROR LAMP
SMART JUNCTION BOX (SJB)
W/ MEMORY W/O MEMORY
WHT WIRE
WHT/BRN WIRE
YEL WIRE
Go to component -> Courtesy lamps circuit -> PANEL DIM GND

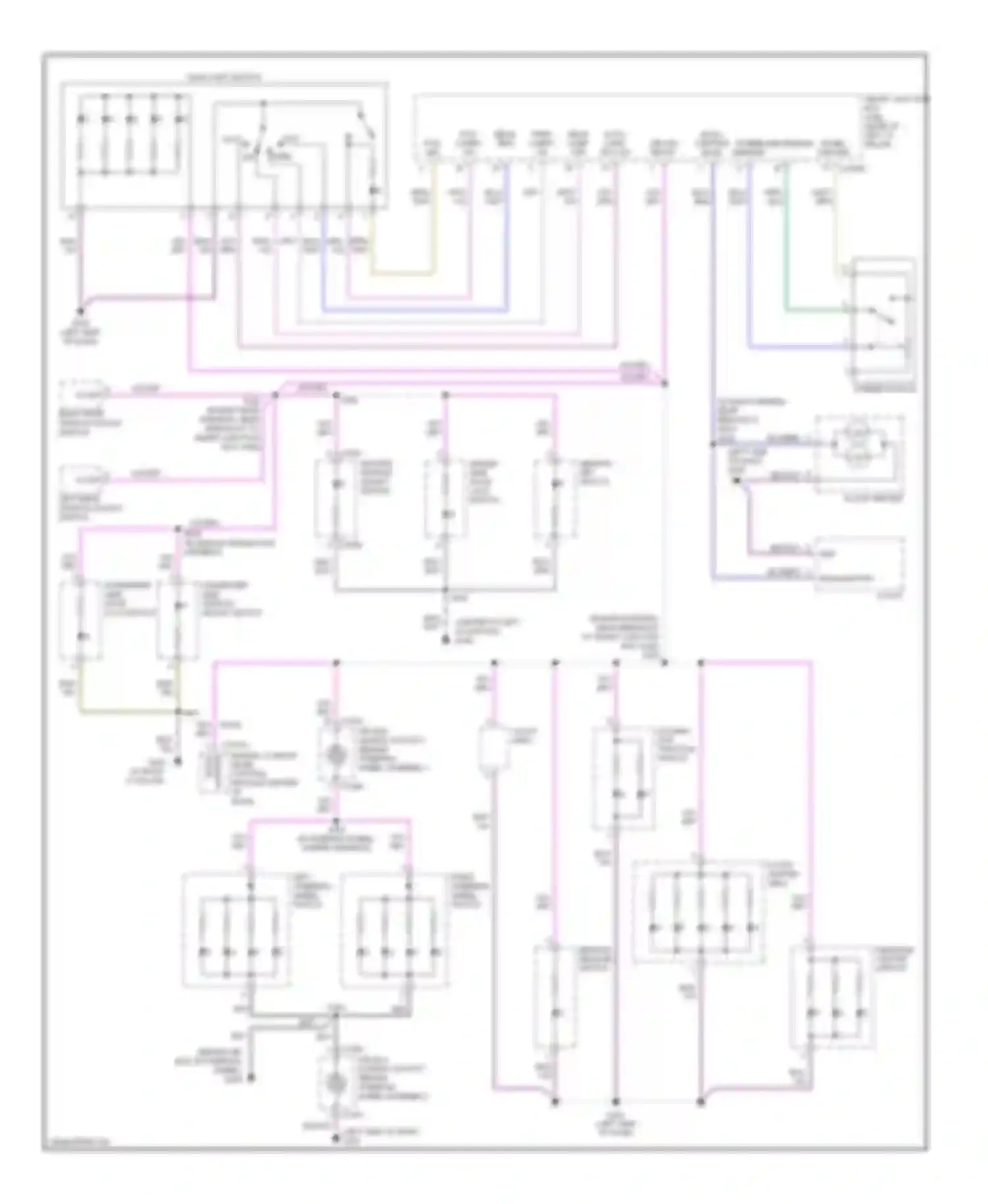

panel dim gnd wiring diagram (2 of 2)
AIR BAG SLIDING CONTACT (BEHIND STEERING WHEEL ASSEMBLY)
AUTO
BACK- LIGHTING
BACK- LIGHTING BULB PANEL DIMMING DOME DEMAND
BACKLIGHTING
BLK WIRE
BLK/VIO WIRE
BLU WIRE
BLU/BRN WIRE
BRN WIRE
CLOCK
CLOCK (MKZ)
DECKLID RELEASE SWITCH
DIMMER SWITCH
FLOOR SHIFTER
FLOOR SHIFTER (MKZ)
FOG- LAMPS ON FOG IND
GRN WIRE
GRY WIRE
HAZARD/ PAD/ TRACTION SWITCH
ILLUM
LED SW BKLGT
LEFT REAR WINDOW ADJUST SWITCH
LEFT STEERING WHEEL SWITCH
MAIN LIGHT SWITCH
MANUAL CLIMATE (BASE OF RIGHT CONTROL "A" PILLAR) MODULE (CENTER OF DASH)
MASTER WINDOW ADJUST SWITCH
MEMORY DRIVER SIDE SET SWITCH DOOR LOCK SWITCH
MESSAGE CENTER SWITCH
OFF
PANEL DIM GND
PARK
PARK LAMPS ON HEAD LAMP OFF AUTO- LAMP ON LOW BEAM REQ
PASSENGER SIDE DOOR LOCK SWITCH
PASSENGER SIDE WINDOW ADJUST SWITCH
RIGHT REAR WINDOW ADJUST SWITCH
RIGHT STEERING WHEEL SWITCH
SMART JUNCTION BOX (SJB)
VIO WIRE
VIO/GRY WIRE
WHT WIRE
YEL WIRE
Go to component -> Instrument illumination circuit -> PANEL DIM GND
